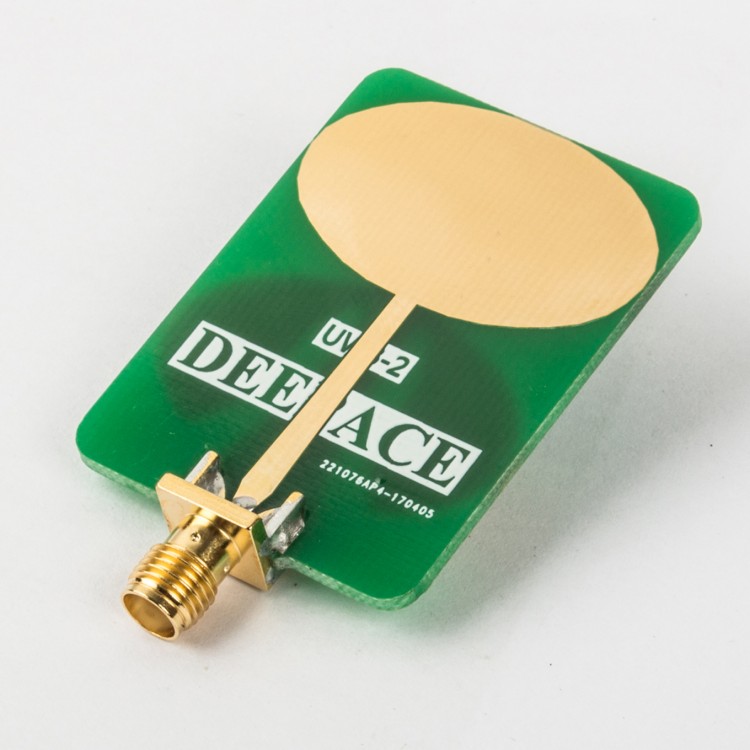

Deepace UWB-2 2.8GHz-11GHz Monopole Ultra-wideband Antenna Omnidirectional Antenna 3.8dBi Gain
Description:
Deepace UWB-2 is a monopole ultra-wideband omnidirectional antenna. The antenna is mainly used for ultra-wideband positioning and communication equipment. The antenna covers a frequency of 2.8GHz to 9GHz, typical standing wave value is below 1.5. It has excellent performance, small size, high efficiency and good consistency.
Specification:
Antenna impedance: 50 ohms
Power capacity: 5W
Frequency range: 2.8GHz-11GHz
Return loss: 10dB
Gain: 3.8dBi
Standing wave ratio: typical value 1.5 (2.8GHz-11GHz less than 2)
Connector type: SMA-K (female, external thread and inner hole)
Antenna size: 30mm * 42mm (without connector)

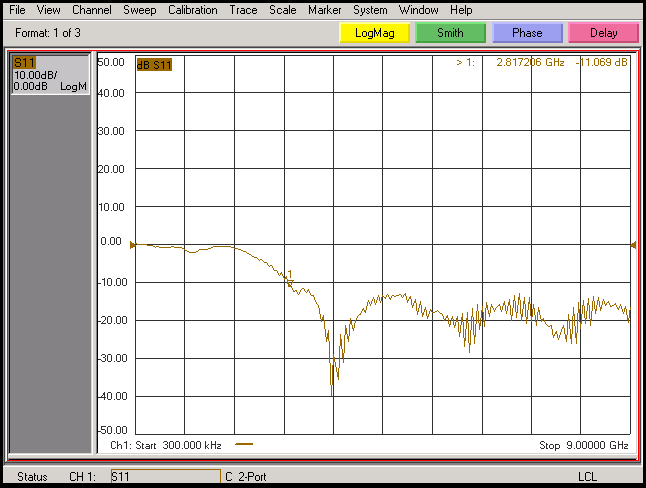

UWB-2 antenna return loss measurement data

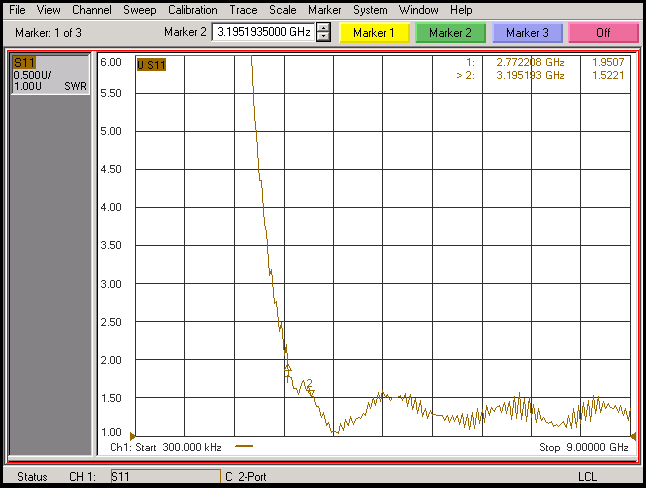

UWB-2 antenna standing wave ratio measurement data
Package List:
1 x Antenna
