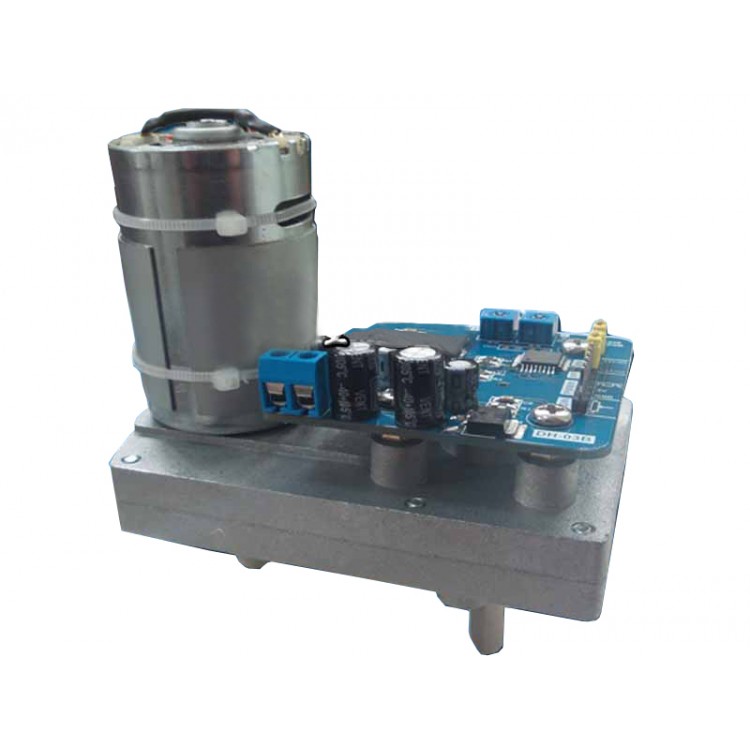

DH-03B 180KG/CM Large 300 Degree Max Servo Rotary Servo 12V-24V Large Torque
Description:
- 43A large current driving chip
- 12V-24V wide voltage power supply
- Servo model: DH-03B
- Unload current: <500mA
- Large torque: 180kg.cm(24V), 1764N.cm(24V), 90kg.cm(12V), 882N.cm(12V)
- Angular speed: 0.12s/60°, 24V 0.24s/60°,12V
Rotary angle: 300 degree max, 0-300 degree
Input mode:
- PWMIN is PWM pulsing signal (remote controller, multi channel servo controller, single chip machine)
- ADIN is analog voltage signal (potentiometer)
Pulsing signal input range:
- 0.5ms-2.5ms is suitable for all multi channel servo controller, 1ms-2ms multicopter remote controller, single chip programme, Arduino
Specs:
- Voltage signal input range: 0-5V
- Control precision: 0.5degree
- Weight: 530g
- Gear material: steel
- Size: 95.5mm X 60.5mm X 102.6mm
- Suitable for medium large size robot, mechanical arm, or large power large torque controlling aera
