DMX to RS485 Controller and RS485 to DMX Controller with USB Adapter for Stage Lighting Equipment
Description:
Two-Way Conversion
The controller supports bidirectional conversion, that is, RS485 to DMX512 and DMX512 to RS485.
Custom Mode
Customizable 30 bytes.
Four Working Modes
- Mode 1: DMX512 to RS485 command (for example, using DMX console to control one of the channels to control the lifting and lowering of the projector screen with RS485 interface);
- Mode 2: RS485 instruction to DMX512 signal (for example, the central control sends a few hexadecimal numbers, you can let the module output the corresponding channel value to achieve dimming, color grading, etc., and maintain these settings);
- Mode 3: DMX512 continuously outputs RS485 signal in batches (you can set how many channels can be output from a certain channel, and send a signal every 50ms);
- Mode 4: DMX512 to SPI function to control light strip signal [currently controllable single-line strip light models include: common 800K and 400K single-wire strip light such as WS2812, 2811, 2813, 2815, 16703 and 1903]
Power Supply
The module's DC power supply supports DC5V power supply, and it can also be connected to the terminal block from 9 to 24V power supply. It is flexible to use.
Package Included:

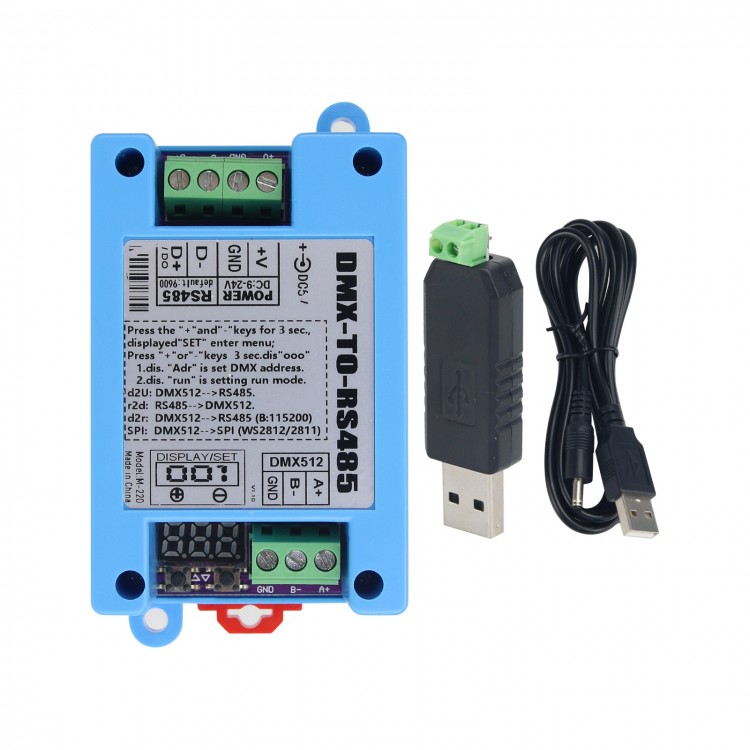

- 1 x DMX-TO-RS485 Module
- 1 x USB Adapter
