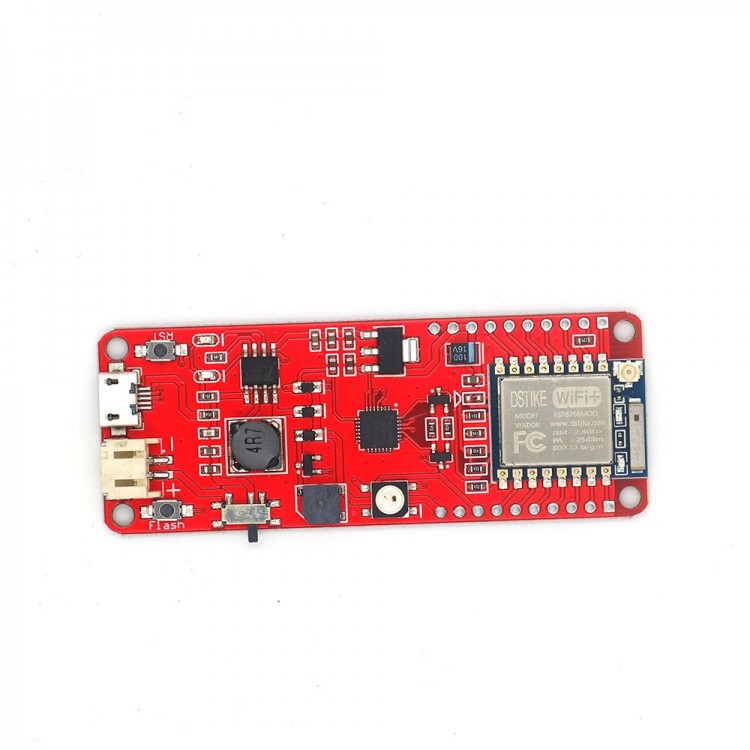

DSTIKE NodeMCU EVO NodeMCU Development Module 4MB ESP07 For Arduino USB Deauther Deauth Detector
What is it?
It is an upgrade version of NodeMCU with my customized 4MB ESP07. This product includes a 5DB FPC antenna. You can also add bigger antenna. If you want to reach the most effect of extra antenna you should remove the resistor beside ceramic antenna.
Why did you make it?
I retired NodeMCU-07 for a long time. Some customers keep asking this product so I decide to remake this product and bring back an upgrade version.
What makes it special?
- 4MB ESP-07
- Support 3.7V Li-battery
- Integrated with Buzzer (GPIO5)
- Integrated with RGB (GPIO4)
- Perfect for Arduino
- Perfect for NodeMCU https://github.com/nodemcu/nodemcu-firmware
- Perfect for USB Deauther https://github.com/lspoplove/D-duino-project/tree/master/NodeMCUEVO
- Perfect for Deauth Detector https://github.com/lspoplove/D-duino-project/tree/master/NodeMCUEVO
- 5V/1A Input/Output
- DemoCode https://github.com/lspoplove/D-duino-project/tree/master/NodeMCUEVO
- Schematic https://github.com/lspoplove/D-duino-project/tree/master/NodeMCUEVO
Package Included:
- 1 x 5DB Antenna
- 1 x NodeMCU EVO
- 1 x Pin Header
Note:
- Battery is not included.
