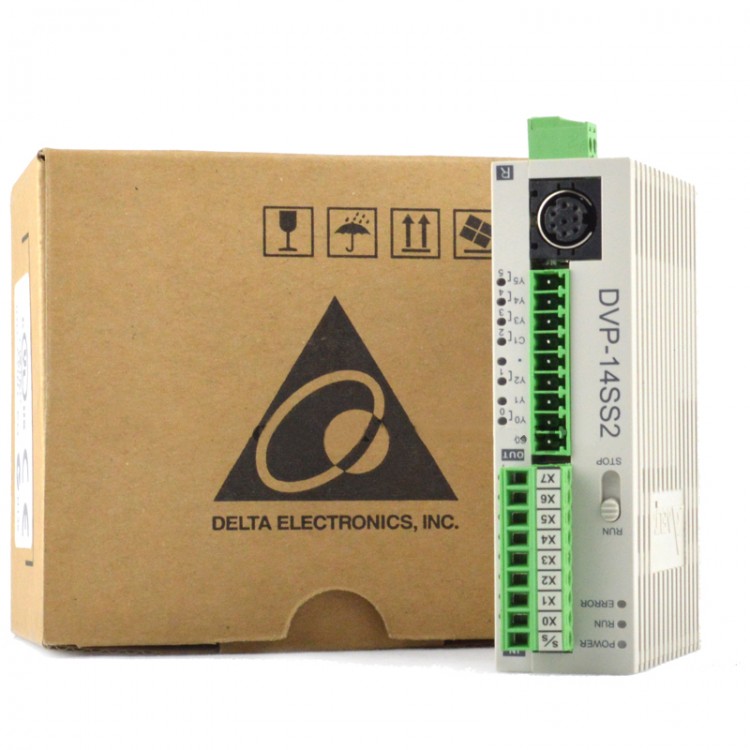

DVP14SS211T DVP-SS Series PLC Controller Original Programmable Logic Controller 8DI 6DO for Delta

DVP14SS211T DVP-SS Series PLC Controller Original Programmable Logic Controller 8DI 6DO for Delta

Features:
- Type: The second-generation thin host
- Host points: 14 points (8DI and 6DO)
- 8DI (including 2-channel 10K input) and 6DO (NPN/24Vdc/0.5A and 2-channel 20K output)
- Maximum I/O points: 480
- Program capacity: 8k steps; Device component D: 5k words, fully compatible with the original SS series host program
- Instruction execution speed: 0.35~1μs for basic instructions; 3.4μs for MOV instructions
- Built-in RS-232 and RS-485. Both are standard Modbus ASCII/RTU mode, which can be switched to Master/Slave
- High-speed pulse output provides 4 points of 10kHz pulse output
- High-speed input and external interrupt input up to 8 points (4 points 20kHz, 4 points 10kHz)

Electrical Specifications:
Overall:
- Model: DVP14SS211T
- Power supply voltage: 24VDC (-15% to 20%). DVPPS01 (PS02): Input 100-240VAC; Output 24VDC/1A (PS02: 2A)
- Inrush current: Max 7.5A at 24VDC
- Power Fuse Capacity: 1.85A/30VDC; recoverable (Polyswitch)
- Power consumption: 1.5W
- Power supply protection: DC input power with reverse polarity protection
- Insulation resistance: >5MΩ (500VDC between all output/input points to ground)
- Interference capability: ESD: 8kV Air Discharge. EFT: Power Line: 2kV, Digital l/O: 1kV, Analog & Comm. I/O: 250kV. RS: 26MHz~1GHz, 10V/m
- Grounding: The wire diameter of grounding wiring should not be smaller than that of power supply side wiring (when multiple PLCs are used at the same time, please ensure a single point grounding)
- Operating environment: 0℃ to 55℃ and 50~95% (humidity); Pollution degree: 2
- Storage environment: -25℃ to 70℃ and 5~95% (humidity)
- Vibration/Shock Resistance: International Standard Specifications IEC61131-2, IEC 68-2-6 (TEST Fc) /IEC61131-2 & IEC 68-2-27 (TEST Ea)
- Weight: 82.5G/0.2Lb

Electrical Specifications of Input Points:
- Condition: 24VDC (-15% to 20%) single-ended common input
- No. Of input points: X4~X7
- Input wiring type: Convert wiring to sink or source by terminal S/S
- Input signal voltage (±10%): 24VDC, 5mA
- Input Impedance: 4.7k Ohm
- Maximum input frequency: 10kHz
- Action tipping point: Off-On: >15VDC. On→Off: <5VDC
- Response time Interference suppression: Off→On: <20μs. On→Off: <50μs
- Filter time: 0~20ms can be adjusted by D1020 (default: 10ms)

Electrical Specifications of Output Points:
- Type: transistor
- No. of output points: Y0~Y3; Y4 and Y5
- Maximum switching frequency: 10kHz; 1kHz
- Output action indicator: LED light on means ON; LED light off means OFF
- Voltage Specification: 5~30VDC #1
- Current Specifications: Resistive: 0.5A per point (3A/COM). Inductive: 15W (30VDC). Lamp: 2.5W (30VDC)
- Response time: Off→On: 20μs; 100μs. On-Off: 30μs; 100μs

Attention:
#1: UP and ZP must have an auxiliary power supply of 24VDC (-15% to +20%). Rated consumption is about 1mA/point.
#2: Life cycle diagram see [Figure 2] in English version.

Input/Output Configuration:
- Input unit: 8 points; DC (sink or source)
- Output unit: 6 points; transistor (NPN)
- I/O Configuration: Transistor

Package Included:
- 1 x PLC Controller
