DYH-90B Tripod Leveling Base Leveling Head Load Capacity 15KG For Medium Large Format Cameras

Availability: Out Of Stock

  • Price:$168.00
  • Price in reward points: 1680 Reward Points: 17
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $164.64 $161.28 $156.24 $149.52 Contact US
Quantity:

DYH-90B Tripod Leveling Base Leveling Head Load Capacity 15KG For Medium Large Format Cameras

Description:

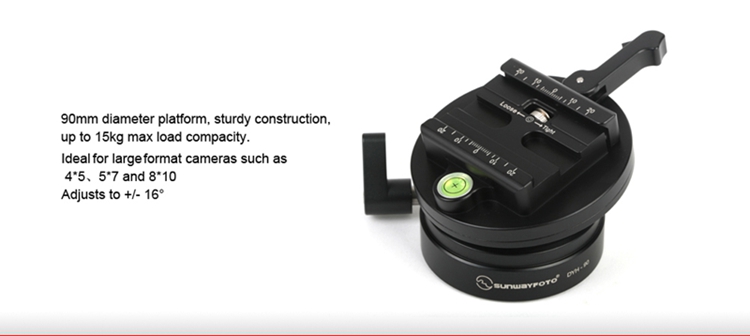

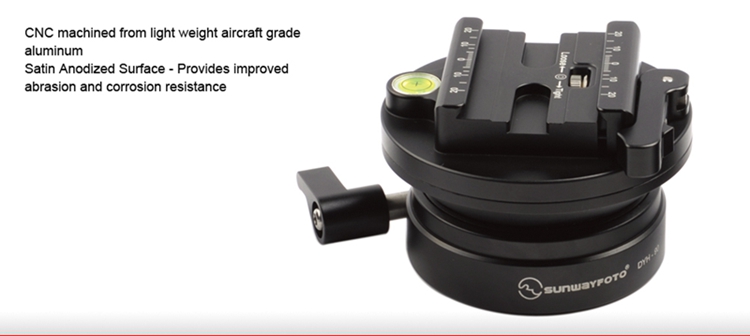

DYH-90B Leveling Base with a build-in lever-release clamp, CNC cutting machine from light weight aircraft-grade aluminum, stain anodized surface finish for better abrasion and corrosion resistant. Come with 90mm diameter platform, sturdy construction, up to 15kg max load capacity and super smooth fluid of adjust movement to +/-16 degree. It is ideal for medium/large format camera.

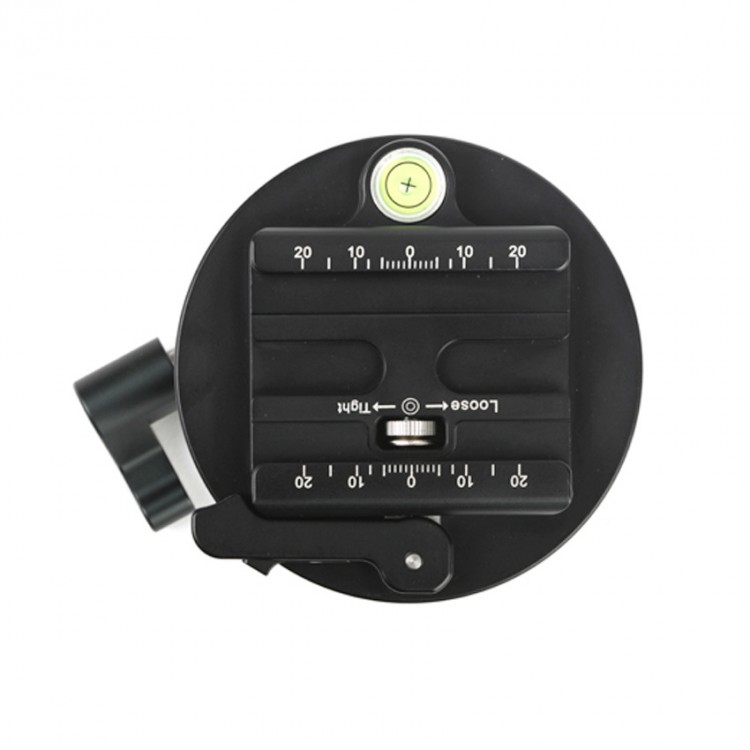

With a lever-release clamp on the platform allows you quickly drop your equipment into the clamp.

Note: The base locking Captive Knob can be adjusted at different positions. If the Captive Locking Knob Lever interferes with other equipment when turned, you may pull out the knob, and relocate it in a more convenient position.

Specifications:
- Model: DYH-90B
- Platform Diameter: 90mm
- Base: 76mm
- Height: 63mm
- Clamp: DDC-60LR
- Mount hole: UNC 3/8
- Net Weight: 527g

Package Included:
- 1 x Set of Leveling Base
