DYH-90i & DDY-64iL Leveling Base & Discal Clamp Load 15KG For Ball Head Medium & Large Format Cameras

Availability: In stock, usually dispatched in 1 business day

  • Price:$133.15
  • Price in reward points: 1332 Reward Points: 13
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $130.49 $127.82 $123.83 $118.50 Contact US
Quantity:

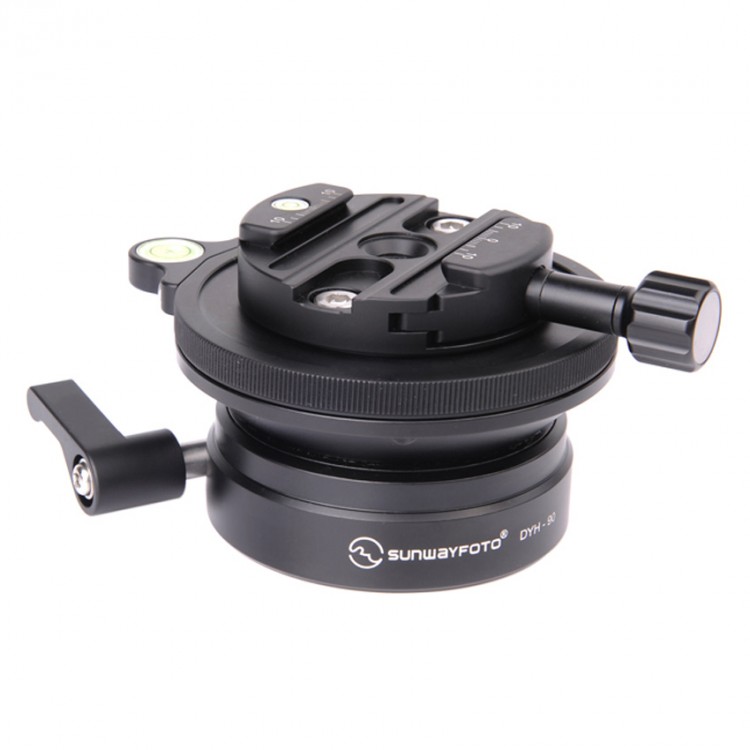

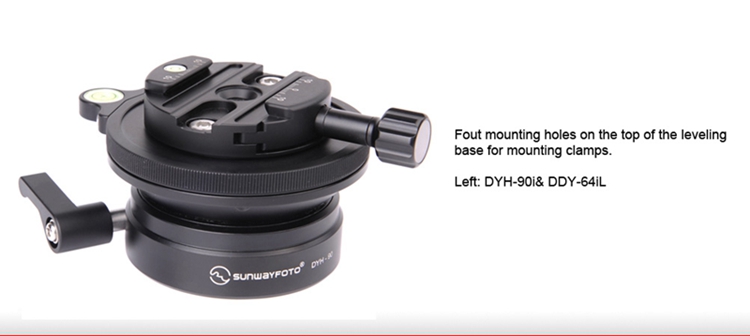

DYH-90i & DDY-64iL Leveling Base & Discal Clamp Load 15KG For Ball Head Medium & Large Format Cameras

DYH-90i

Description:

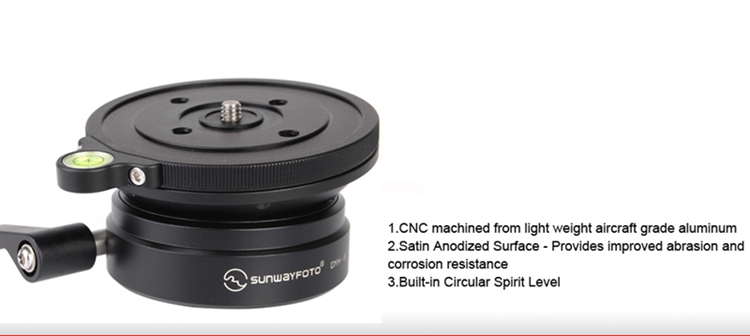

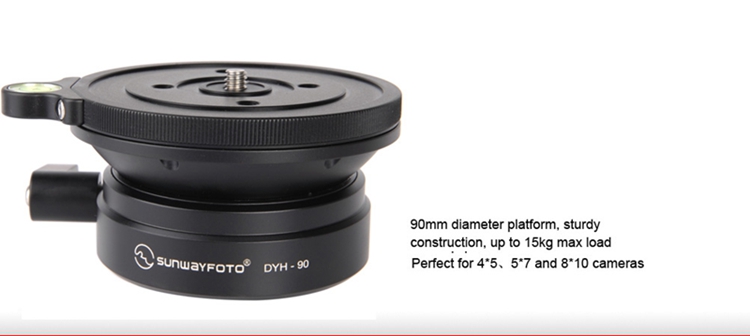

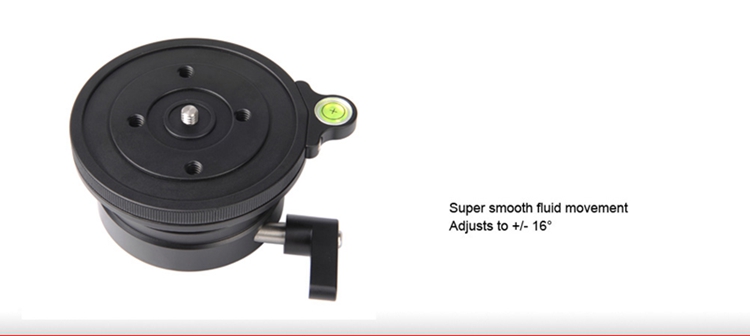

DYH-90i Leveling Base adopt CNC cutting machine from light weight aircraft-grade aluminum, stain anodized surface finish for better abrasion and corrosion resistant. Come with 90mm diameter platform, sturdy construction, up to 15kg max load capacity and super smooth fluid of adjust movement to +/-16 degree. It is ideal for medium/large format camera.

Offset bubble level.

Note: The base locking Captive Knob can be adjusted at different positions. If the Captive Locking Knob Lever interferes with other equipment when turned, you may pull out the knob, and relocate it in a more convenient position.

Specifications:
- Model: DYH-90i
- Platform Diameter: 90mm
- Base Diameter: 76mm
- Height: 50mm
- Platform Mounting screw: 1/4"-20
- Platform Mounting Hole: 1/4"
- Bottom Mounting hole: UNC 3/8
- Net Weight: 512.4g

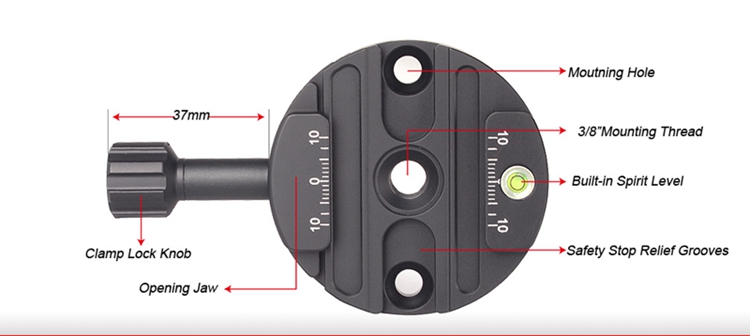

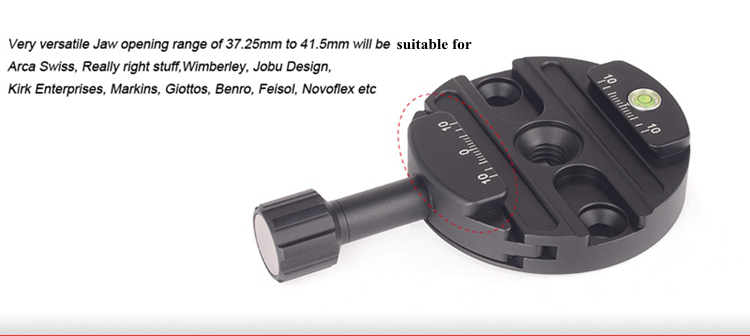

DDY-64iL:
- Model: DDY-64iL
- Diameter: 64mm
- Length: 98mm
- Height: 15.5mm

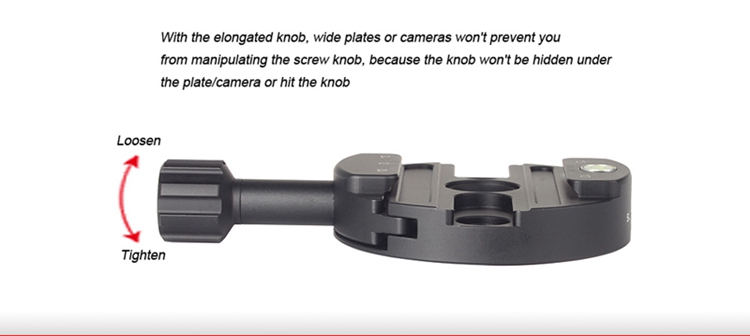

- Clamp: Screw-Knob

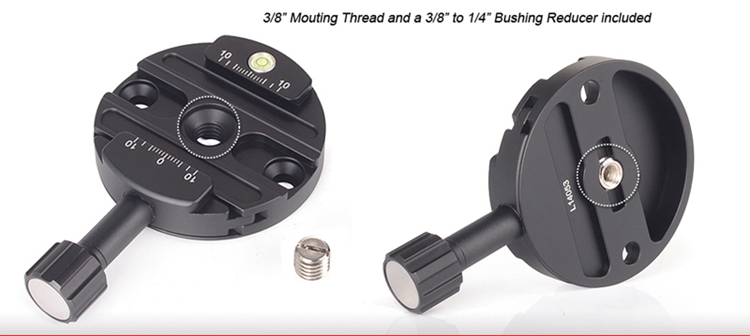

- Thread: UNC 3/8"
- Net Weight: 86g

Package Included:
- 1 x Set of Leveling Base & Discal Clamp
