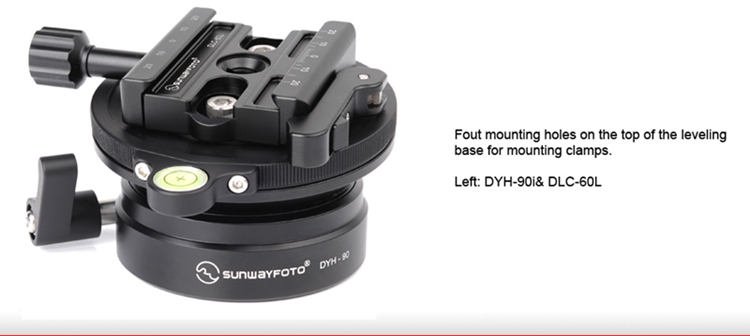

DYH-90i & DLC-60L Tripod Leveling Base Leveling Head & Screw Lever Combo Clamp Load Capacity 15KG

DYH-90i & DLC-60L Tripod Leveling Base Leveling Head & Screw Lever Combo Clamp Load Capacity 15KG

DYH-90i:
Description:

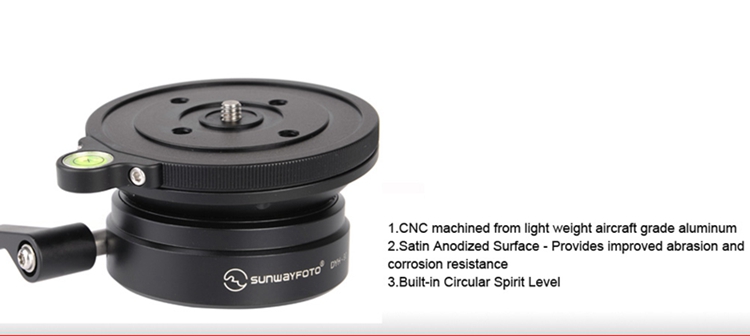

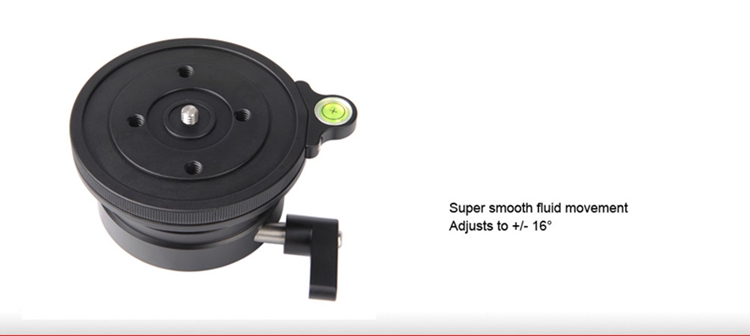

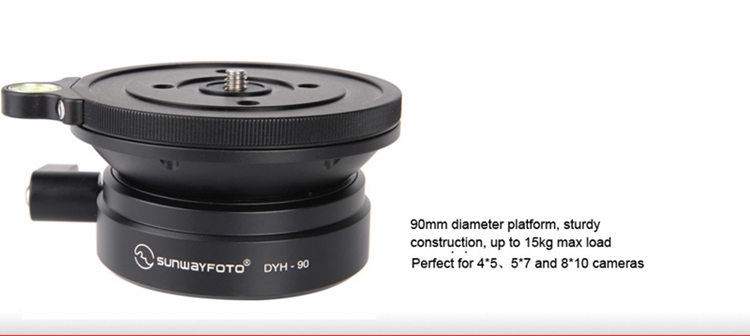

DYH-90i Leveling Base adopt CNC cutting machine from light weight aircraft-grade aluminum, stain anodized surface finish for better abrasion and corrosion resistant. Come with 90mm diameter platform, sturdy construction, up to 15kg max load capacity and super smooth fluid of adjust movement to +/-16 degree. It is ideal for medium/large format camera.

Offset bubble level.

Note: The base locking Captive Knob can be adjusted at different positions. If the Captive Locking Knob Lever interferes with other equipment when turned, you may pull out the knob, and relocate it in a more convenient position.

Specifications:
- Model: DYH-90i
- Platform Diameter: 90mm
- Base Diameter: 76mm
- Height: 50mm
- Platform Mounting screw: 1/4"-20
- Platform Mounting Hole:1/4"
- Bottom Mounting hole: UNC 3/8
- Net Weight: 512.4g

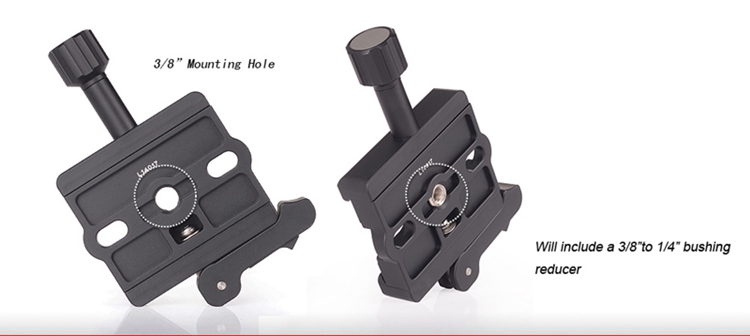

DLC-60L:
Description:
DLC-60L Screw/Lever Combo Clamp, CNC cutting machine from light weight aircraft-grade aluminum, stain anodized surface finish for better abrasion and corrosion resistant. Compatible with all plates for Arca-Swiss style.

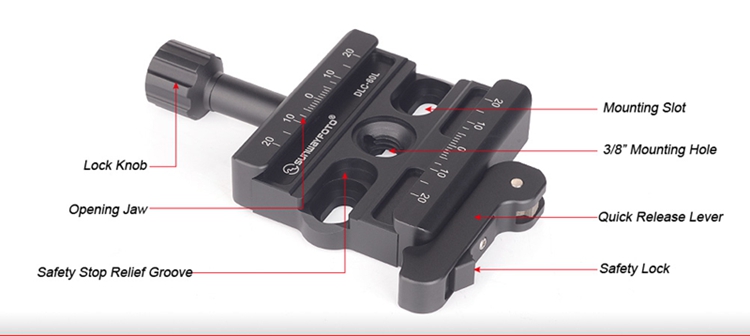

Features:

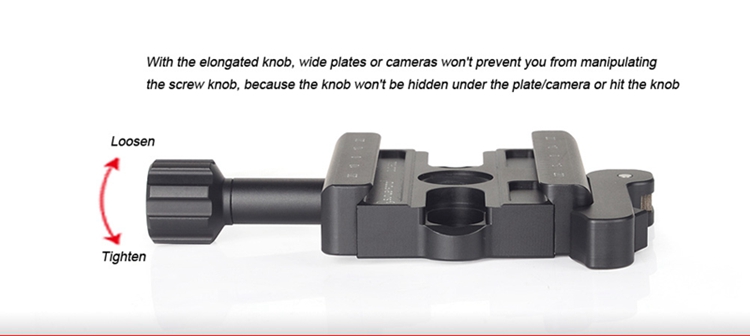

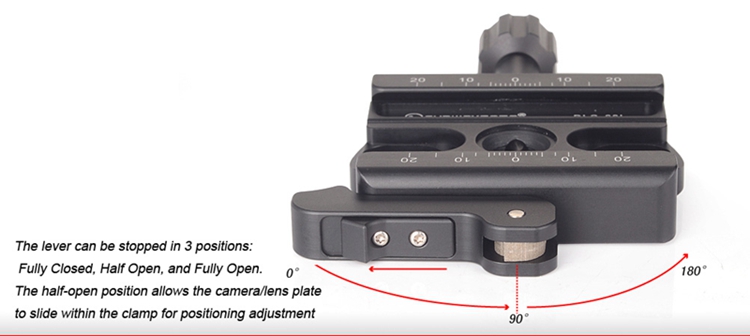

- Conventional screw knob clamp for precision, captive lever clamp for speed;
- Hollow out design, lighter;
- Safety stop relief grooves for protecting your camera from accident drops.

Specifications:
- Model: DLC-60L
- Jaw Length: 60mm

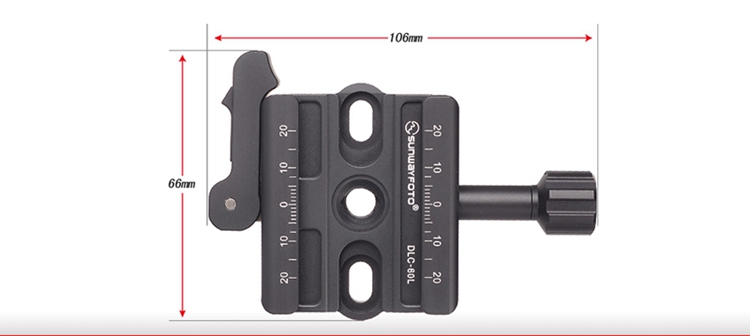

- Width: 106mm
- Thickness: 15mm
- Net Weight: 117g
- Screw: M5
- Thread: UNC 3/8"

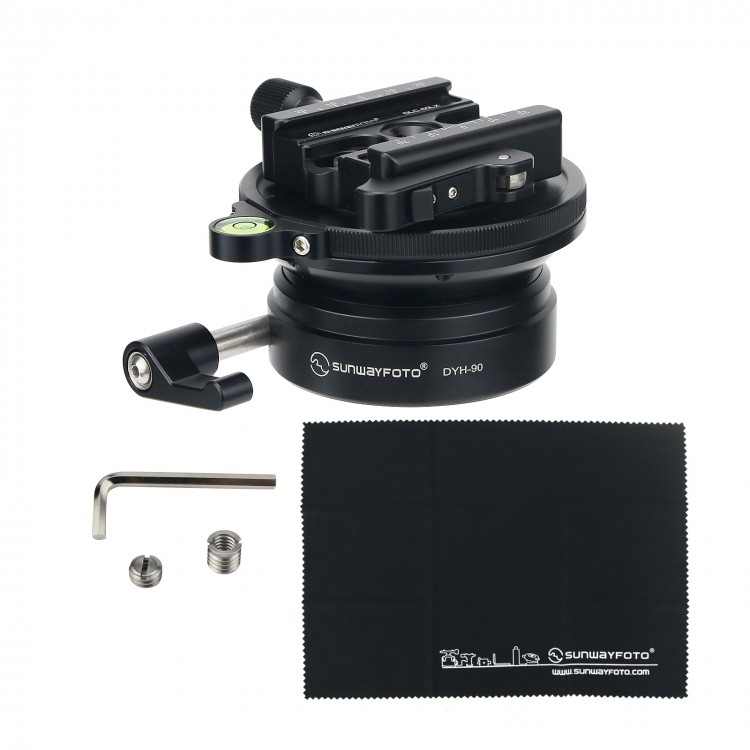

Package Included:
- 1 x Set of Leveling Base & Clamp
