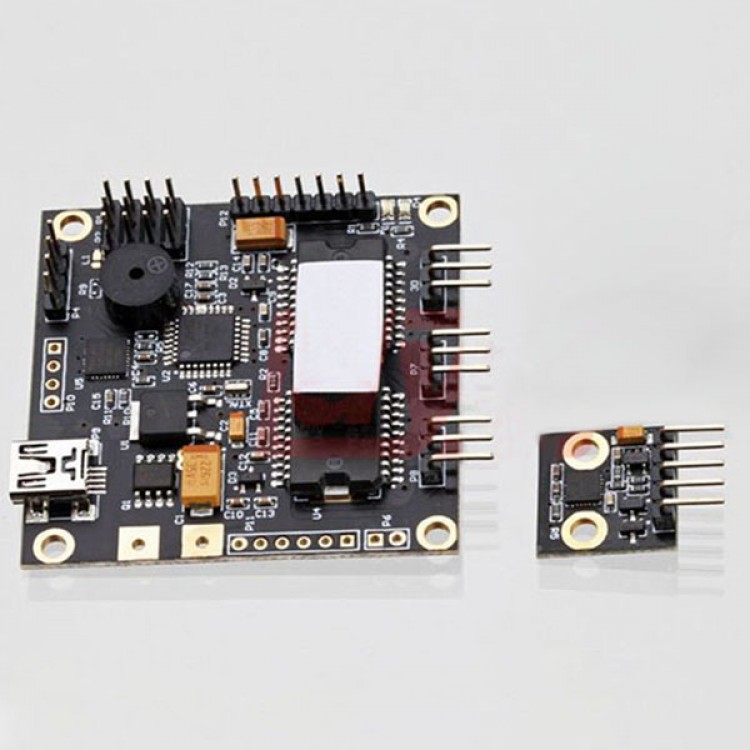

DYS BaseCam SimpleBGC 32-bit Brushless Gimbal Controller 2-axis Alexmos Stablizer w/ IMU for Gopro & DSLR Gimbal

Availability: Out Of Stock

  • Price:$121.90
  • Price in reward points: 1219 Reward Points: 12
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $119.46 $117.02 $113.37 $108.49 Contact US
Quantity:

DYS BaseCam SimpleBGC 32-bit Brushless Gimbal Controller 2-axis Alexmos Stablizer w/ IMU for Gopro & DSLR Gimbal

Description:
- The controller can be used for building high-quality 2-axis camera stabilizing systems which can be mounted to UAV and for building handheld camera stabilizers.
- This version of the controller is our new direction in the development of the stabilizing solutions. It will replace the previous 8-bit version of the SimpleBGC controller, keeping 100% back-compatibility, but adding the new fuctionality.
Basic functions of the controller

Features:
 - 32-bit MCU — ARM Cortex M4. Effectively calculates the complex tasks for 3-axes stabilization.
 - Allows camera control with the RC or analog joystick.
 - Use several switchable profiles for different modes of operation
 - Supports variety of RC protocols: PWM, Sum-PPM, spektrum and s-bus.
 - Battery voltage monitoring, compensating voltage drop in the PID-regulator.
 - Low battery alarm (output to 5V active buzzer).
 - Increased number of inputs for controlling signals + 3 additional reserved input/output AUX1-AUX3.
 - Can supply up to 1A current for external devices on the 5V power line.
 - Dedicated UART-socket to connect optional Bluetooth module
  - Reverse-polarity protection, overheat and overcurrent protection
  - USB interface for the PC connection, to configure, control and upgrade firmware.
  - Graphical user interface to manage the settings. Windows / OS X / Linux versions.
  - Control through the Serial-protocol using dedicated API.
  - Improved attitude estimation algorythms
  - Optional second IMU, that will increase the short-term precision of the stabilization 10x-30x times and  will make stable work in any frame position.

Package list:
- 1 x DYS BaseCam SimpleBGC 32-bit Gimbal Controller w/ IMU
