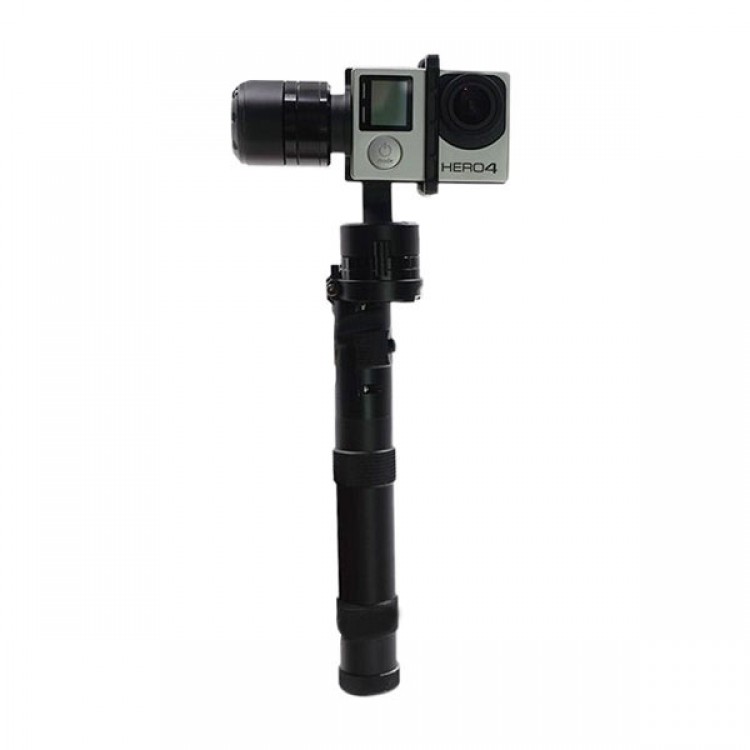

DYS Magic 3 axis Handheld Gimbal for gopro 3 / 3 + / 4 Alexmos Controller
DYS Magic 3 axis handheld gimbal standard configuration :
- Handheld gimbal x 1
- Cha rge r x 1 (Type :16340 ,3.7V )
- Camera fixed bracket x 1
- R123A/16340 3.7V x 4(exclude)
- M2x12 screw x 2
- USB Cable x 1
- Use manual x 1
Specs:
Item | Min | Standard | Max | Remark |
Working Voltage: | 7.4V | 11.1V | 12.6V | |
Working Current: | 200mA | 450mA | 2A | |
The static tracking accuracy: | ±0.01° | ±0.04° | ||
The dynamic tracking accuracy: | ±0.1° | ±0.2° | ±0.04° | |
Roll angle range: | -180° | 0° | +180° | |
Pitch angle range: | -45° | 0° | +35° | |
Yaw angle range: | -150° | 0° | +150° | |
Yaw angle range: | -50° | 0° | +50° | Vertical |
Roll speed; | 1°/S | 50°/S | Horizontal | |
Yaw speed: | 1°/S | 80°/S | ||
Battery working time(25℃): | 0.3H | 1H | 3H | 650mAh×3 |
operating temperature: | -20° | 25° | 45° | |
Weight: | 300g | Not inclu battery and camera |
