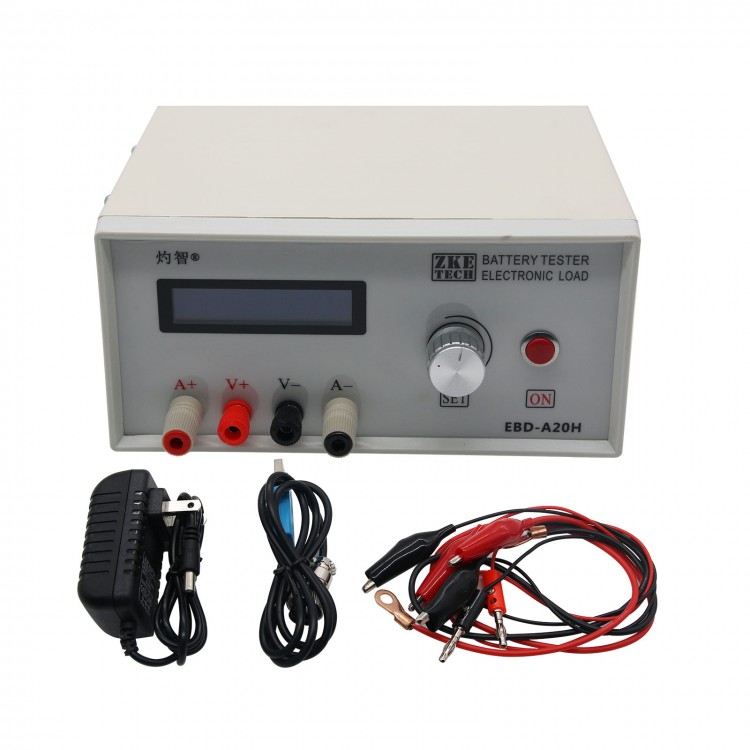

EBD-A20H Battery Capacity Tester Electronic Load Power Tester Discharge Meter 0.1-20A 200W

EBD-A20H Battery Capacity Tester Electronic Load Power Tester Discharge Meter 0.1-20A 200W

Description:
EBD-A20H is an electronic load with a variety of discharge modes. It can be used in various battery capacity tests, power tests, support for connecting computers, and more extensions via online software.

Parameters:
- Power Supply: DC 12V/1A
- Voltage setting: 0.00-30.00V, the minimum step 0.01V
- Current setting: 0.1-20.00A Minimum step 0.01A (Automatic limit current when power is overrun )
- Test mode: DSC-CC: discharge current is constant, used to test battery capacity or supply current
- DSC-CP: dischage power is constant, used to simulate constant power equipment or test power
- Voltage test: 0.000-4.500V (low pressure) accuracy to 0.003V, error ±0.5%
                         4.50V-30.00V(high presure) accuracy to 0.01V, error ± 0.5%
- Current test: 0.10-20.00A, accuracy to 0.01A, error ± 0.5%
- Capacity test: 10Ah, the resolution of 0.001Ah
                            10Ah-100Ah, the resolution of 0.01Ah
                            above 100Ah, the resolution 0.1Ah
- Discharge power: Max 200W. It should be controlled within 90% for a long time working
- Connection: four-wire detection, voltage and current channel separate wiring, to ensure measurement accuracy
- LCD display: voltage, current, capacity, time so on test data
- Computer Online: Dedicated USB to TTL serial port (Special port, not an ordinary USB cable) . Curve plotting, automatic current test, calibration reference, upgrade equipment

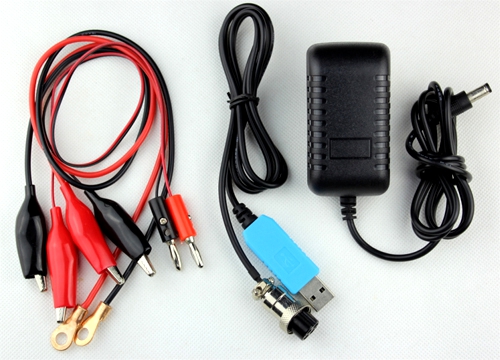

Package Included:
- 1 x Tester
- 1 x Online Test Cable
- 1 x Power Cord
- 1 x Pair of Test Clamps
