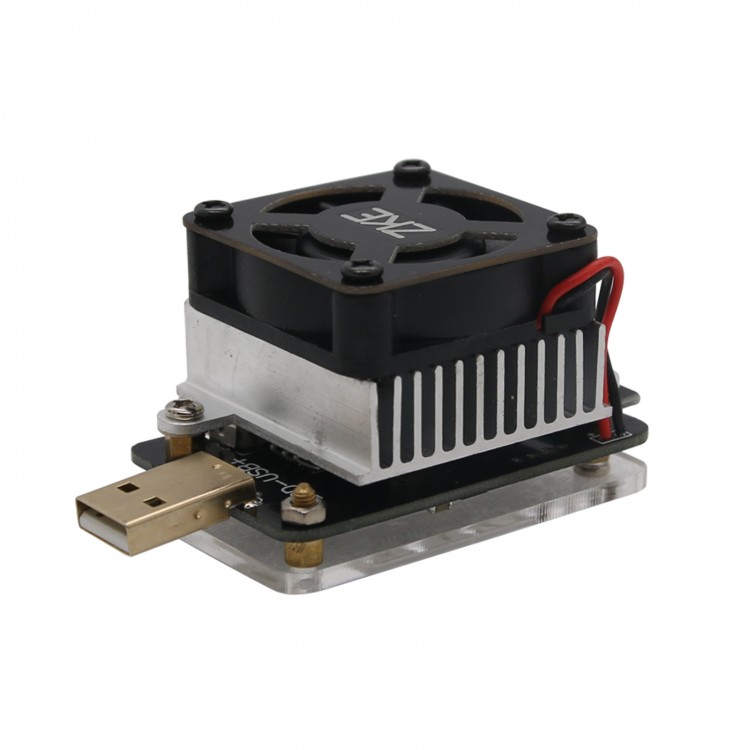

EBD-USB+ Electronic Load QC3.0 MTK-PE Trigger Voltage Current Capacity Tester

Availability: Out Of Stock

  • Price:$22.57
  • Price in reward points: 226 Reward Points: 2
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $22.12 $21.67 $20.99 $20.09 Contact US
Quantity:

EBD-USB+ Electronic Load QC3.0 MTK-PE Trigger Voltage Current Capacity Tester


Description:
- Category: Mini end (need TTL online wire), Micro end (internal online transfer)
- Decoration and construction: test instrument
- Support D+/D- measurement
- EBD-USB is a special USB small load used for testing mobile power and charger. It supports charging voltage trigger detection and USB charging voltage current detection that conform to QC and MTK agreement.
- Supply power: online USB power supply (5V)
- Voltage range: 0-21V
- Current range: 0-4.000A
- Test mode: constant current discharging, QC2.0/3.0 trigger, MTK-PE trigger, USB current voltage detection
- Max power: 35W
- Computer control software: support EB online software test (computer control, curve drawing, measuring datum correction, device firmware upgrade, power current test, etc.)
- Gross weight: 0.07kg

Specification:
1. Download EB V1.8 Build 1018 software and PL 2303 drive, and install respectively.
2. Connect EBD-USB to computer through Micro USB (or Mini USB online wire)
3. Find the respective port in computer’s device manager (can refer to the software instruction diagram)
4. Open EB software, choose respective port, and connect the device to implement the test

Package list:
- 1 x Electronic Load Tester
