Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $66.46 | $65.11 | $63.07 | $60.36 | Contact US |

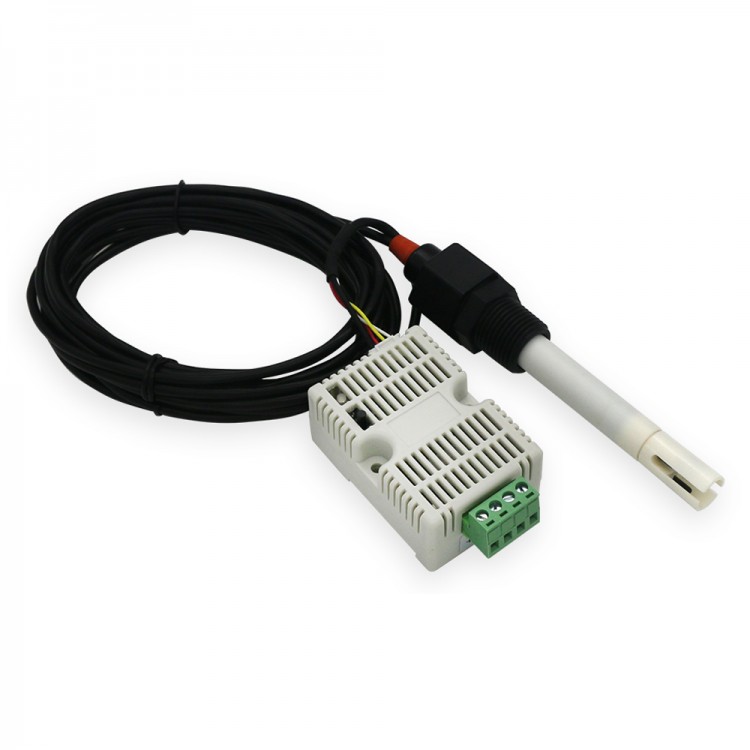

EC Sensor Transmitter Conductivity Sensor 0-4400us/cm With Output RS485 Online Water Quality Monitor
Product Parameters:
- Working voltage: DC12-24V
- Power consumption: <1W
- EC range: 0-4400us/cm (pure water cannot be measured because its concentration is too low to detect)
- Detection accuracy: ≤±2%F*S (full scale)
- Signal output: For ModbusRTU-485
- Load resistance: current output: R load≤(Uvcc-3)/0.02Ω
- Working environment: temperature: 0 to 50℃, humidity: 0-100%RH
- Storage environment: temperature: 10 to 50°C (-20 to 80°C peak value); humidity: 20-60%RH
- Dimensions: 65mm*46mm*28.5mm
- Electrode material: ABS 5m platinum black electrode
Package Included:
- 1 x Set of Electrical Conductivity Sensor
Precaution:

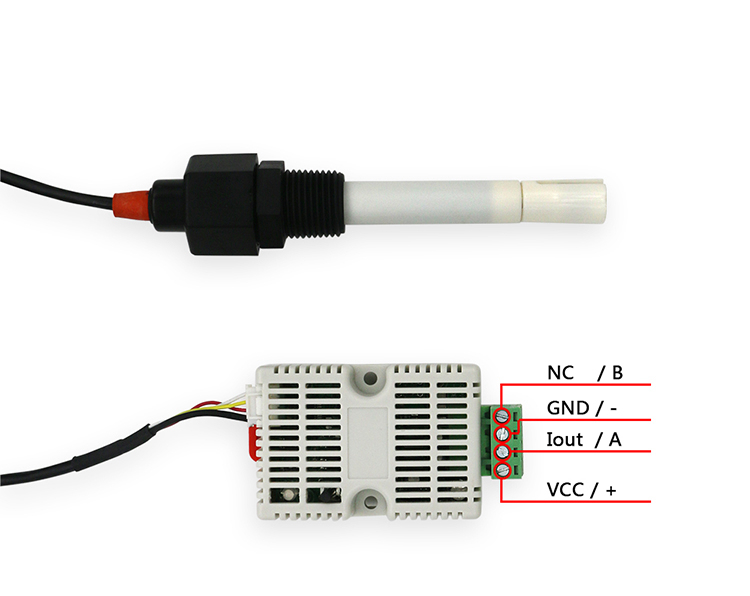

- Our sensor is not a two-wire sensor, and two-wire wiring cannot be used! The positive and negative poles of power supply must be connected!
- Be sure to confirm that the wiring is correct before powering on! Avoid damage to the sensor due to incorrect wiring!
