Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $43.68 | $42.79 | $41.45 | $39.67 | Contact US |

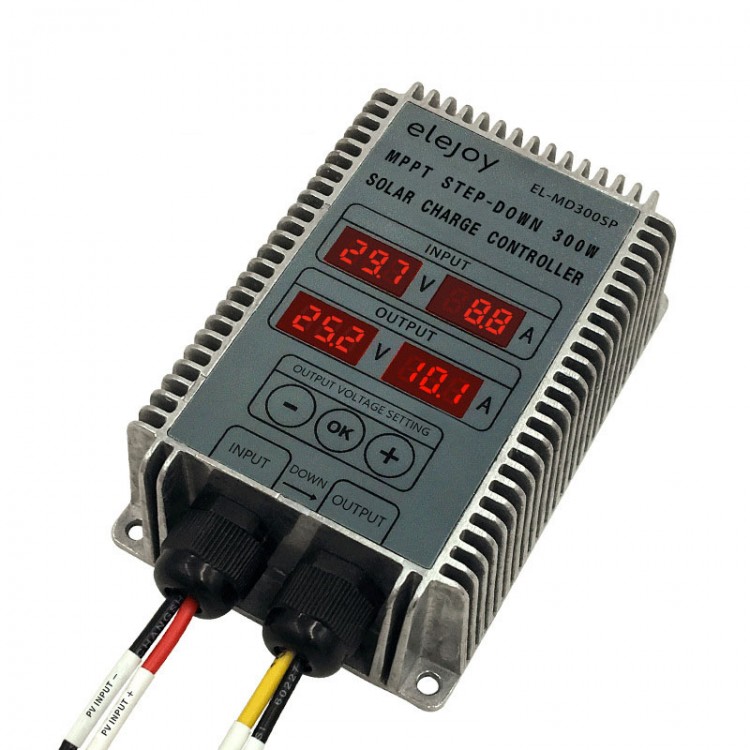

EL-MD300SP 300W Solar Charger Controller MPPT Step-down Solar Charge Controller 10-30V Adjustable
Features:
- Efficient MPPT real-time tracking
- High-efficiency synchronous rectification scheme
- Adjustable output voltage
- LED displays input and output voltage and current
- Support various batteries such as lead-acid and lithium-ion batteries
- Rainproof, dustproof, shockproof and fan-less
- Short-circuit, over temperature and input under-voltage protection
Specifications:
Basic parameters:
- Product name: Step-down MPPT solar charger controller
- Applicable battery: all kinds of batteries (charging voltage 10-30V)
- Model: EL-MD300SP
- Operating temperature: -40°C to +65°C
- Installation cable length: 5cm/2"
- Item size: 120 x 80 x 40mm/4.7 x 3.1 x 1.6"
- Net weight: 450g/lb
- Hole spacing: 110 x 70mm/4.3 x 2.8"
- Diameter of installation hole: 5mm/0.2"
Suitable photovoltaic panels:
- Open circuit voltage: 18V-55V
- Maximum power voltage: 17V-55V
Charging module:
- PV input power: 300W
- PV input starting voltage: 18V-55V
- PV input tracking voltage: 17V-55V
- Output to battery voltage: 10-30V (adjustable)
- Output to battery current: 25A max
- No-load loss: 0.35W
- Voltage regulation: 1%
- Load regulation: 1%
- PWM conversion efficiency: 97%
- MPPT efficiency: 99%
Protection module:
- Battery terminal short-circuit protection: With
- Battery anti-reverse connection protection: None
- Battery under-voltage protection: With
- Over-current protection: With
- Over-temperature protection: With
- Protection class: IP66
Package Included:
- 1 x Solar Charger Controller
Note:
- Batteries are not included.
