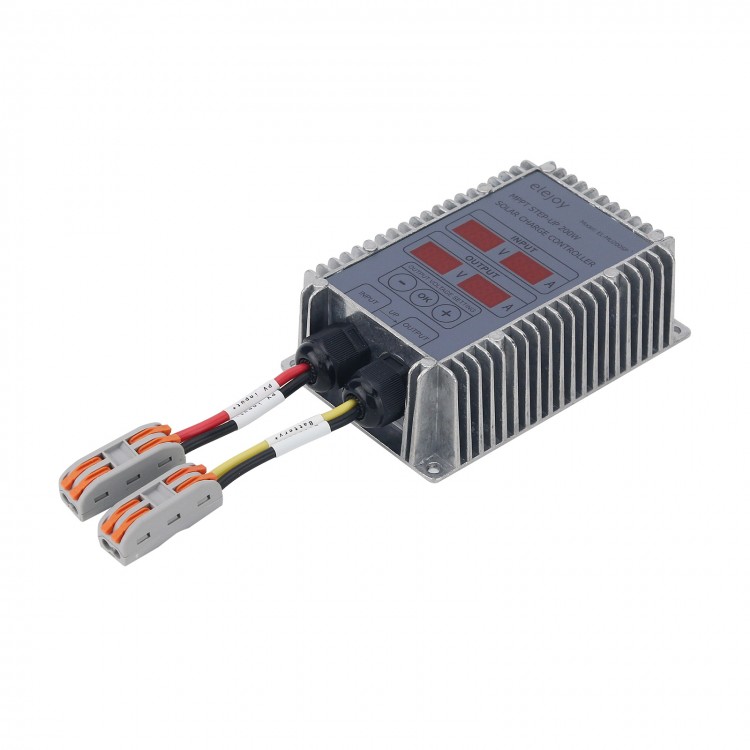

EL-MU200SP MPPT Step-up Solar Charge Controller 200W PV Input Power for 24-85V Charging Voltage

Availability: In stock, usually dispatched in 1 business day

  • Price:$40.87
  • Price in reward points: 409 Reward Points: 4
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $40.05 $39.24 $38.01 $36.37 Contact US
Quantity:

EL-MU200SP MPPT Step-up Solar Charge Controller 200W PV Input Power for 24-85V Charging Voltage

Features:

- MPPT type, suitable for different voltage solar panels
- Using high efficiency synchronous rectifier circuit structure
- Adjustable output voltage
- LED displays input and output voltage and current
- Short-circuit, over temperature and input under-voltage protection
- Rainproof, dustproof, shockproof and fan-less
- Efficient MPPT real-time tracking function
- Support various batteries such as lead-acid and lithium-ion batteries

Specifications:

Basic parameters:
- Product Name: Step-up MPPT solar charger controller
- Applicable batteries: all kinds of batteries (charging voltage between 24-85V)
- Model: EL-MU200SP
- Operating temperature: -40°C to +65°C
- Installation cable length: 5cm/2"
- Item size: 120 x 80 x 40mm/4.7 x 3.1 x 1.6"
- Net weight: 450g/lb
- Hole spacing: 110 x 70mm/4.3 x 2.8"
- Diameter of installation hole: 5mm/0.2"

Suitable PV panel:
- Open circuit voltage: 18V-55V
- Maximum power voltage: 17V-55V

Charging module:
- PV input power: 200W
- PV input starting voltage: 18V-55V
- PV input tracking voltage: 17V-55V
- Output to battery voltage: 24-85V (adjustable)
- Output to battery current: 15A max
- No-load loss: 0.35W
- Voltage regulation: 1%
- Load regulation: 1%
- PWM conversion efficiency: 97%
- MPPT efficiency: 99%

Protection module:
- Battery terminal short-circuit protection: With
- Battery anti-reverse connection protection: None
- Battery under-voltage protection: With
- Over-current protection: With
- Over-temperature protection: With
- Protection class: IP66

Package Included:
- 1 x Solar Charger Controller

Note:
- Batteries are not included.
