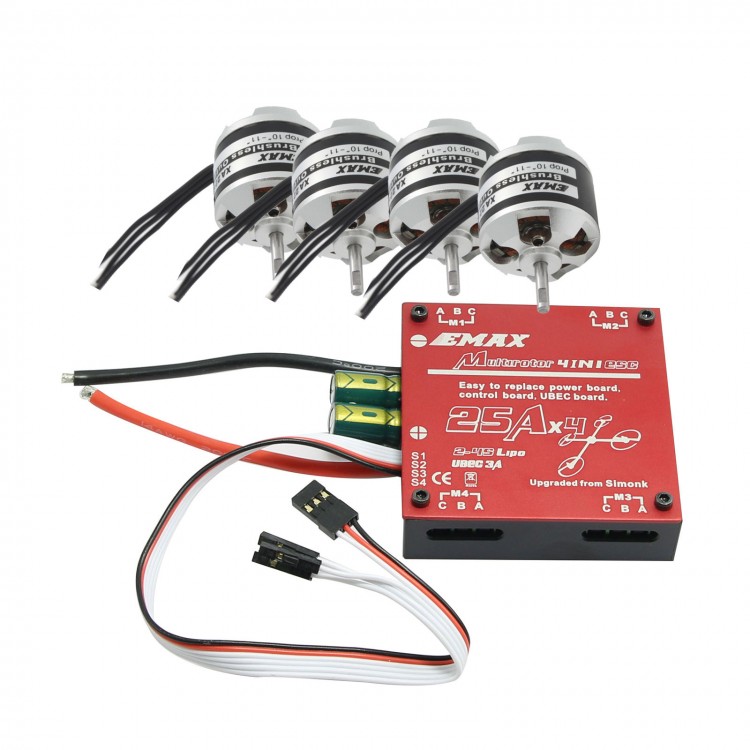

Emax 25A 4 in1 ESC & 4Pcs XA2212-1400KV Brushless Motor for Quadcopter Multicopter
Description:
- Based on SimonK firmware, the EMax multi rotor 4-in-1 is designed for quadcopters from the ground up. Functions include low-voltage protection, over-heat protection, a built in UBEC, and self-check functions.
- This ESC has also been designed to be modular, meaning the power board, UBEC and control board are all separate and removable, making for easy part placement, and modification.
- The throttle range is customisable for each ESC making this compatible with all common receivers.
Specifications:
- Cont. current: 25A x 4
- Burst current: 30A x 4
- BEC mode: Switch mode
- BEC output: 5V/3A
- Battery cell: 2S-4S (7.4V-14.8V)
- Size: 67.5 x 64.4 x 17mm
- Weight: 130g (including wires)
- Programmable: Yes
For further information and instructions please see Emax's page here:
| Motor type |
The voltage (V) |
Prop. |
Current （A） |
Thrust (G) |
Power (W) |
Efficiency (G/W) |
RPM |
| XA 2212 820KV | 12 | APC 11*4.7 | 12 | 830 | 144 | 5.8 | 5720 |
| 8 | APC 11*4.7 | 7.3 | 500 | 58.4 | 8.6 | 4650 | |
|
XA 2212 980KV |
12 | APC 10*4.7 | 15.1 | 880 | 181.2 | 4.9 | 6960 |
| 8 | APC 10*4.7 | 9.5 | 550 | 76 | 7.2 | 5470 | |
| 12 | APC 9*6 | 12.3 | 730 | 147.6 | 4.9 | 8220 | |
| 8 | APC 9*6 | 7.1 | 400 | 56.8 | 7.0 | 6090 | |
| XA 2212 1400KV | 12 | APC 8*4 | 16.4 | 930 | 196.8 | 4.7 | 12020 |
| 8 | APC 8*4 | 9.1 | 500 | 72.8 | 6.9 | 8900 | |
| 12 | APC 8*6 | 20.6 | 940 | 247.2 | 3.8 | 10750 | |
| 8 | APC 8*6 | 11.9 | 520 | 95.2 | 5.5 | 8250 |
Package includes:
- 1 x EMAX 4in1 Quattro 25A x 4 UBEC Brushless ESC
- 12 x 3.5mm female gold connector extension cable balck
- 4 x XA2212-1400KV Brushless Motor
- 1 x English manual
