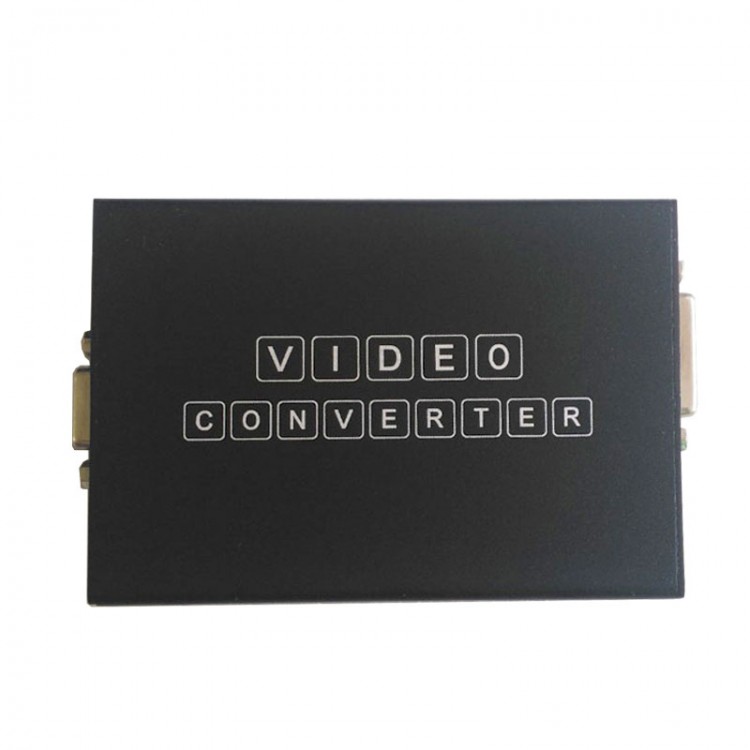

Engineering DVI-D to VGA Converter Digital to Analog Converter Adapter 1080P Plug and Play
Description:
DVI-D to VGA converter (model: ADR-365) can convert a DVI signal into a VGA analog signal. The input signal supports computers, consoles, matrix and other equipment. Input uses DVI-I interface (only supports DVI signal), output uses D-Sub type interface, very suitable for new or existing banks, transportation, aviation, terminals, power, security, civil air defense, etc. command and dispatch systems, network teaching broadcast, LED large screen display system, etc. Simple to install, plug and play.
(Note: This device features point-to-point conversion, and the resolution changes with the input VGA signal).
Features:
-One way DVI-I or DVI-D signal input.
-One way VGA (RGB) signal output.
-VGA (PC) output resolution: 640*480@60Hz, 800*600@60Hz, 1024*768@60Hz, 1280*720@60Hz, 1280*768@60Hz, 1280*800@60Hz, 1280*1024@60Hz, 1360*768@60Hz, 1600*1200@60Hz, 1920*1080@60Hz
-LED indicator light; when the signal source or signal terminal is in working state, the corresponding indicator light will be on.
-Working power specification: AC input (50/60HZ)--100V~240V, DC output: DC 5V/1A
-Plug and play function, no need to install any software, easy to use.
Interface Description:
DC 5V: connect to DC 5V/1A power adapter
RUN: work indicator
DVI-IN: connect to DVI signal source
VGA-OUT: connect to VGA display device
Packing List:
-1 x Converter
-1 x Power Supply (DC 5V 1A)
-1 x Instruction Manual
