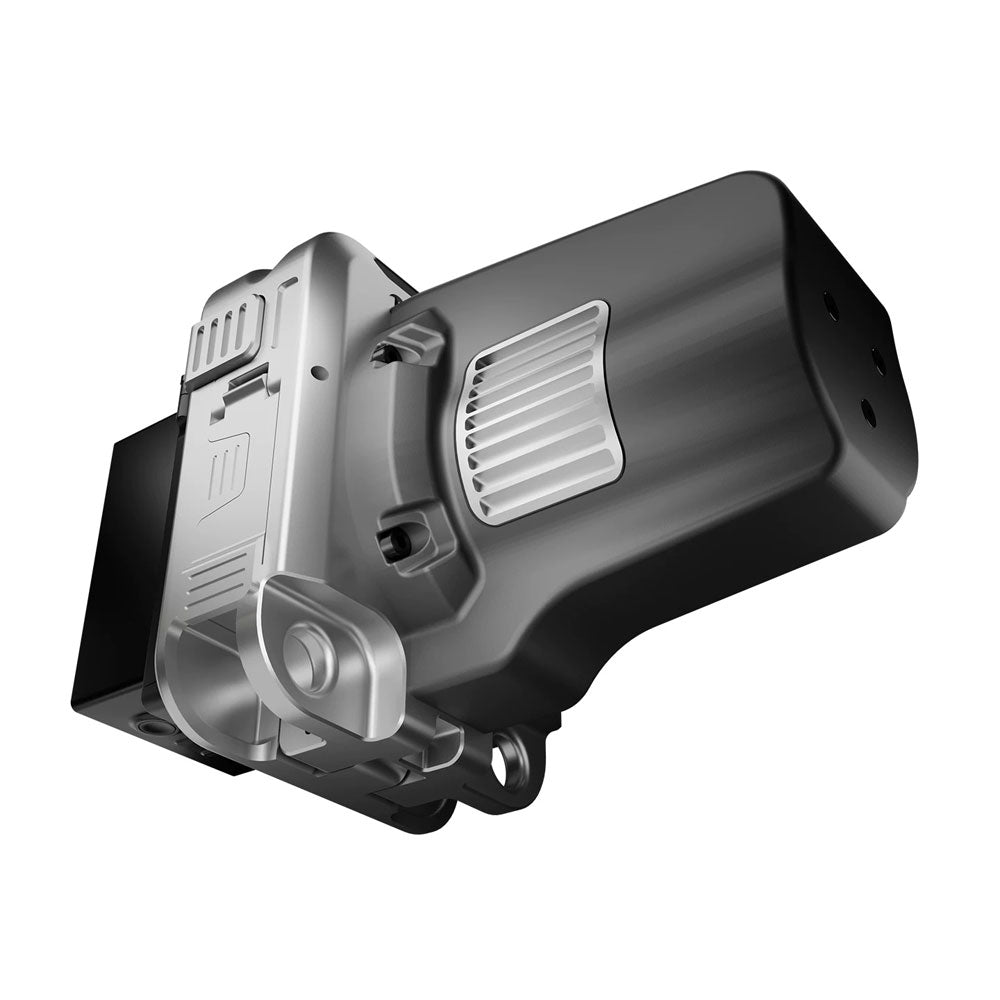

DP-1 110KG Load Electric Rope Ascender High Torque Motor Remote Control Lightweight Outdoor Heavy Weights Lifting

Introduction:
- Strong power: high torque motor, stable output.
- Safe and reliable: multiple protection mechanisms.
- Efficient and stable: optimize the transmission structure for smoother operation.
- Lightweight and sturdy: the aluminum alloy body is sturdy and durable.
- Applicable rope diameter: 7MM-8MM
- No complex equipment is required, a single rope can complete various material traction and lifting operations.
- Detachable battery, ready for replacement at any time.

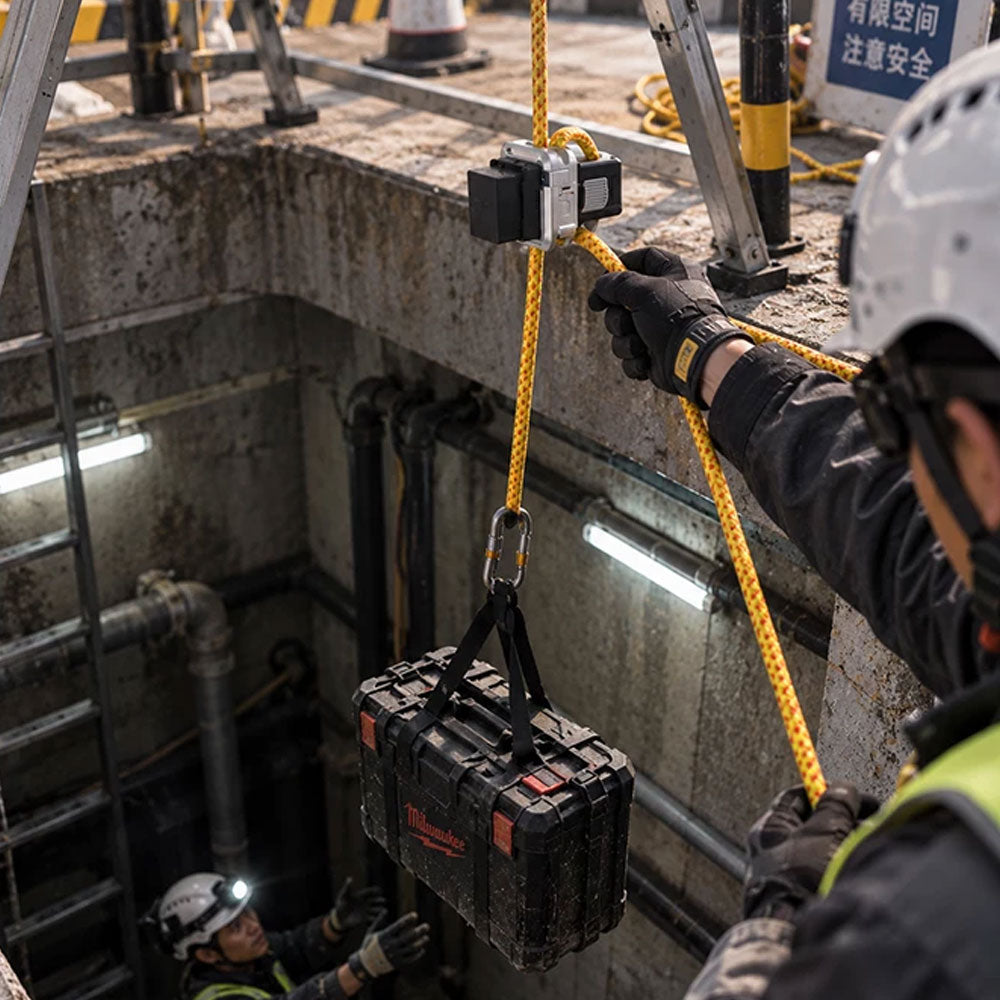

- Multi scenario applicability, easy to cope with complex environments: from outdoor to transportation, providing stable traction support for mountainous, high-altitude auxiliary and other scenarios; For example, vehicle towing, rescuing trapped vehicles, lifting heavy objects, and towing campsites.
- The rope enters the body from the ROPE IN end and runs along the internal drive structure. After continuous transmission of power through the drive wheel, it is sent out from the ROPE OUT end. By continuously entering and exiting ropes, the lifting, lowering, and continuous traction of materials are achieved, and the working principle is clear and intuitive.
- Supports PWM control and serial communication, providing flexible control and integration capabilities for automation equipment and customized projects.
  Start/stop control: One click command to control the motor to stop running.
  Direction control: Supports both upward and downward directions of operation.
  Speed adjustment: The operating speed can be set within the range of 1-5500r/min.
  System integration: suitable for testing platforms, automation equipment, and customized control scenarios.
- Multiple protections: overload protection, overheating protection, low voltage protection, anti fall protection, IP54 protection level.

Safety Reminders:
1. Requirements for Operation Personnel
- Familiarize yourself with the equipment: Before use, please carefully read the product instructions and operation manuals, familiarize yourself with the installation, threading, remote control, and stopping methods of the equipment.
- Standardized operation: Children, personnel without guidance or understanding of equipment operation are prohibited from using this equipment alone.

2. Pre-Operation Checklist
- Check the equipment for any abnormalities such as deformation, cracks, severe wear, looseness, etc. If any abnormalities are found, stop using it.
- Check whether the pulley, pressure rope, and transmission parts are clean, free of foreign objects, mud, or obvious wear.
- Check the rope for broken strands, damage, severe fuzzing, knotting, or abnormal deformation, and replace it promptly if any abnormalities are found.

3. Prohibited Items
- Overloading is strictly prohibited: Do not exceed the rated load range specified by the product. In actual operation, a reasonable safety margin should be reserved according to the environment and working conditions.
- It is strictly prohibited to operate with faults: if there are abnormal noises, lagging, abnormal heating, abnormal speed, etc., the use should be stopped immediately and the cause should be investigated.
- Be cautious when working in harsh environments: stop working in rainy, snowy, lightning, strong winds, slippery environments, or when equipment and ropes cannot be guaranteed to be safe.
- No passengers, freight only.

Specifications:
- Model: DP-1
- Product size: 171 x 90 x 106mm
- Net weight: 1.39kg
- Rated energy: 18.87Wh
- Nominal voltage: 22.2V
- Temperature range: -20℃ to 60℃
- Maximum load capacity: 110kg

Package Included:
- 1 x Rope Ascender
- 1 x Charging Base
- 1 x Remote Control
- 1 x 10-Meter Testing Leash
