High Efficiency Pelton Wheel Impeller 300X56MM 25MM 50-3000RPM Impeller for 1-5KW Hydroelectric Generator

Specifications:
- Net weight: 1.88kg
- Power: 1 - 5KW
- Start water pressure: 0.2 - 5MPa
- Rotation speed: 50 - 3000RPM

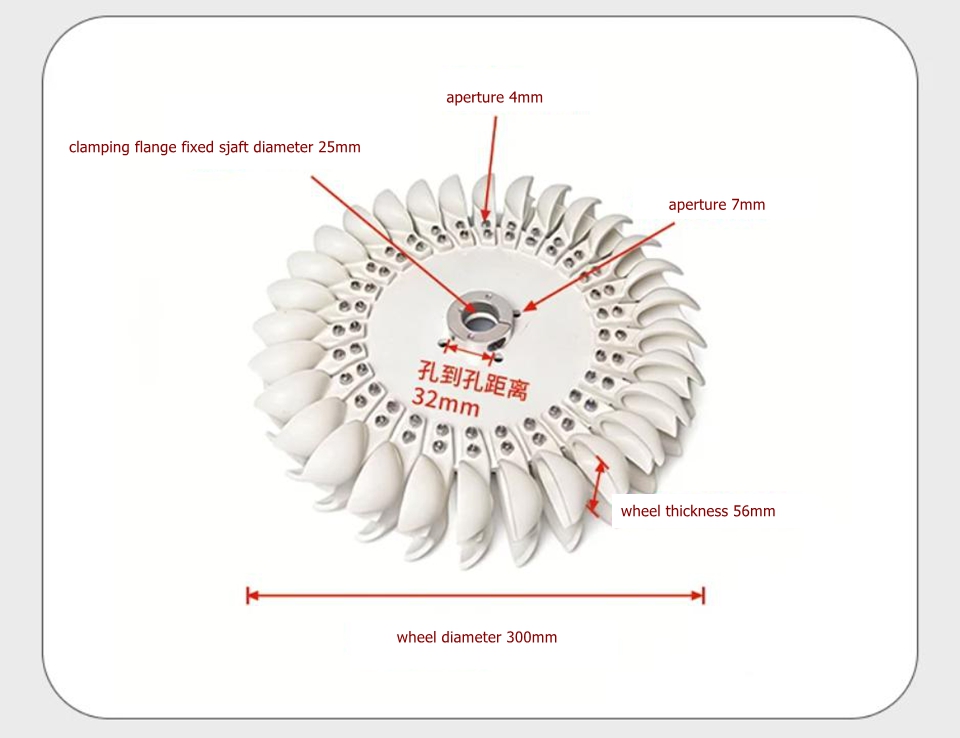

- Impeller diameter: 300 x 56mm
- Internal hole: 25mm
- Fixing method: clamping

Advantages:
- Spoon shaped bucket: symmetrical double grooves+central water splitting blade, high-speed water flow is evenly diverted, and the impact is smoother.
- Streamlined blade design, high dynamic balance accuracy, low noise, and minimal vibration.
- High energy conversion efficiency.
- Corrosion and wear resistance.
- Flexible adjustment.
- Low maintenance demand.

Working Principle:
- High speed jet impact: High pressure water flows through the nozzle to form a high-speed jet (with a speed of over 100m/s), which directly impacts the bucket blades on the impeller. The kinetic energy of the water flow is converted into the rotational mechanical energy of the impeller, which drives the generator to generate electricity.
- Energy release process: After the water flows into the bucket blade, it flows out almost 180 degrees in the opposite direction along the bucket groove, and the kinetic energy is fully absorbed. The water flow eventually leaves the impeller at a speed close to zero.

Package Included:
- 1 x Pelton Impeller
