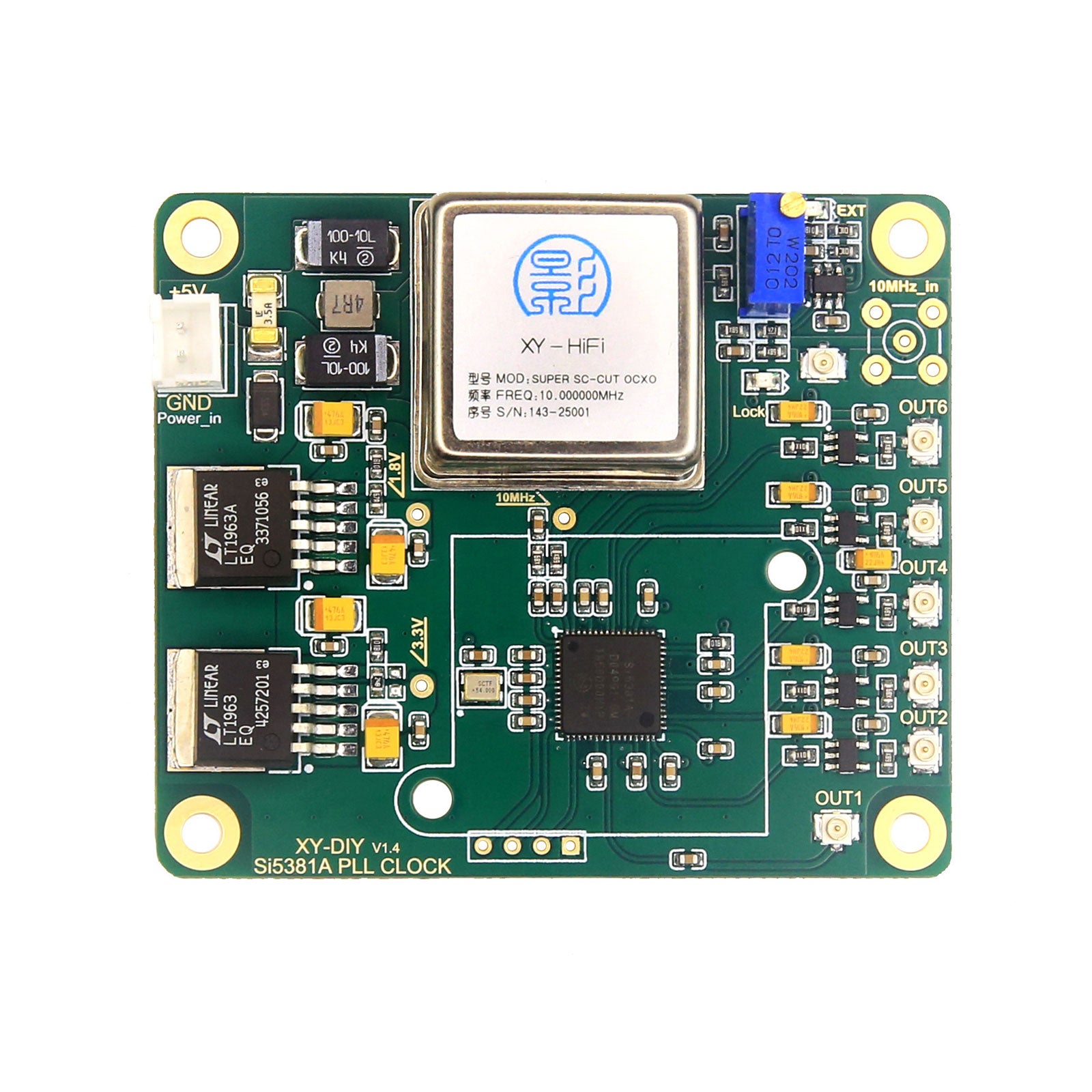

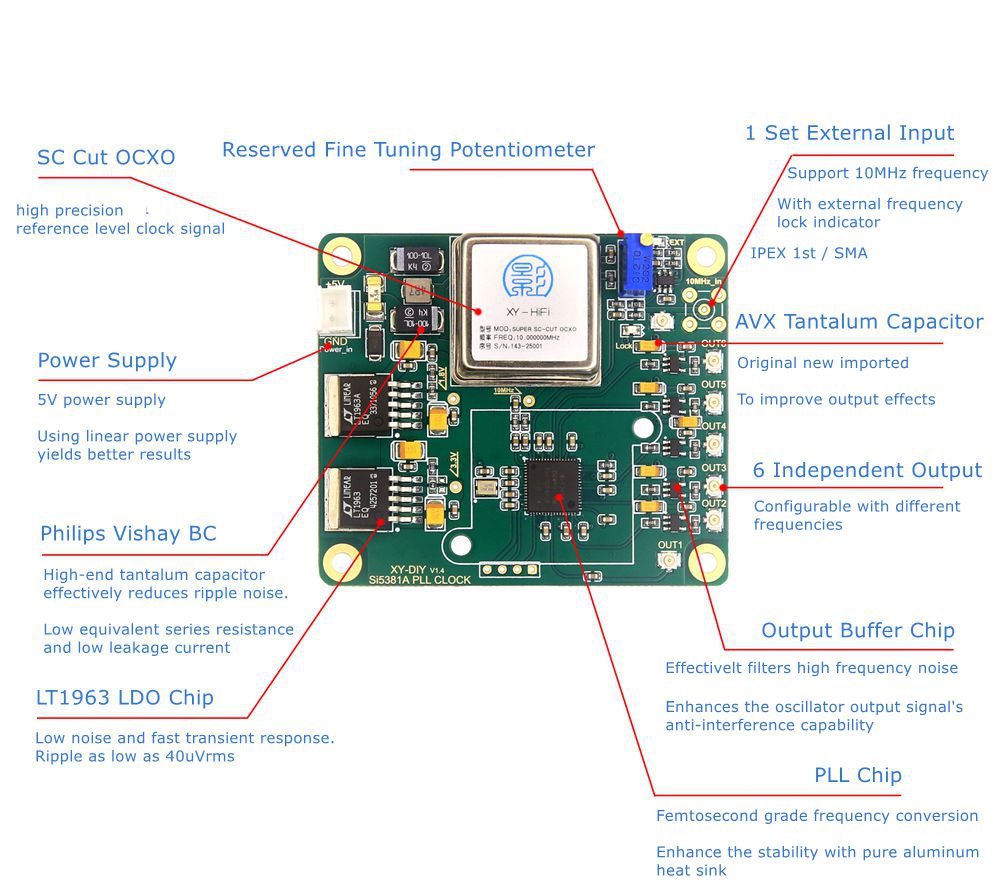

XY-HiFi Y11d 6-Channel Femtosecond Output OCXO Clock Board Oven-controlled Crystal Oscillator Upgrade Board

Warm Reminder:
- The chip of the 6-channel femtosecond output version can only have the frequency written once (rewriting is not supported, so after placing the order and writing the frequency, returns or exchanges are not accepted).
- The startup current of this kit is greater than 1A. Once the temperature of the OCXO (optional) stabilizes, the current is around 650mA (the power consumption is relatively high and the temperature can become high. If you mind high temperatures, please consider carefully before purchasing).
- The finished board is pre-soldered and tested.
- Using this kit requires relevant hands-on skills and experience (only technical support for wiring is provided; modification or personalized deep technical support is not offered).

Specifications:

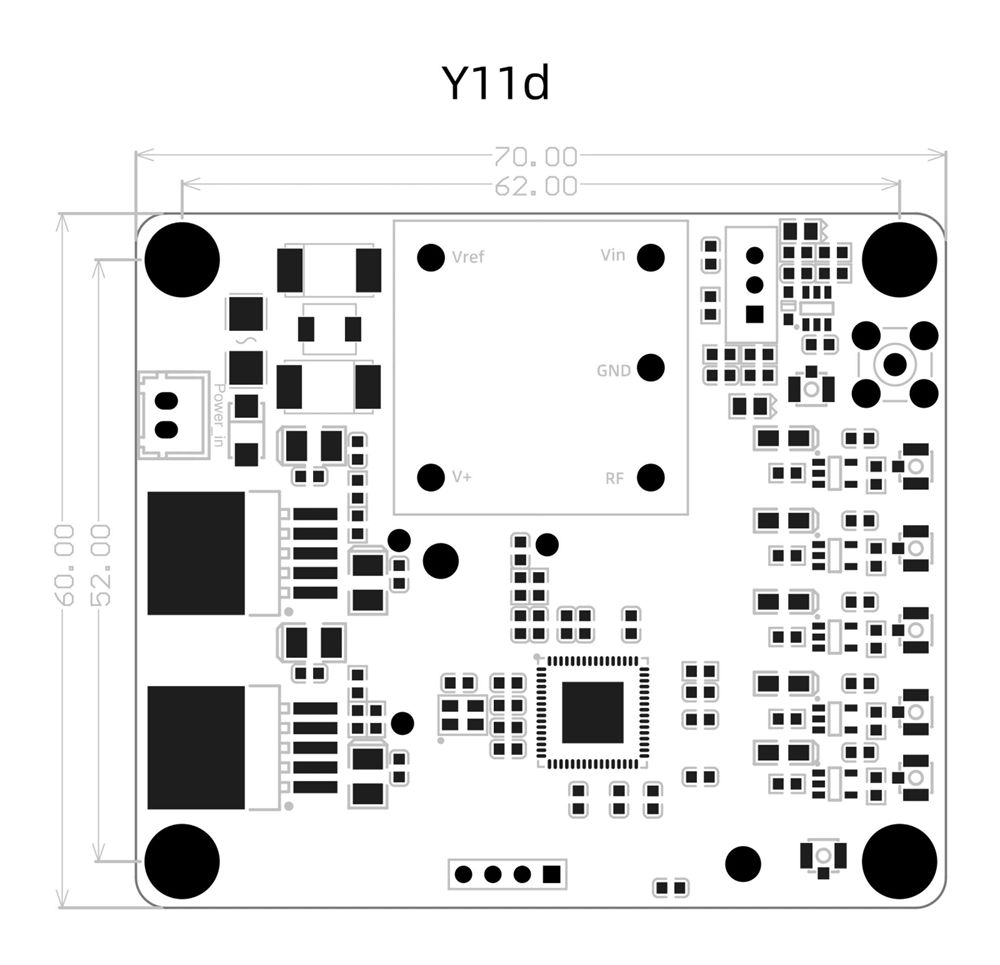

- Model: Y11d
- Input voltage: 5V DC / >1A
- Warm-up time: basic 15 minutes / fully 60 minutes
- Output frequency: two frequencies can be specified (default 10MHz)
- Frequency range: 100Hz ~ 250MHz

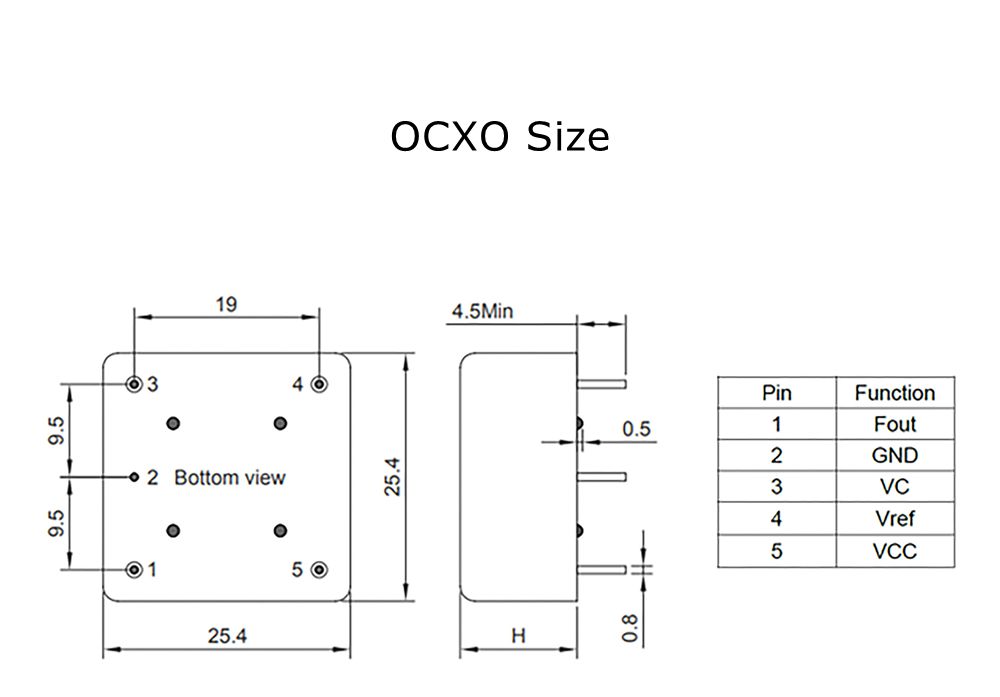

- Oscillator type: SC-Cut OCXO
- Output parameters: 3.3Vpp / square wave / 50 Ω
- Frequency accuracy: < ±0.3ppm
- Frequency stability: ±0.3ppb / -10℃ to 80℃

Packing List:
- 1 x OCXO Board
- 1 x Power Cable
- 6 x IPX Output Cables

Note:
- Electronic components may vary periodically and will be replaced with equivalents of the same quality.
- Images are for reference only; any changes will not be separately notified. Please refer to the actual product.
