Deauther Mini V4 ESP8266 Development Board with RTC Programming WiFi Penetrating Testing Intelligent Hardware DIY

Introduction:
- DSTIKE Deauther MiNi V4 is a compact, open-source ESP8266 development board designed for wireless education, firmware experimentation, network diagnostics, and authorized 2.4GHz security assessment.

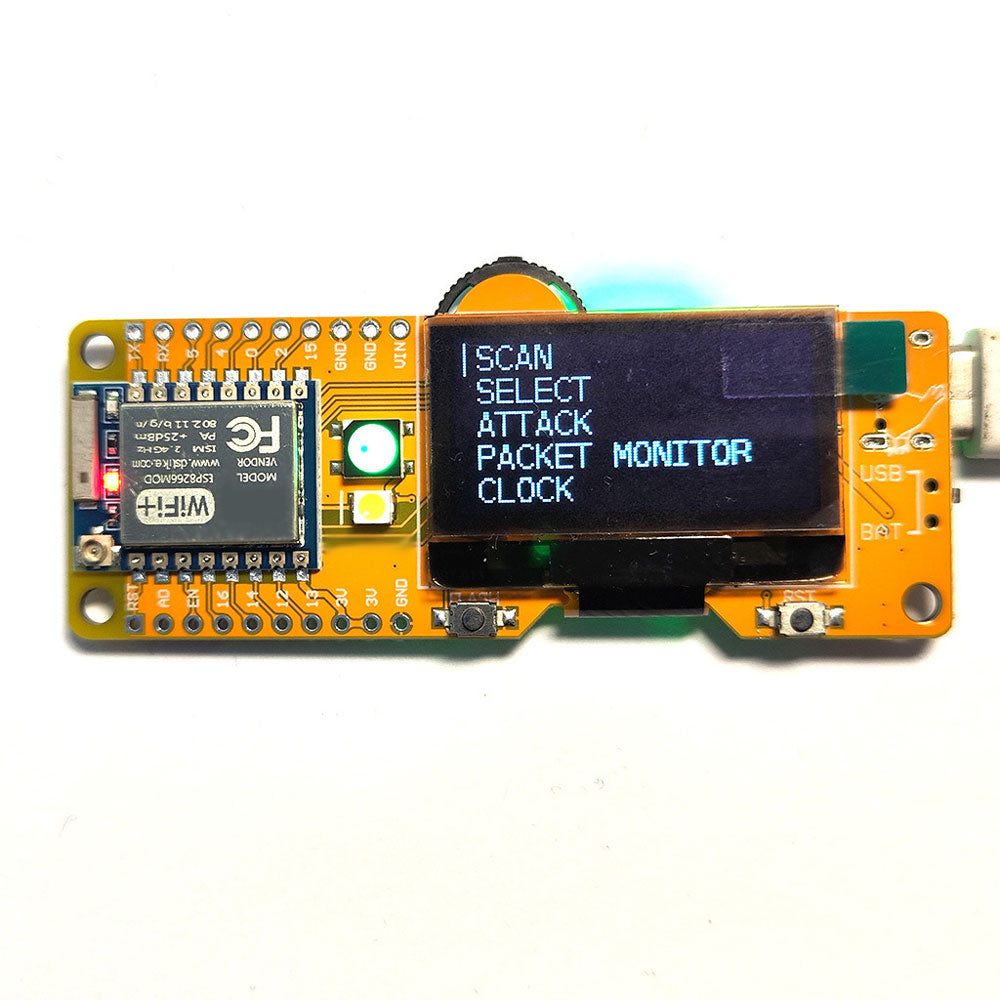

- It combines a 1.3-inch OLED display, three physical control buttons, an addressable RGB LED, a high-brightness LED, onboard battery charging, and an external antenna connector in a pocket-sized platform.
- Compatible ESP8266 Deauther firmware is preinstalled, allowing supported functions to be operated directly from the display and buttons. No phone or computer is required for basic standalone operation.
- MiNi V4 can also be reprogrammed like a conventional ESP8266 development board, making it suitable for custom firmware, for Ar-dui-no projects, portable wireless tools, and electronics education.

Compared with Deauther MiNi V3, the V4 hardware includes several important improvements:
- The previous PH2.0 battery connector has been replaced with a smaller PH1.25 connector.
- Updated battery-connector orientation.
- Added input-protection diode to help prevent current from flowing back into the USB connection.
- Repositioned onboard components for improved layout and heat dissipation.
- Re-optimized charging circuit for more stable operation.
- Updated packaging and instruction manual.

Battery Compatibility Warning:
- MiNi V4 uses a different battery connector from MiNi V3. Do not connect an older battery without confirming the connector type and polarity.
- Battery-connector polarity should always be checked before connection. Incorrect polarity may permanently damage the board and is not covered as a manufacturing defect.

Supported Learning and Assessment Functions
- Available functions depend on the installed firmware version and configuration.

2.4GHz Wi-Fi Scanning
- Scan nearby compatible 2.4GHz Wi-Fi signals and review information such as network identifiers, channels, and signal activity.

Packet Monitoring
- Observe selected packet and channel activity to better understand how nearby 2.4GHz wireless environments behave.

Management-Frame Resilience Testing
- Evaluate how equipment on an authorized test network responds to selected 802.11 management frames.
- This function is intended to help network owners identify older equipment that may not support modern management-frame protection.

Beacon-Frame Demonstration
- Demonstrate how beacon frames are used to advertise wireless network information in a controlled laboratory environment.

Probe-Frame Demonstration
- Explore how compatible client devices use probe requests while searching for known wireless networks.
- These functions do not reveal Wi-Fi passwords, decrypt protected traffic, or provide access to secured networks.

Hardware Highlights:
- Ultra portable design: a true 'pocket sized' device. Whether you're testing at a local café or giving a presentation at a cybersecurity conference, it's easy to carry and ready to use at any time.
- Intuitive visual operation: equipped with high contrast OLED display screen and physical buttons/scroll wheel on the body. You can independently browse menus and perform tests without connecting to a computer or smartphone.
- Excellent scalability: Built in power management system, supporting direct connection and charging of lithium batteries. The external antenna interface facilitates easy replacement of high gain antennas, greatly expanding the signal coverage range.
- Open source and programmable: It is not just a testing tool, but also a standard ESP8266 development board. You can adopt for Ar-dui-no IDE for secondary development and flash your own custom firmware.

Technical Specifications:
- Main controller: ESP8266
- Wireless frequency: 2.4GHz WiFi
- Display: 1.3-inch SH1106 monochrome OLED
- Controls: Up, Down, and Select buttons
- Status indicator: WS2812B addressable RGB LED
- High-brightness LED: Included
- Battery connector: PH1.25
- Battery support: Compatible single-cell LiPo battery
- Charging circuit: Integrated
- Antenna: External antenna connector
- Firmware: ESP8266 Deauther-compatible firmware preinstalled
- Development support: Reprogrammable with compatible ESP8266 development tools

GPIO Reference:
- OLED SDA: GPIO 5
- OLED SCL/SCK: GPIO 4
- WS2812B RGB LED: GPIO 15
- Up button: GPIO 12
- Down button: GPIO 13
- Select button: GPIO 14
- High-brightness LED: GPIO 16
- This pin reference is intended for custom firmware development. Always review ESP8266 boot-pin behavior before modifying the button, LED, or startup configuration.

Applications:
- Network Security Students and Educators: An intuitive and practical teaching aid tool for demonstrating WiFi protocol vulnerabilities.
- Geeks and Makers: Perfect for exploring the underlying logic of wireless communication and experiencing the fun of DIY hardware.
- Network Administrator: A practical tool used to test the stability and resistance to attacks of one's own network environment.

Important Disclaimer (Compliance Statement):
- This device is for educational purposes only and is only intended for testing on networks and devices that you own or have obtained explicit permission for. Unauthorized interference or disconnection of others' network connections is illegal in most countries and regions. Please strictly abide by local laws and regulations and fulfill the responsibilities of a responsible white hat safety researcher.

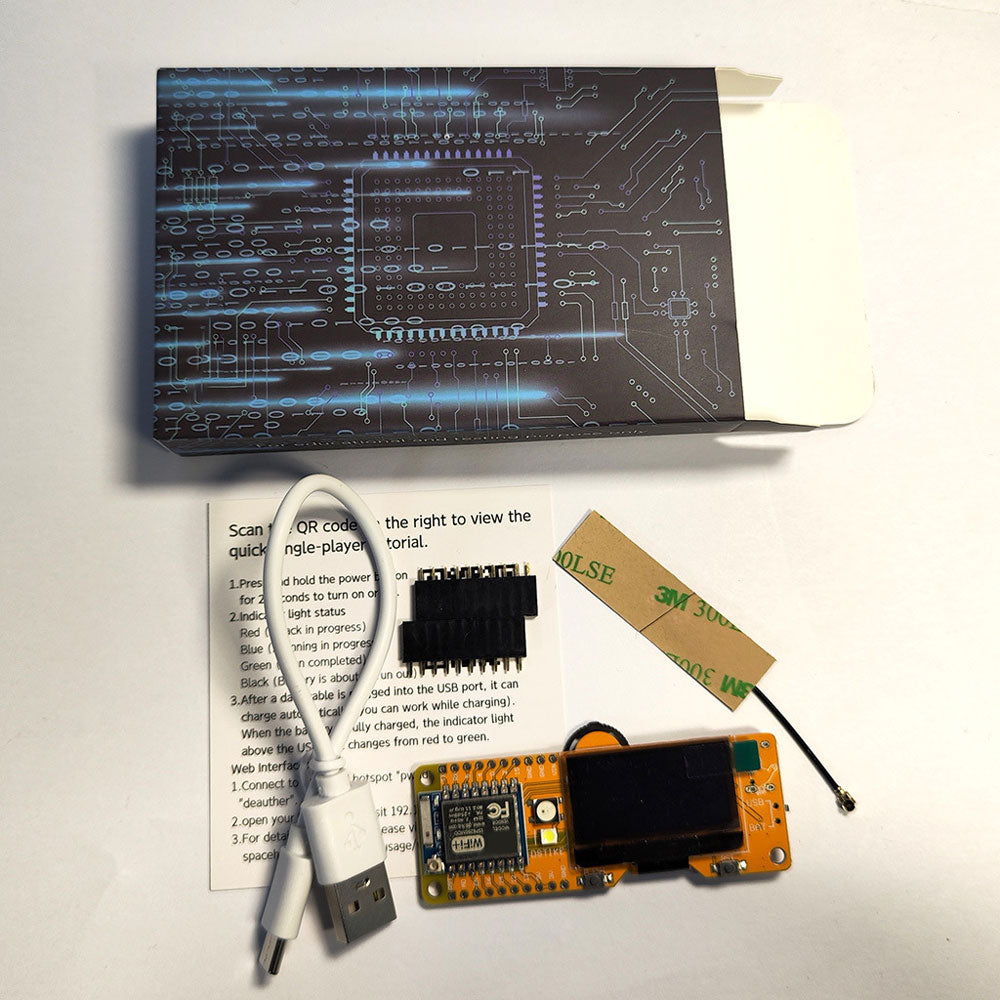

Package Included:
- 1 x Development Board
- 1 x USB Cable
