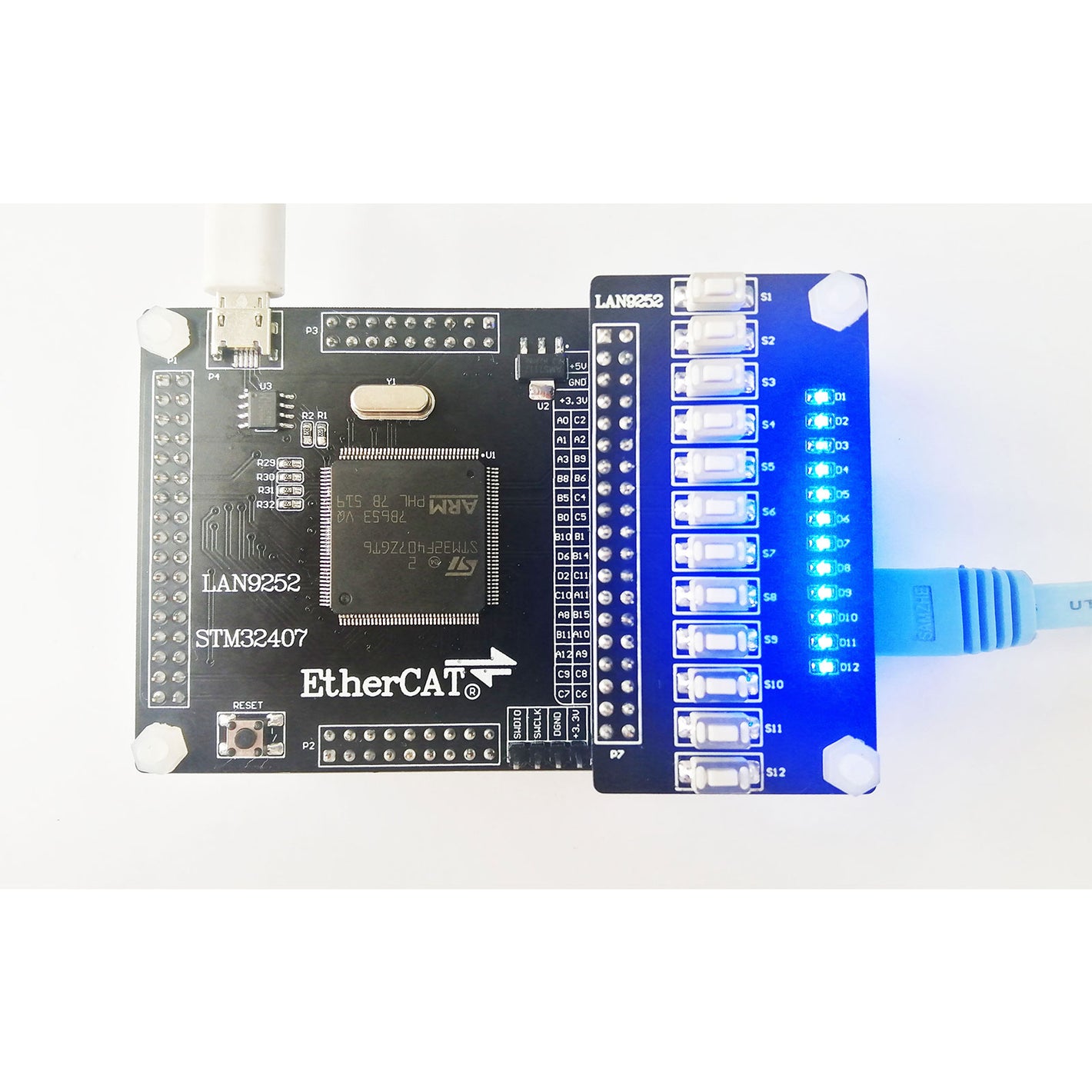

LAN9252 EtherCAT Slave Development Board GD32F470/GD32F407 16IO CIA402 Motion Control Support
Precio habitual
$82.80
Precio habitual
Precio de oferta
$82.80
Precio unitario
por
Impuesto incluido.
Los gastos de envío se calculan en la pantalla de pago.
No se pudo cargar la disponibilidad de retiro
Availability:
2000 en stock
SKU:
103785
Tags:
Collections:
Precio habitual
$82.80
Precio habitual
Precio de oferta
$82.80
Important Note:
* The EtherCAT master uses TwinCAT3 software. TwinCAT3 requires the computer to be equipped with an original network adapter (for Intel) in order to work properly.
Features:
* EtherCAT Slave Development Board based on the GD32F407ZGT6 + LAN9252 architecture.
* Supports two communication methods: SPI interface and FSMC parallel interface.
* All LAN9252 interfaces are exposed, making it convenient to connect with different controllers.
* Equipped with 8 LED indicators and 8 push buttons for easy EtherCAT master communication testing and debugging.
* Complete development resources provided, including schematics, datasheets, EtherCAT master TwinCAT3 software, EtherCAT protocol documentation, Slave Stack Code Tool V5.11 for generating slave code, Altova XMLSpy 2013 slave XML editor, and other related files.
* Example programs include CIA402 communication examples, parallel IO communication examples, and SPI IO communication examples.
Packing List:
* 1 x LAN9252 Slave
Packaging Details:
* Package weight: 0.15kg
