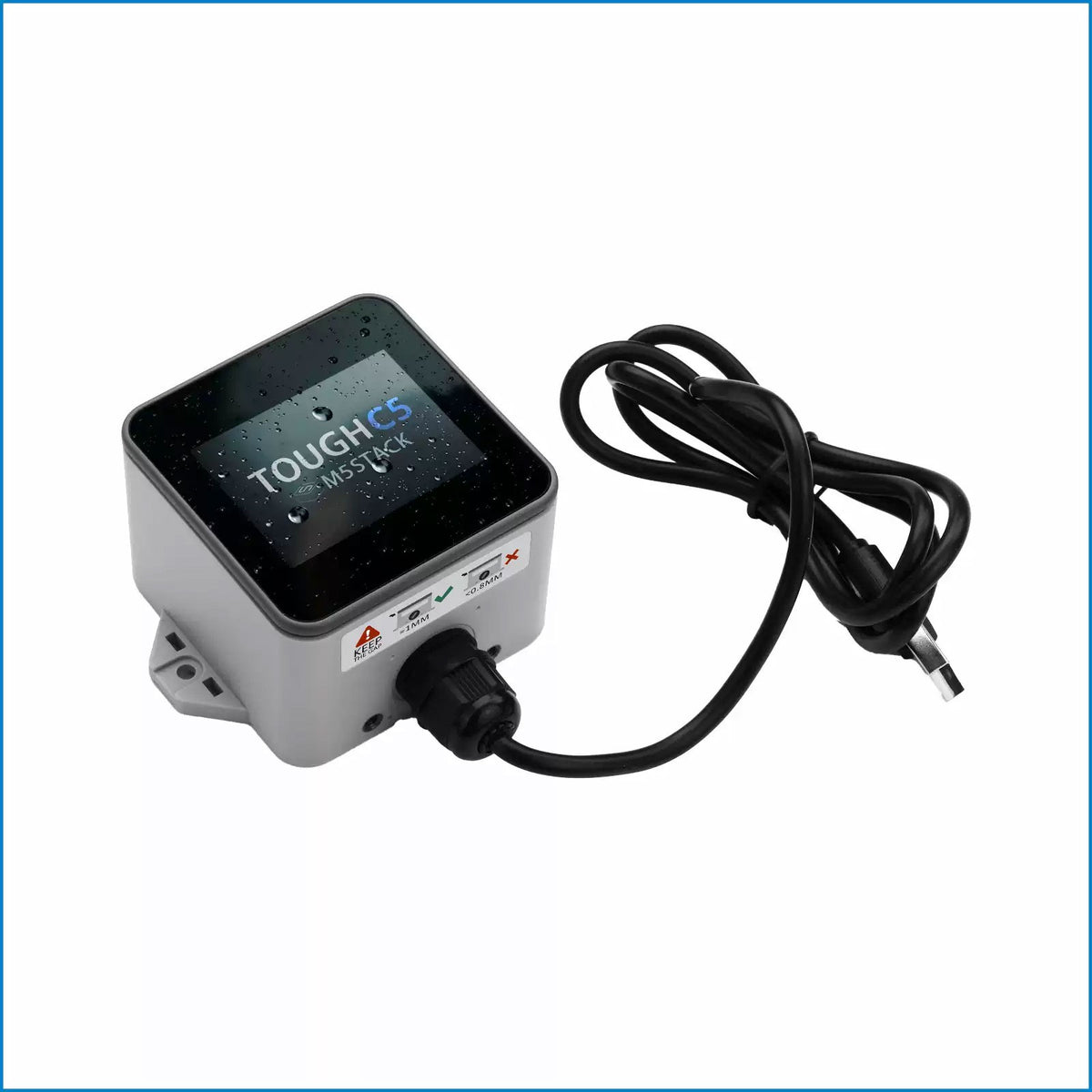

M5Stack ToughC5 Outdoor Waterproof Controller ESP32-C5 2.4G&5G Dual-Band WiFi6 with 2.0-Inch LCD Touch Screen

Introduction:
- ToughC5 is an outdoor waterproof IoT controller. Based on ESP32-C5HR8 core controller, equipped with RISC-V32 bit single core processor, main frequency of 240MHz, equipped with 16MB Flash and 8MB PSRAM. Supports 2.4&5GHz dual band WiFi 6, BLE 5, and IEEE 802.15.4 (Zigbee, Thread) multi protocol connections to meet access requirements in different network scenarios. Integrated 2.0" color LCD display screen (resolution 320x240), equipped with high-sensitivity capacitive touch panel; Onboard buzzer, micro SD card slot, and RX8130CE real-time clock. The shell is made of PC+ABS (with UV powder added) material, which has the ability to resist UV aging. The device provides I2C, GPIO, UART, RS485 expansion interfaces internally, as well as battery interfaces, which can be externally connected through the M12 interfaces on both sides of the body to achieve more expansion functions. The system adopts M5PM1+M5IOE1 to achieve multi-level power management and supports low-power wake-up. The device supports conventional waterproof and dustproof (non immersion protection), suitable for various application scenarios such as outdoor edge data collection, intelligent buildings, industrial gateways, etc.

Features:
- ESP32-C5HR8 core controller:
  16MB Flash
  8MB PSRAM
  2.4&5 GHz Dual band WiFi 6
  Supports BLE 5/IEEE 802.15.4 (Zigbee, Thread)
- Human computer interaction:
  2.0 "LCD capacitive touch screen, resolution 320x240
  Onboard passive buzzer
- Clock and power supply:
  Onboard RX8130CE RTC clock
  RTC clock battery (CR2032 button battery/ DC 3V at 220mAh)

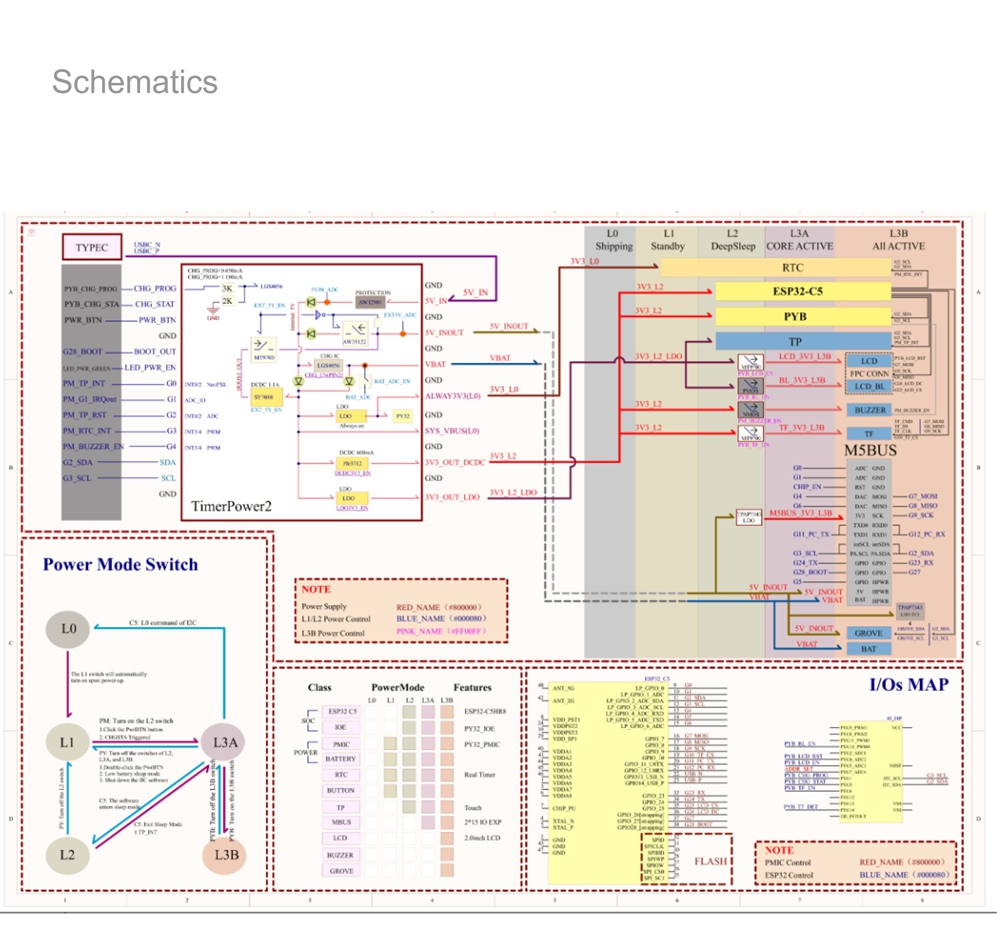

  M5PM1+M5IOE1 multi-level power management
  DC 3.7V battery interface
- Interfaces and extensions:
  USB Type-C debugging/program download

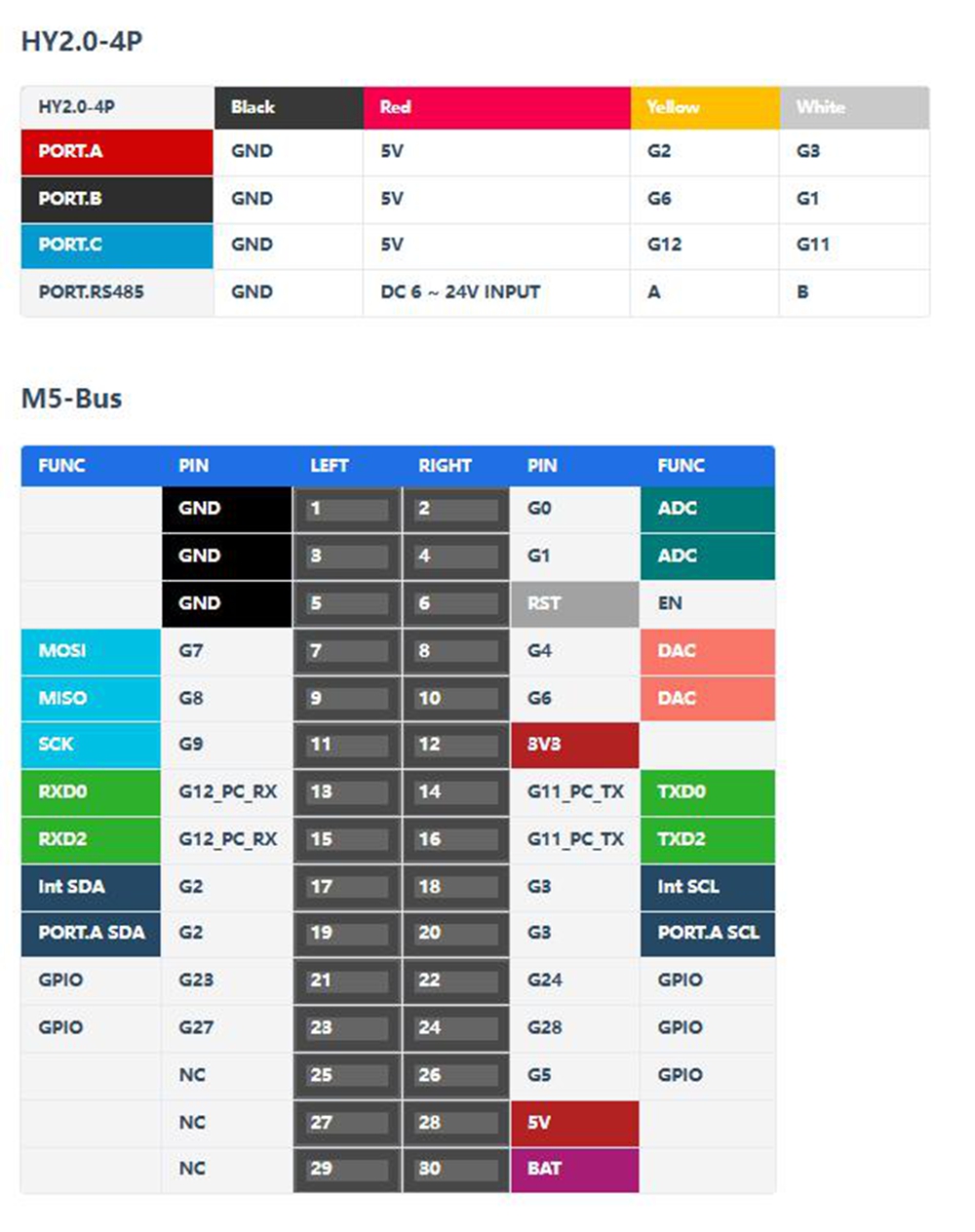

  Internal interface expansion board: HY2.0-4P x 4 (RS485/12C/GPIO/UART)
  2x M12 body wiring hole positions
  Micro SD card slot
- Convenient wiring, magnetic installation
- PC+ABS (with UV powder) shell material, resistant to UV aging

Applications:
- Outdoor edge data collection
- Outdoor industrial site control
- Outdoor environment gateway monitoring
- Low power sensing terminal for outdoor use

Specifications:
- SoC: ESP32-C5HR8 at RISC-V 32-Bit single-core processor, main frequency of 240MHz
- Flash: 16MB
- PSRAM: 8MB Octal
- Wireless communication: 2.4G & 5GHz dual-band WiFi6 / BLE5 / IEEE 802.15.4 (Zigbee, Thread)
- Input voltage: USB (DC 5V at 500mA) /RS485 interface input power supply (DC6-24V at 1A) / Battery (DC 3.7V)

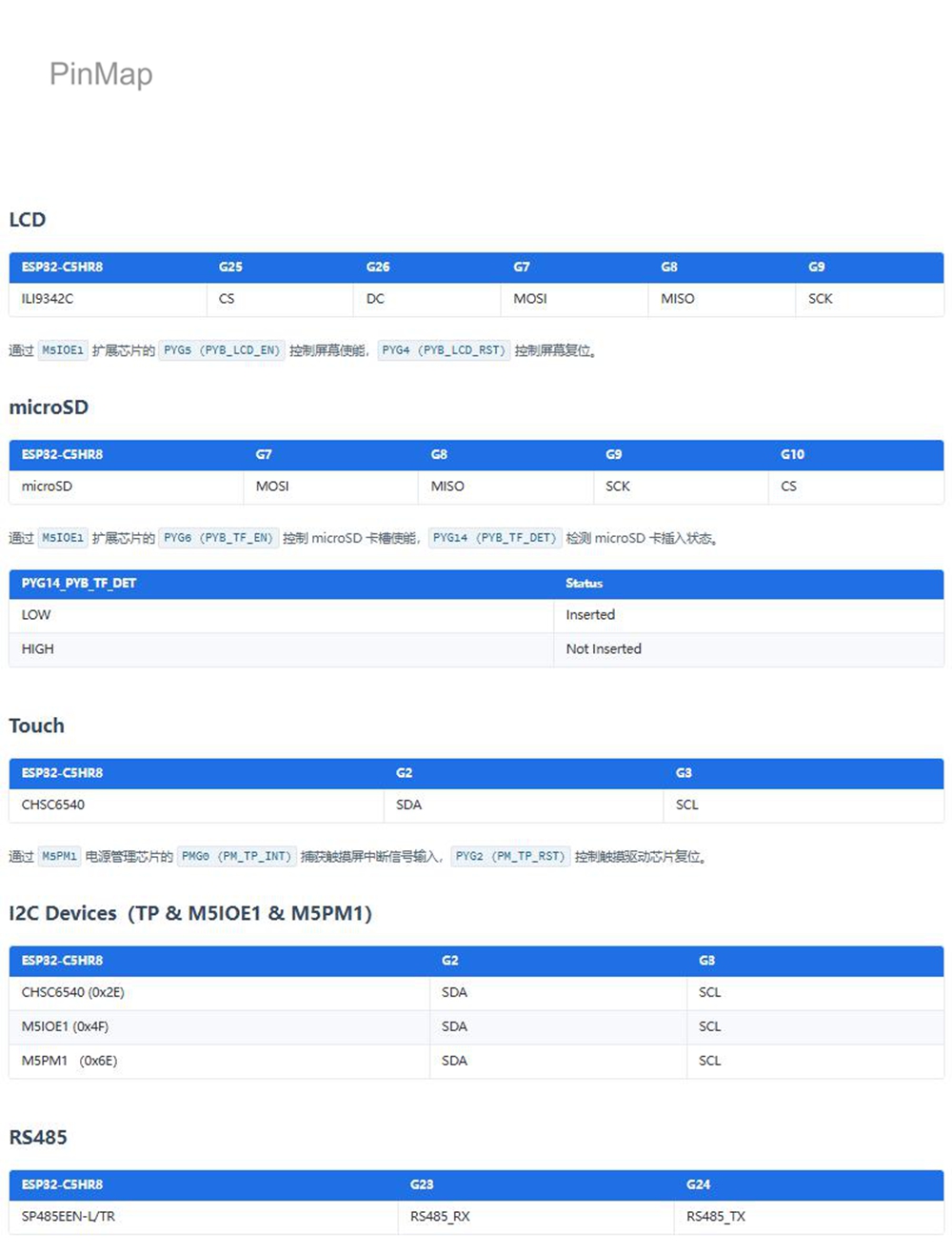

- Interface: USB Type-C x 1, HY2.0-4P x 4 (RS485/I2C/GPIO/UART)
- RS485 signal conversion: RS485 at SP485EEN-L/TR
- LCD screen: 2.0-inch at 320 x 240 ILI9342C IPS panel, maximum brightness of 853nit
- Touch control panel driving chip: CHSC6540
- RTC:
  RTC chip: RX8130CE
  RTC battery specification: DC 3V at 220mAH, size of 20 x 3.2mm
  Battery slot specification: SH1.0-2P
- Battery interface specification: MX1.25-2P
- Buzzer: onboard passive buzzer at 8530
- FPC antenna: 2.4GHz & 5GHz, IPEX-2, 14.3 x 5.3mm, cable length of 50mm

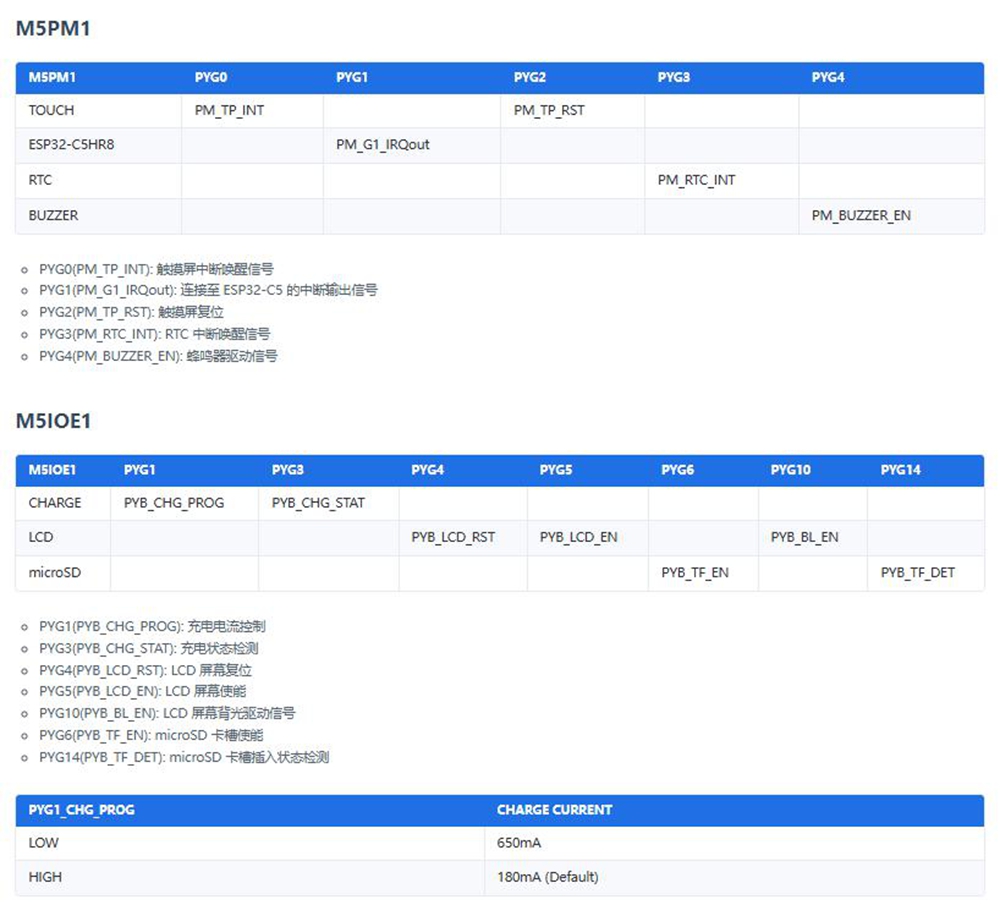

- Power supply management: M5PM1 + M5IOE1
- Power consumption: DC4.2V at 10.41uA for power-off; DC4.2V at 320mA for full-loaded
- Shell material: PC + ABS (with UV powder)

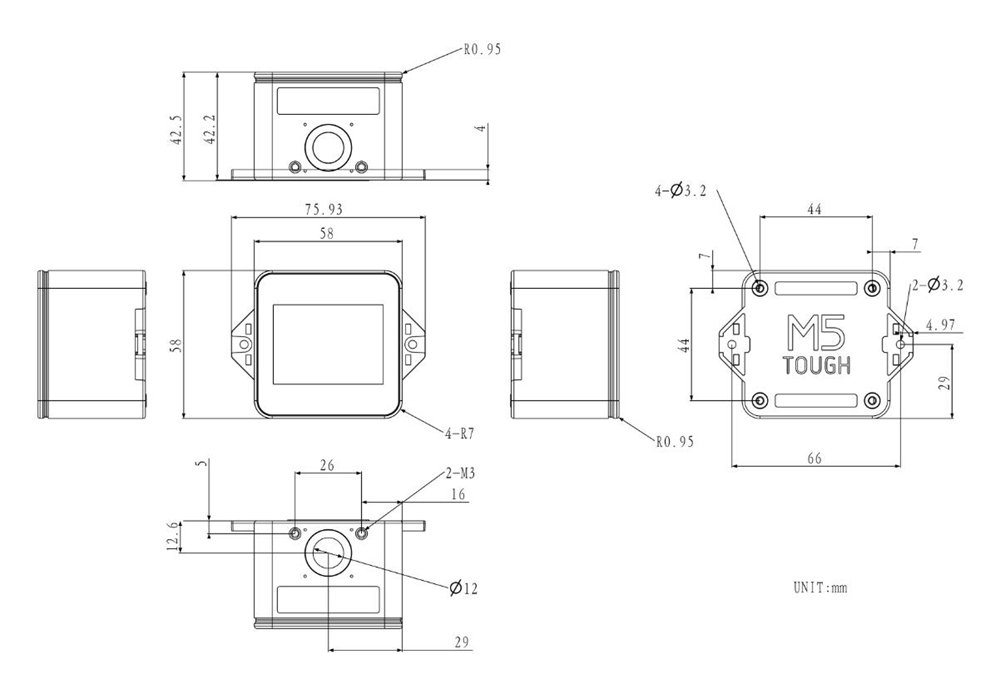

- Product size: 75.9 x 58.0 x 42.5mm
- Net weight: 119g

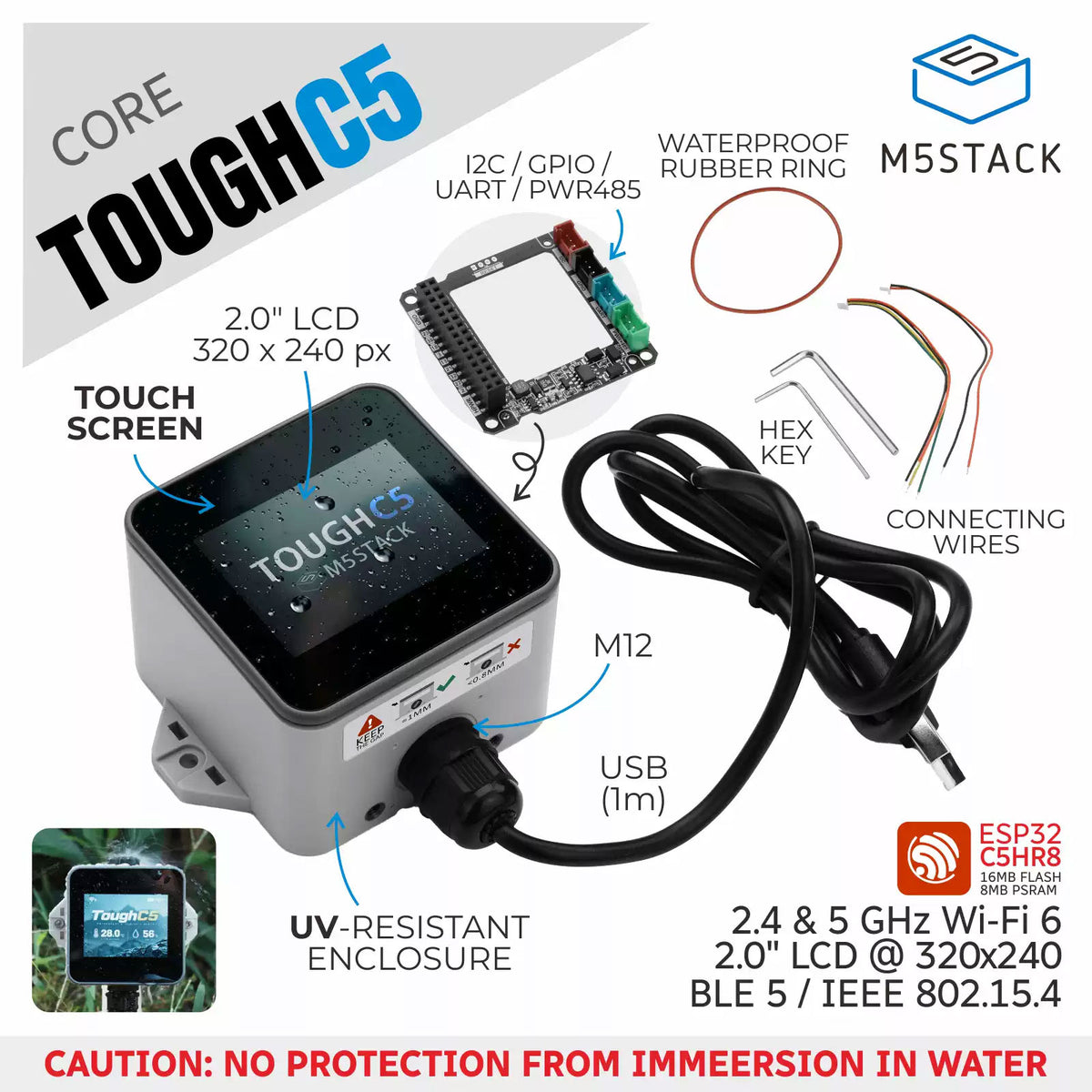

Package Included:

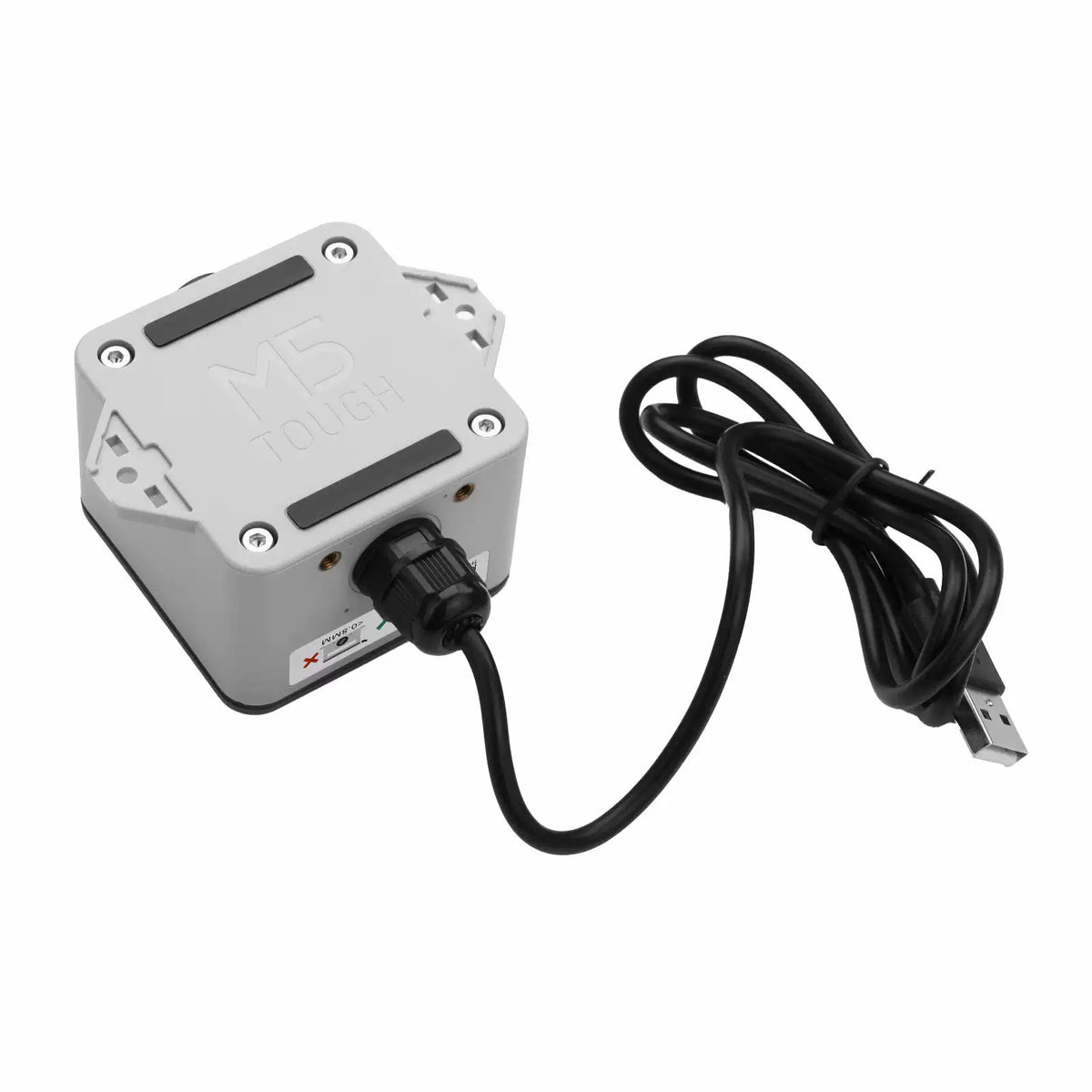

- 1 x ToughC5
- 1 x USB Type-C Connection Cable (1m)
- 1 x L-shaped Hex Key 2.5mm (for M3 Screw)
- 1 x L-shaped Hex Key 1.5mm (for M2 Screw)
- 1 x 1.25-2P Single-ended Terminal Wire
- 1 x 1.25-4P Single-ended Terminal Wire
- 1 x Waterproof Rubber Ring
