SBB5089 + SZA3044 1.5-3.9GHz 36dB 1W RF Power Amplifier Module for GPS/WiFi/Zigbee/EMC Testing

Description:

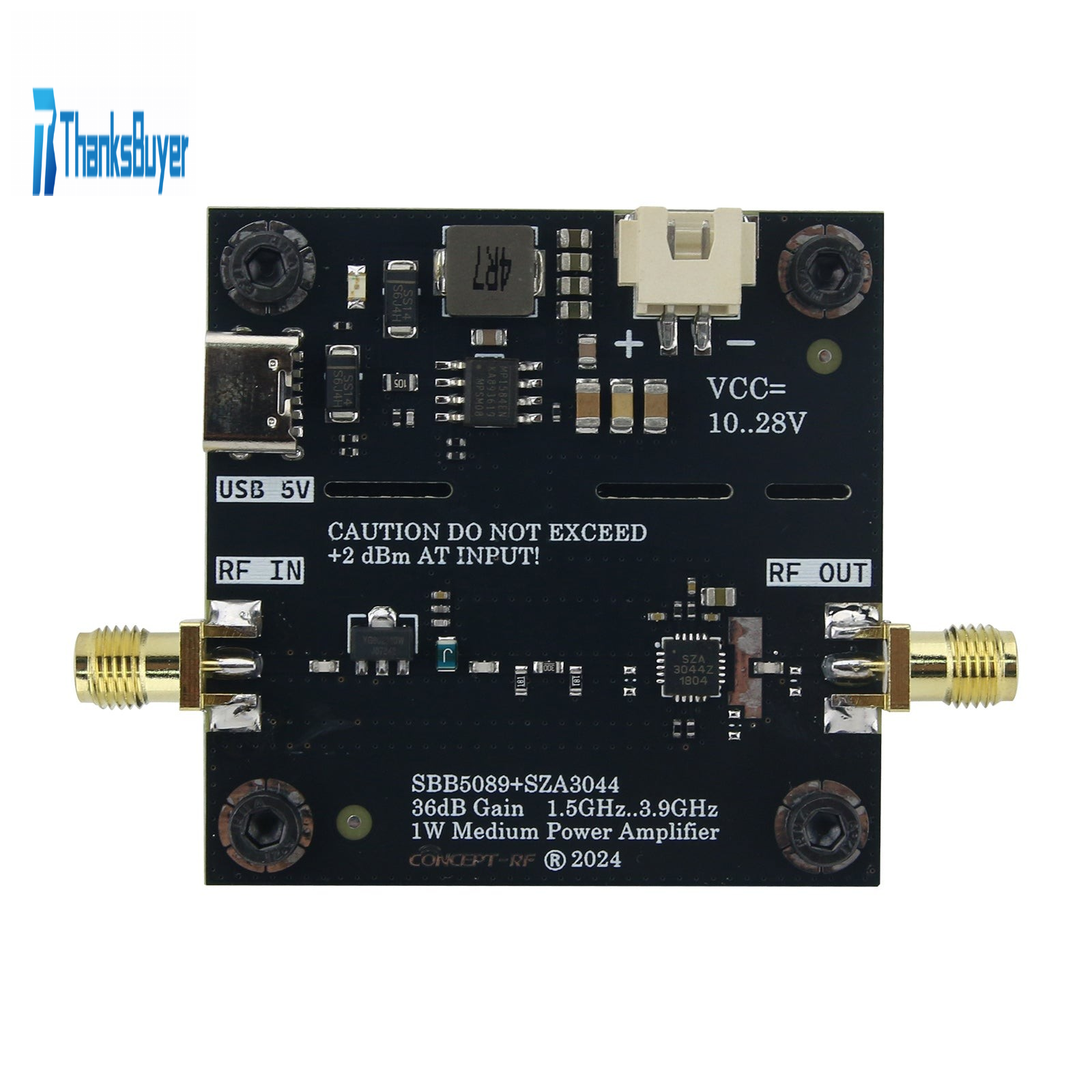

The SBB5089 (YG602020W) + SZA3044 is a 1W wideband RF power amplifier designed for applications operating in the 1.5–3.9GHz frequency range. Typical applications include GPS, WiFi, Zigbee, LoRa, 5G systems, wideband GaN driver stages, and EMC testing.

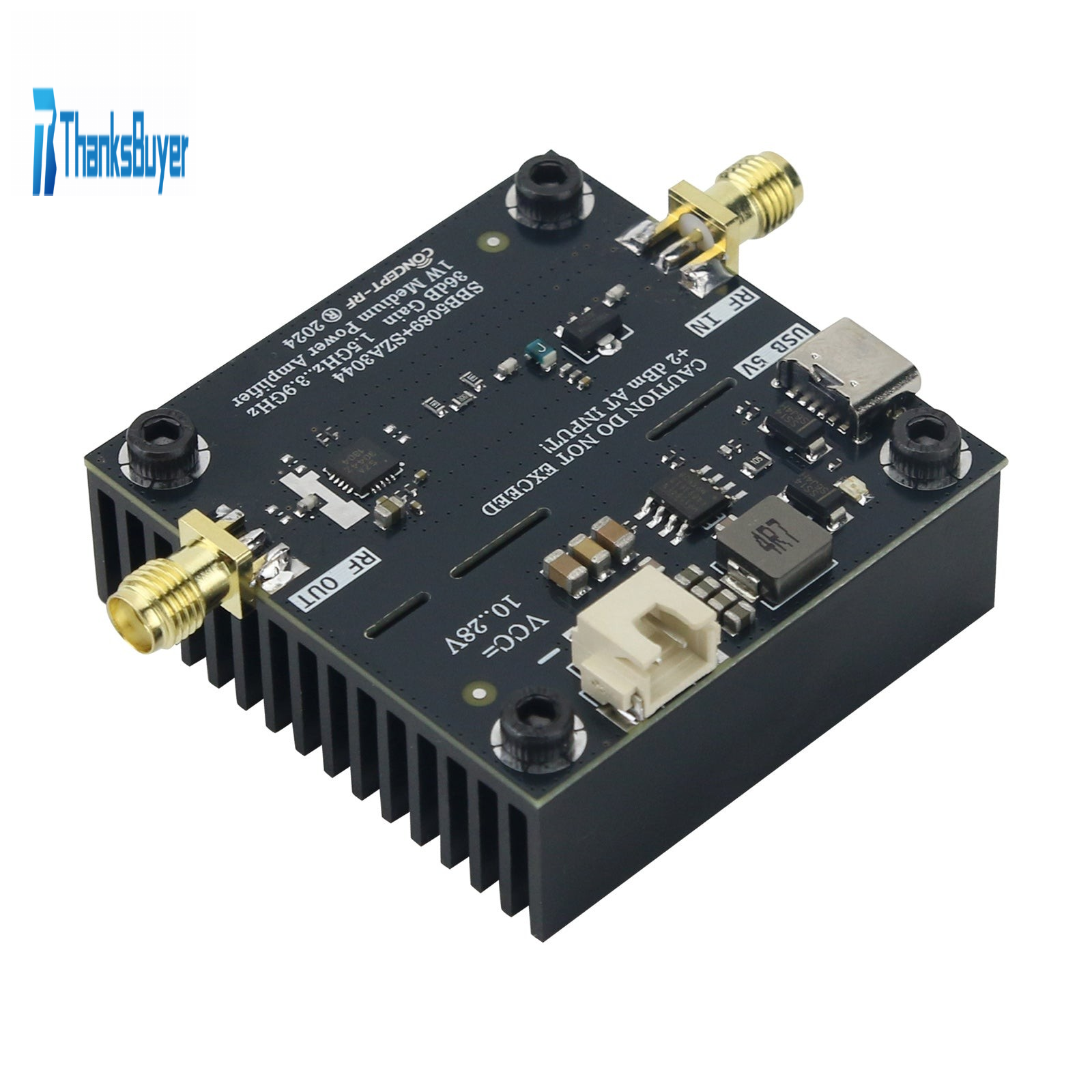

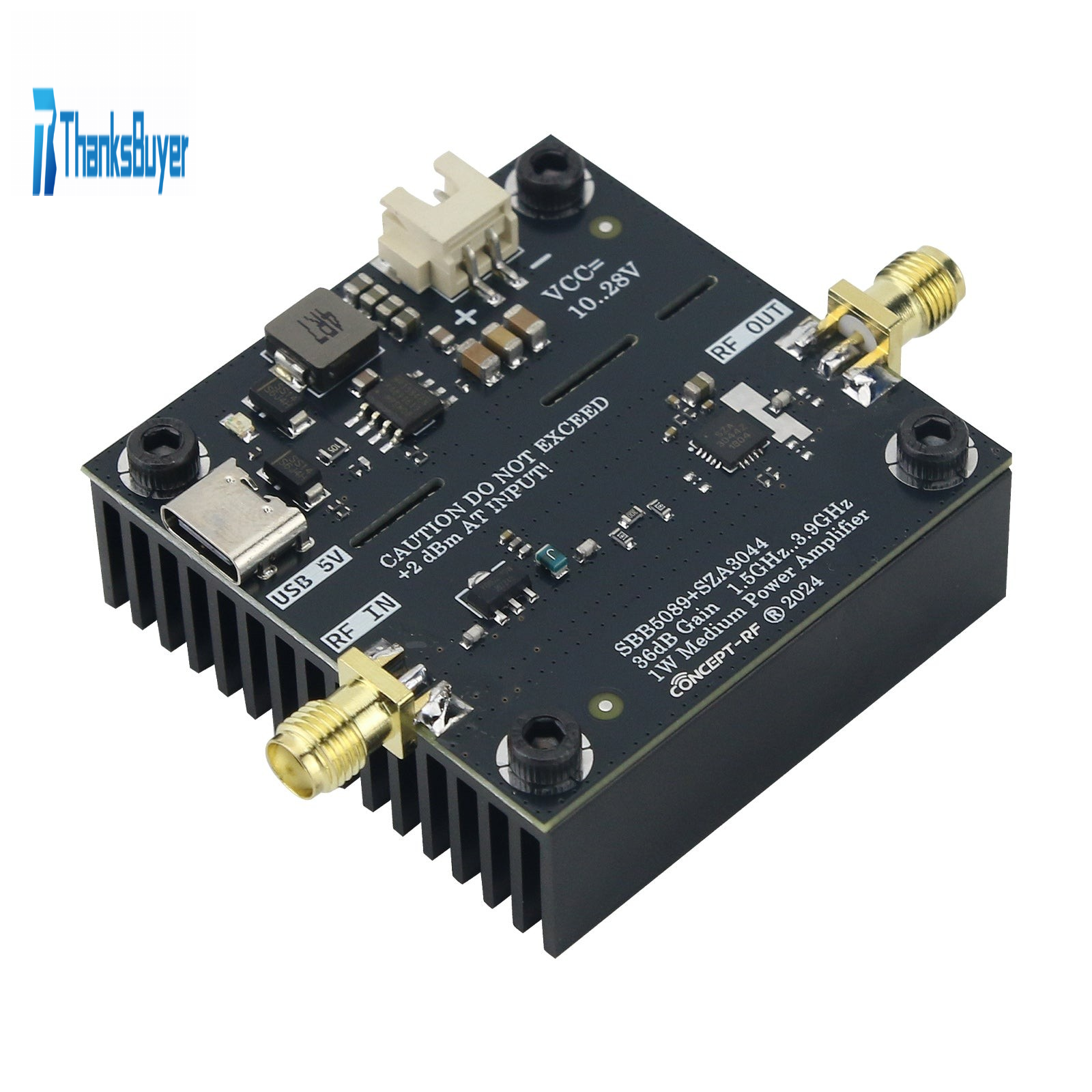

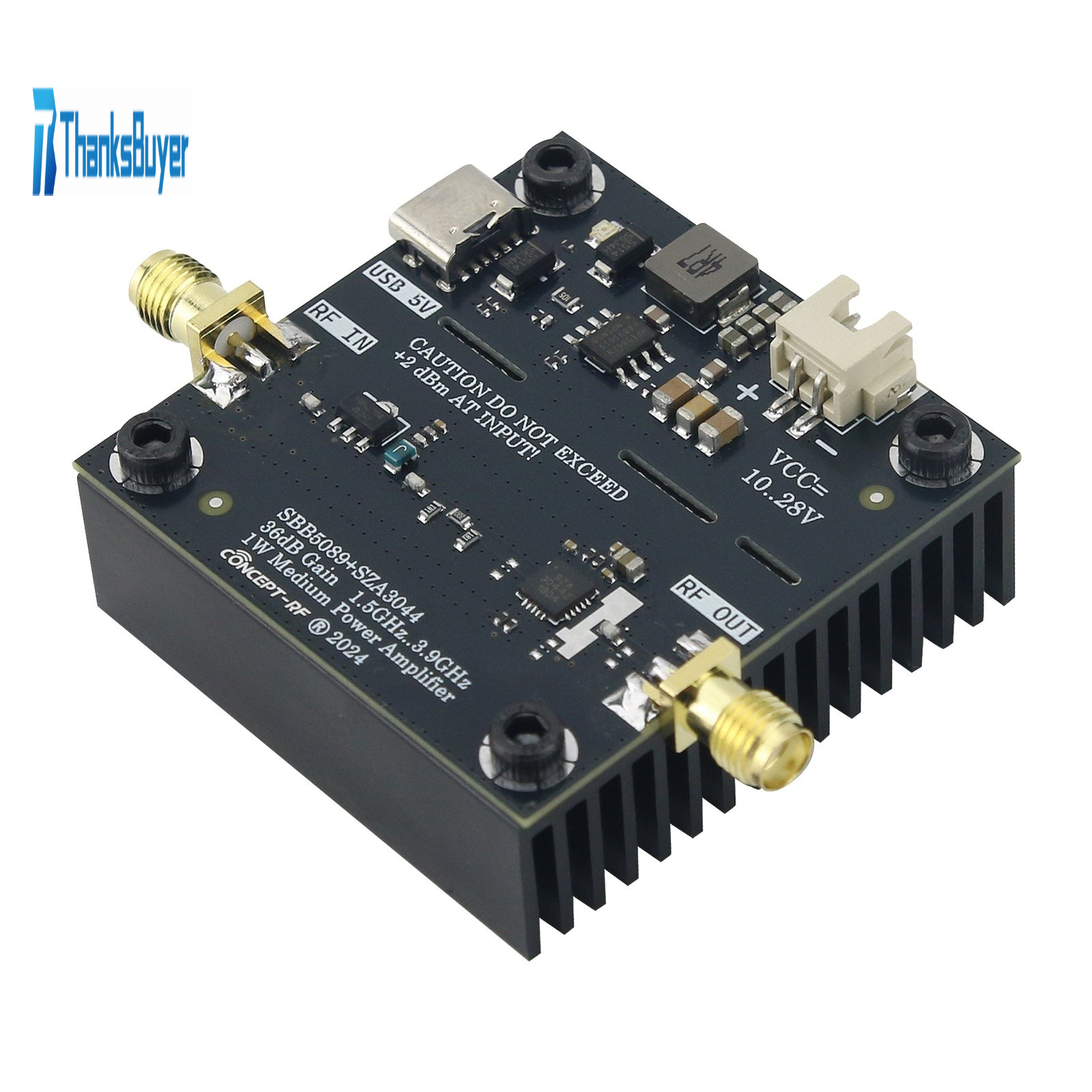

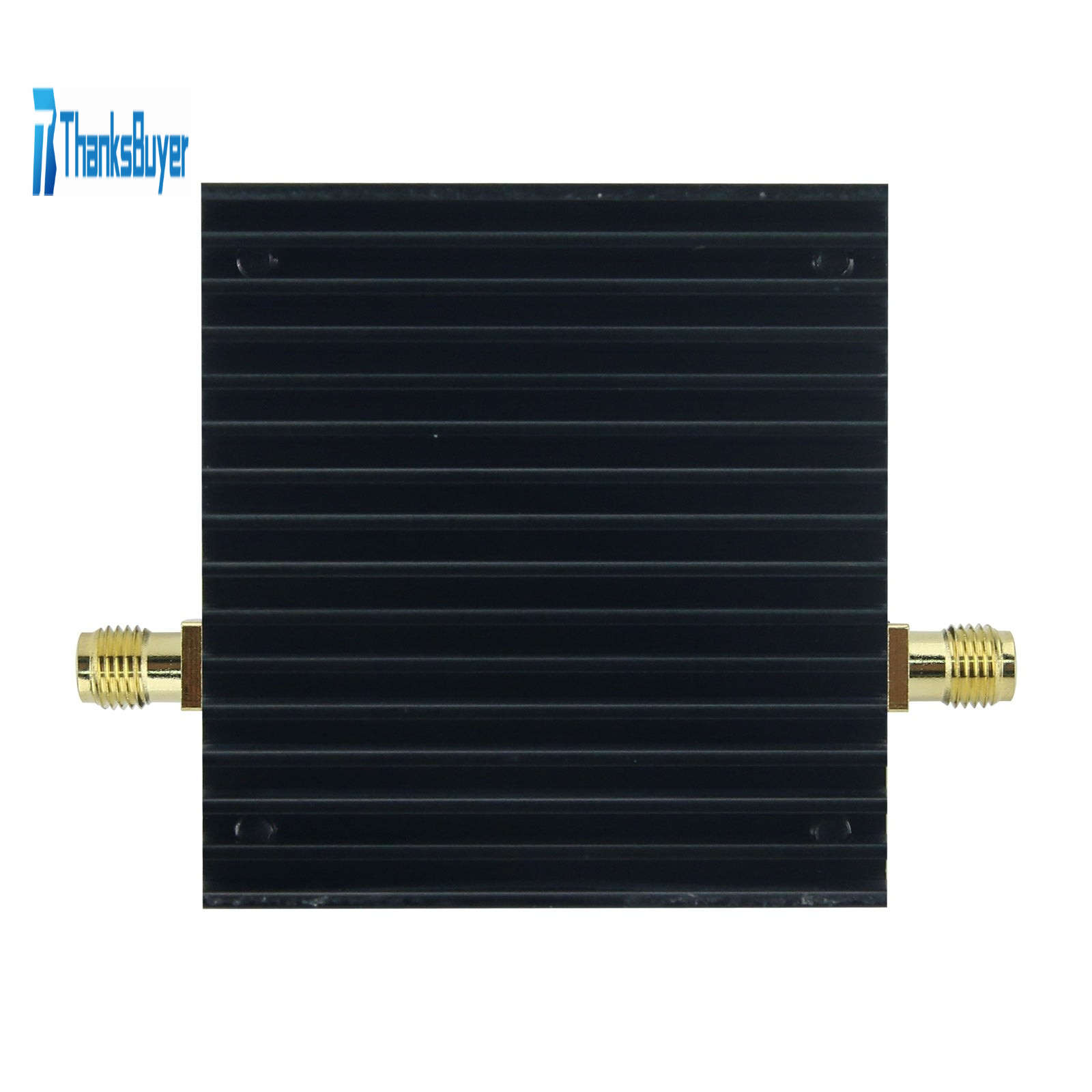

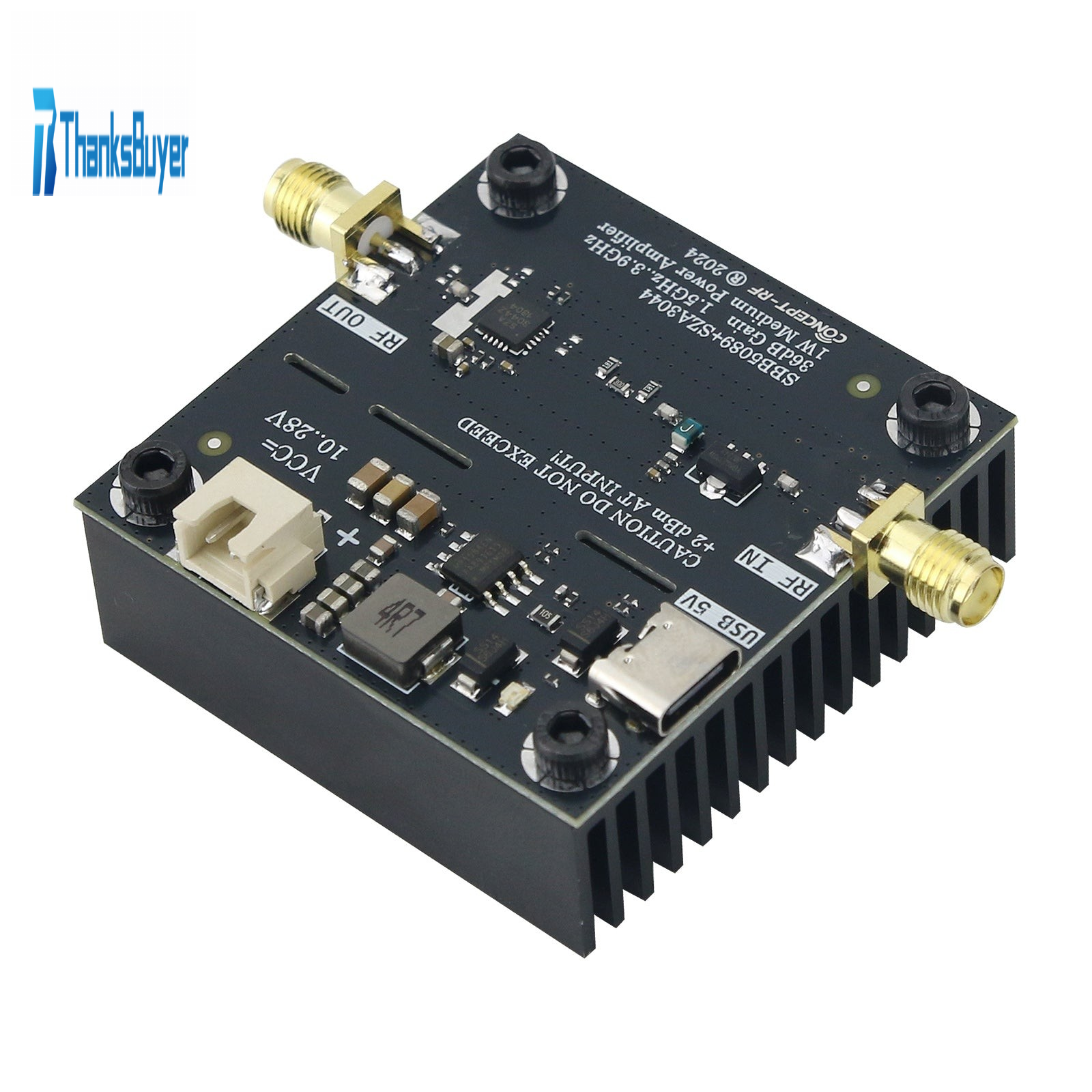

The module features a black enclosure with dimensions of approximately 50mm × 50mm × 20mm (excluding connectors) and a weight of about 60g (excluding packaging). It supports a wide supply voltage range of 10–28 V, offers relatively flat gain and output power across the band, and includes an integrated heatsink for long-term stable operation.

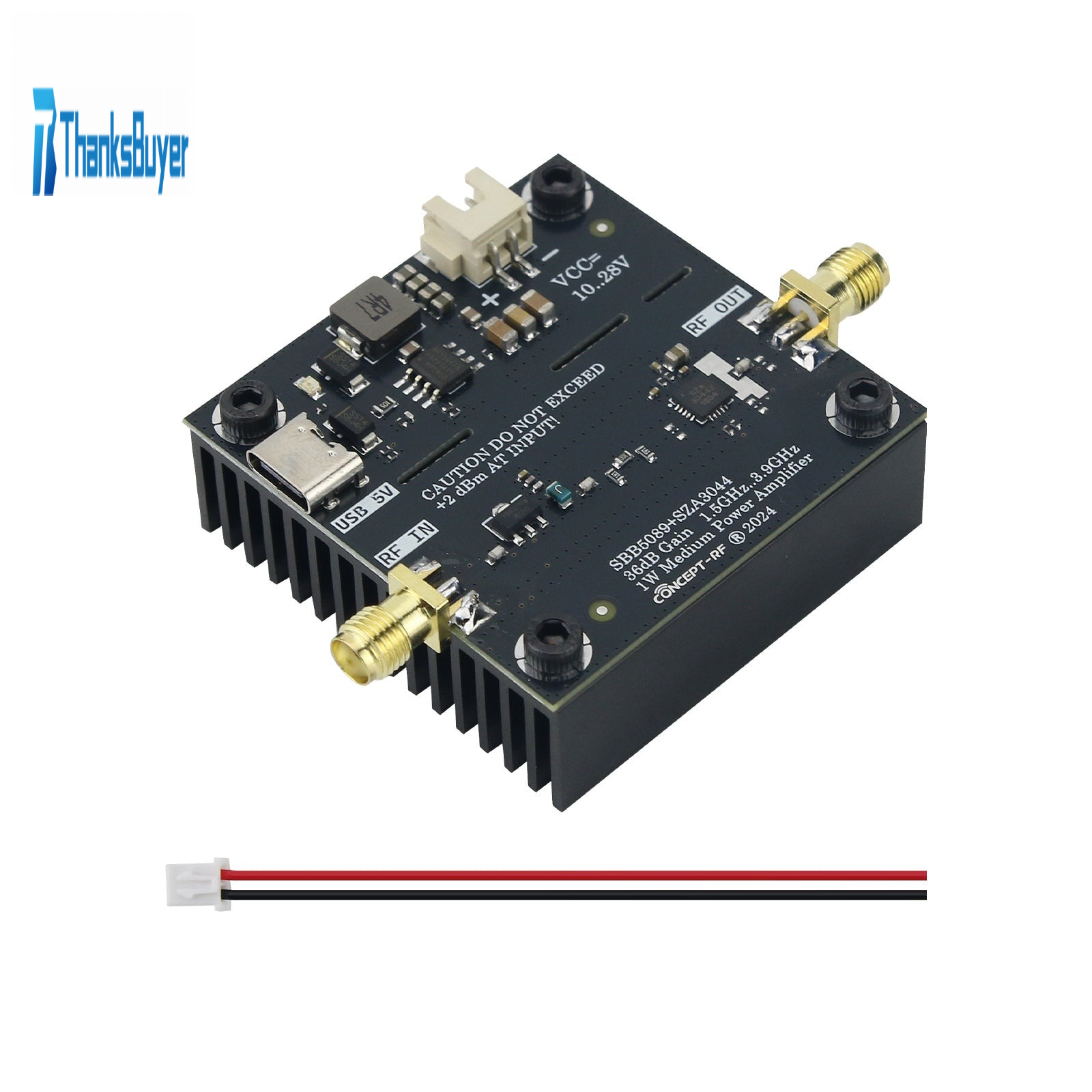

The package includes one XH2.54 power cable.

Features:
* Wide operating frequency range: 1.5–3.9GHz
* High gain of 36dB (typical)
* 1W saturated output power
* Flat power response across the entire band
* Integrated heat dissipation for long-term stable operation
* Wide input voltage range for flexible system integration

Specifications:
* Bandwidth (3dB): 1.5–3.9GHz
* Gain: 36dB (typical)
* Saturated Output Power: 1W
* Maximum RF Input Power: 2dBm (Exceeding this level may damage the SZA3044)
* Quiescent Current: 0.2A (at 10V input)
* Supply Voltage: 10–28V
* Dimensions: 50mm × 50mm × 20mm (excluding connectors)
* Net Weight: approx. 60g

Interfaces:
* RF Connector: SMA female
* Power Connector: XH2.54 2-pin

Packing List:
* 1 × RF power amplifier
* 1 × XH2.54 power cable

Packaging Details:
* Weight: 0.15kg
