  5. HamGeek SDR-Z103 AD9361+ZYNQ7020 Software Defined Radio 2R+2T Development Board QPSK BPSK FM AWGN GPS Compatible with PlutoSDR
Por HamGeek

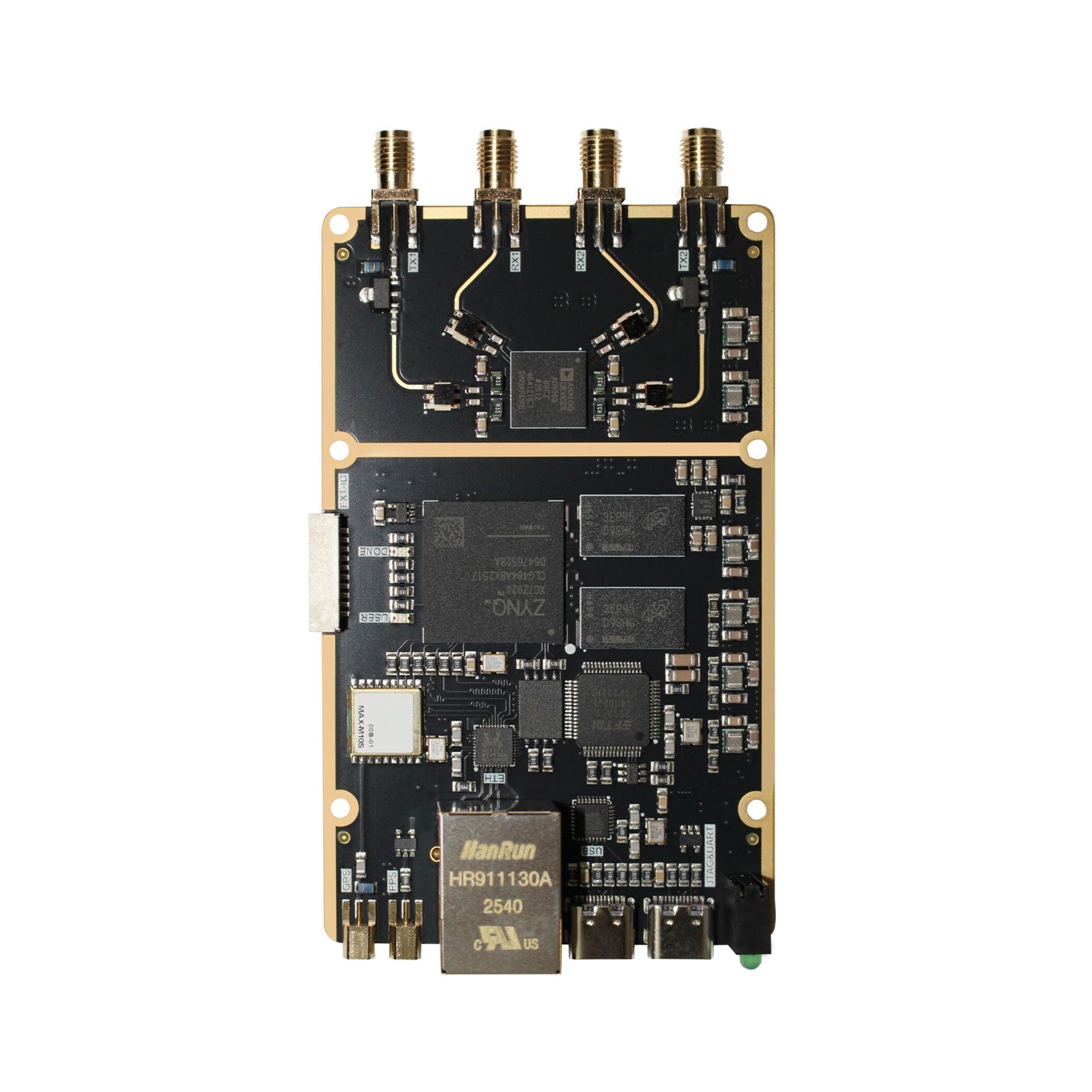

HamGeek SDR-Z103 AD9361+ZYNQ7020 Software Defined Radio 2R+2T Development Board QPSK BPSK FM AWGN GPS Compatible with PlutoSDR

$223.29
$223.29
Impuesto incluido. Los gastos de envío se calculan en la pantalla de pago.
Availability: 2000 en stock
SKU: 101761
Tags:
Collections:
HamGeekHamGeek JYR-U7V4 Portable Handheld UV Dual Band Yagi Antenna VHF144-146MHz/UHF430-440MHz SSTV Star Aiming
HamGeek JYR-U7V4 Portable Handheld UV Dual Band Yagi Antenna VHF144-146MHz/UHF430-440MHz SSTV Star Aiming
HamGeek SDR-Z103 AD9363+ZYNQ7010 Software Defined Radio 1R+1T Development Board QPSK BPSK FM AWGN GPS Compatible with PlutoSDR
HamGeekHamGeek SDR-Z103 AD9363+ZYNQ7010 Software Defined Radio 1R+1T Development Board QPSK BPSK FM AWGN GPS Compatible with PlutoSDR
$223.29
$223.29

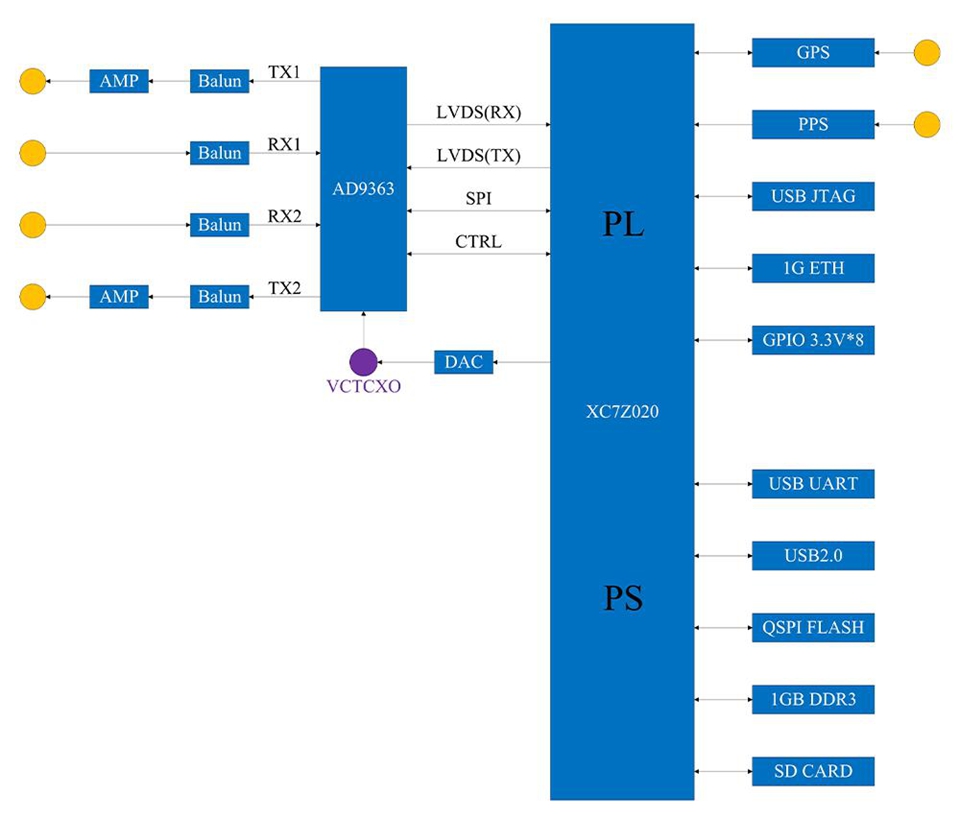

AD9363 Parameters:
- RF channels: 2R 2T
- Frequency range: 325MHz - 3.8GHz
- Bandwidth range: 200kHz - 20MHz
- TX amplifier: GVA-63+
- SOC model: XC7Z020-2CLG484
- DDR3: 1GB
- QSPI FLASH: 256Mb
- SD card: 32GB

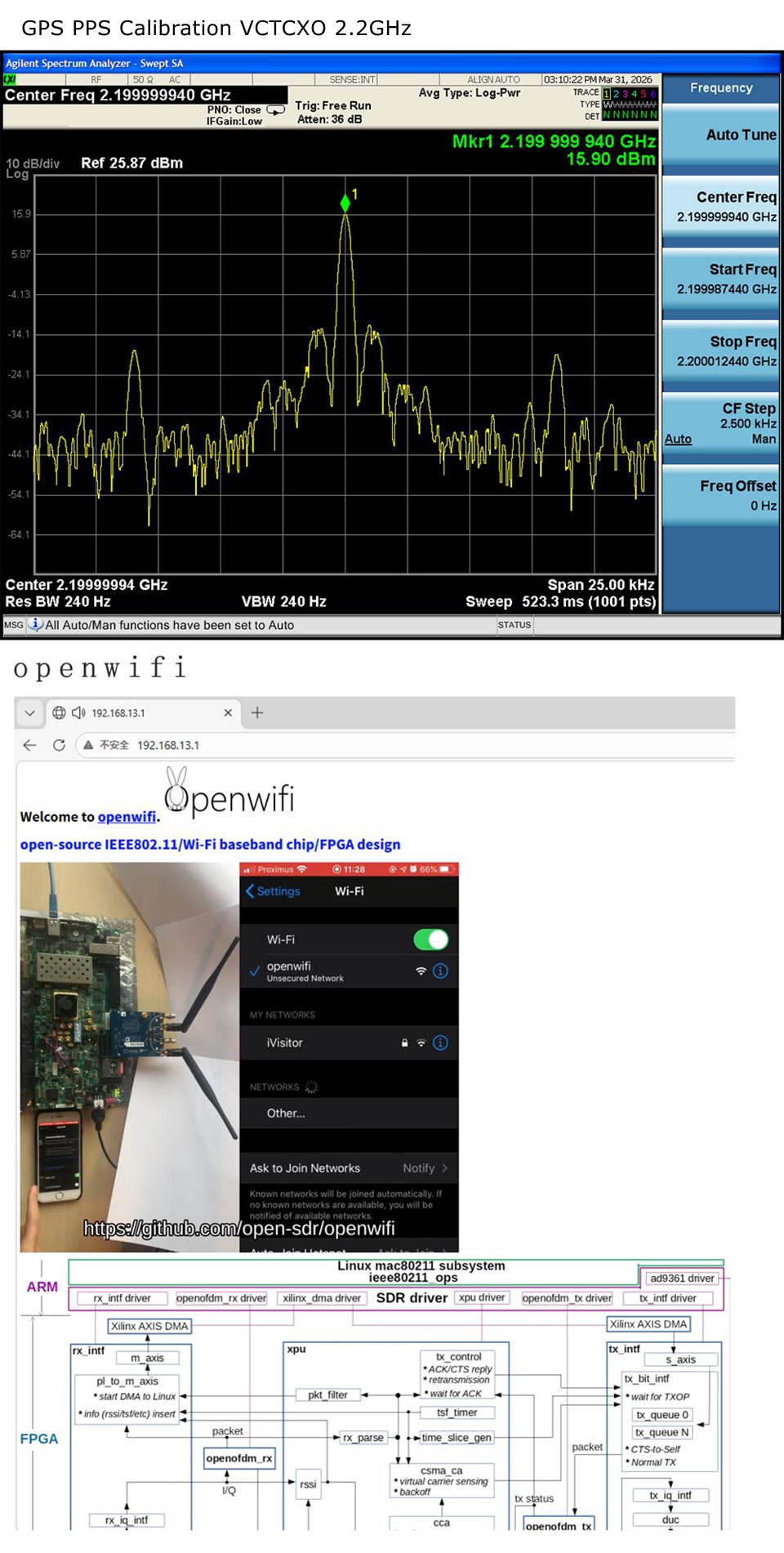

- Clock: VCTCXO 0.5ppm, 12bit DAC
- Synchronization: GPS PPS, external PPS
- GPS: MAX-M10S-00B-01

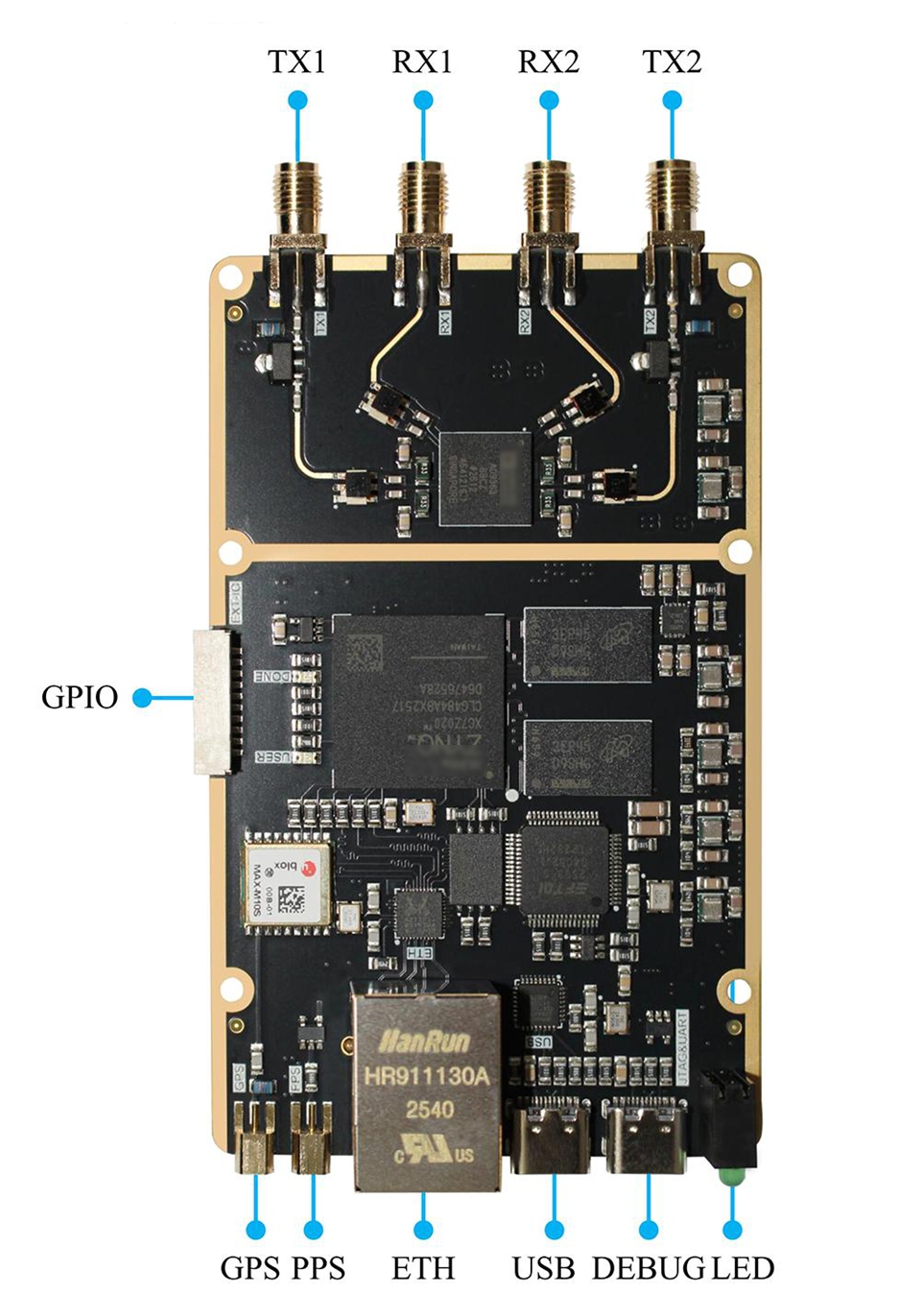

- Interface: 1-channel gigabit Ethernet; 1-channel USB2.0, 1-channel USB-JTAG/UART, GPIO expansion

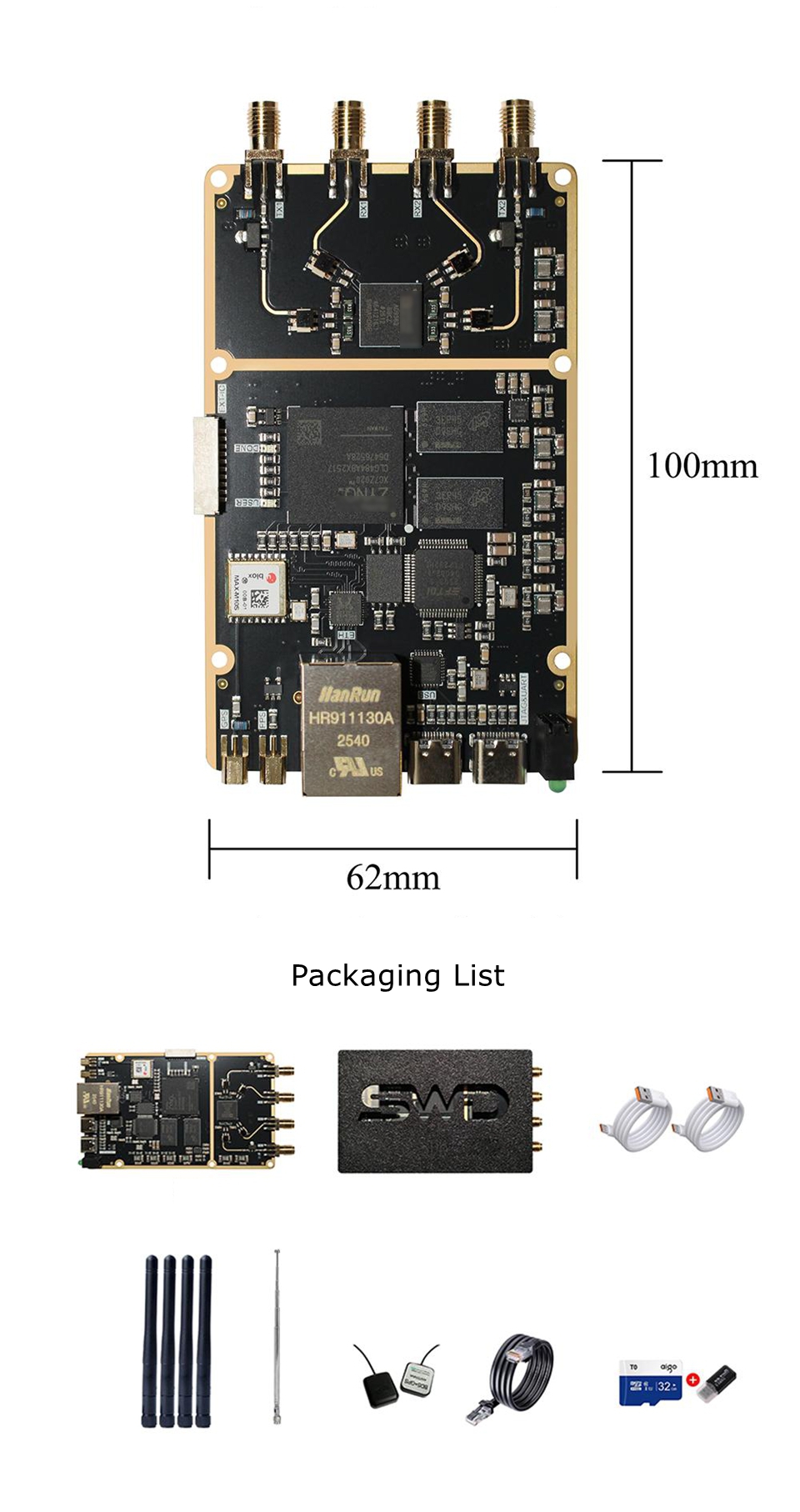

- Product size: 100 x 62mm
- Power supply: USB Type-C

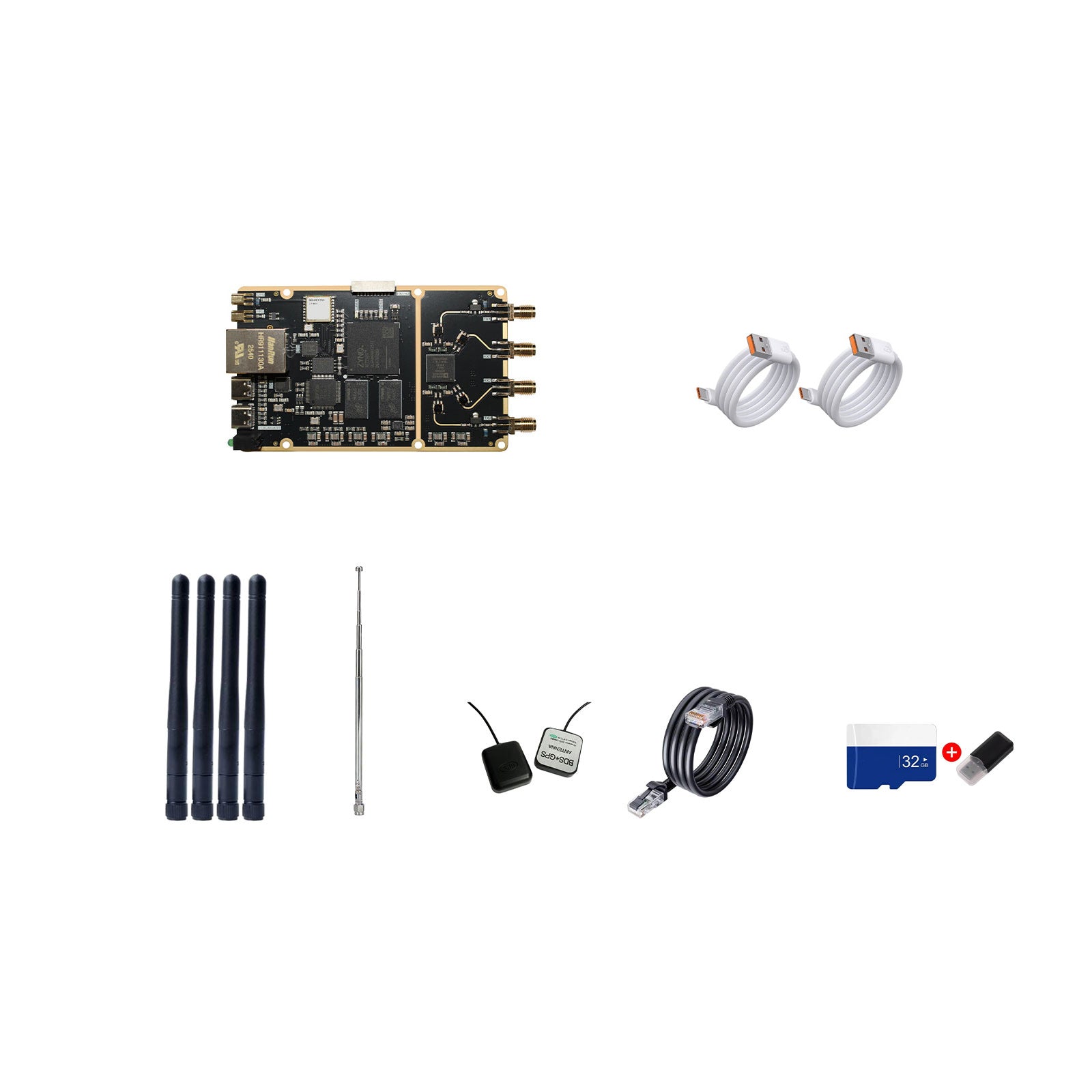

Package Included:
- 1 x Development Board Kit
