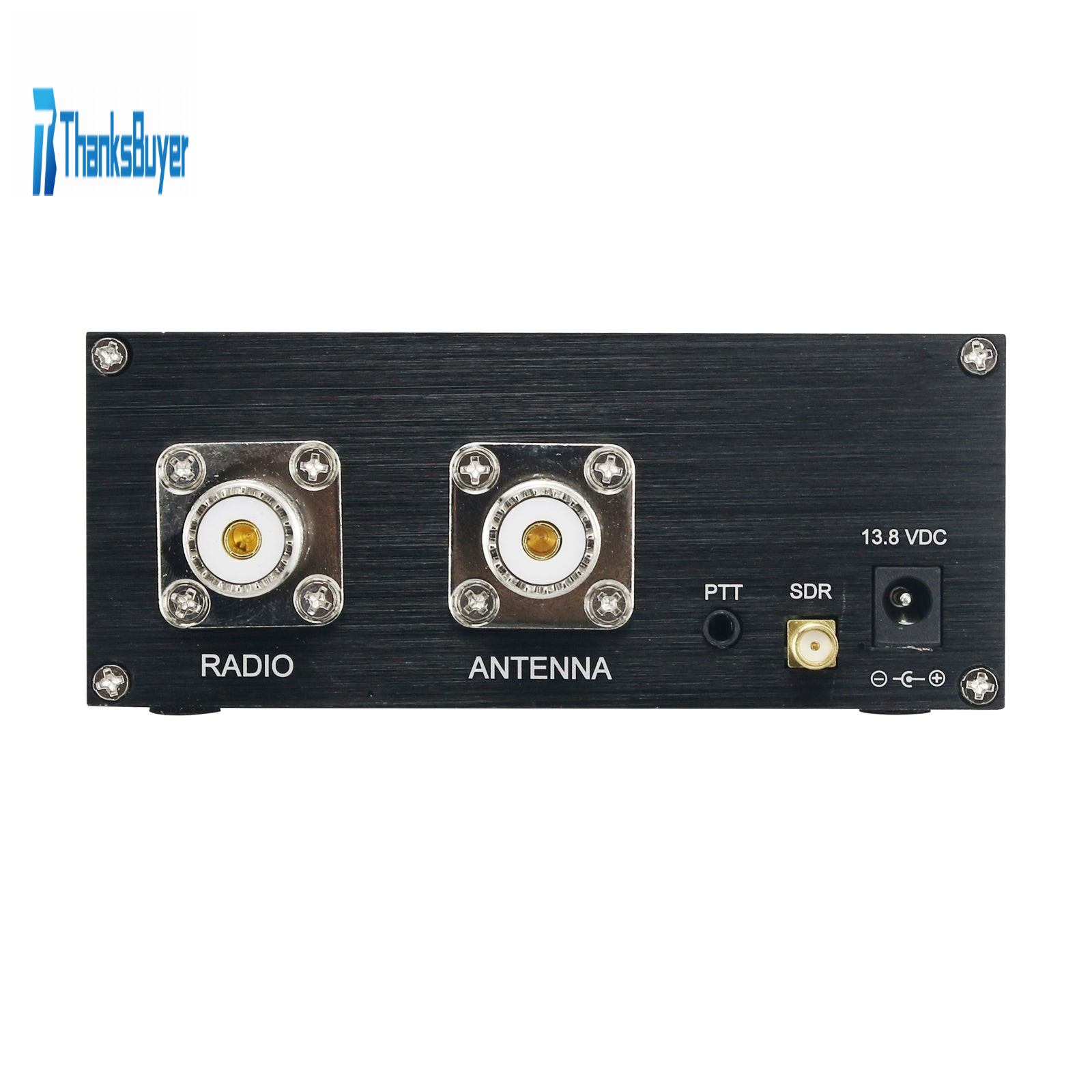

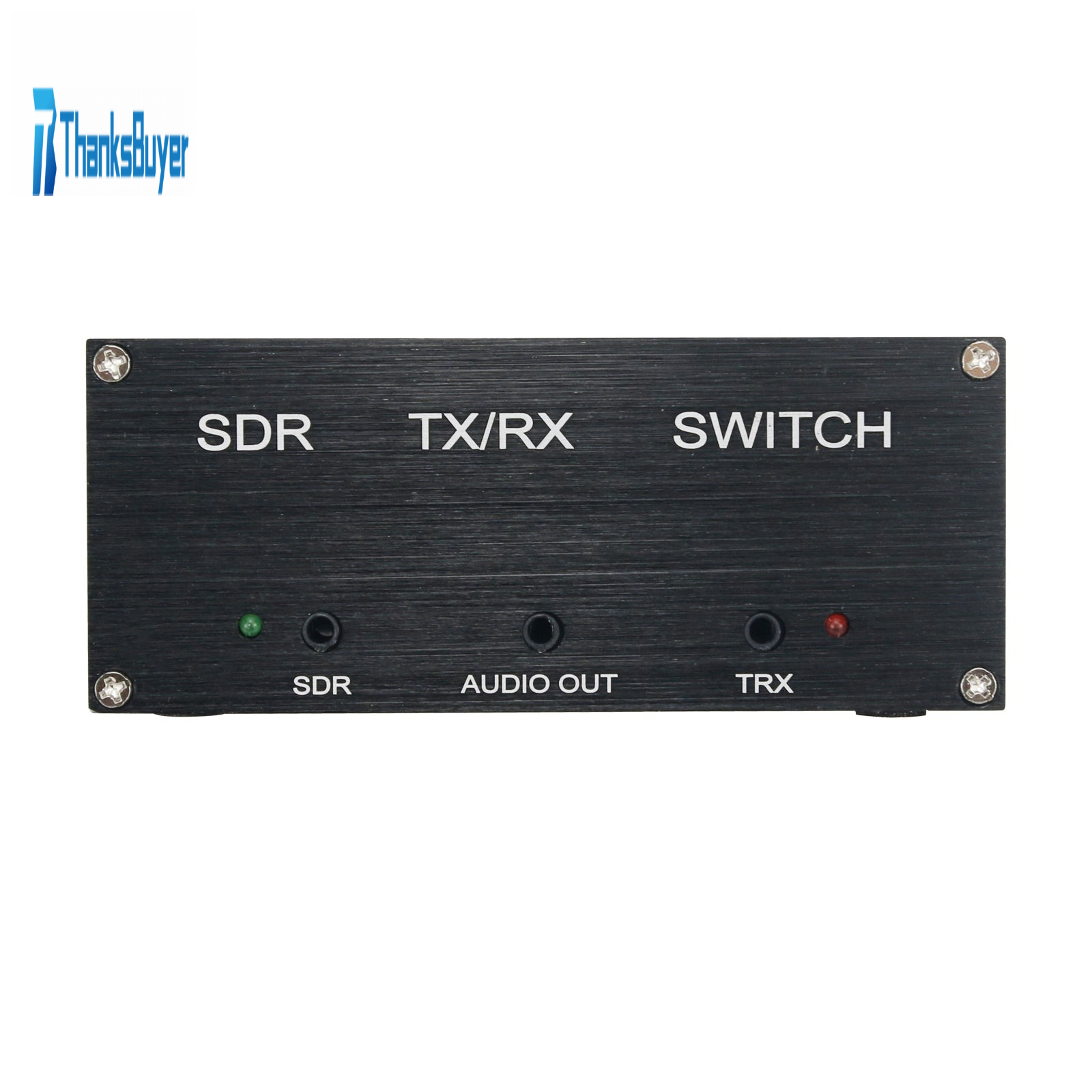

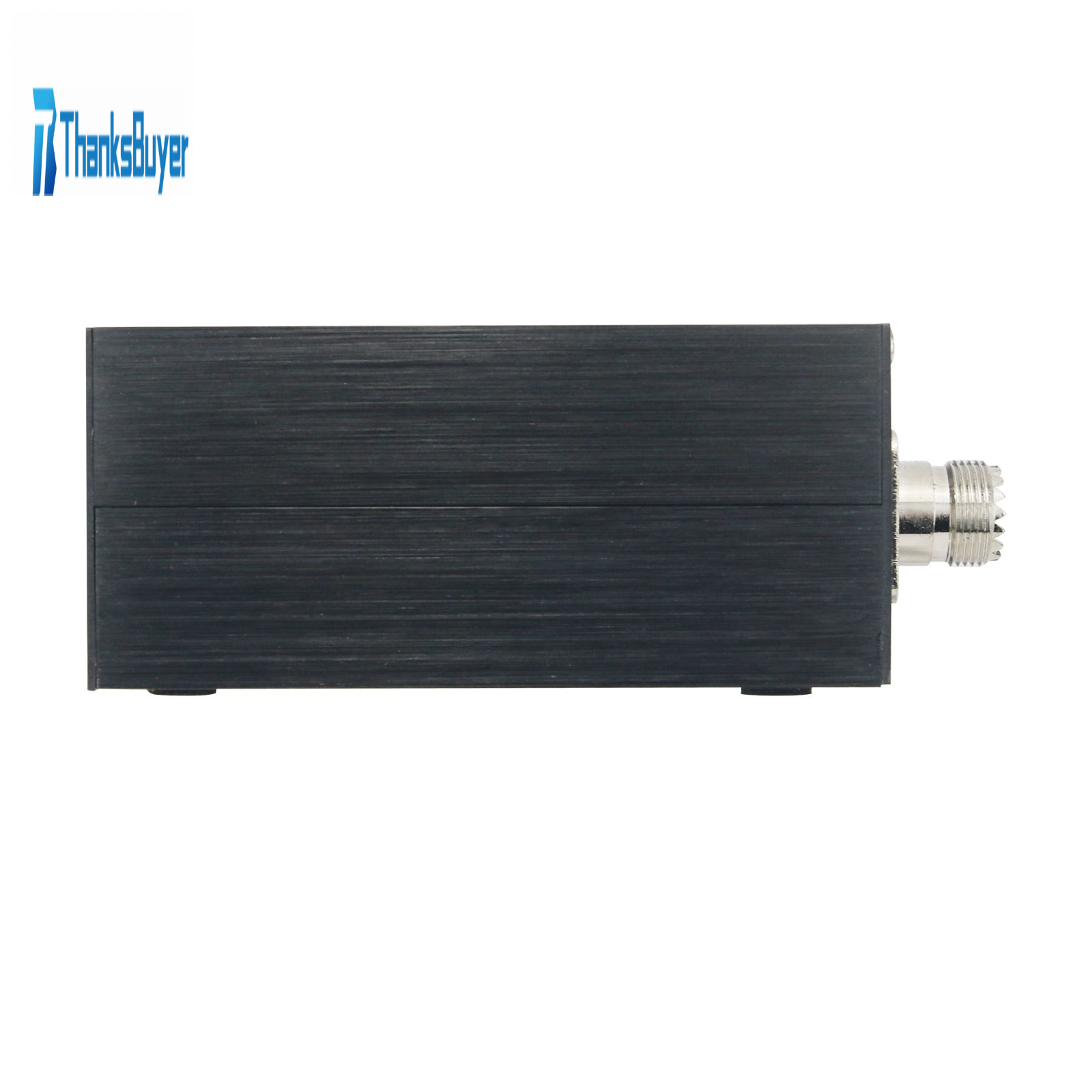

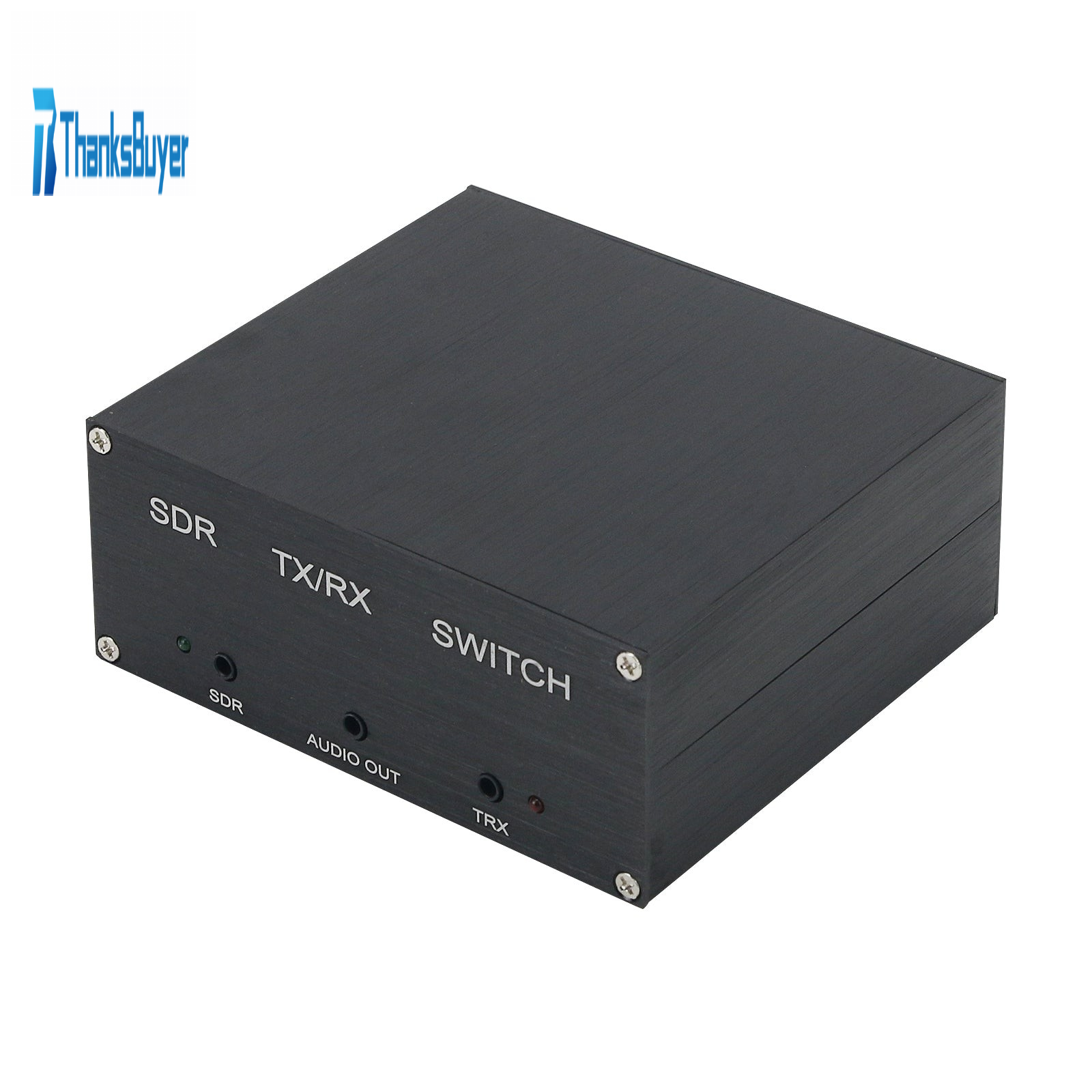

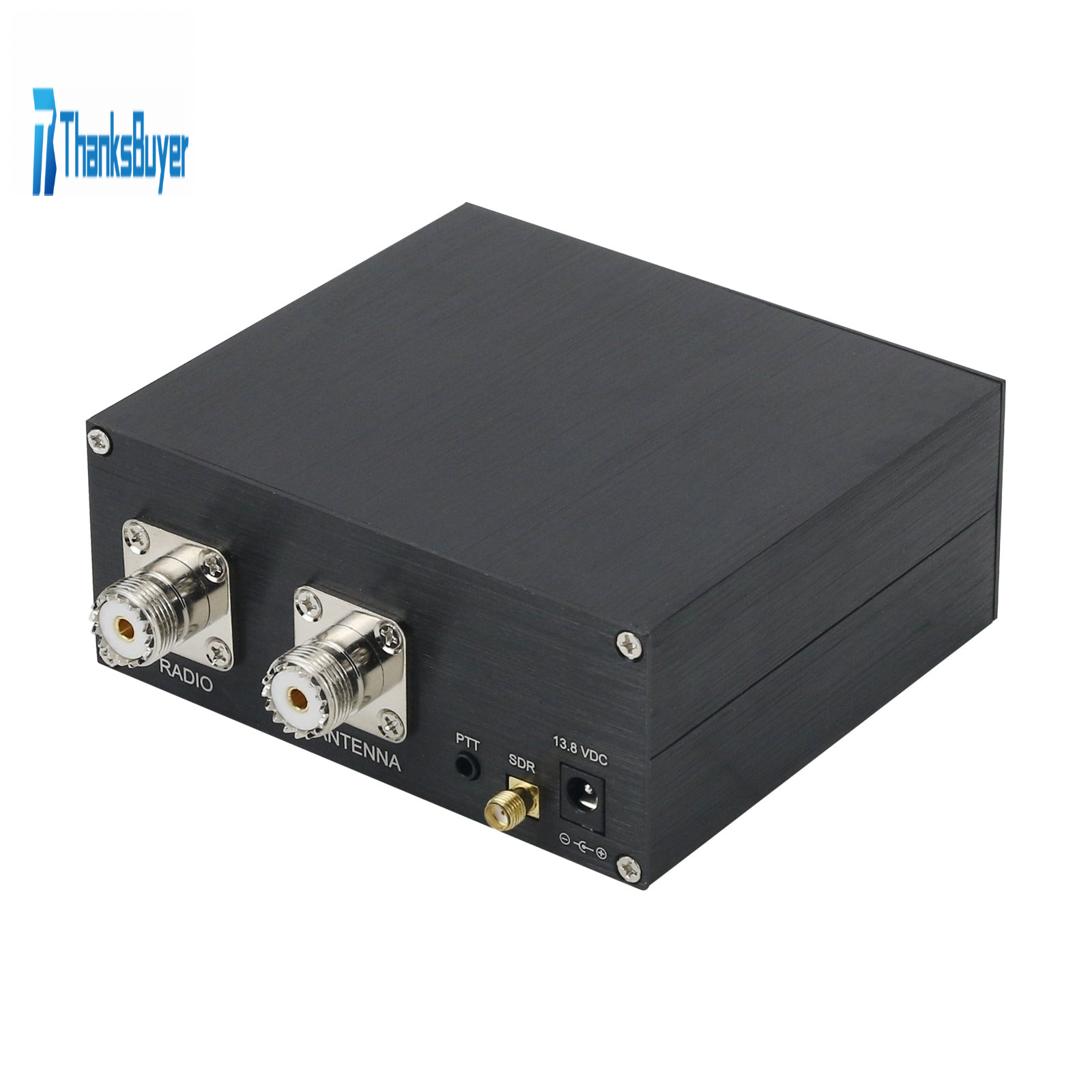

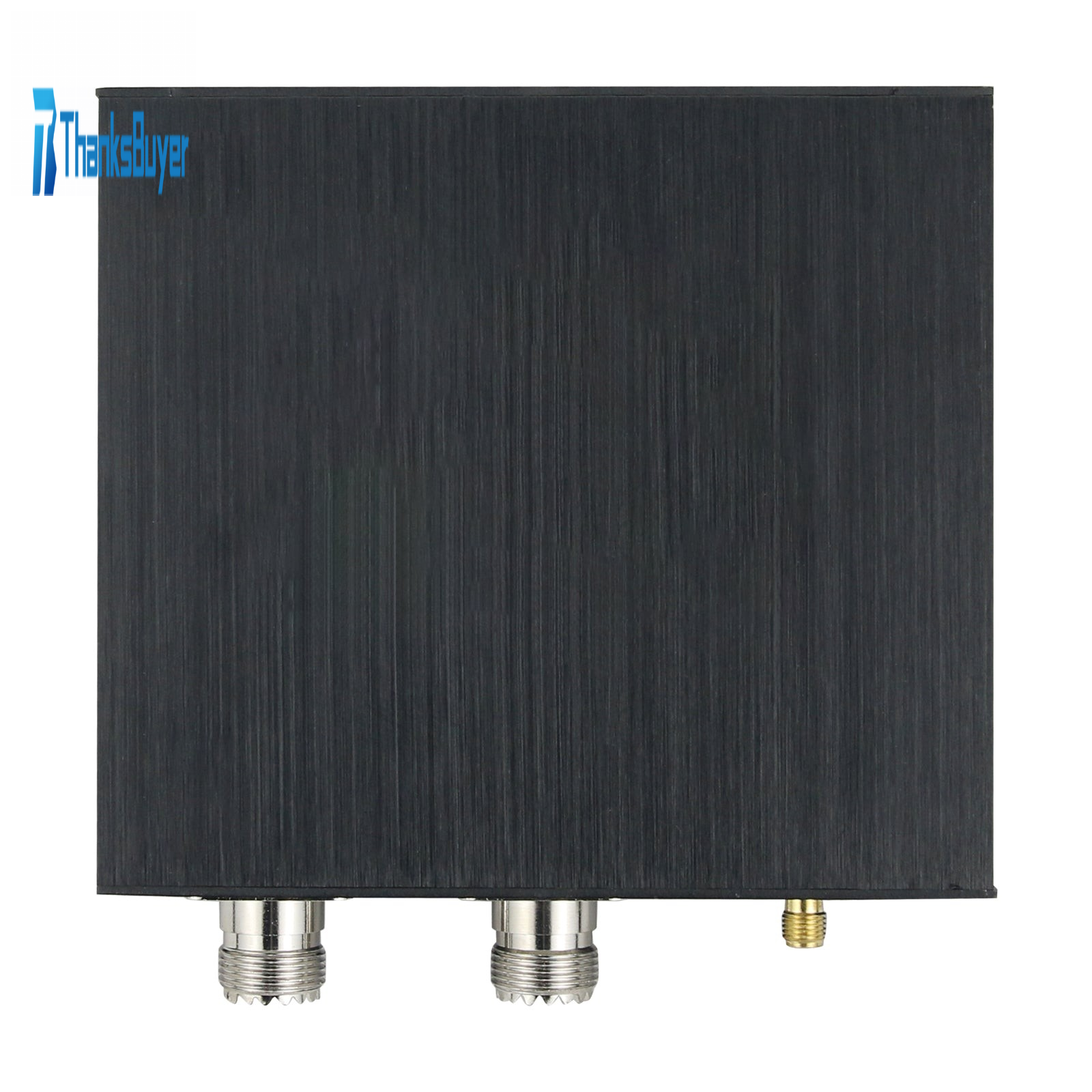

HamGeek DC-160MHz TR Switch Transmit Receive Switch Antenna Sharing Device TX RX Switch For SDR Radio

$42.59
$42.59
Impuesto incluido. Los gastos de envío se calculan en la pantalla de pago.
Availability: 2000 en stock
SKU: 66779
Tags:
Collections:

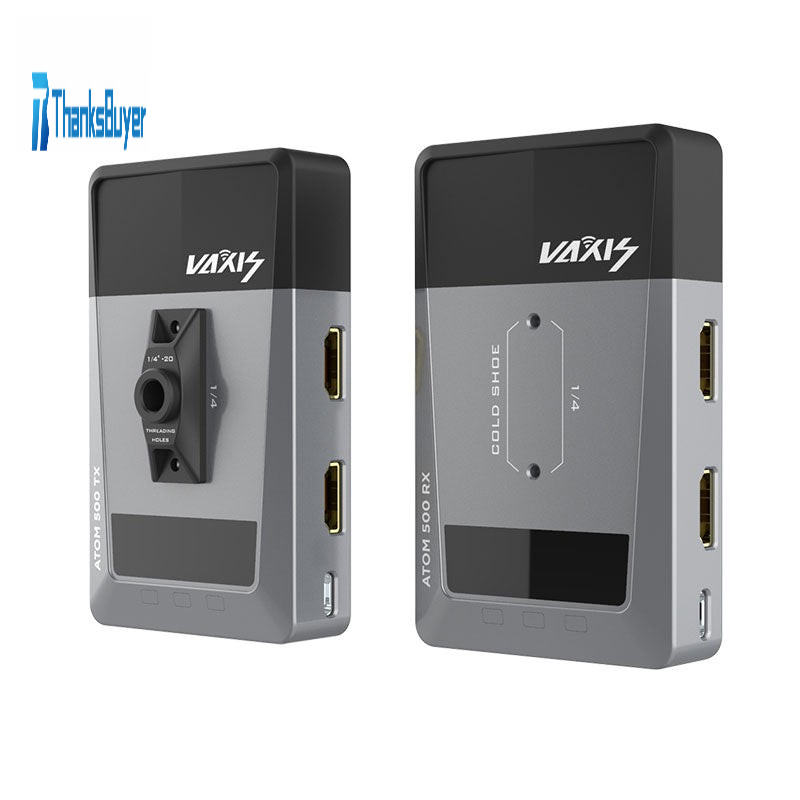

VaxisVaxis ATOM 500 Wireless Image Transmission HD Video Transmitter Receiver Dual HDMI 1080P For Camera
Text watermark
Text watermark

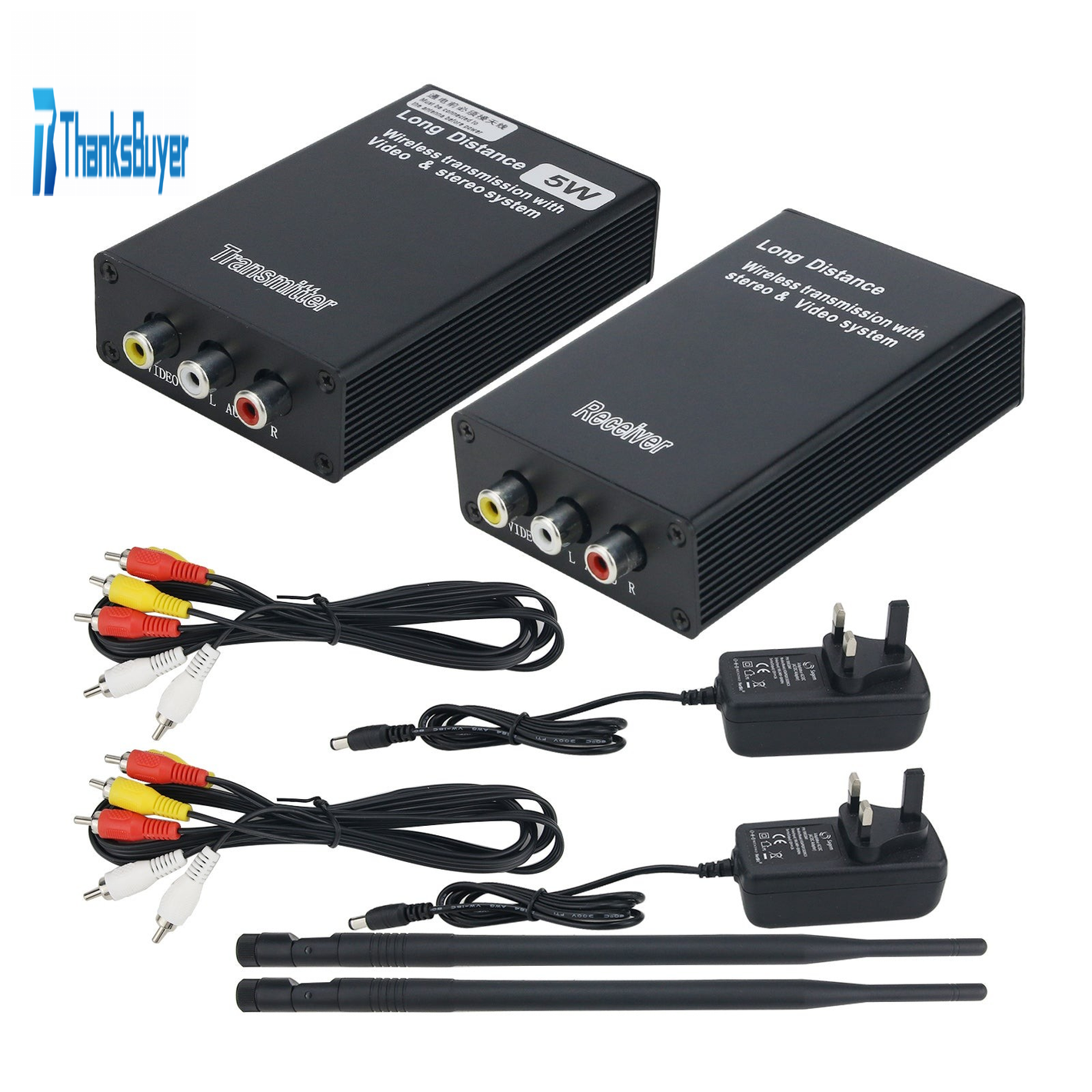

ThanksbuyerGF-T4058 2.4G Elevator Wireless Bridge 5W Lone Distance Wireless Transmission Video and Stereo System
Text watermark
$42.59
$42.59

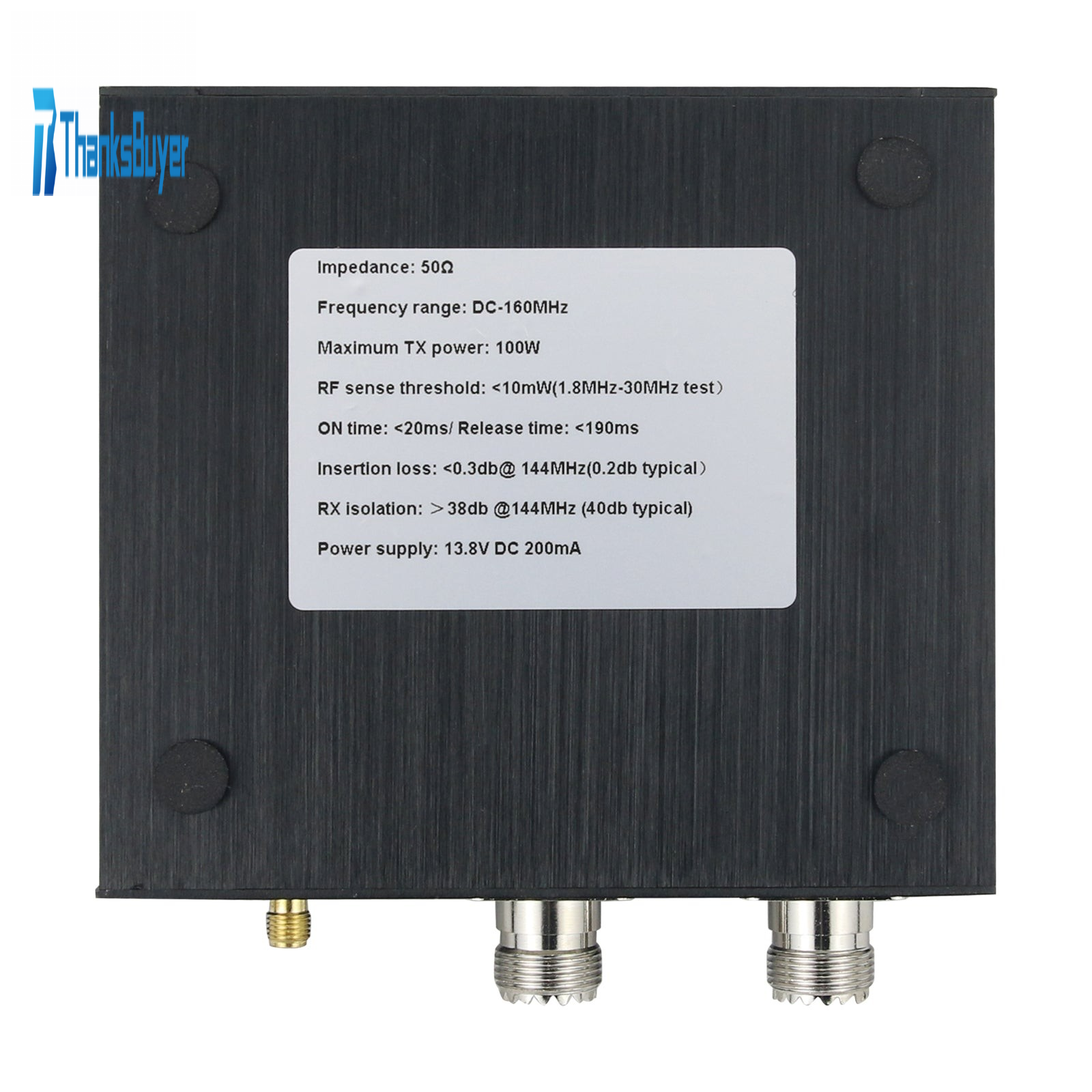

Specifications:
- Impedance: 50Ω
- Frequency range: DC-160MHz
- Maximum TX power: 100W
- RF sense threshold: <10mW (1.8MHz-30MHz tested)
- ON time: < 20ms / Release time: < 190ms
- Insertion loss: < 0.3dB @ 144MHz (0.2dB typical)
- RX isolation: > 38dB @ 144MHz (40dB typical)
- Gas discharge protection
- Power supply: 13.8V DC 200mA
- Weight: 430g

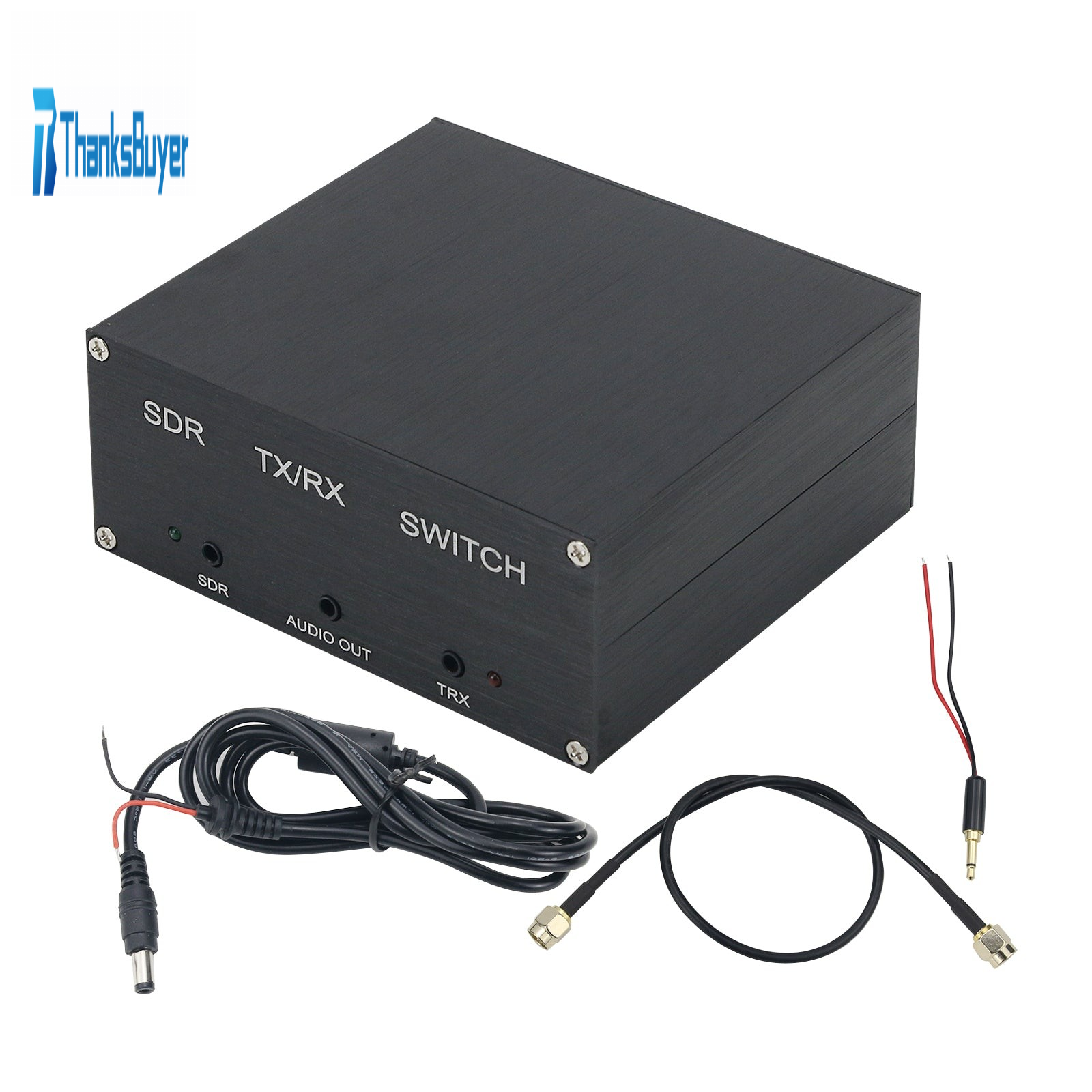

Package Included:
- 1 x Main Unit
- 1 x Power Cord
- 1 x SMA to SMA Connection Cable 60CM
- 1 x PTT Control Cable
