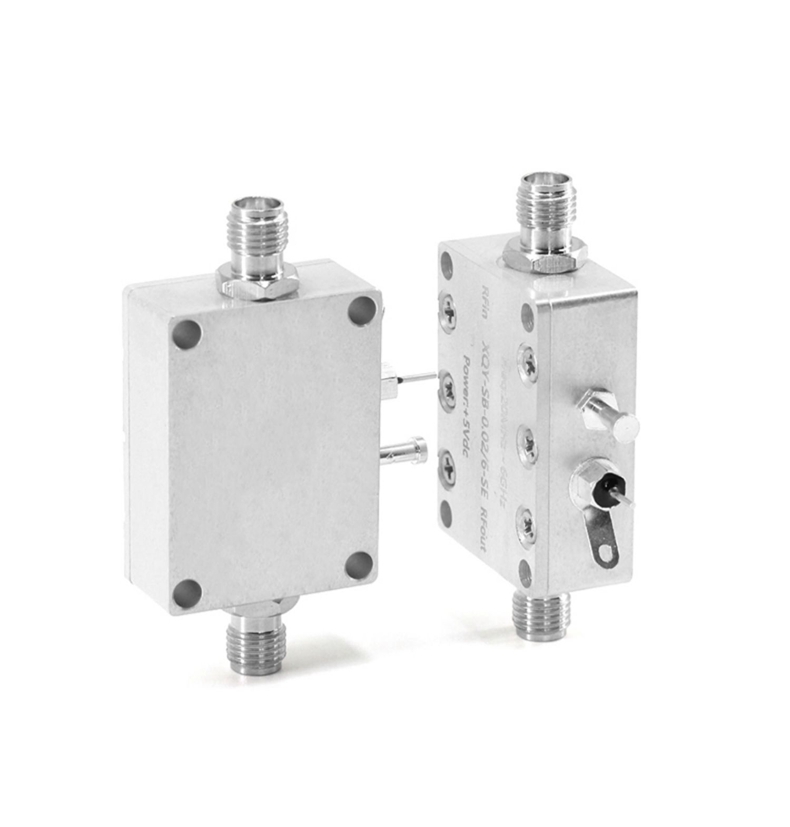

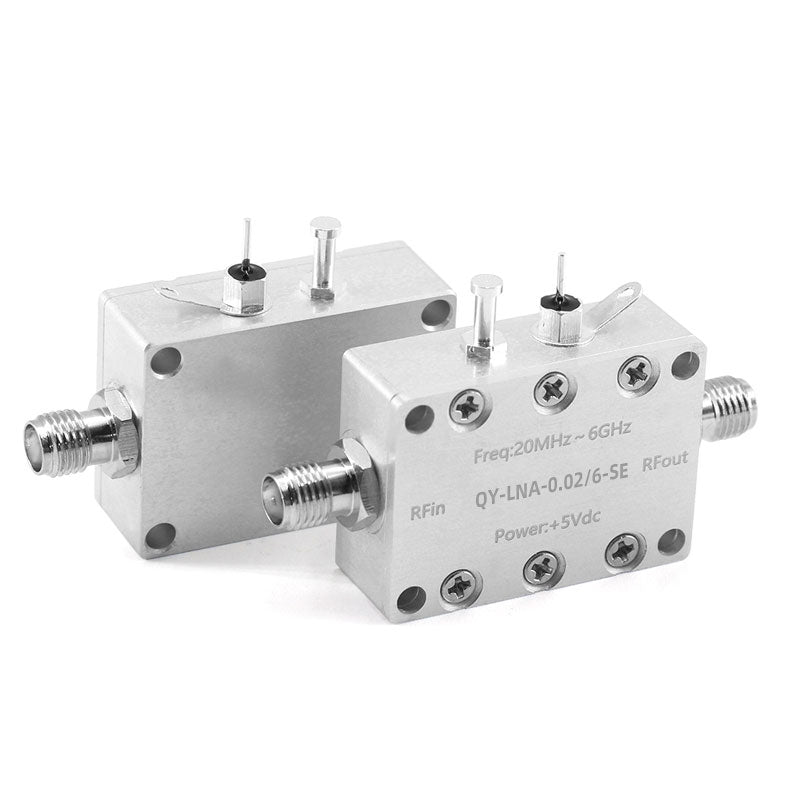

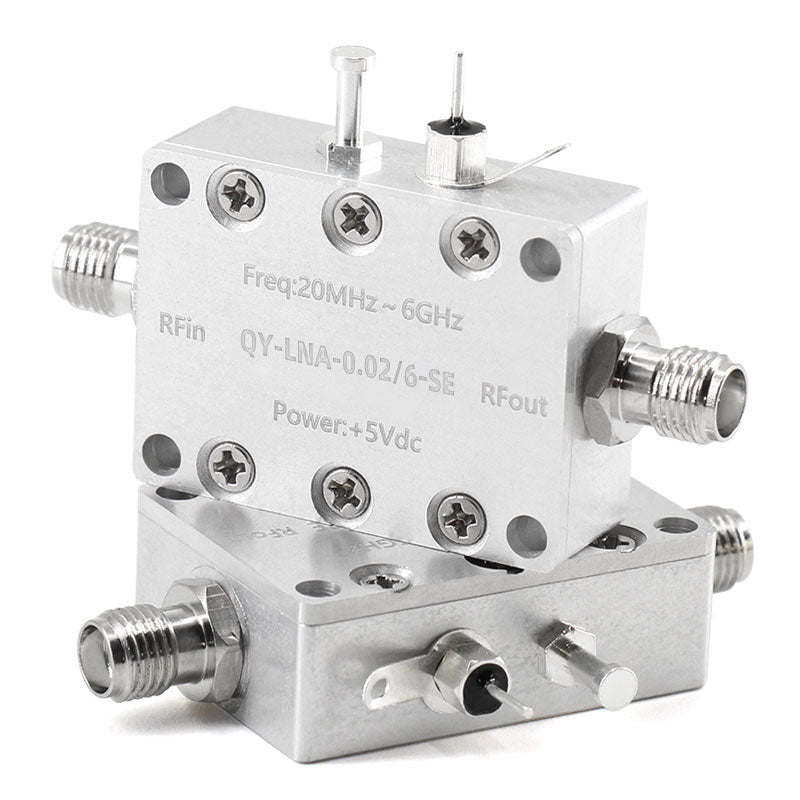

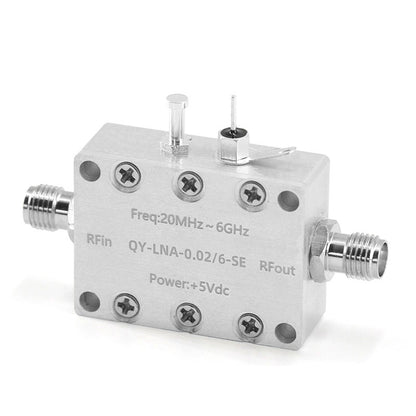

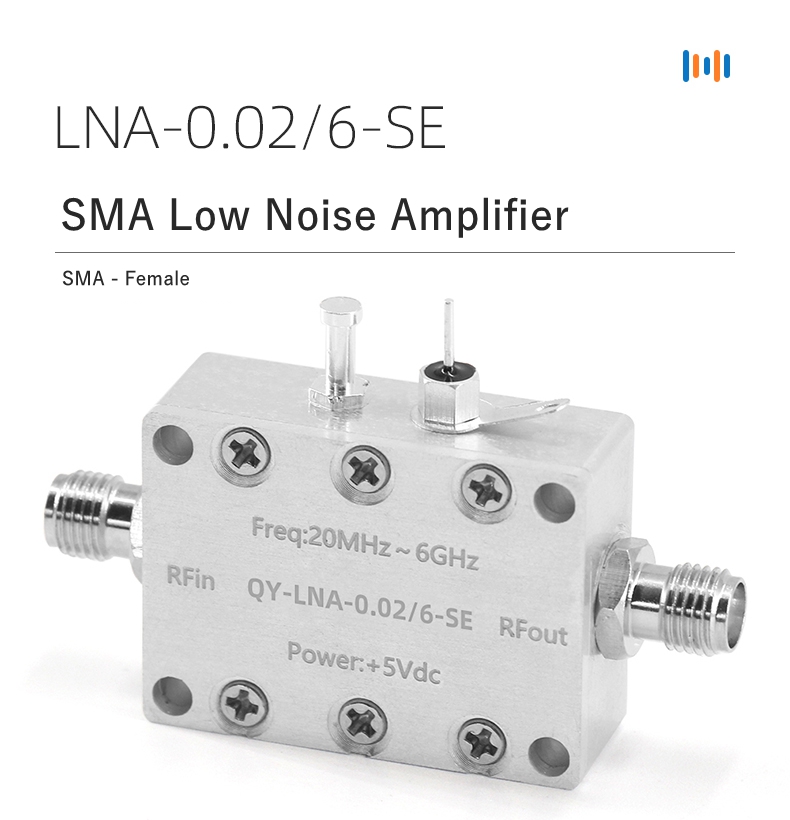

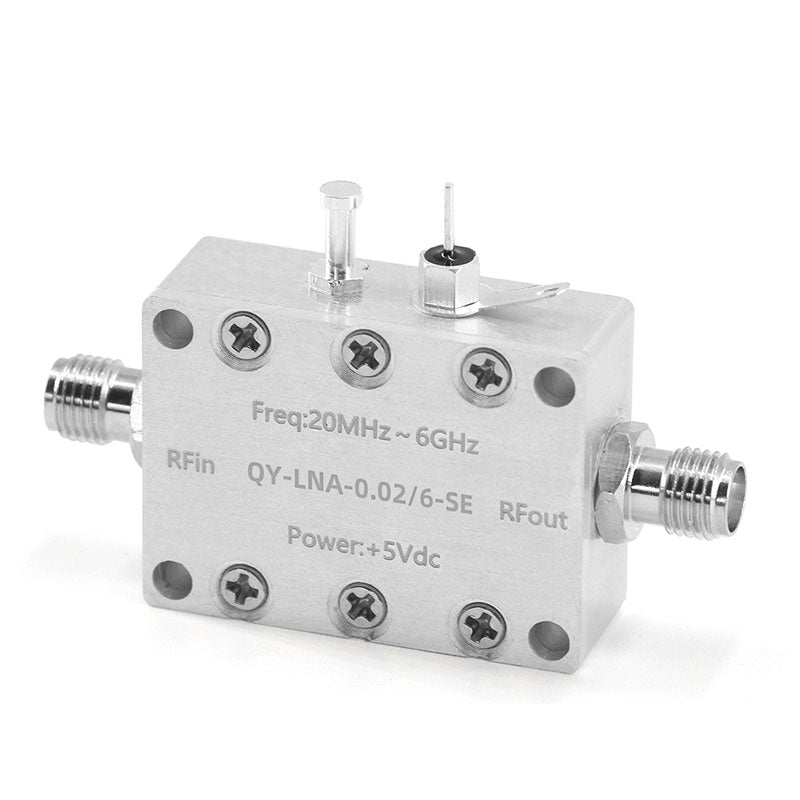

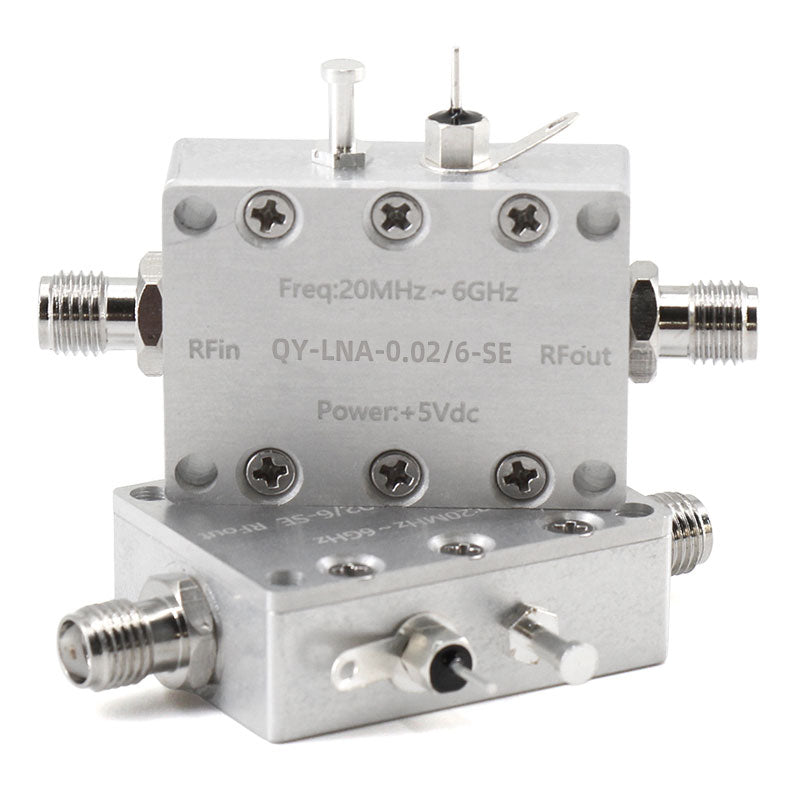

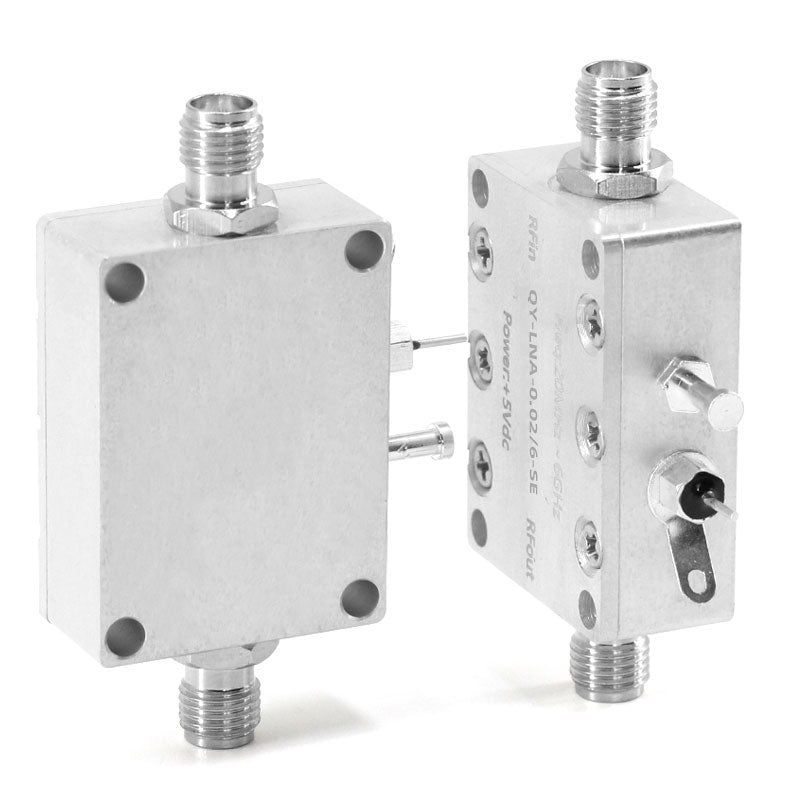

0.02 - 6GHz LNA Low Noise Amplifier High Linear and High Gain RF Preamplifier with SMA Female Connector

Features:
- Low SWR, low distortion, high isolation, corrosion resistance and high mechanical reliability.

Specification:

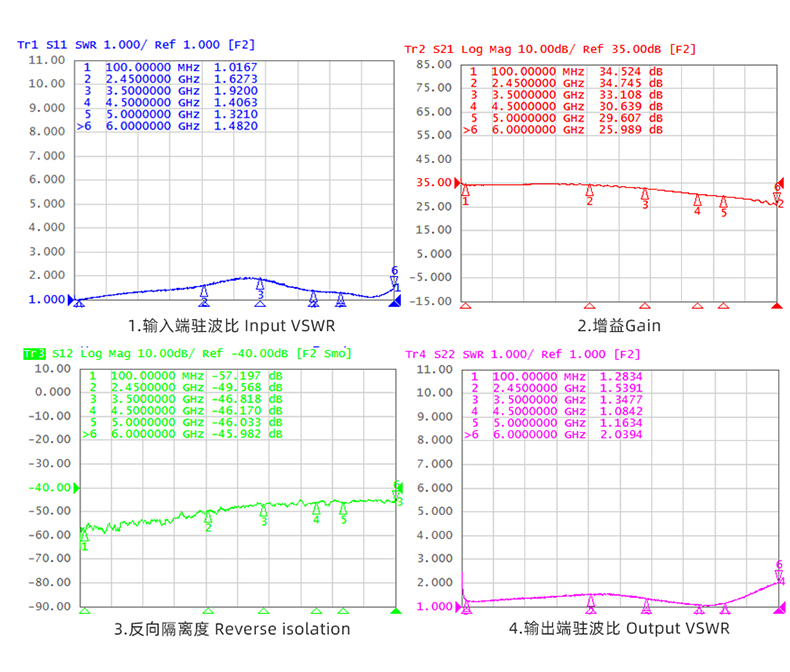

- Frequency range: 0.02 ~ 6GHz
- Gain: 23dB min
- Input SWR: ≤2.0
- Output SWR: ≤2.2
- Noise figure: ≤2.4dB
- Output 1dB compression point: 20dBm at 2GHz/12dBm at 6GHz
- Output third-order intercept point: 30dBm
- Working current: 85mA at 5V TYP.
- Working voltage: 5V
- Maximum input level: 0dBm

Package Included:
- 1 x Low Noise Amplifier
