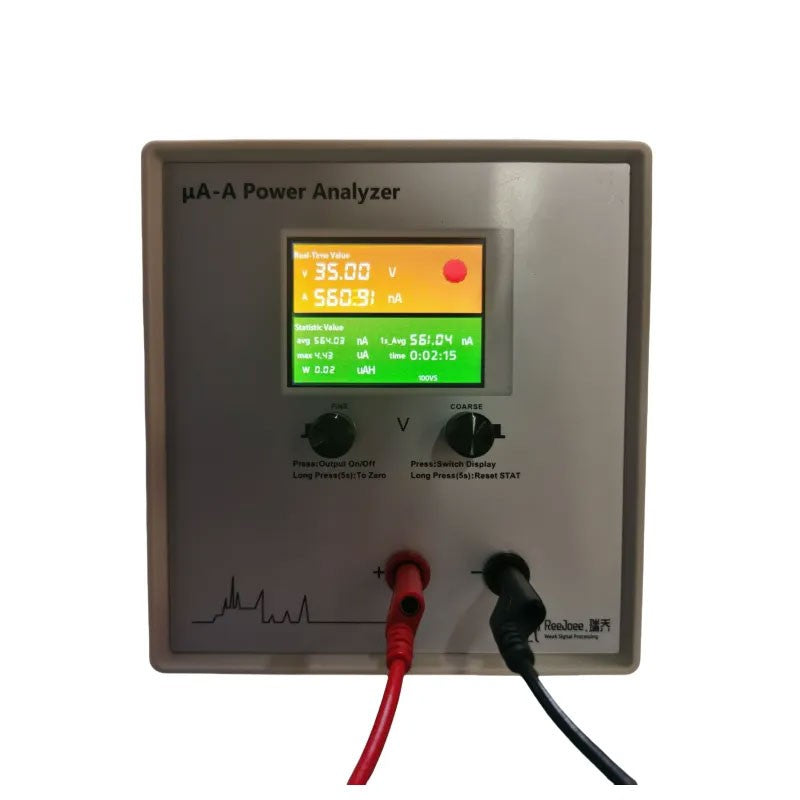

100T24 uT36V15A uT60V30A Power Analyzer Source Measure Unit 24V 0.1uA-15A 200W 100kHz Microamp Current Meter
$629.31 - $1,212.31
Impuesto incluido.
Los gastos de envío se calculan en la pantalla de pago.
Precio habitual
$629.31
Precio habitual
Precio de oferta
$629.31
Precio unitario
por
No se pudo cargar la disponibilidad de retiro
Availability:
2000 en stock
SKU:
105955
Tags:
Collections:
Precio habitual
$629.31
Precio habitual
Precio de oferta
$629.31
Available Options:

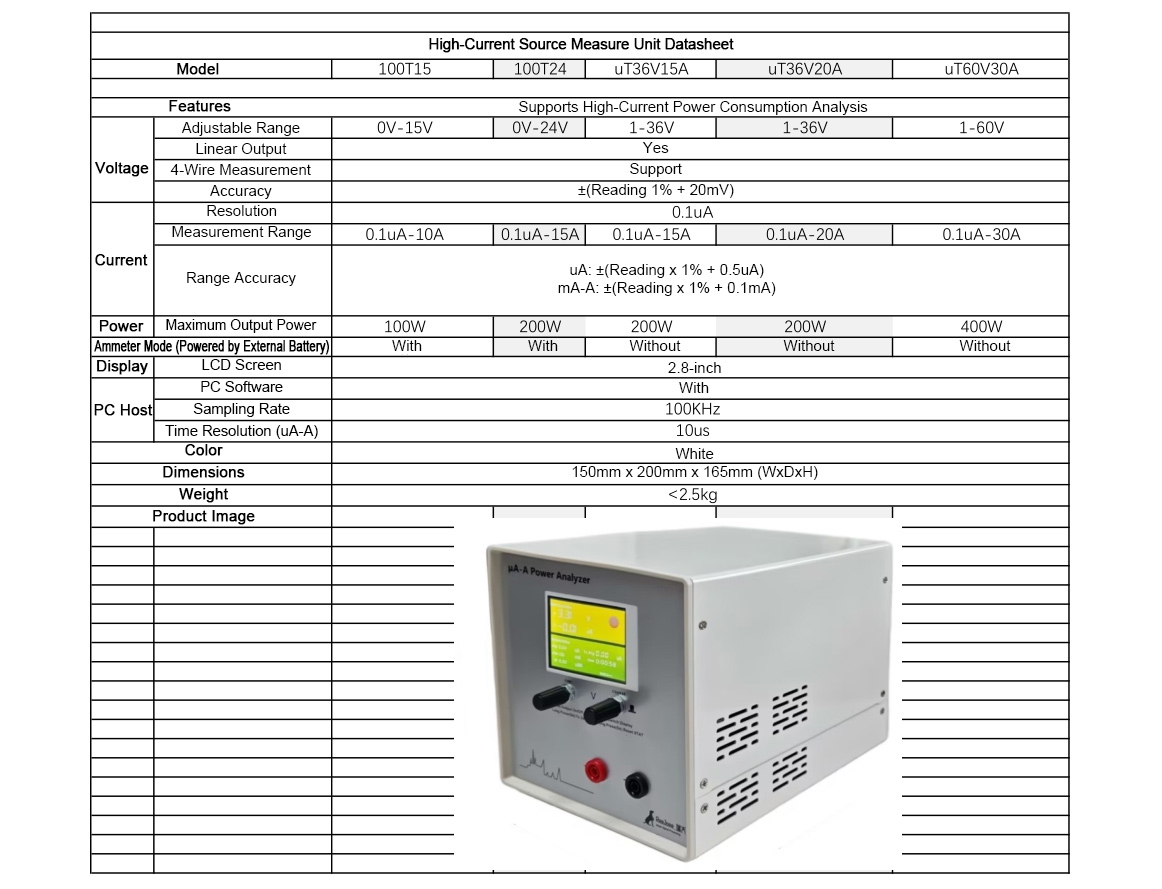

* Option 1: 100T24 — 24V/0.1uA-15A/200W/100kHz
* Option 2: uT36V15A — 36V/0.1uA-15A/200W/100kHz
* Option 3: uT60V30A — 60V/0.1uA-30A/400W/100kHz
More Details About 100T24:

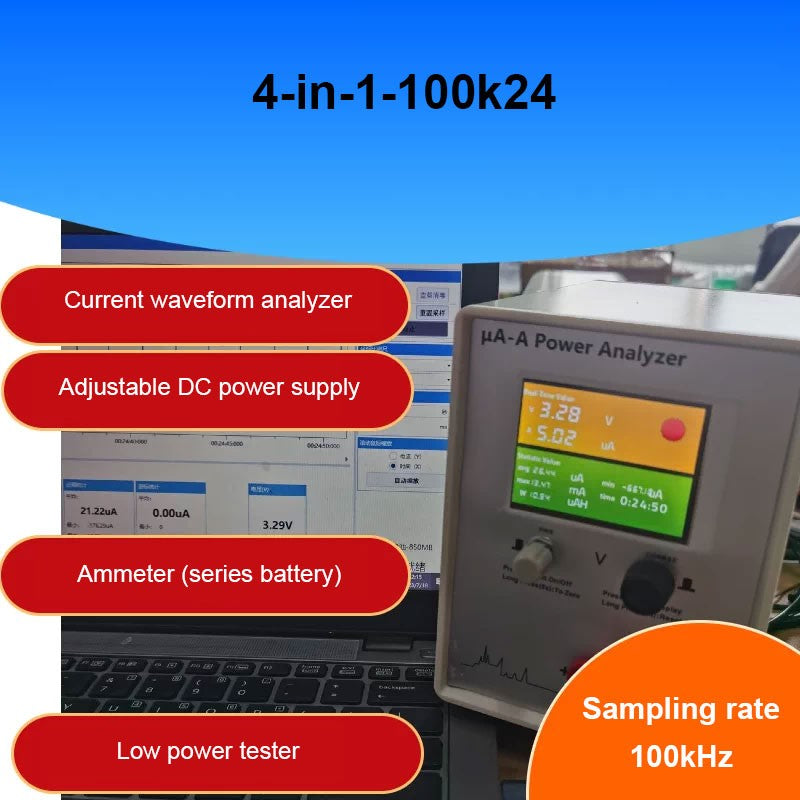

* 100T24 4-in-1 Instrument
* 0.1uA-15A (20A Peak)/24V/200W
* Current Waveform Analyzer
* Adjustable DC Power Supply
* Ammeter (Connected in Series with the Battery)
* Low-Power Tester
* Sampling Rate: 100kHz
Features:
Upgraded 100kHz Sampling Rate
* Records up to 100000 current samples per second with a 10µs time resolution.
Source: Linear Adjustable Constant-Voltage Power Supply
* Supports fine adjustment and coarse adjustment
* Linear power supply with ultra-low ripple for simulating battery output
Meter: Power Consumption Tester
* Standalone Operation: Operates without a computer and supports continuous monitoring for up to one month, allowing you to review overall power consumption over the entire test period.
Current Waveform Analyzer
* 100000 samples per second
* PC software for detailed analysis of current waveforms
Low-Power Applications
* LoRa
* Bluetooth
* NB-IoT
* Sensors
* Others
Packing List:
* 1 x Power Analyzer
Packaging Details:
* Package weight: 3kg
