Por Thanksbuyer
10K-12G RF Power Detector Wave Detector Power Probe Test High Frequency Microwave Diode Detection
Precio habitual
$28.36
Precio habitual
Precio de oferta
$28.36
Precio unitario
por
Impuesto incluido.
Los gastos de envío se calculan en la pantalla de pago.
No se pudo cargar la disponibilidad de retiro
Precio habitual
$28.36
Precio habitual
Precio de oferta
$28.36

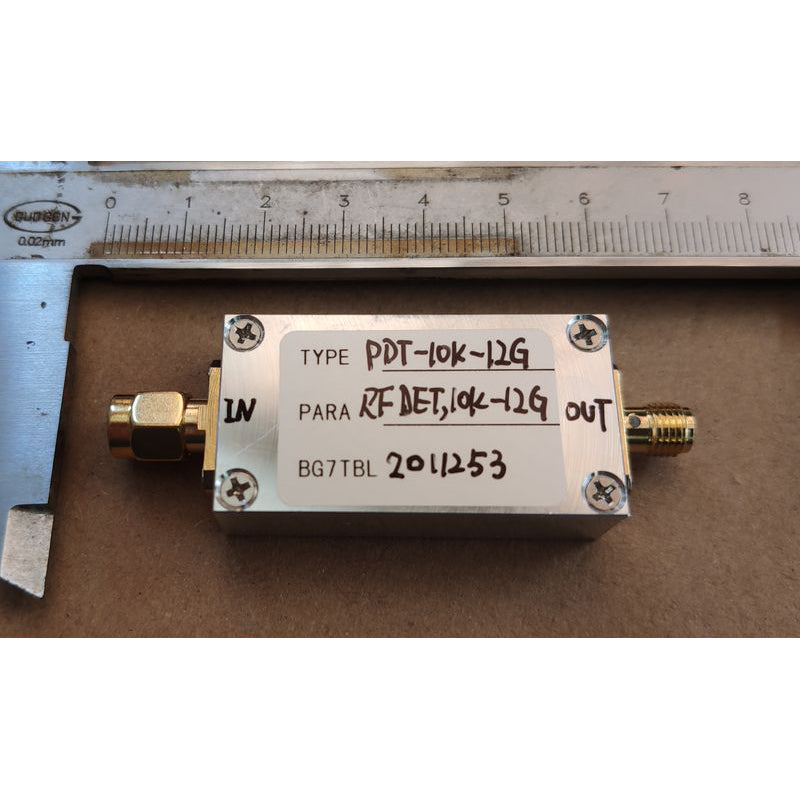

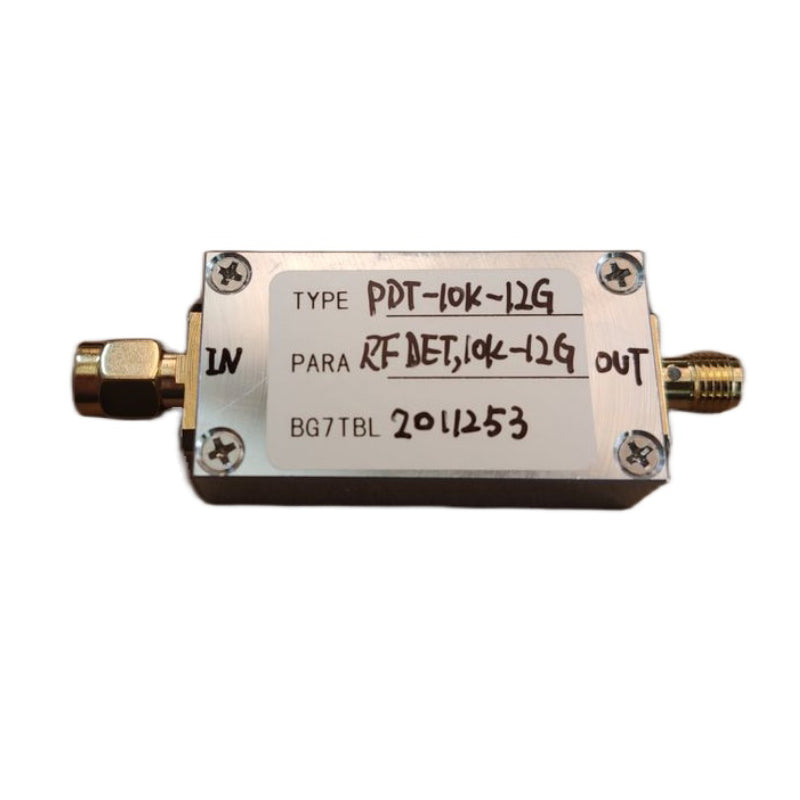

10K-12G RF Power Detector Wave Detector Power Probe Test High Frequency Microwave Diode Detection
Specifications:
- Item name: 10K-12G power detector
- Model: PDT-10K-12G
- Input frequency: 10K-12G
- Output: 10DBM, +3.3V/0DBM, +0.7V/-10DBM+73mV/-20DBM+3.0mV/-30DBM+0.26mV, all tested under 1GHz
- Input power: -35 to +10dBm
- Input return loss: 0.5DB
- Output impedance: 100KR
- Interfaces: Input: SMA male connector; Output: SMA female connector
- Size: 62 x 25 x 12mm/2.4 x 1 x 0.5" (LxWxH)
- Net weight: 30g/0.07LB
- Accessories: None
Package Included:
- 1 x Detector
