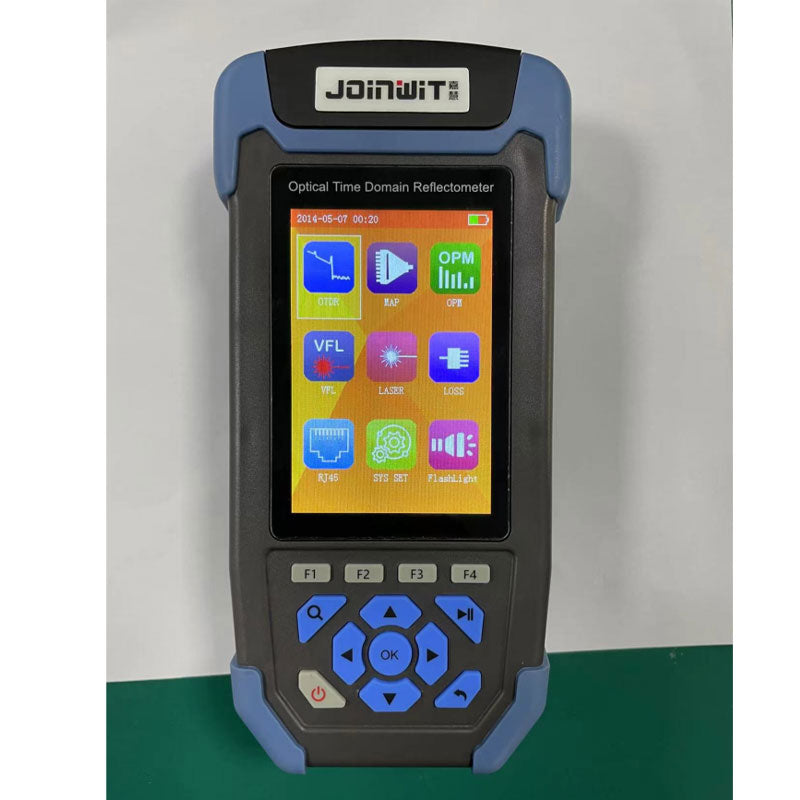

1310nm/1550nm±20nm JW3302SH Handheld OTDR Optical Time Domain Reflectometer with 3.5-inch LCD Screen
No se pudo cargar la disponibilidad de retiro
1310nm/1550nm±20nm JW3302SH Handheld OTDR Optical Time Domain Reflectometer with 3.5-inch LCD Screen
Description:
- JW3302SH OTDR is apply to FTTx and access network construction and maintenance to test fiber breakpoint, length, loss and input light automatic detection, automatic test by one key. The tester is compact with 3.5-inch colorful LCD screen, new plastic shell design, shock-proof and drop-proof.
- The tester also combine 8 functions with highly integrated OTDR, Event maps, Stable light source, Optical power meter, Visual fault locator, cable sequence proofreading , cable length measurement and lighting functions. It could quick detection of breakpoint, universal connector, 600internal storage, TF card, USB data storage and built-in 4000mAh lithium battery, USB charging. It is a good choice for long term field work.
- Functions: OTDR/EvenyMap/OPM/IL test/OLS/VFL/RJ45 Sequence/Flashlight
Package Included:
- 1 x OTDR
