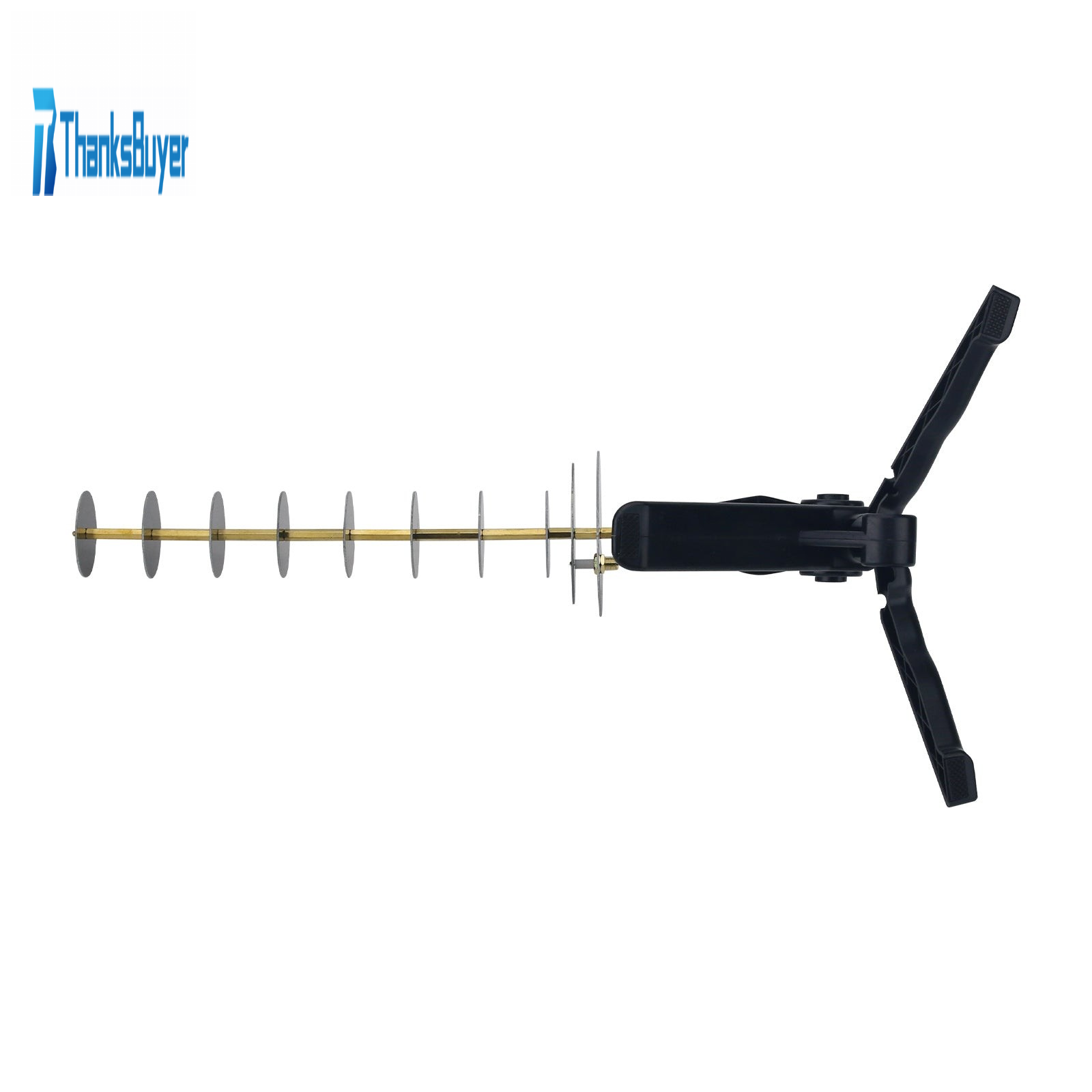

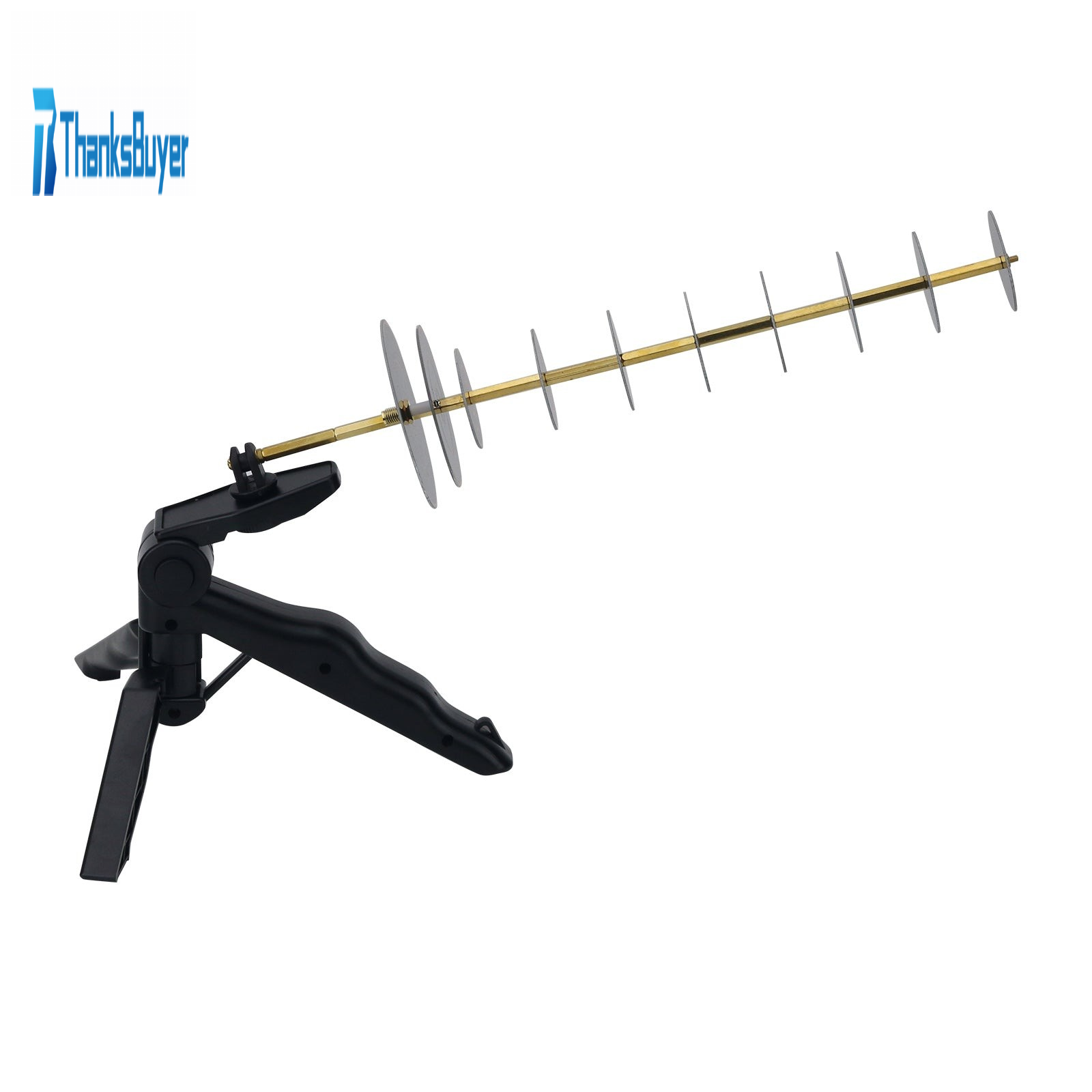

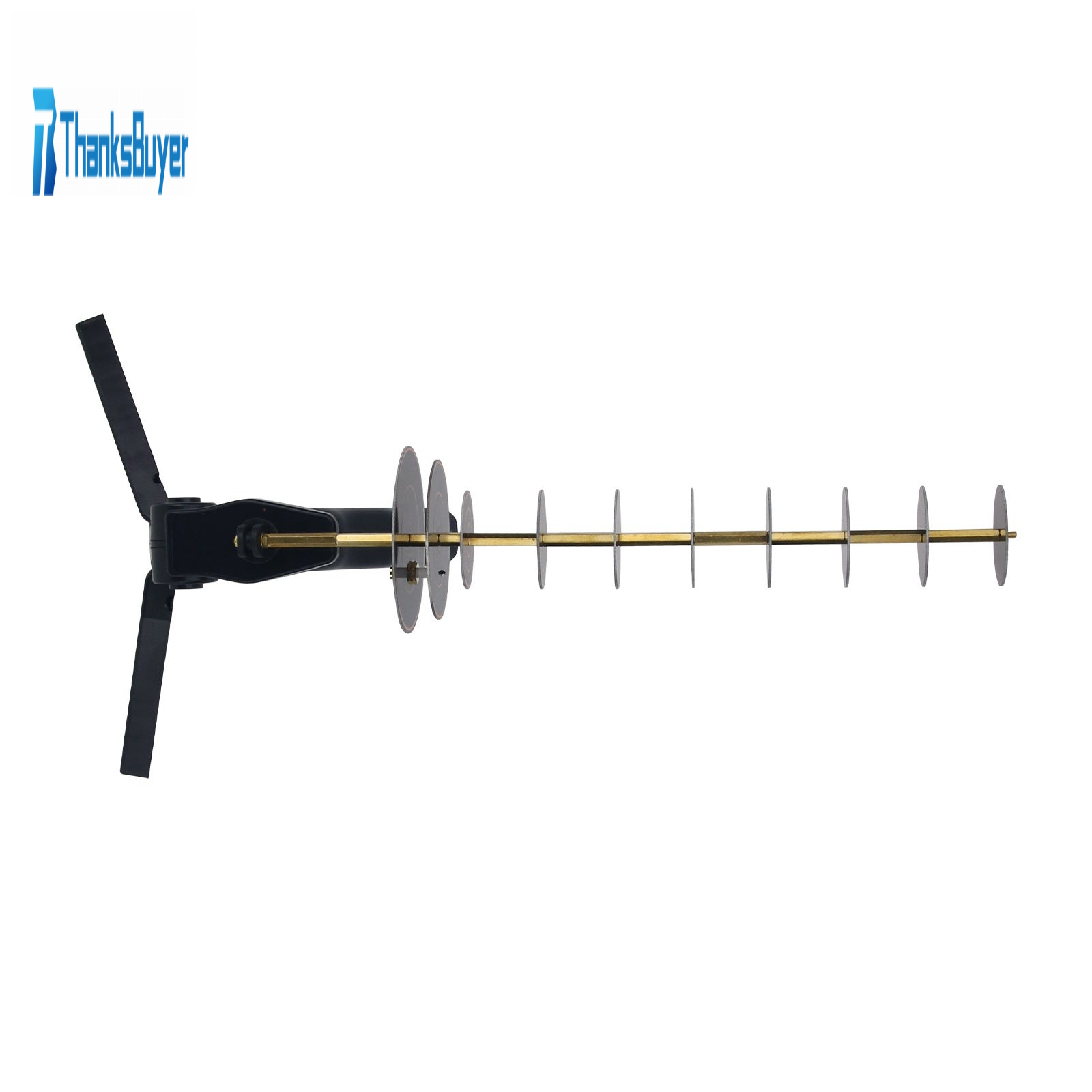

16dBi Wifi Antenna Yagi Directional Antenna + SMA Adapter Support Wifi 2.4G Bluetooth for Laptops

16dBi Wifi Antenna Yagi Directional Antenna + SMA Adapter Support Wifi 2.4G Bluetooth for Laptops

Description:
This is a novel 2.4GHz WIFI directional antenna. We have miniaturized the Yagi antenna through multiple simulation calculations. The main material of the antenna (radiating body) is a PCB.

The antenna has a gain of 16dBi, an SWR of less than 1.8 and an efficiency of more than 75%. At the same time, a 300Mbps wireless network card (optional) allows your network to be better optimized.

We have prepared a triangle bracket and 2-meter coaxial cable for easy and flexible installation. You just need to move the antenna to the correct position to receive the signal.

The antenna is suitable for laptops, desktop computers, routers, industrial WIFI routers, FPV, UAV, USB wireless network cards, USB wireless adapters, WIFI cameras, wireless monitoring, etc.

Specifications:
- Model: A-030-2.4G
- Name: WIFI Antenna
- Frequency range: 2400~2500MHz
- Gain: 16dBi
- SWR: <2
- Polarization: Vertical or horizontal
- Radiation: Directional
- Impedance: 50ohm
- Material: Metal + PCB
- Operating temperature: -40°C to 85°C
- Connector: SMA male or RP SMA male
- Net weight: 0.32kg/0.7lb

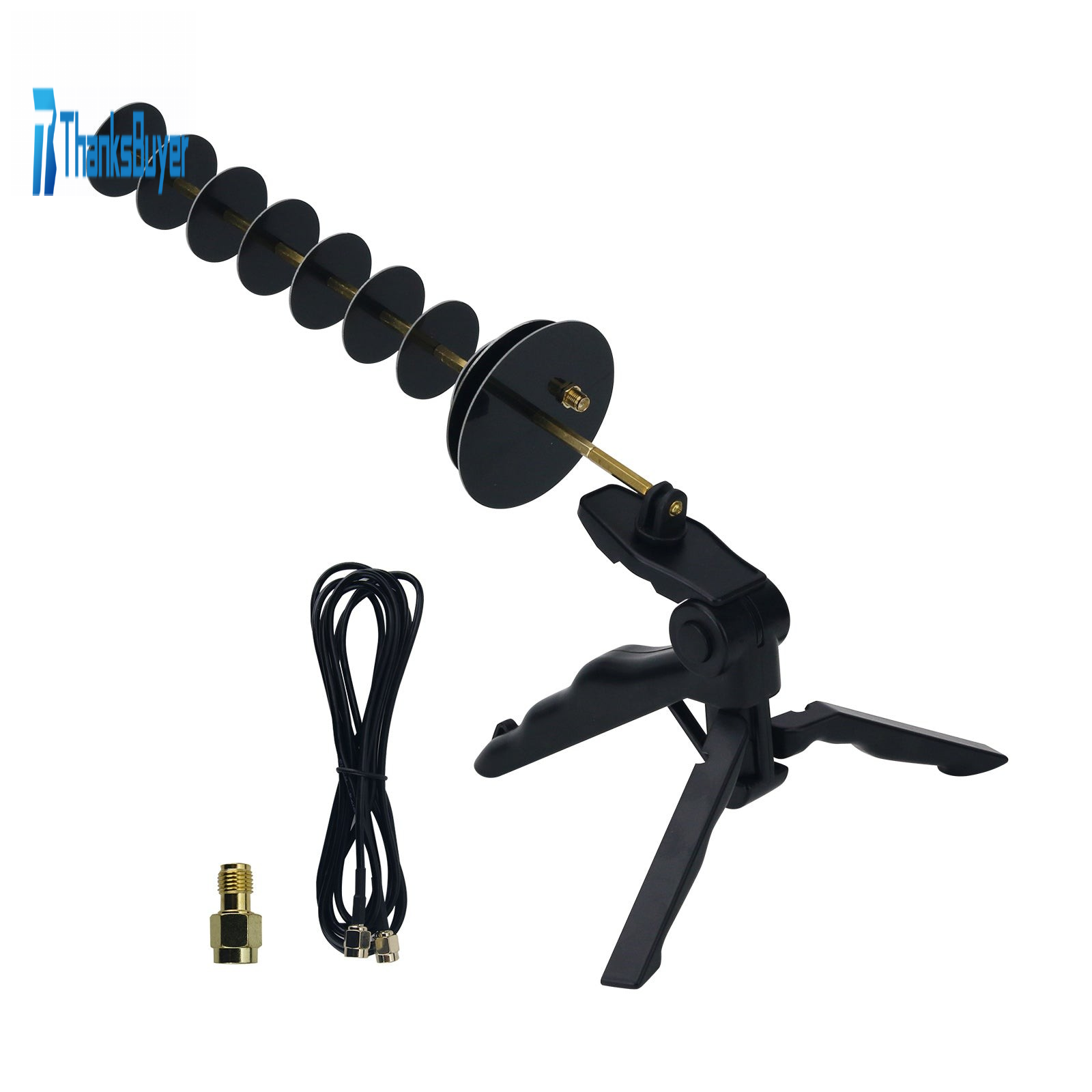

Package Included:
- 1 x Wifi Antenna
- 1 x SMA Adapter

Packaging Details:
- G.W.: 0.4kg

Note:
- Wireless network card is not included in the package.
