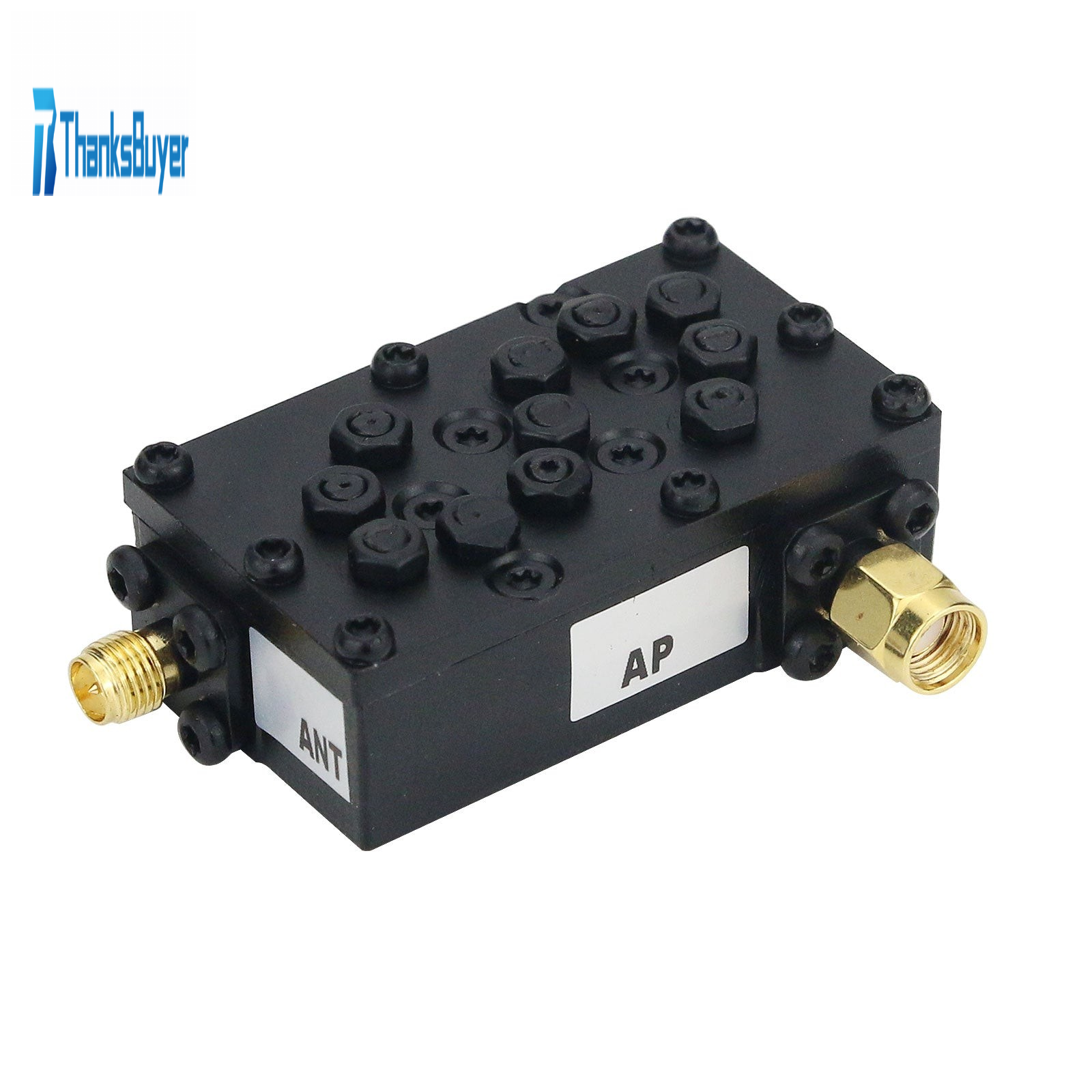

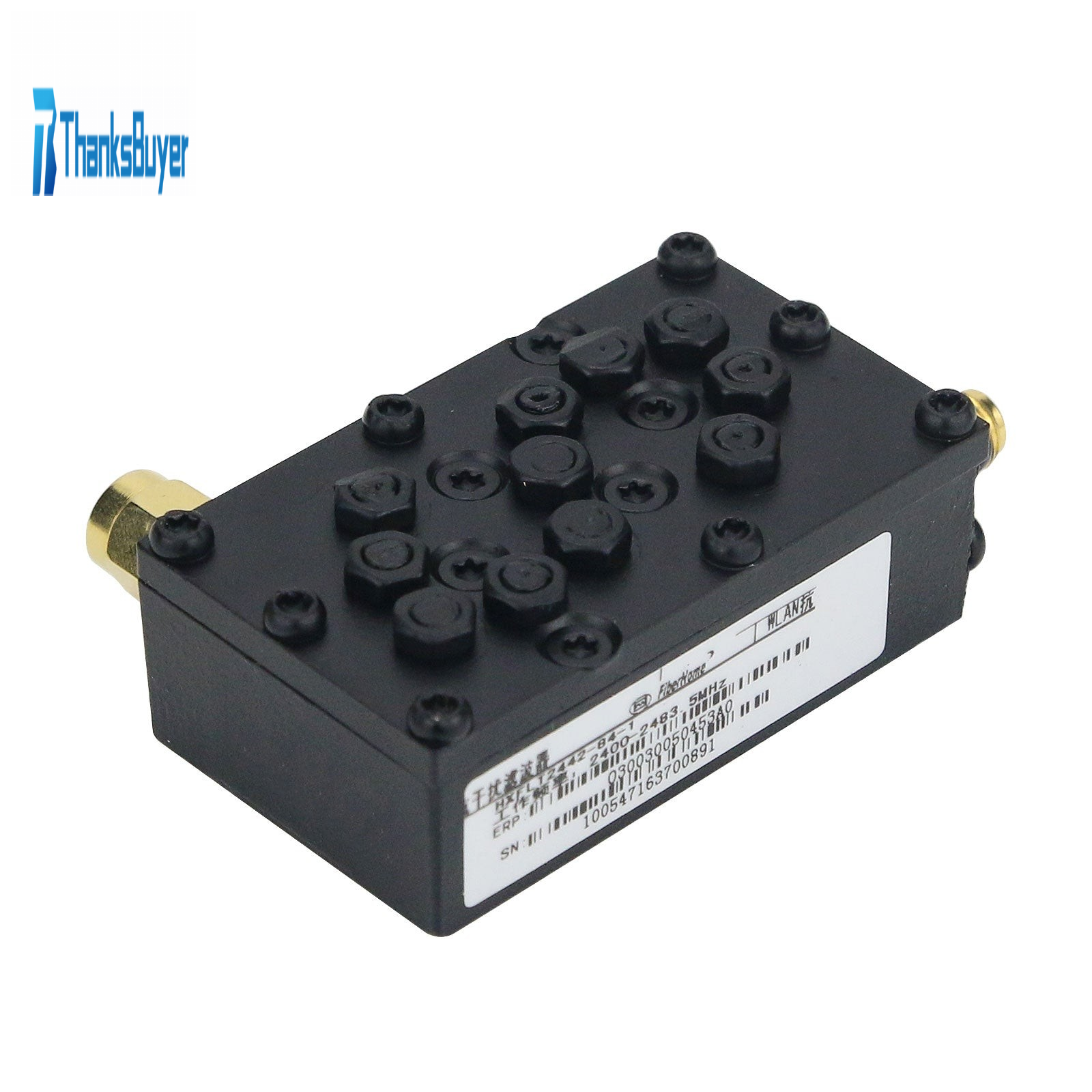

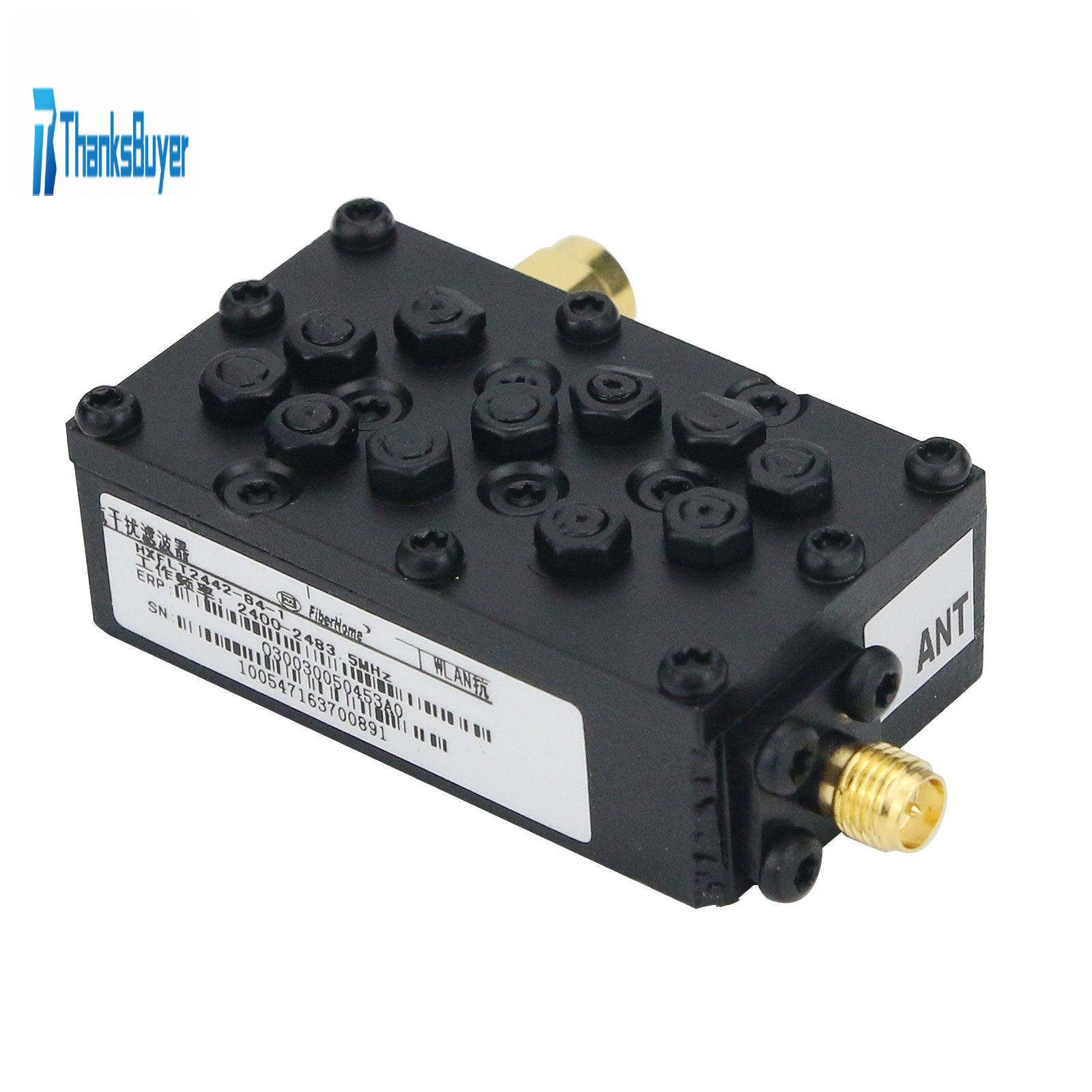

2.4G Cavity Filter WLAN 2.4G Cavity WIFI Bluetooth Remote Control Bandpass 2400-2483.5M Filter
Precio habitual
$20.89
Precio habitual
Precio de oferta
$20.89
Precio unitario
por
Impuesto incluido.
Los gastos de envío se calculan en la pantalla de pago.
No se pudo cargar la disponibilidad de retiro
Precio habitual
$20.89
Precio habitual
Precio de oferta
$20.89
2.4G Cavity Filter WLAN 2.4G Cavity WIFI Bluetooth Remote Control Bandpass 2400-2483.5M Filter
Specifications:
- Frequency range: 2.4GHz-2.4835GHz (2400-2483.5M)
- Return loss: better than 15dB
- Insertion loss: better than 4.5db
- In-band fluctuation: better than 2.2dB
- Out-of-band suppression: 2.32-2.37G, 2.57-2.69G better than 40dB
- Impedance: 50OHM
- Allowable power: 5W
- Interface: SMA
- Size: 63*43*20mm
- Net weight: 75g
Package Included:
- 1 x Cavity Filter
