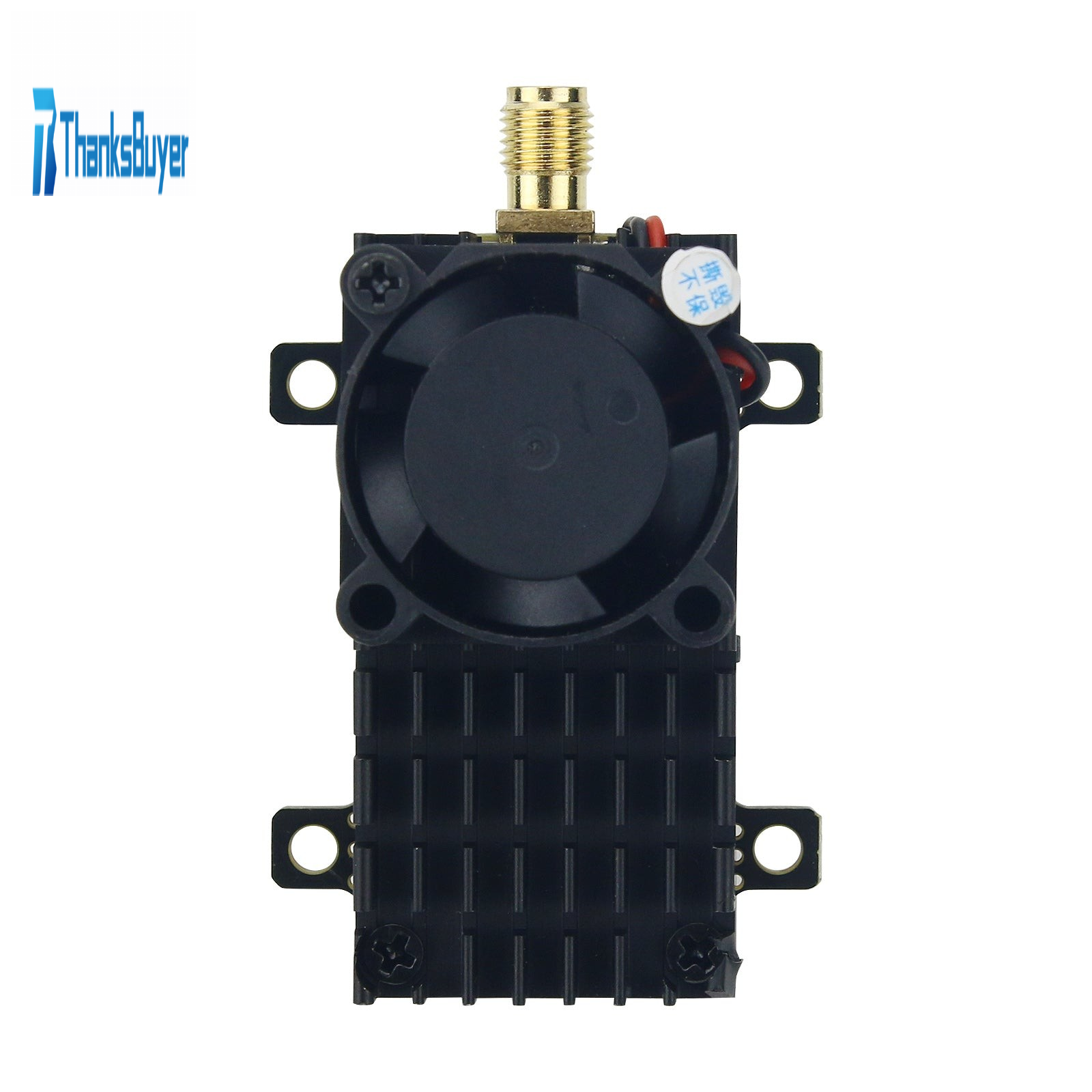

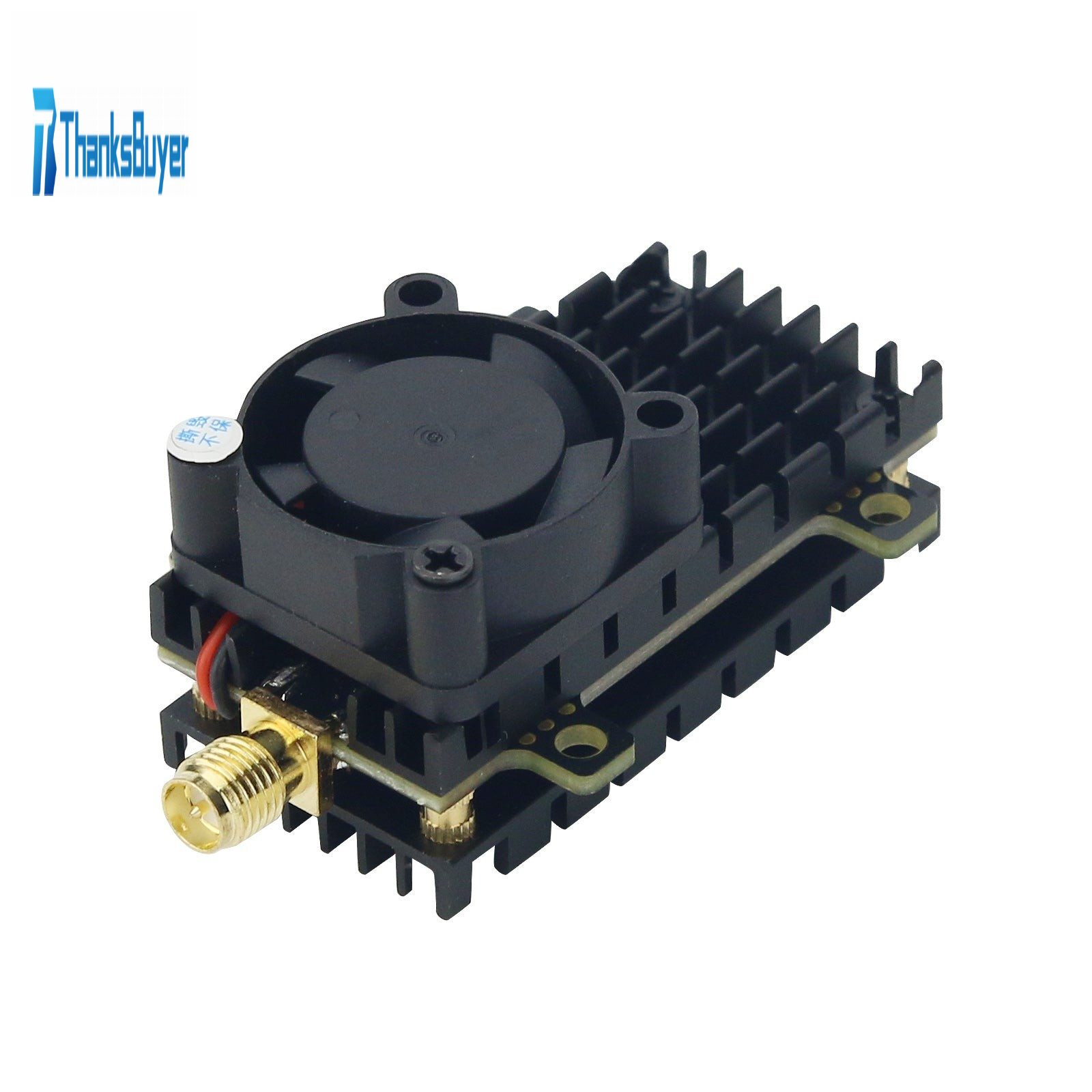

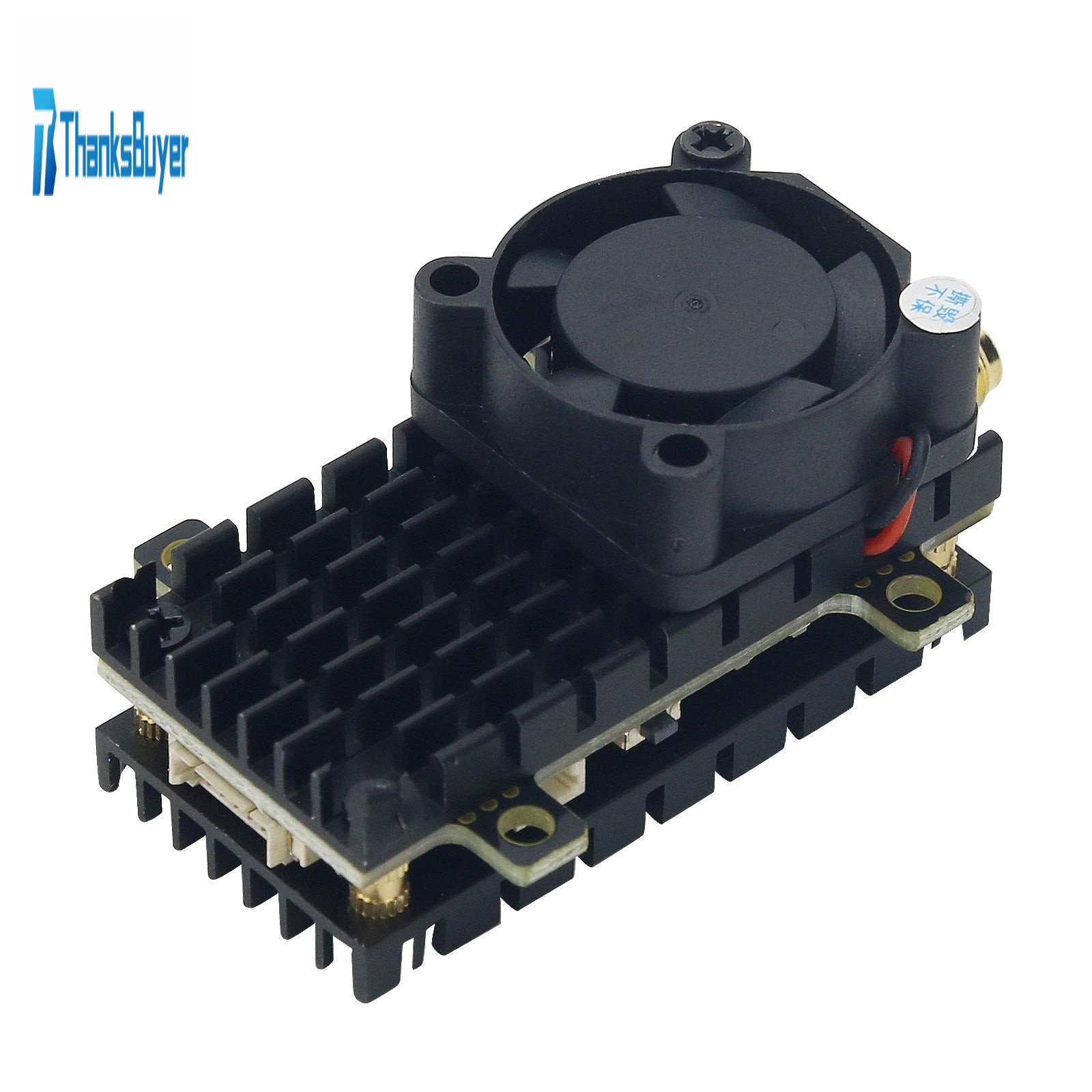

2W 2000mW 5.8G Long Range FPV Transmitter FPV VTX Over 20KM Range for Fixed Wing Airplanes

2W 2000mW 5.8G Long Range FPV Transmitter FPV VTX Over 20KM Range for Fixed Wing Airplanes

Version Introduction:
- It has a bigger rubber antenna with a gain of 5db. It is suitable for long range flight.

Upgrades:
1. To improve the defect of SMA that is easy to be broken when there is an air crash. Now directly add a column to fix SMA on the shell.
2. Add a power-on protection circuit to eliminate the phenomenon that it is easy to burn out instantaneously when connected to power.
3. Optimize the situation of power-on interference with peers: the principle is to lock the amplifier instantaneously when connected to power so that the leaked signal is less than 1mw. The controller detects that the phase-locked loop of the RF signal is locked for 1 second and then turns the amplifier back on.

Features:
- With pillars to fasten its SMA interface
- Compact design and light weight. Weighs only 30g/0.07lb. Double-sided heat sink, one of which is equipped with a cooling fan featuring super good heat dissipation performance
- Silicone wire is soft and not easy to break. High currents can pass through the wire
- Power supply output range of the module is 7-36V
- 5V output can supply power to 3.3-5V small whoop drone cameras. No extra power supply is needed for the camera

Transmitter Parameters:
- Weight: 30g/0.07lb (without antenna)
- Size (LxWxT): 50 x 25 x 15mm/2 x 1 x 0.6" (without the size of fan); 50 x 25 x 26.5mm/2 x 1 x 1" (with fan thickness)
- 5.8GHz video/audio synchronous transmitter (PAL and NTSC compatible)
- Compact structure, small size and large transmission power
- Using large-scale integrated circuits and premium components, with high reliability
- Working voltage: DC7V-36V (2s-8s)
- 64 working channels can be set by button
- Built-in frequency phase-locked loop, low harmonic radiation, high reliability and stability
- Using a digital phase-locked loop circuit, there is no temperature drift

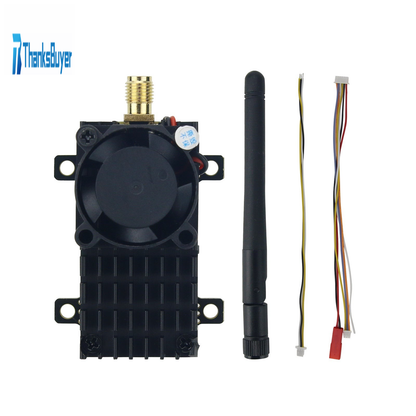

Package Included:
- 1 x FPV Transmitter
- 1 x Antenna
- 2 x Cables
