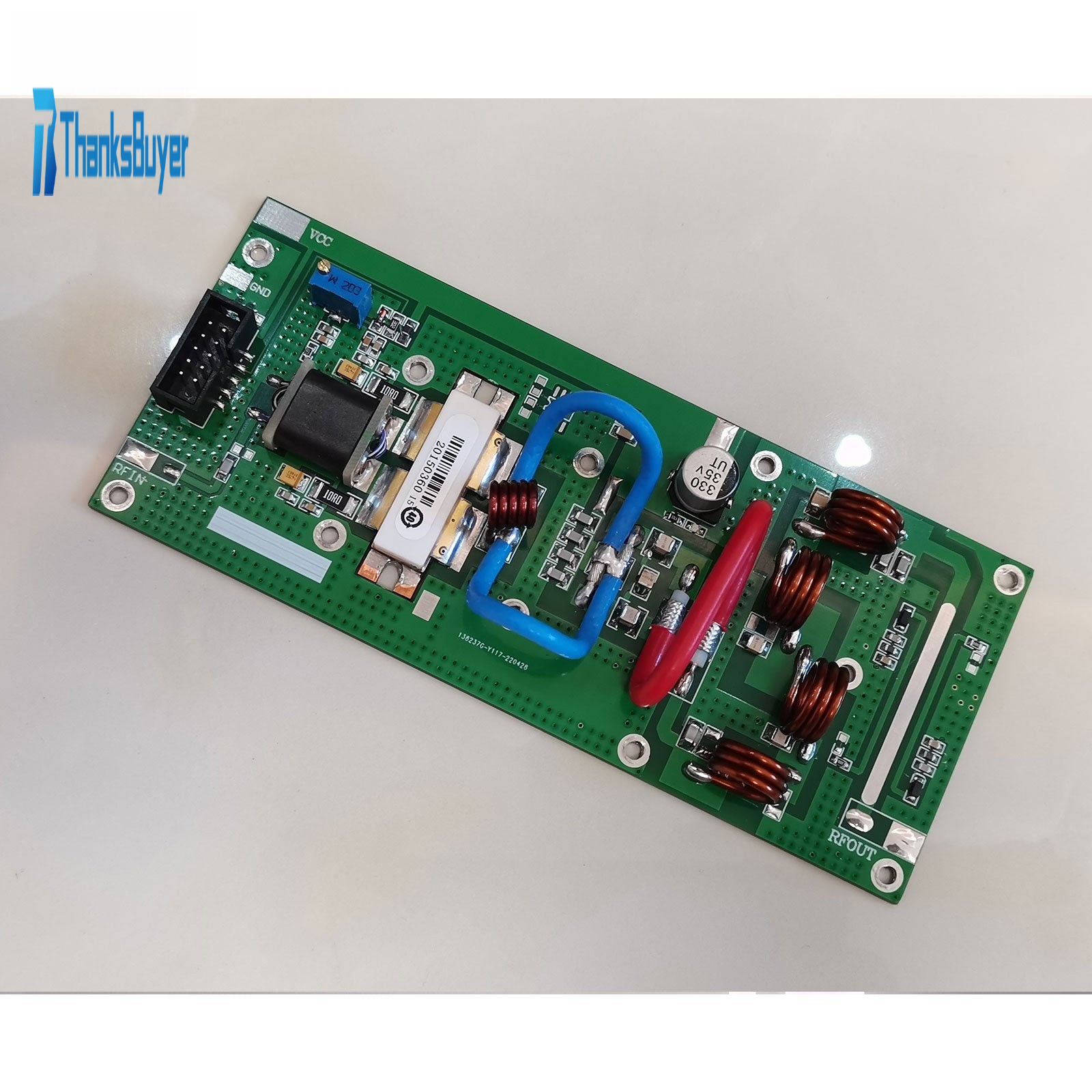

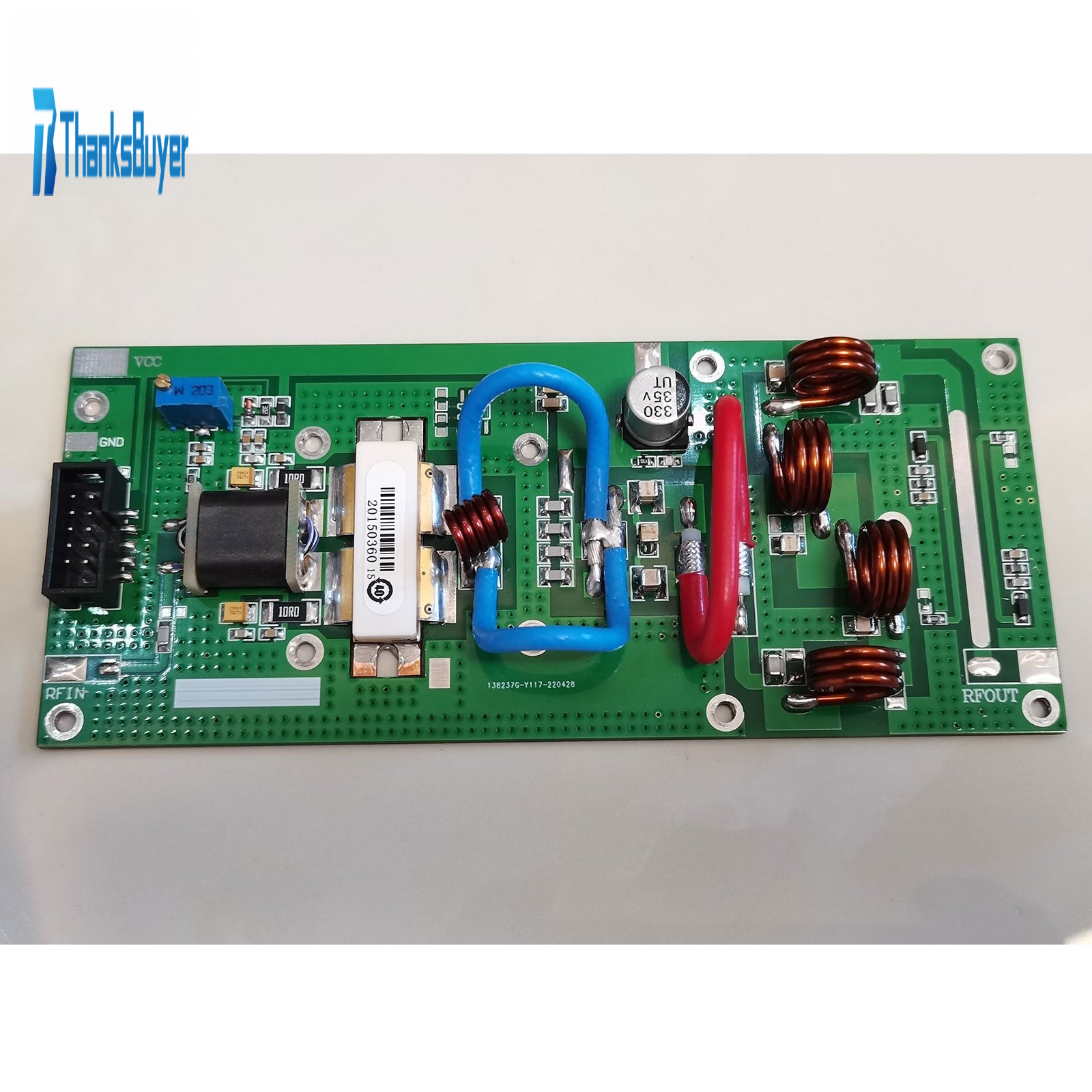

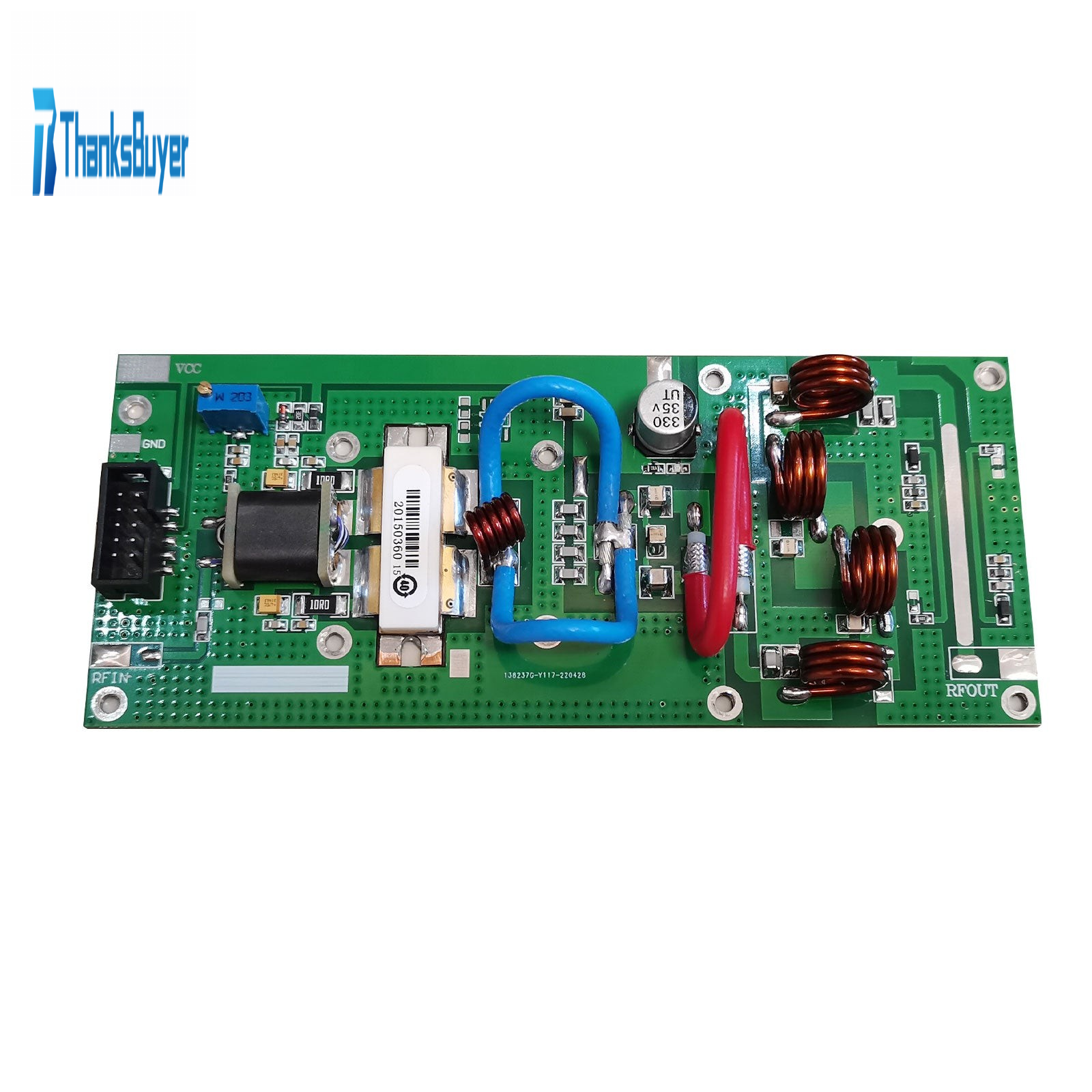

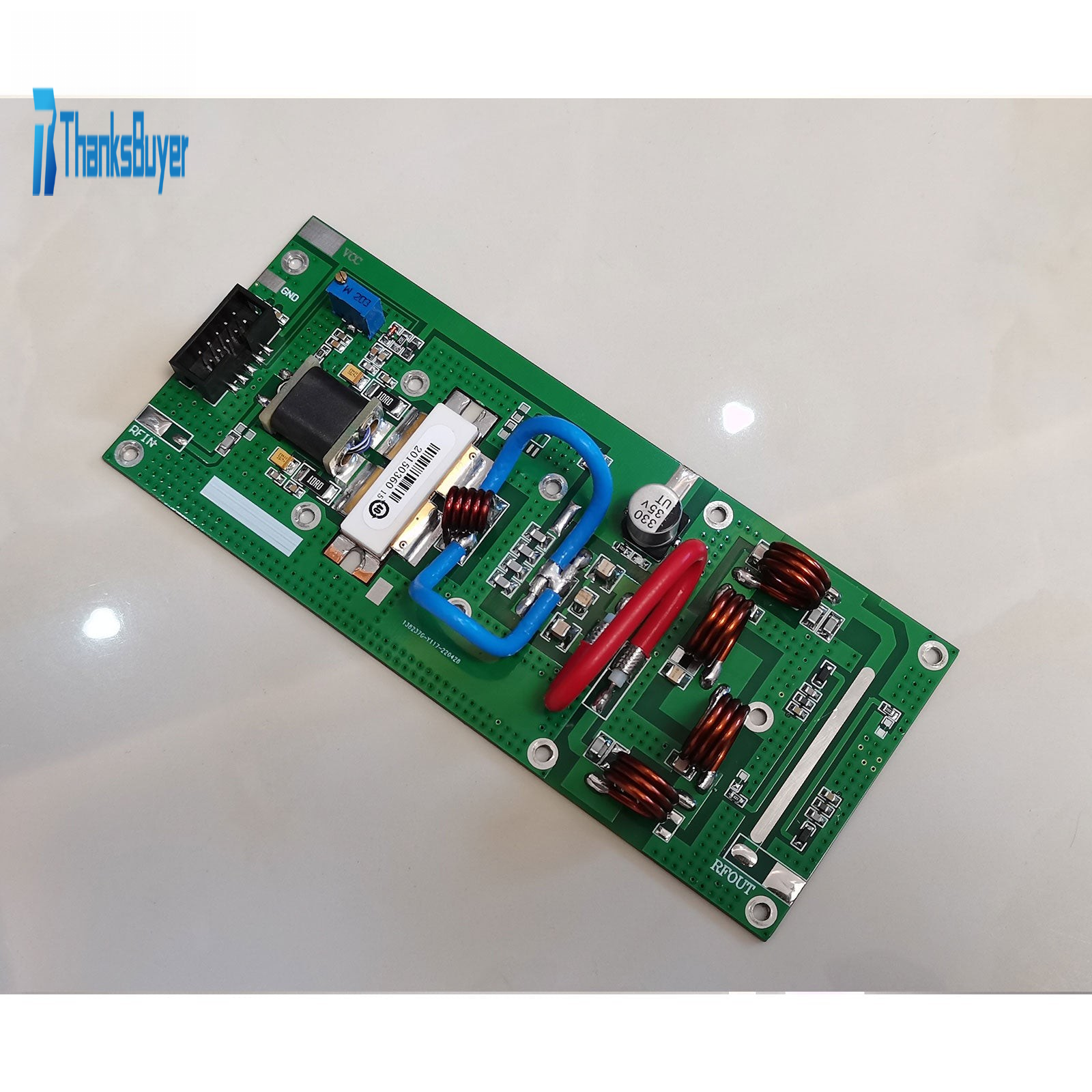

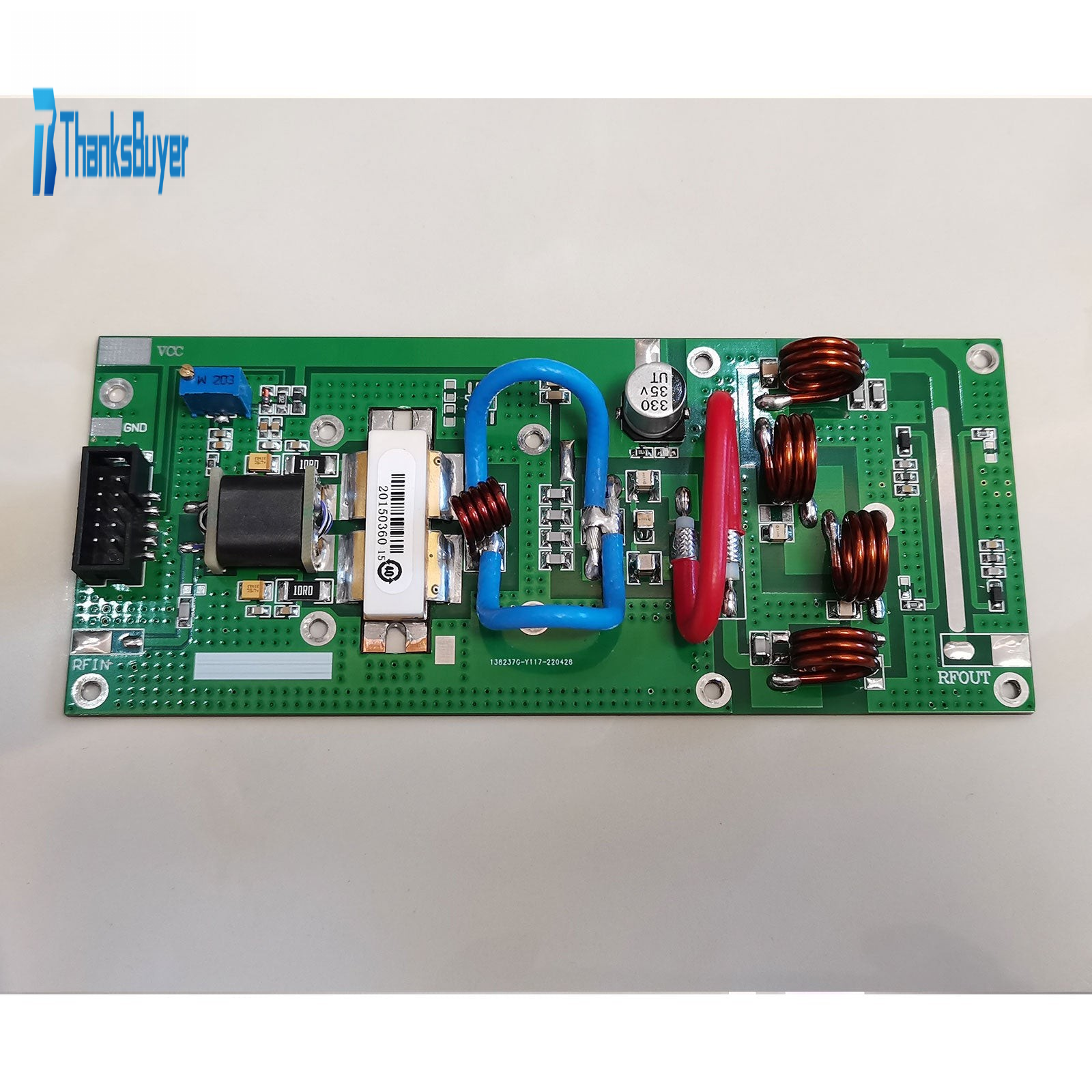

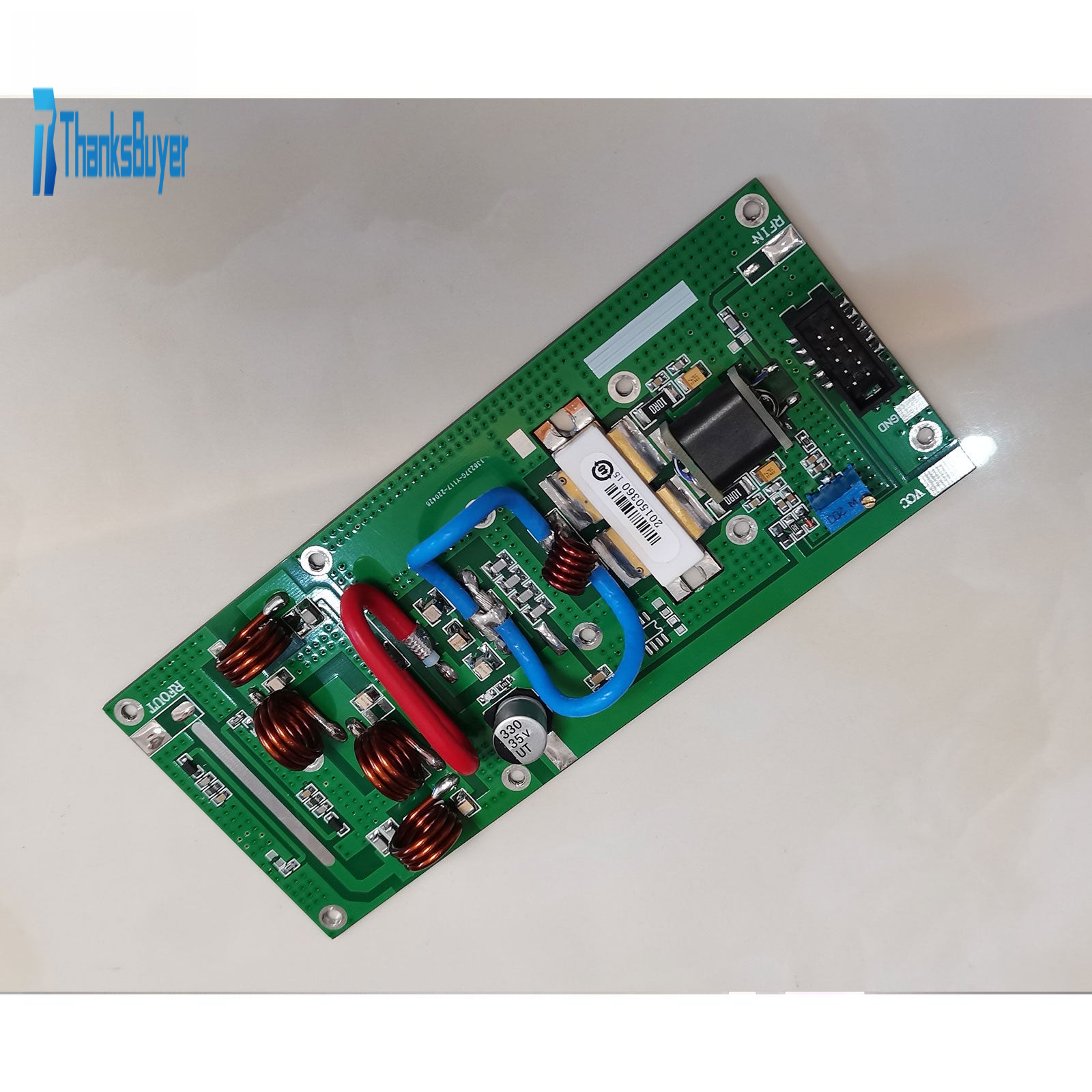

300W 80MHz-109MHz FM Transmitter Power Amplifier Board Suitable for FM Transmitter Board
Specifications:
- Working power supply: 26-27V
- Working current: 16-18A
- Power: 300W (maximum 350W; 300W recommended)
- Frequency range: 80-109MHz
- Input power: 0.6-1W
- Harmonic suppression: < -60dbm
- Output impedance: 50 ohms
- Board size: 15.4x6.5CM
Package Included:
- 1 x Amplifier Board
