35M-4.4G RF Signal Generator ADF4351 Sweep Frequency Generator STM32 MCU PLL (English Version)

35M-4.4G RF Signal Generator ADF4351 Sweep Frequency Generator STM32 MCU PLL (English Version)

Features:
- Adopt STM32 MCU
- OLED display
- Dual LT7635 high-performance power supplies
- Reserved USB serial port for secondary development
- 5-Button control mode
- ADF4351 phase-locked loop chip
- Supports output power adjustment

Parameters:
- Supply Voltage: 5V
- 35-4400M signal output
- Point Frequency: Resolution 10Hz
- Frequency Sweep: Step Resolution: 10Hz-1Mhz; Step Time: 1ms-1000ms
- Size: 88 x 66 x 20mm
- N.W.: 100g

Package Included:

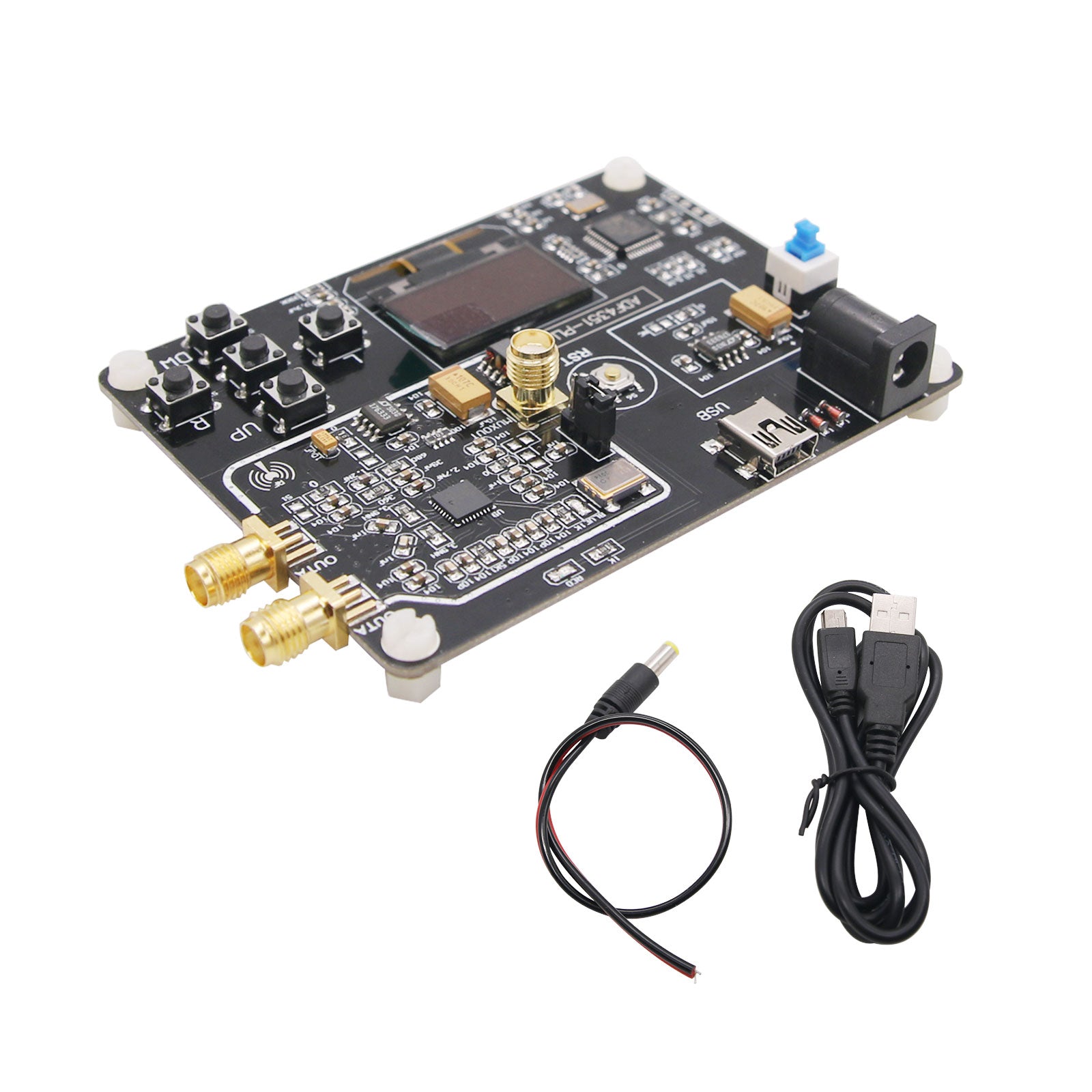

- 1 x RF Signal Generator

Note:
- It is an English version.
- Please contact us for E-schematic diagram after purchasing.
- OLED screen with different character colors will be delivered at random. Thank you for your understanding!
- If additional functions are needed, please contact us.
- The default output power is 5dB.
