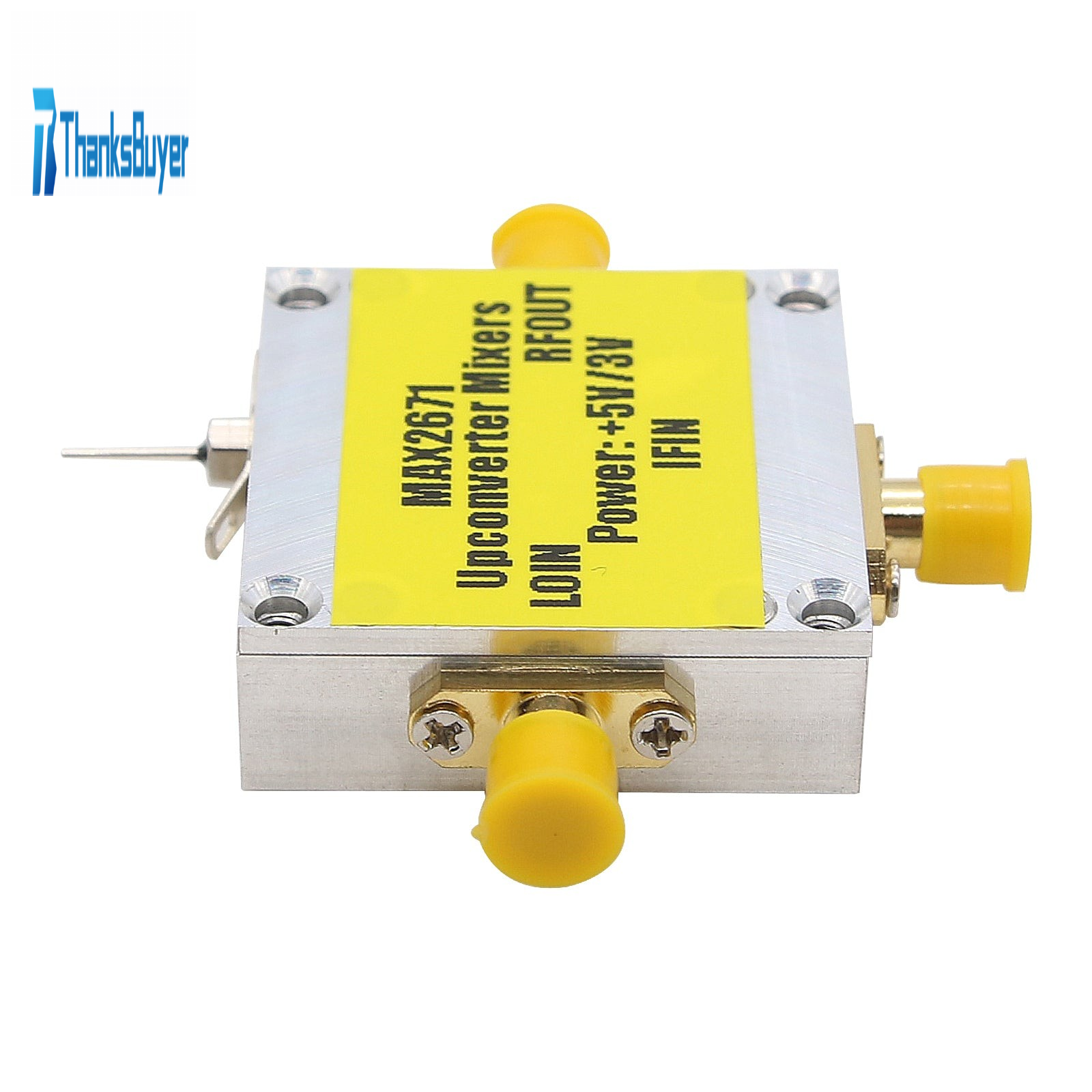

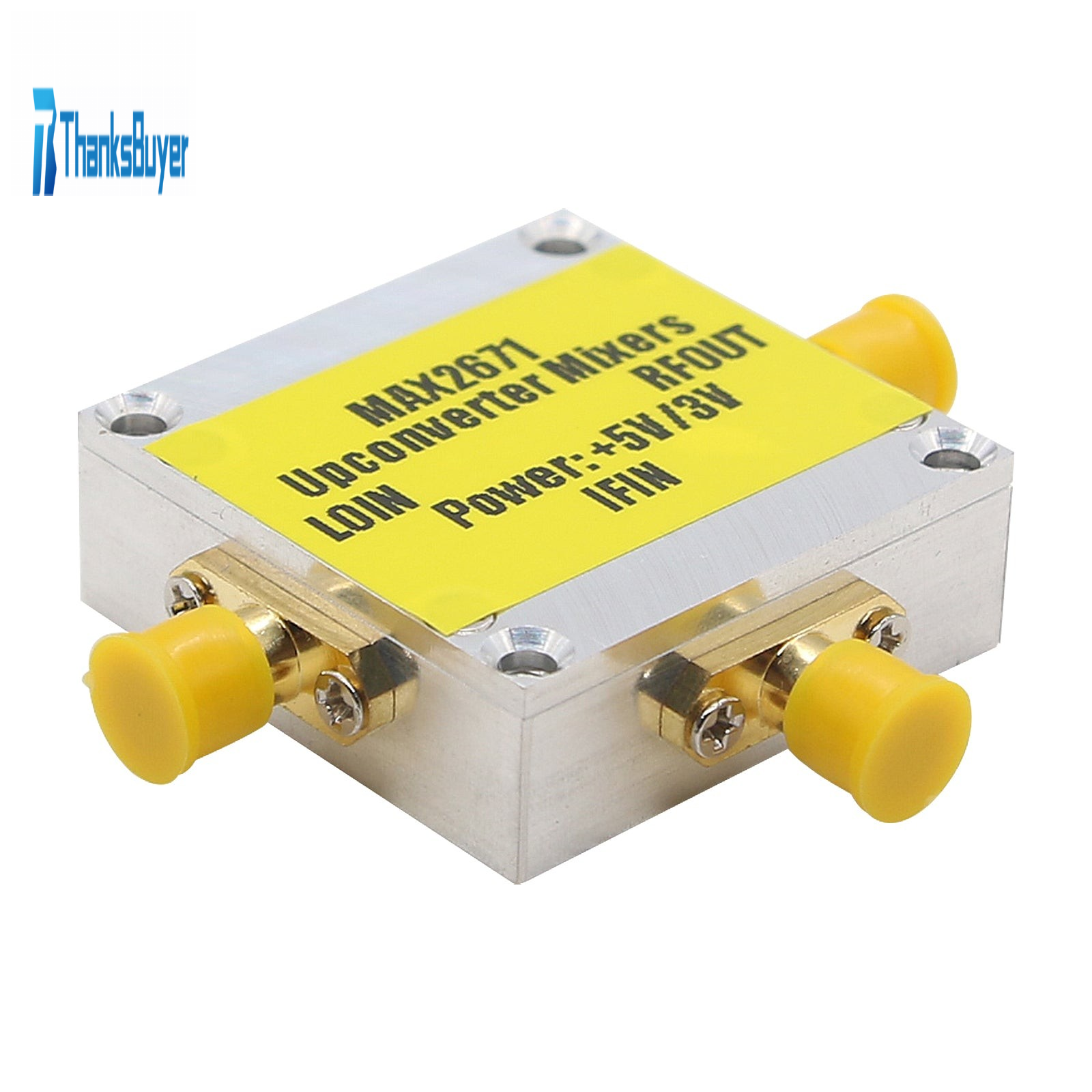

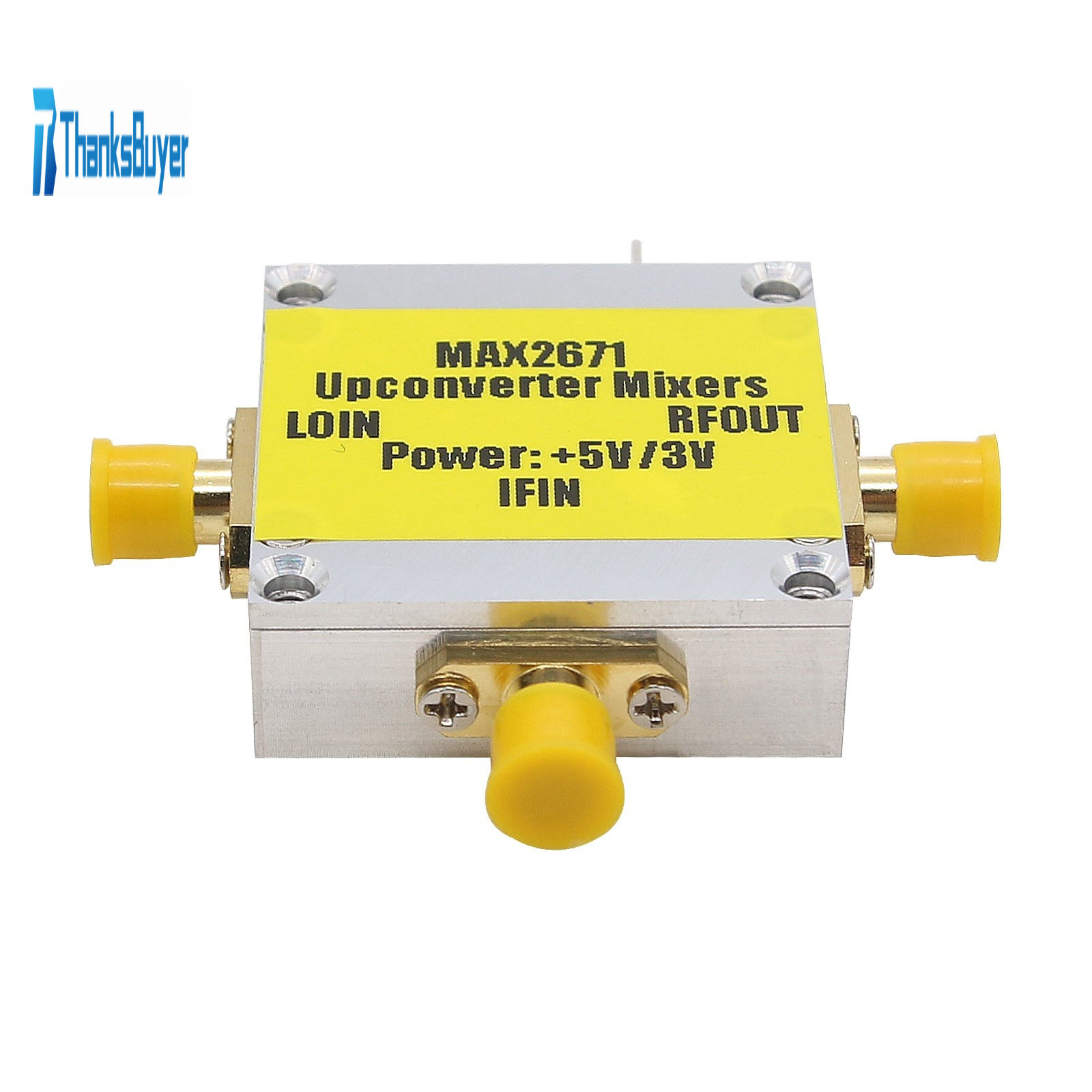

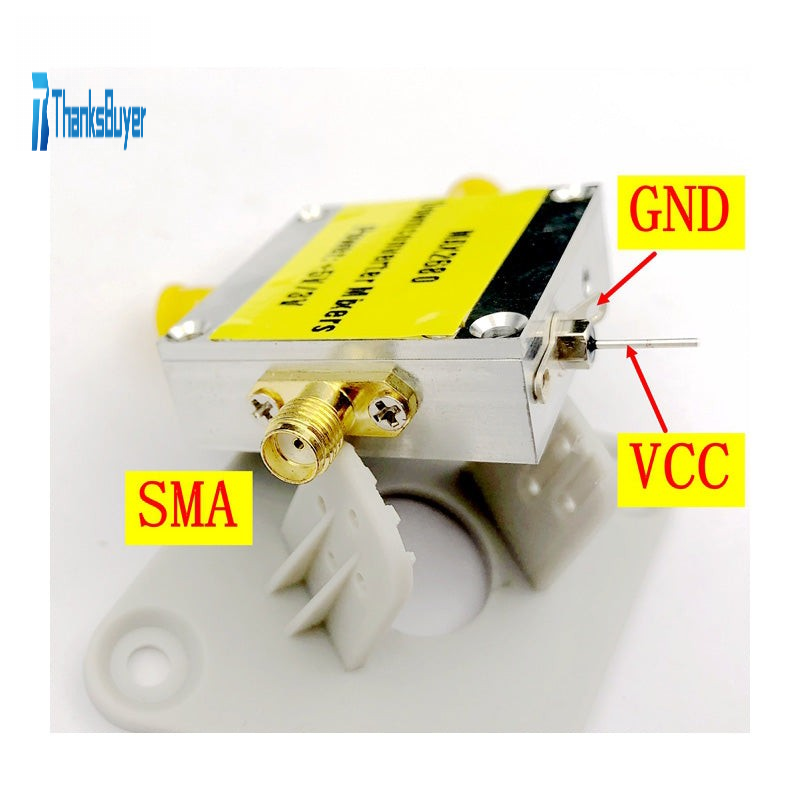

400MHz-2.5GHz Upconverter RF Frequency Mixer Converter SMA Interface Low Noise MAX2671

400MHz-2.5GHz Upconverter RF Frequency Mixer Converter SMA Interface Low Noise MAX2671

Description:
The MAX2660/MAX2661/MAX2663/MAX2671/MAX2673 miniature, low-cost, low-noise upconverters are designed for low-voltage operation and are ideal for use in portable consumer equipment. Signals at the IF input port are mixed with signals at the local oscillator (LO) port using a double-balanced mixer. These upconverters operate with IF input frequencies between 40MHz and 500MHz, and upconvert to output frequencies as high as 2.5GHz.

These upconverters offer a wide range of supply currents and output intercept levels to optimize system performance. Supply current is essentially constant over the specified supply voltage range. Additionally, when the devices are in a typical configuration with VSHDN-bar = 0, a shutdown mode reduces the supply current to less than 1µA.

The MAX2660/MAX2661/MAX2663/MAX2671 family of upconverters are offered in the space-saving 6-pin SOT23 package. For applications requiring balanced IF ports, choose the MAX2673 upconverters in the 8-pin µMAX package.

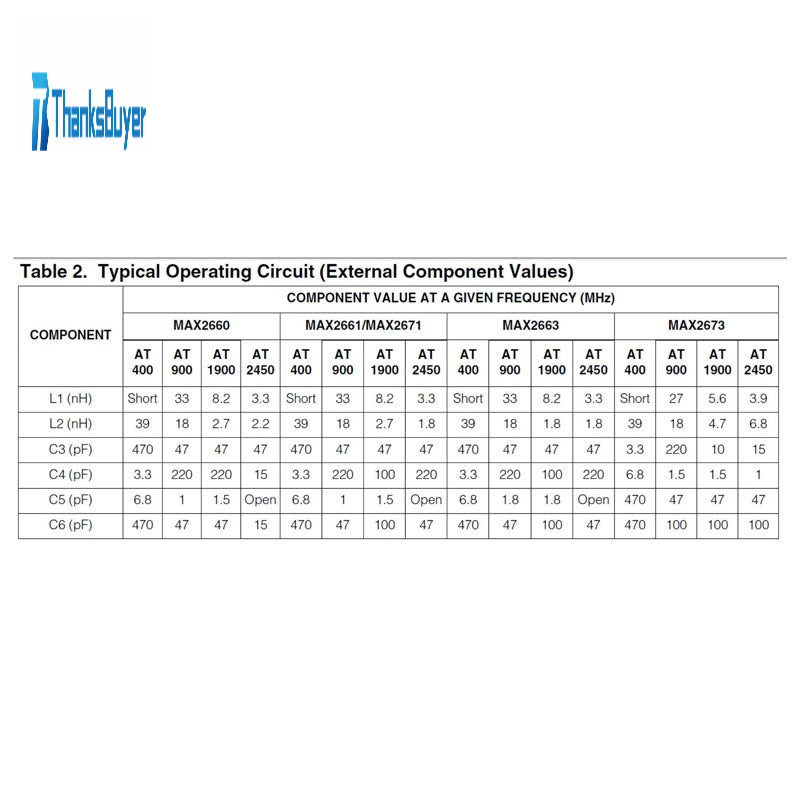

Parameters:
- RF Output Frequencies: 400MHz to 2.5GHz
- Low Noise Figure: 9.3dB (900MHz, MAX2671)
- +2.7V to +5.5V Single Supply
- High Output Intercept Point (OIP3):
  5.9dBm at 4.8mA (MAX2660)
  7.1dBm at 8.3mA (MAX2661)
  0.7dBm at 3.0mA (MAX2663)
  9.6dBm at 11.8mA (MAX2671)
  7.6dBm at 20.5mA (MAX2673)
- 1µA Shutdown Mode
- Ultra-Small Surface-Mount Packaging

Application:
- 400MHz/900MHz/2.4GHz ISM
- Cellular Phone / Cordless Phone
- Handheld Wireless Device
- IEEE 802.11 and Wireless Data
- Personal Communication System (PCS)
- Wireless Local Area Network (WLAN)

Package Included:
- 1 x Upconverter Mixer

Note: Please contact us for schematic diagram after purchasing. Thank you!
