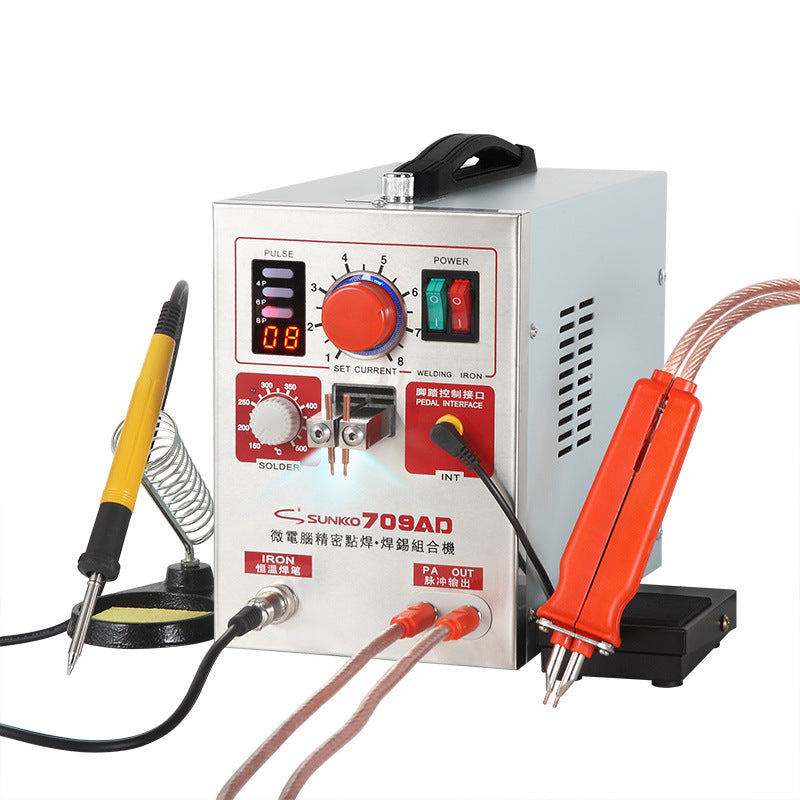

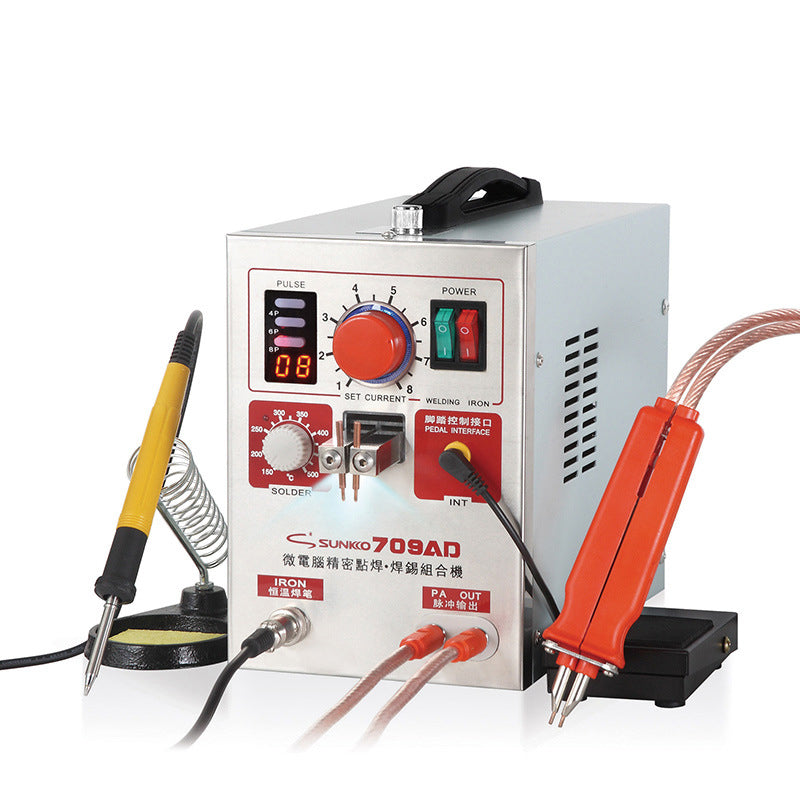

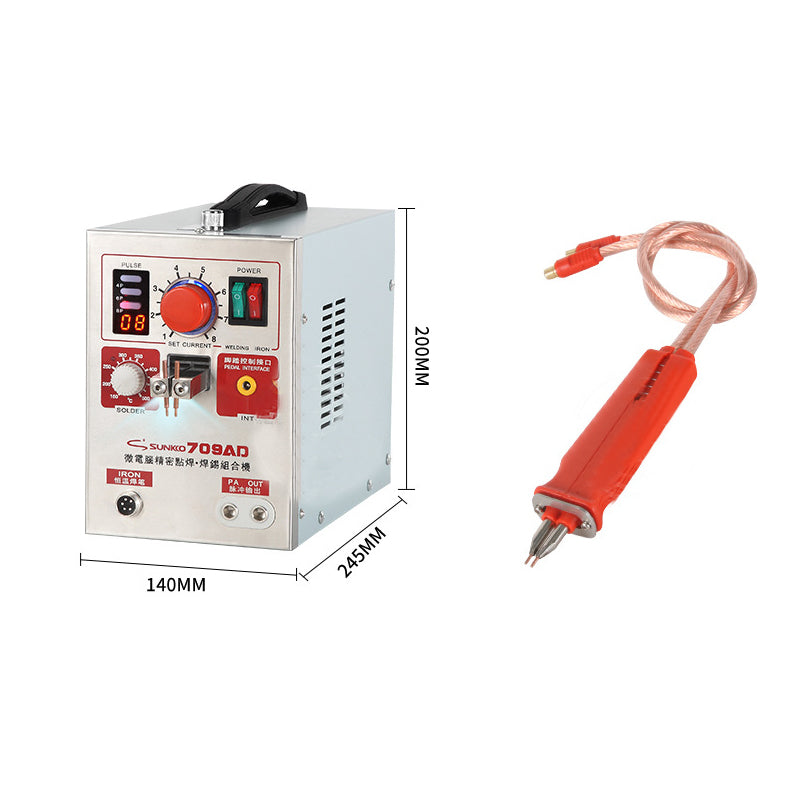

709AD 110V Pulse Spot Welder Battery Welding Soldering Machine 3in1 for 18650 with 70B Welding Pen

709AD 110V Pulse Spot Welder Battery Welding Soldering Machine 3in1 for 18650 with 70B Welding Pen

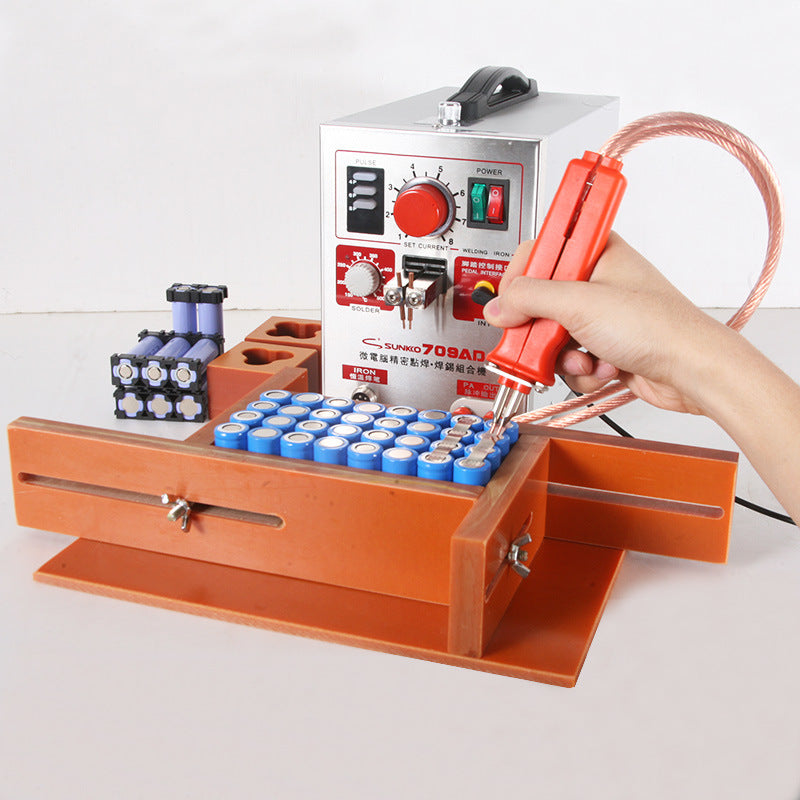

Pulse mobile soldering part:
- Soldering pen and cable length:630mm*2
- Cable sectional area :18mm2
- Welding needle size :1.5mm*7mm
- The largest welding pulse current :600A

Thermostat soldering station part:
- Temperature: 150 degree to 450degree
- Constant temperature precision :+-5 degree
- Power:50W
- Soldering station Output voltage:20VDC
- Heating up time :6-8s to 300 degree

Spot-welder part:
- Supply voltage: AC110V±20V
- Power: 1.5KW (Instantaneous)
- Current: 50-600A
- Time of double pulse: 1~10ms (adjustable)
- Time of four pulses: 2~20ms (adjustable)
- Time of eight pulses: 8~80ms (adjustable)

Scope of application

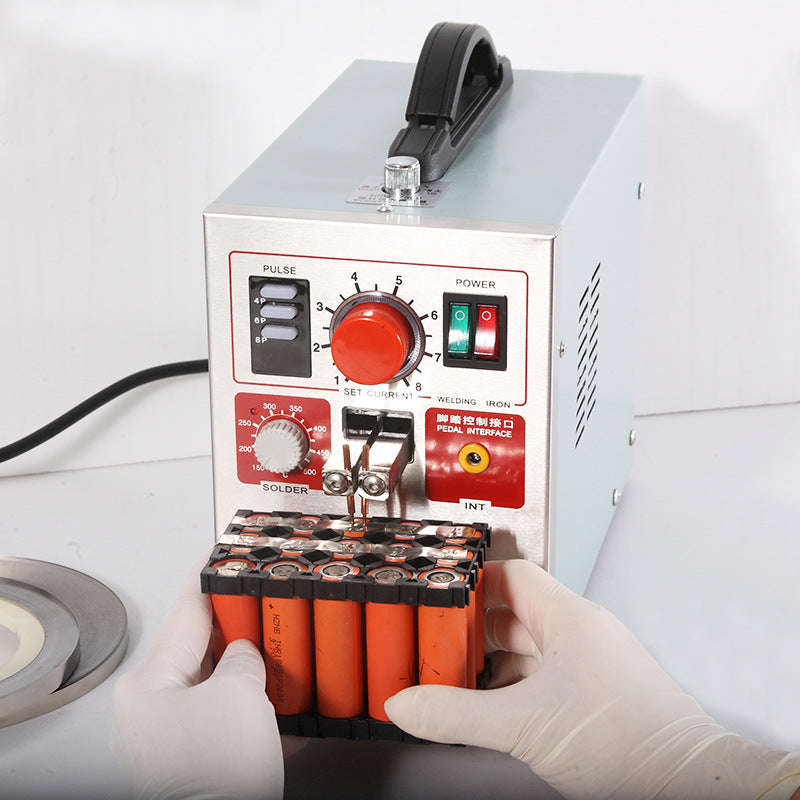

- Lead sheets of rechargeable battery can be welding rapidly.

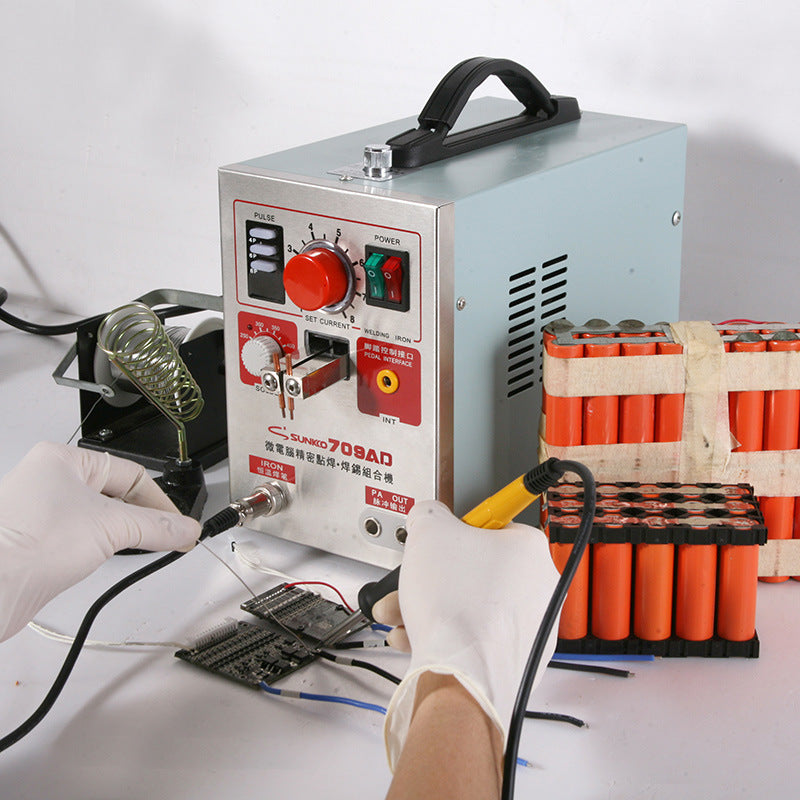

- The production, installation, welding of lithium battery or mobile power.
- The welding of lead sheets and wires from metal parts.

The difference between the S709A
- S709AD with pulse display, not for S709A
- S709AD fixed spot welding distance ,but S709A can adjust spot welding distance
