Audio Board HDMI Extracts Digital Audio Signal I2S/DSD/SPDIF Module Fit Various Decoders DAC

Audio Board HDMI Extracts Digital Audio Signal I2S/DSD/SPDIF Module Fit Various Decoders DAC

Features:
- Used to extract digital audio signal from HDMI signal, supporting I2S or SPDIF outputs
- I2S interface supports I2S/DSD and DTS/AC3
- No additional power supply is required when connecting with most devices. If your player's power supply is insufficient, external power supply (DC 5V) can be used
- Module size: 50 x 50mm/2 x 2 inch
- Very convenient to install in various decoders

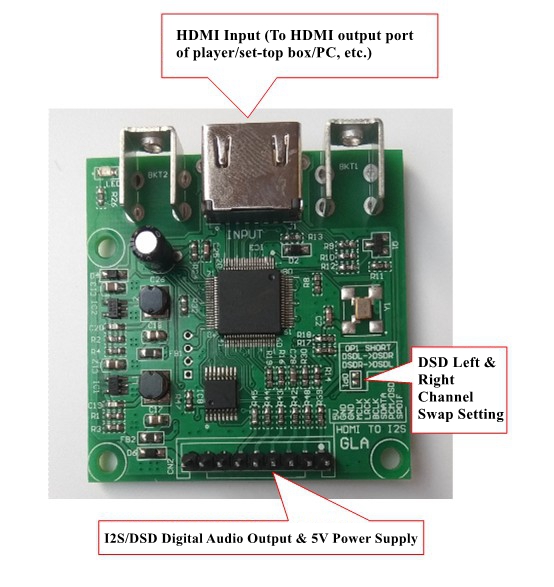

Description of Output Connector:
5V---> DC +5V power supply (connect when your player provides insufficient power supply)
GND---> Ground
MCLK---> Master clock output
LRCK---> Left and right clock output/DSD_R output
BCLK---> Bit clock output/DSD_CLK output
SDATA---> Data output/DSD_L output
PCM/DSD---> 0V output in PCM mode/3.3V output in DSD mode
SPDIF--->SPDIF output

Attention: In order to be compatible with more DAC requirements, the left and right channel swap function in DSD mode is provided, just short-circuit OP1 solder joint on the board.

Package Included:
- 1 x Module

Wiring:
