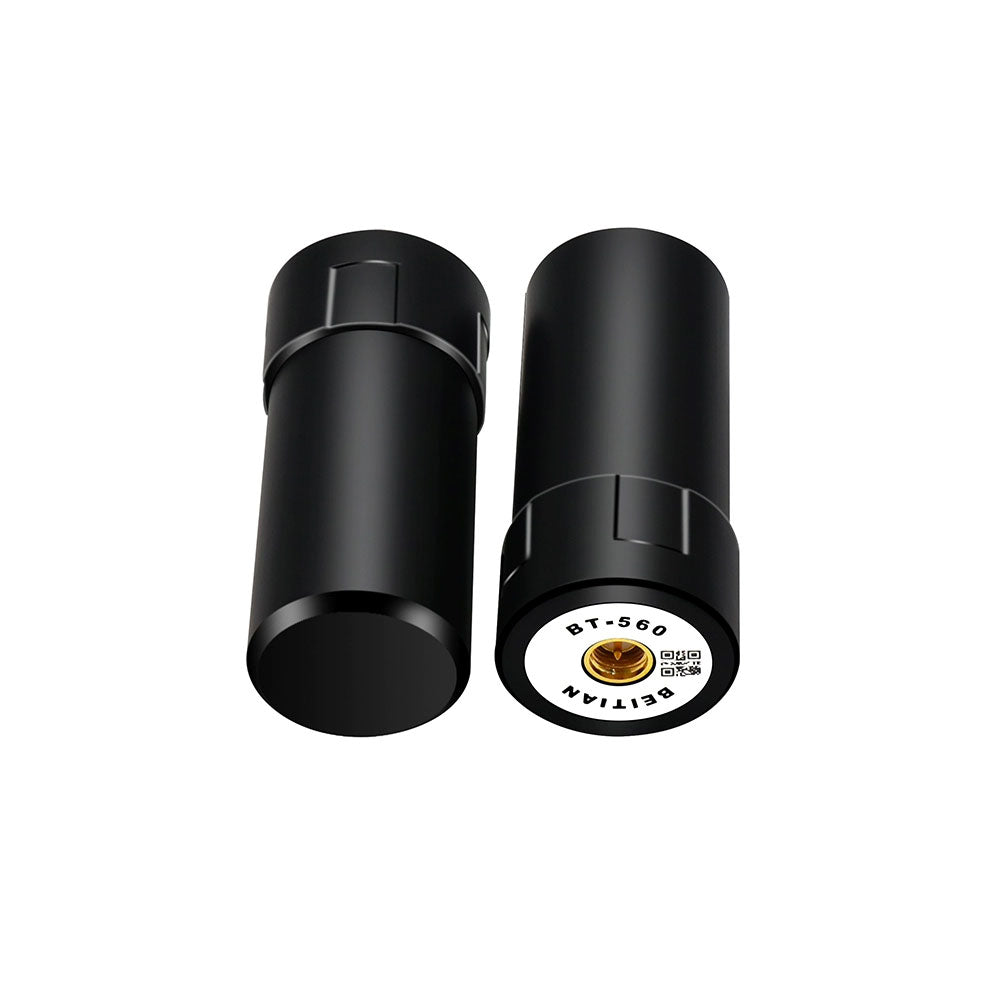

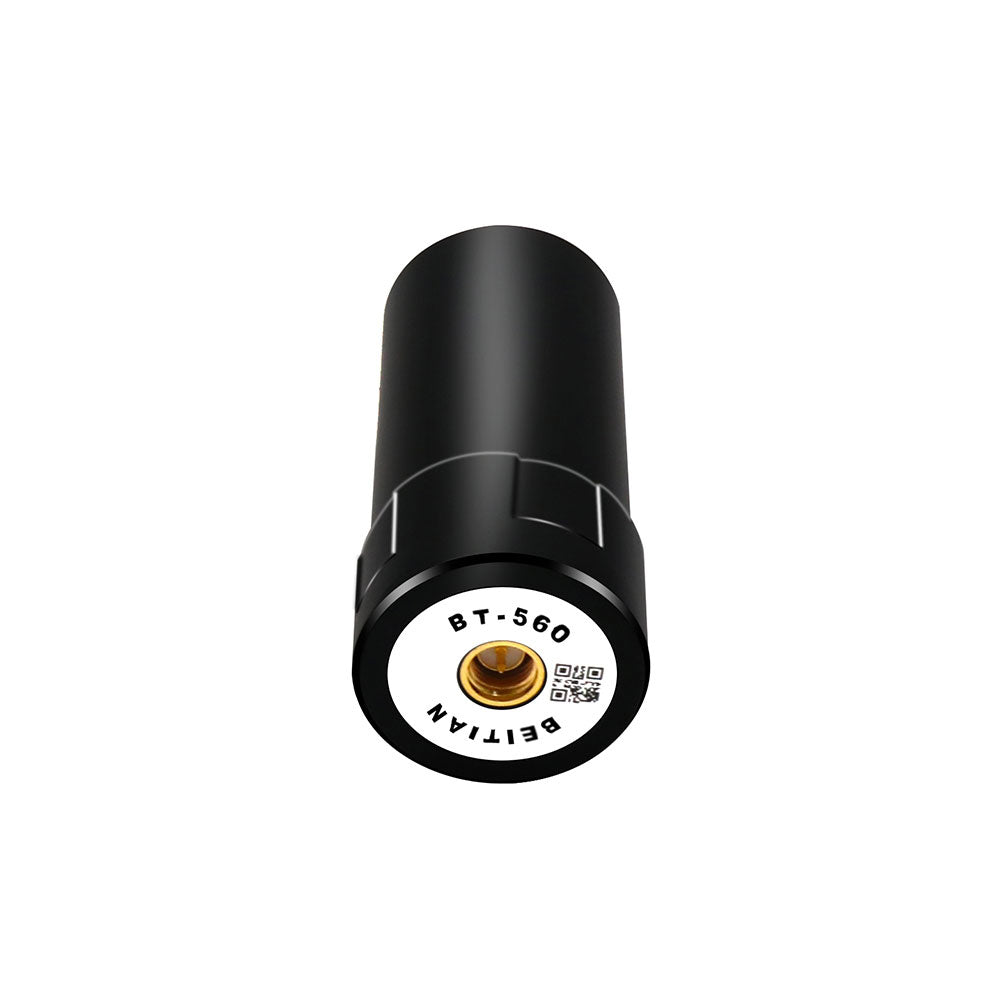

BT-560 GNSS Antenna with Extension Cable High Precision for Beidou Four-arm Helical Multi-frequency GPS Antenna
Precio habitual
$56.32
Precio habitual
Precio de oferta
$56.32
Precio unitario
por
Impuesto incluido.
Los gastos de envío se calculan en la pantalla de pago.
No se pudo cargar la disponibilidad de retiro
Precio habitual
$56.32
Precio habitual
Precio de oferta
$56.32
BT-560 GNSS Antenna with Extension Cable High Precision for Beidou Four-arm Helical Multi-frequency GPS Antenna
Application:
- UAV positioning, geodetic survey, wearable device, etc.
Specification:
- Frequency range: GPSL1/L2; GLONASS L1/L2; BDS B1/B2/B3; GALILEO E1/E5b
- Gain: 2dBi
- Antenna AR: ≤3dB
- Output VSWR: ≤2
- Polarization: right-hand circular polarization
- Terminal impedance: 50ohm
- LNA gain: 32±2dB
- Working voltage: 3.3V - 12.0V
- Connector type: SMA-J
- Antenna size: 27.3 x 58.6mm
Package Included:

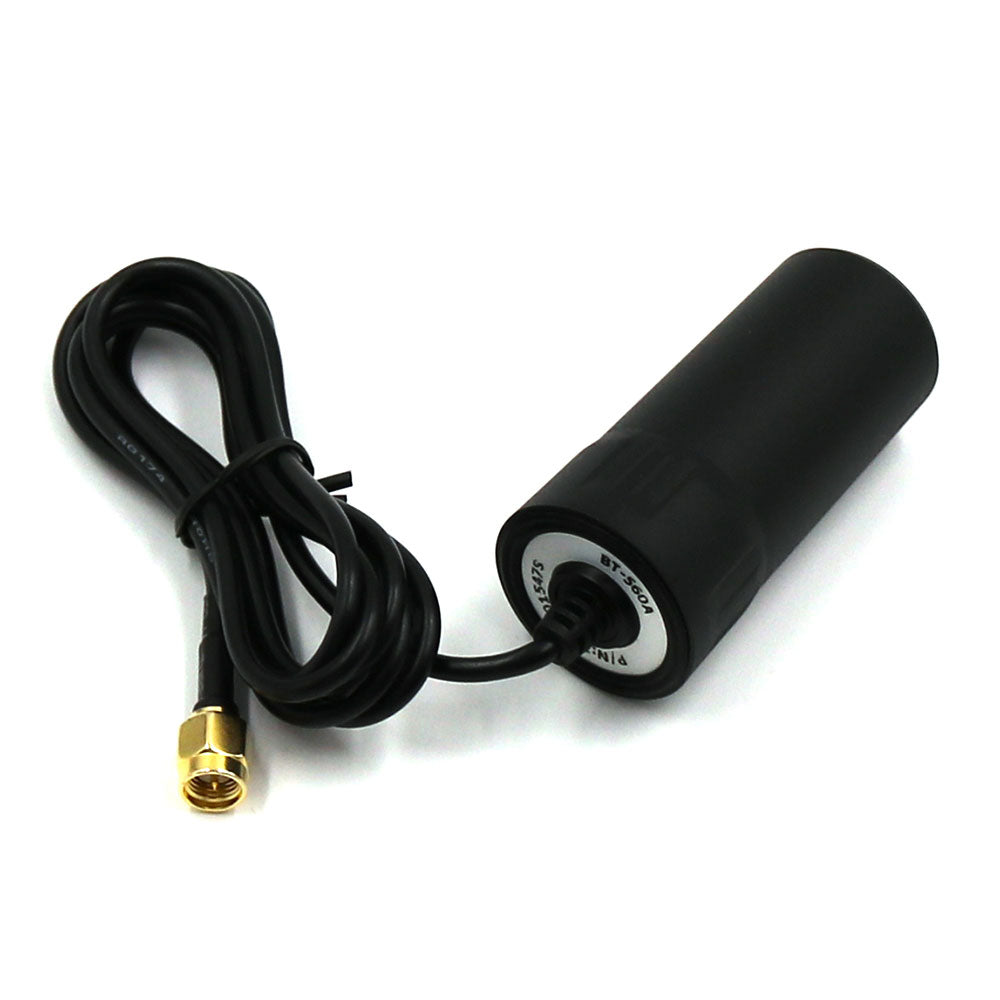

- 1 x GNSS Antenna (with Extension Cable)
