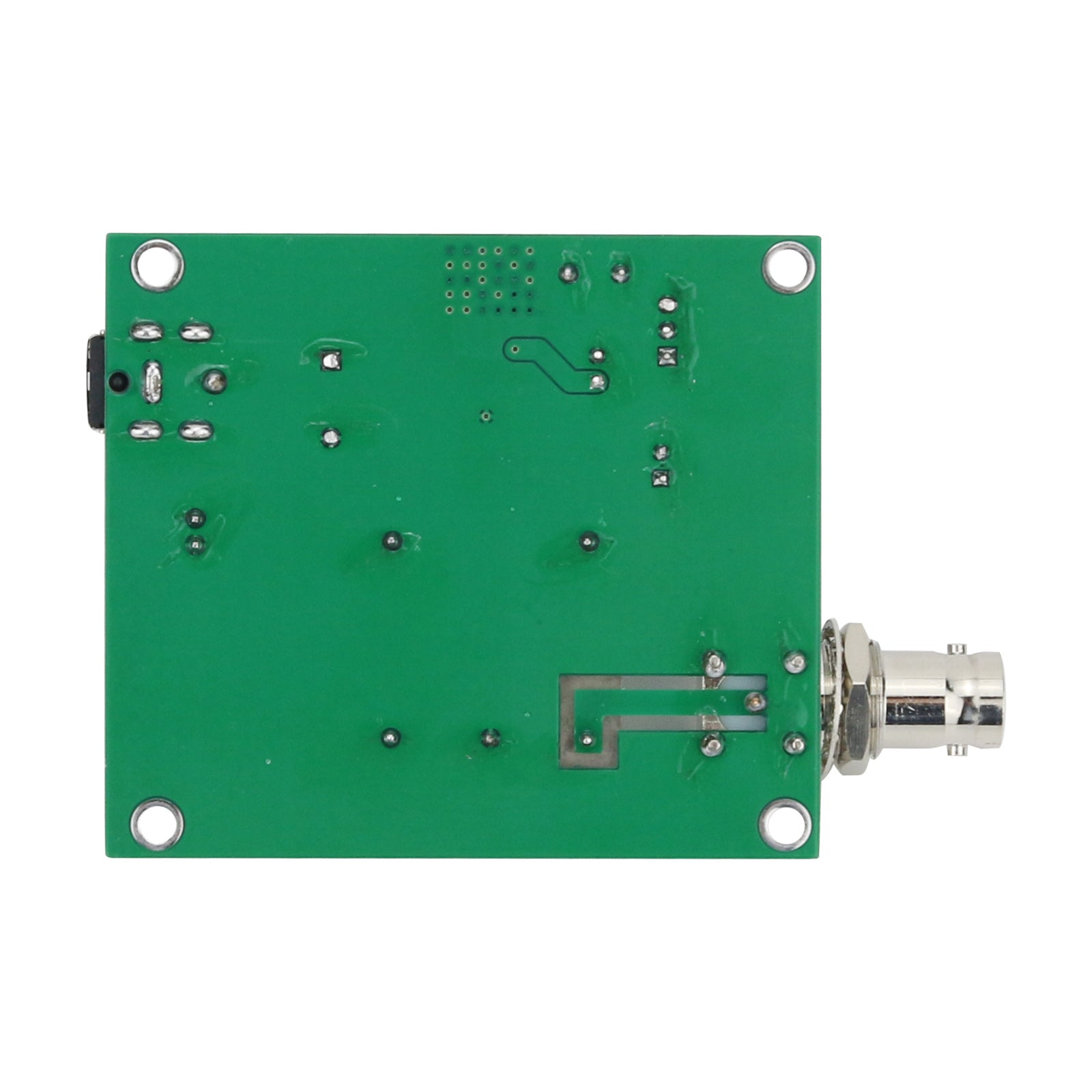

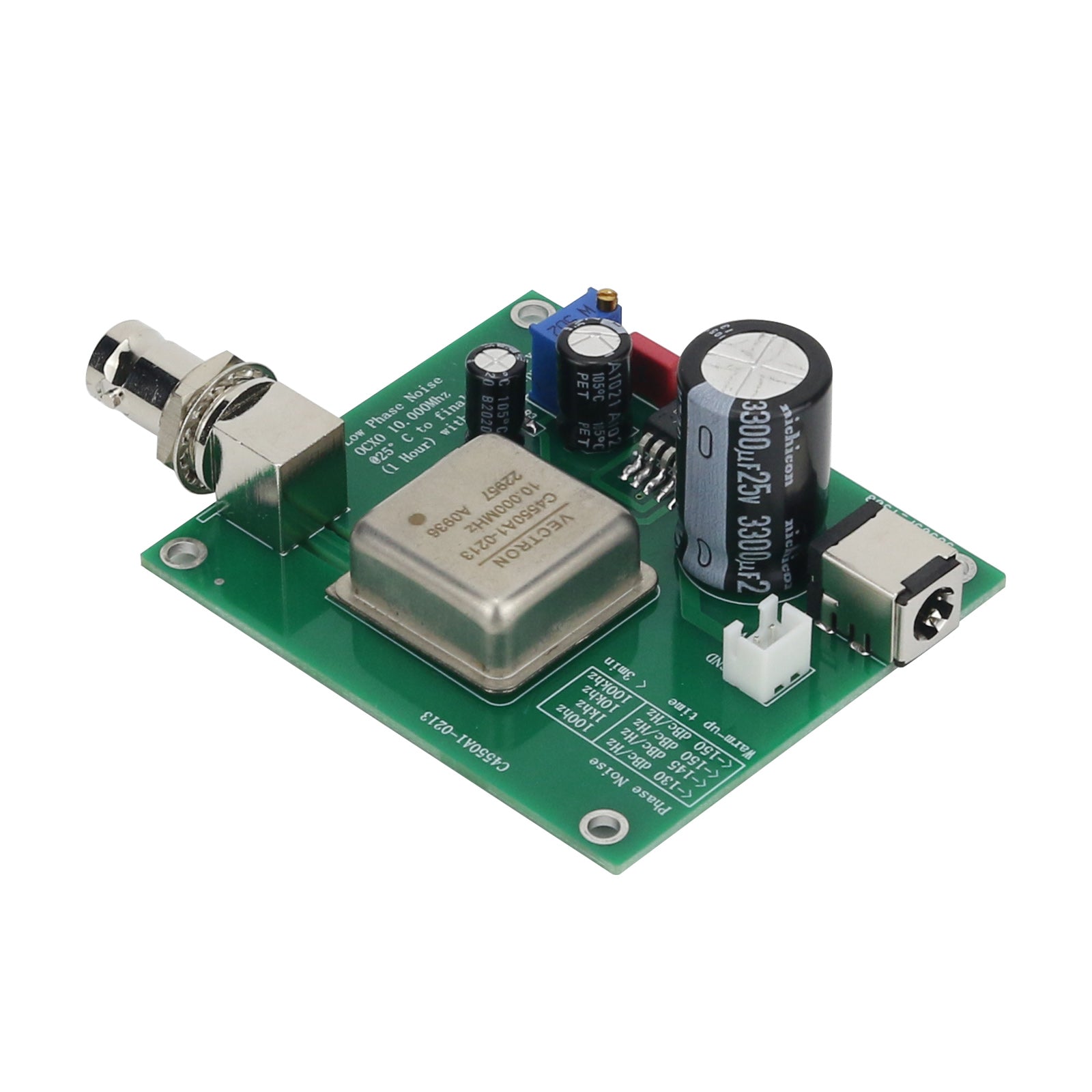

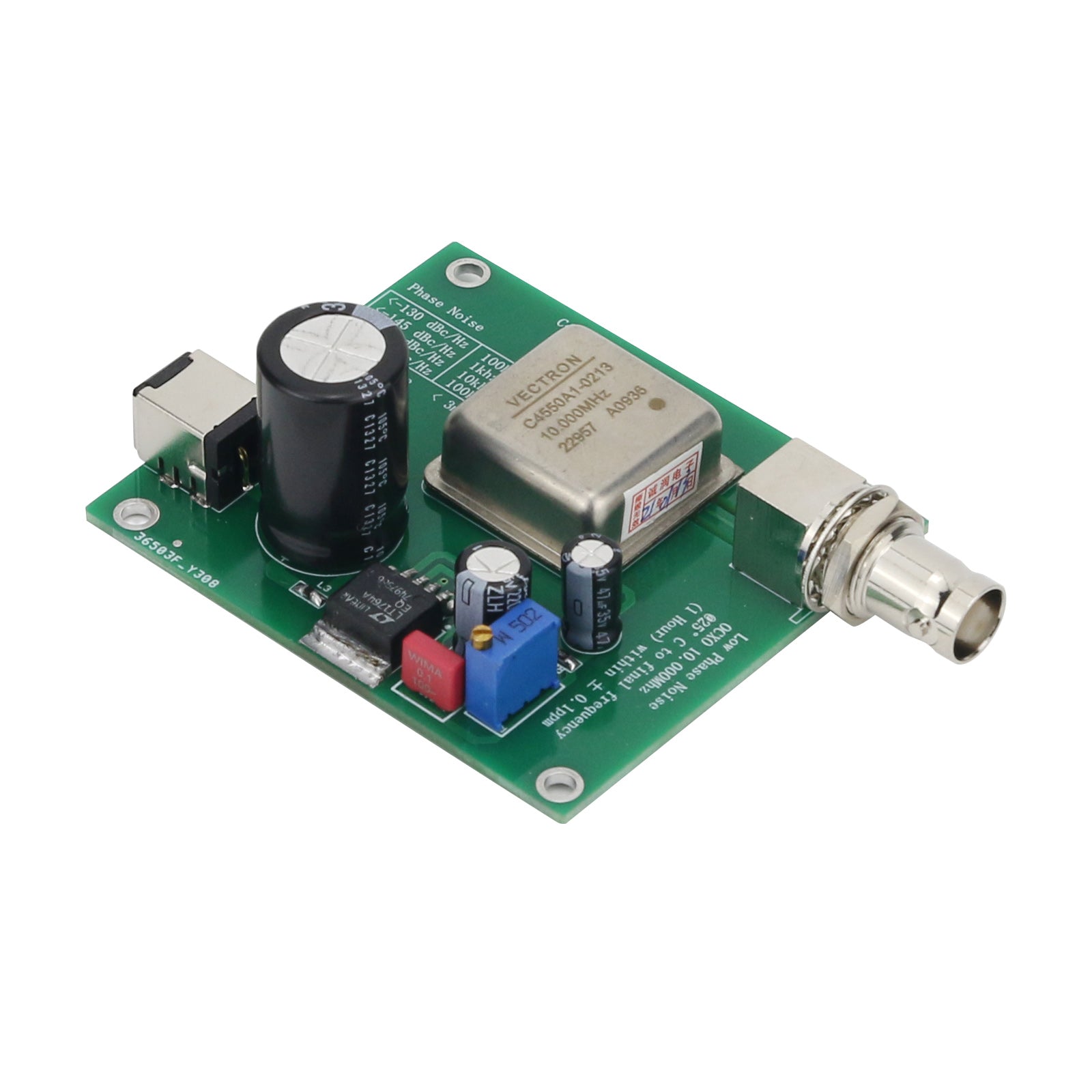

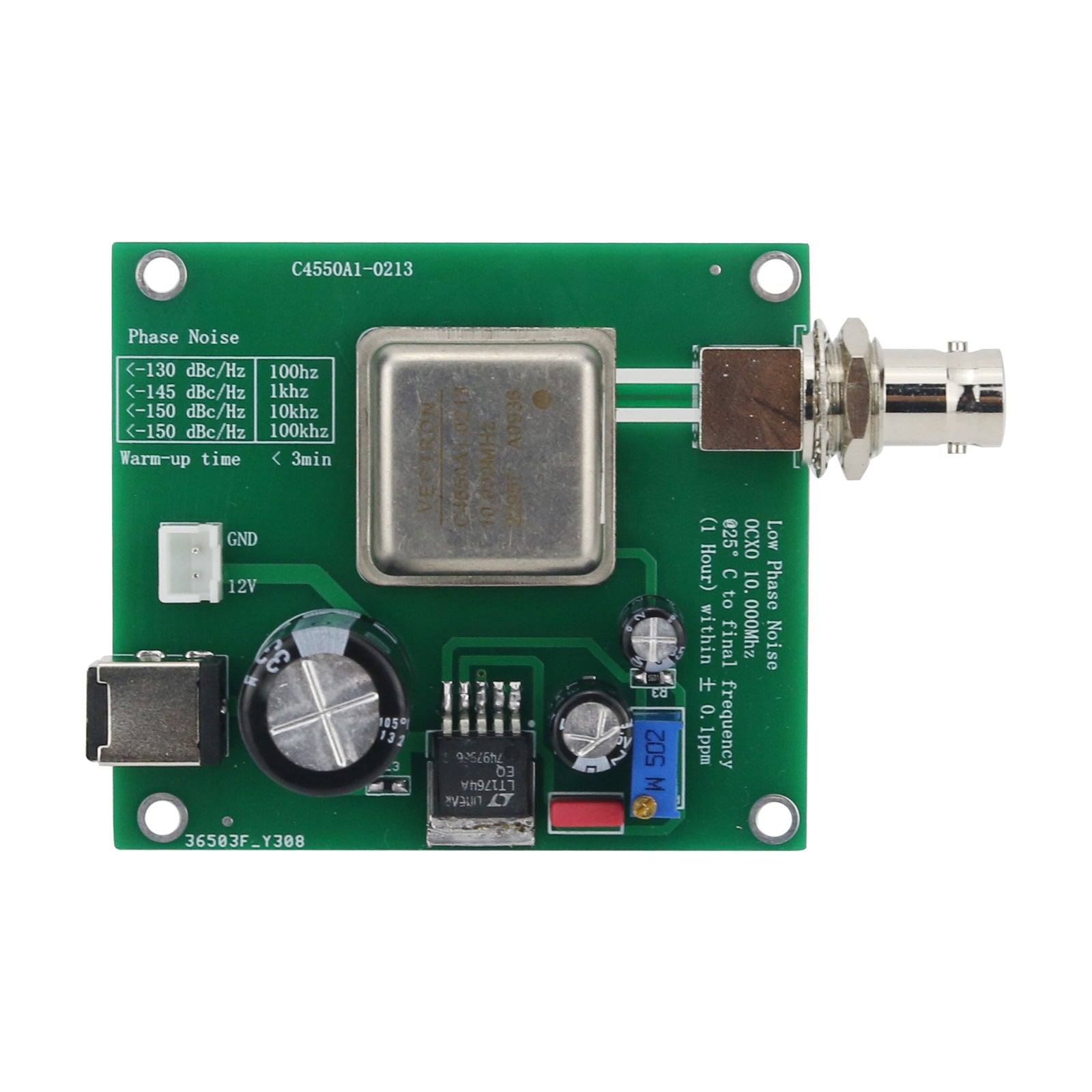

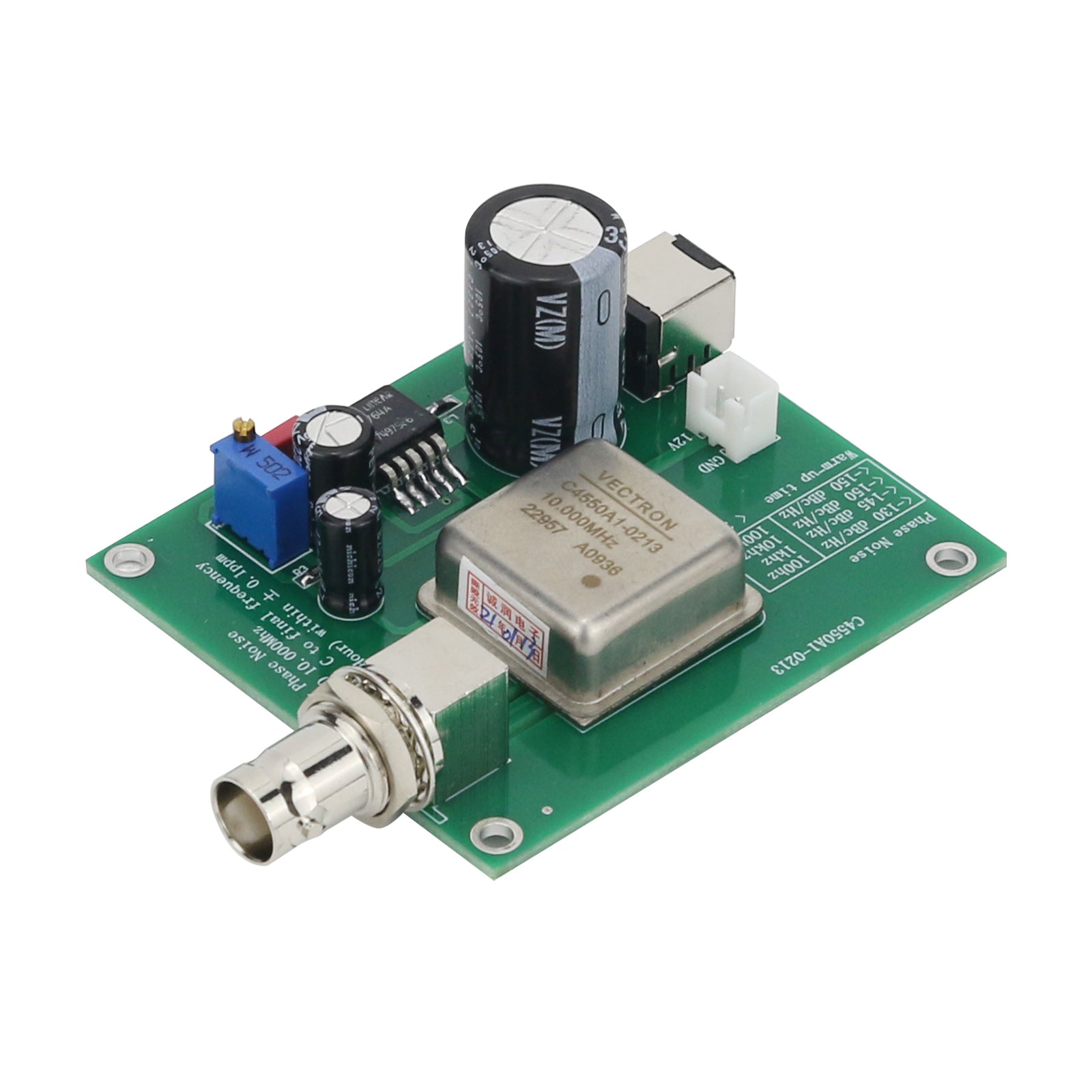

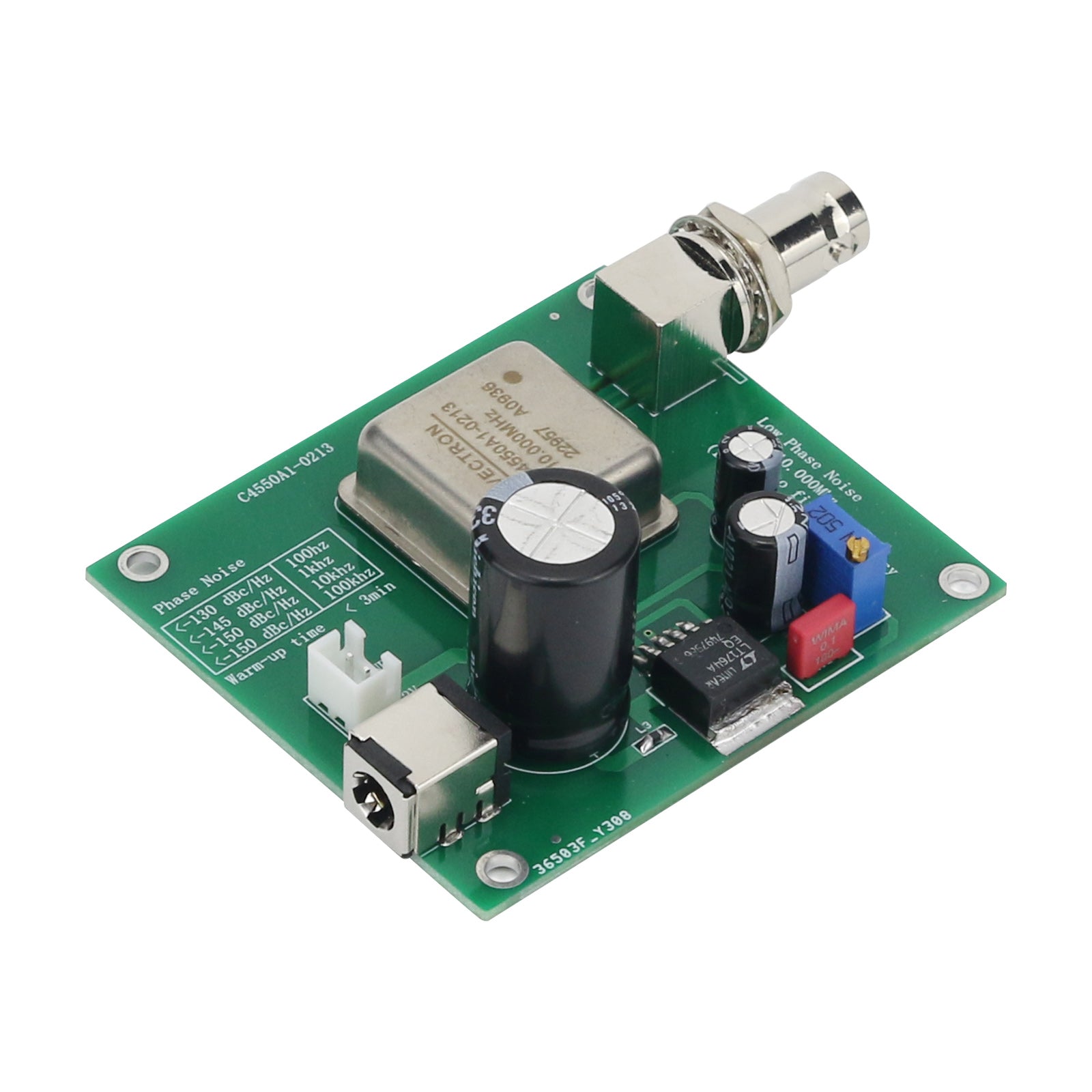

C4550A1-0213 Audio Low Phase Noise OCXO 10MHz External Clock Source For Professional Audio Equipment

C4550A1-0213 Audio Low Phase Noise OCXO 10MHz External Clock Source For Professional Audio Equipment

Features:
- For America VECTORON C4550A1-0213 thermostatic audio clock
- Frequency: 10mhz
- Interface: BNC
- Input voltage: DC12v
- Powered by UV grade low ripple LT1764
- Phase Noise:
＜-130dBc/Hz at 100hz
＜-145dBc/Hz at 1khz
＜-150dBc/Hz at 10khz
＜-150dBc/Hz at 100khz
- Warm-up time:＜3min
- Phase noise parameters are close to those of femtosecond crystal oscillators
- At 25℃ to final frequency (1 Hour) within ±0.1ppm
- Frequency accuracy 0.1 parts per million

Package Included:
- 1 x Low Phase Noise Clock Oscillator
