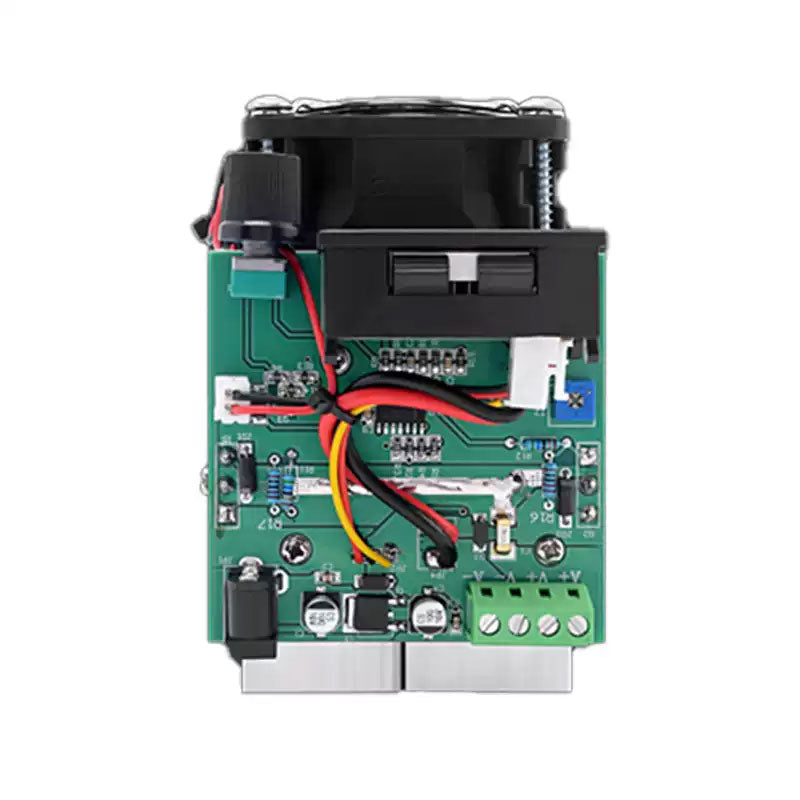

DC 12V 100W 10A Adjustable Electronic Load Module Constant Current Battery Capacity Tester High Power

100W High-Power Electronic Load

* Supports up to 100W of power dissipation with an adjustable current range of 0-10A, suitable for DC power supply testing, battery discharge testing, and electronic component burn-in applications.

Adjustable Constant Current Mode

* Operates in constant current mode to provide a controlled load for testing DC power supplies, batteries, and other electronic devices.

Wide Voltage Compatibility

* Supports a maximum input voltage of 60V, providing flexibility for a variety of DC testing applications. Requires a DC 12V power supply (±5%) for operation.

Compact and Practical Design

* Measures approximately 10.5 x 9.5 x 6.6cm and weighs approximately 385g, making it suitable for electronics workbenches and test setups.

Versatile Testing Applications

* Suitable for DC power supply testing, battery discharge evaluation, charger testing, and electronic equipment burn-in. Actual operating power depends on voltage, current, and thermal conditions.

* Product Name: 100W Electronic Load Module

* Current Range: 0-10A

* Input Voltage: DC 12V (±5%)

* Maximum Voltage: 60V

* Maximum Power: 100W

* Operating Mode: Constant Current Mode Only

* Maximum Discharge Current Error: 0.7% (0.01A)

* Weight: 385g

* Overall Dimensions: 10.5 x 9.5 x 6.6cm

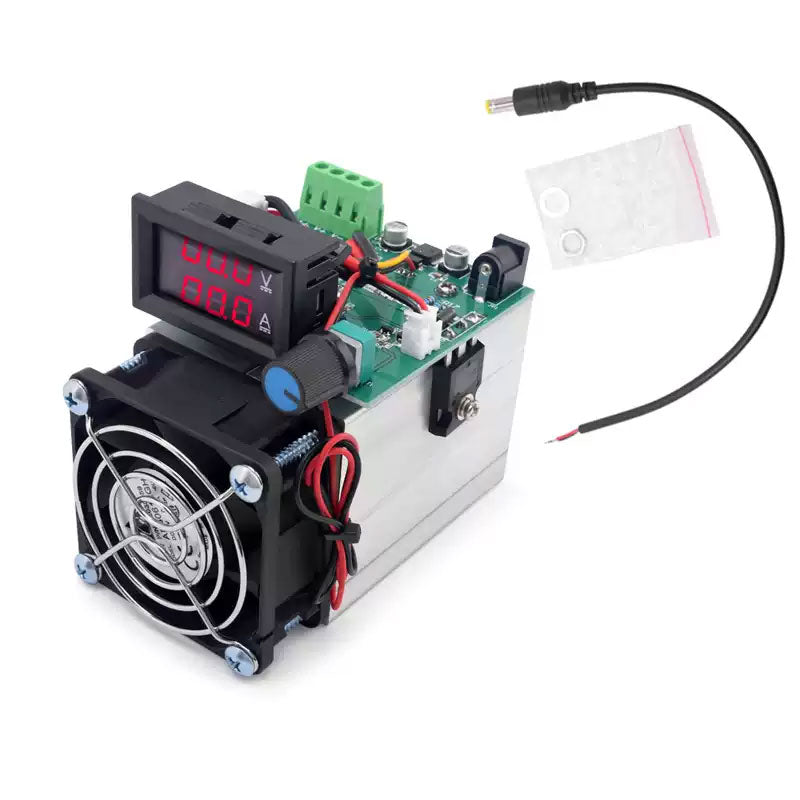

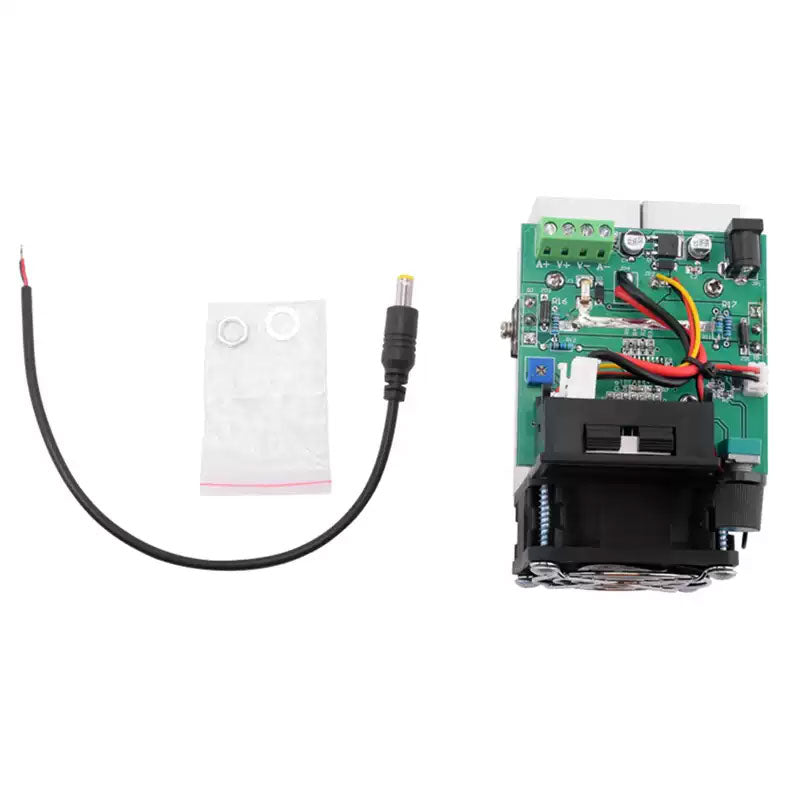

* 1 x Electronic Load Module

* 1 x DC Power Cable

* 2 x Metal Washers

* Package weight: 0.52kg
