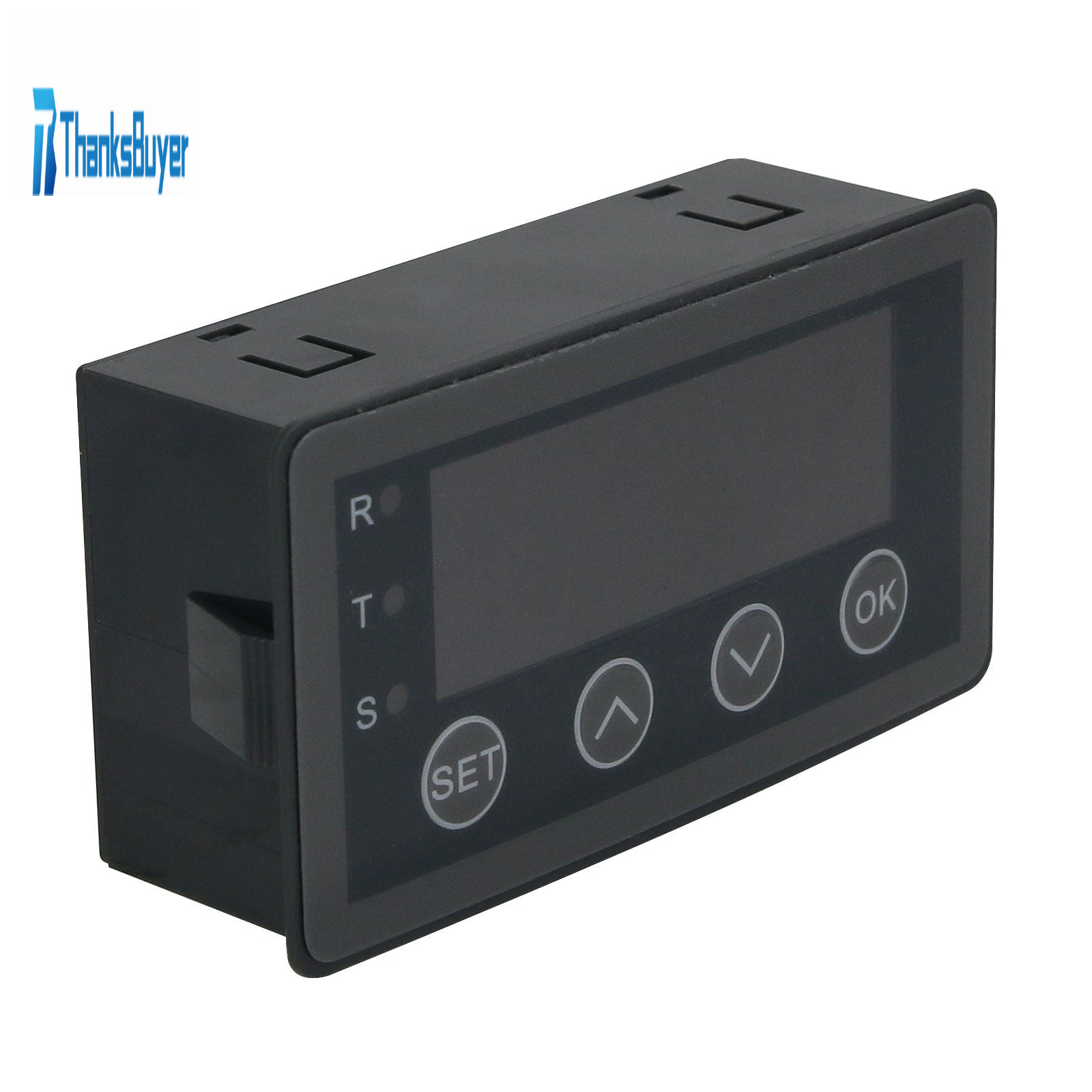

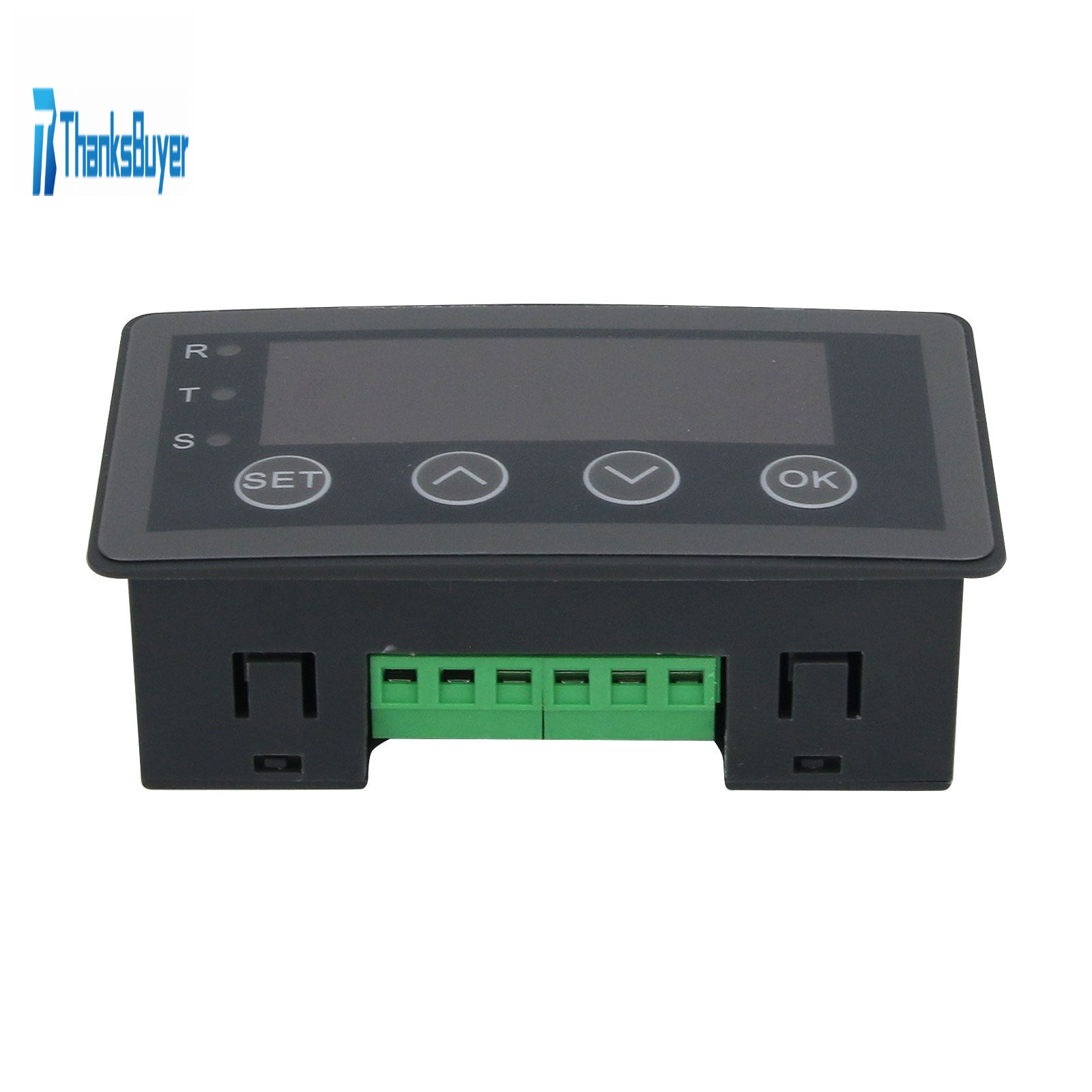

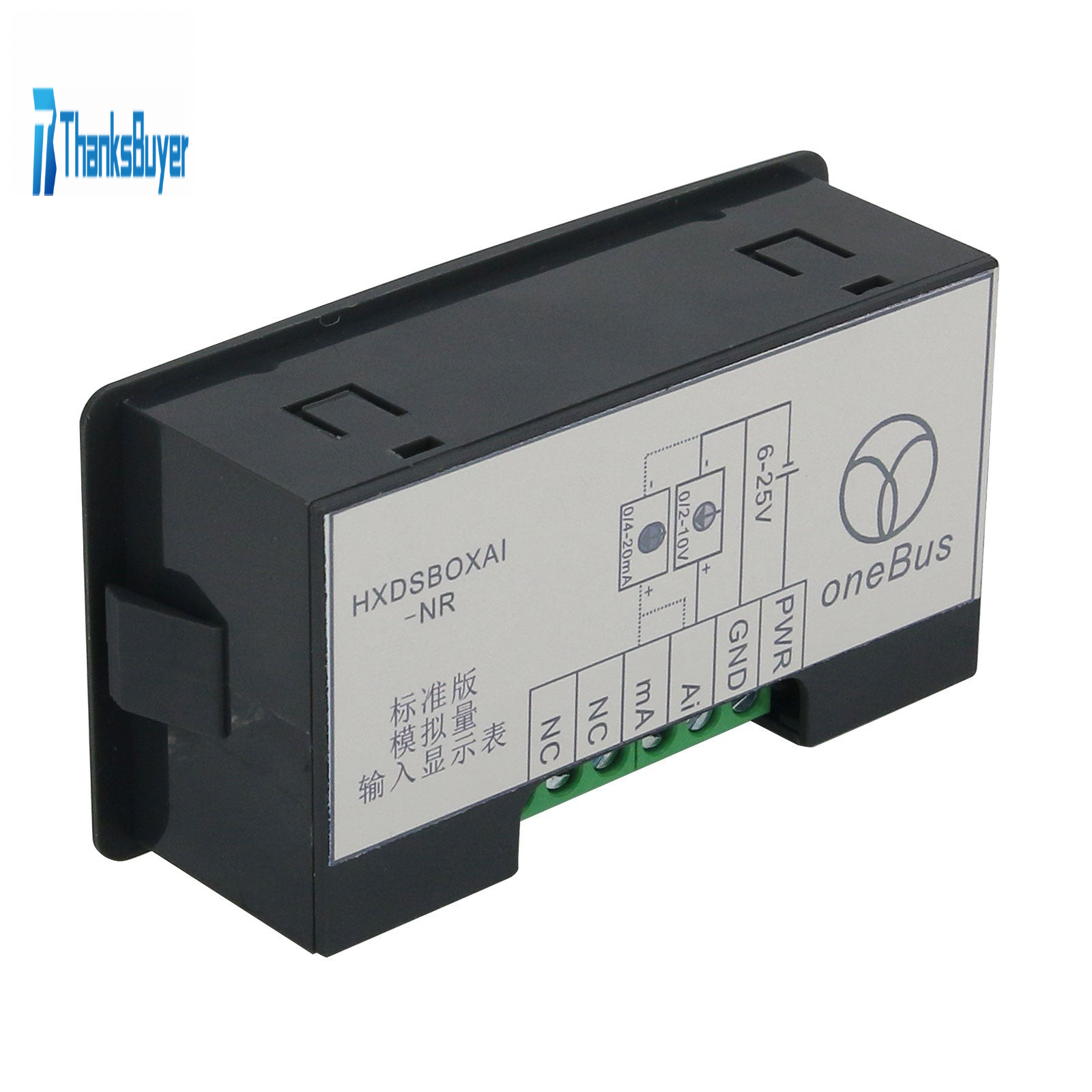

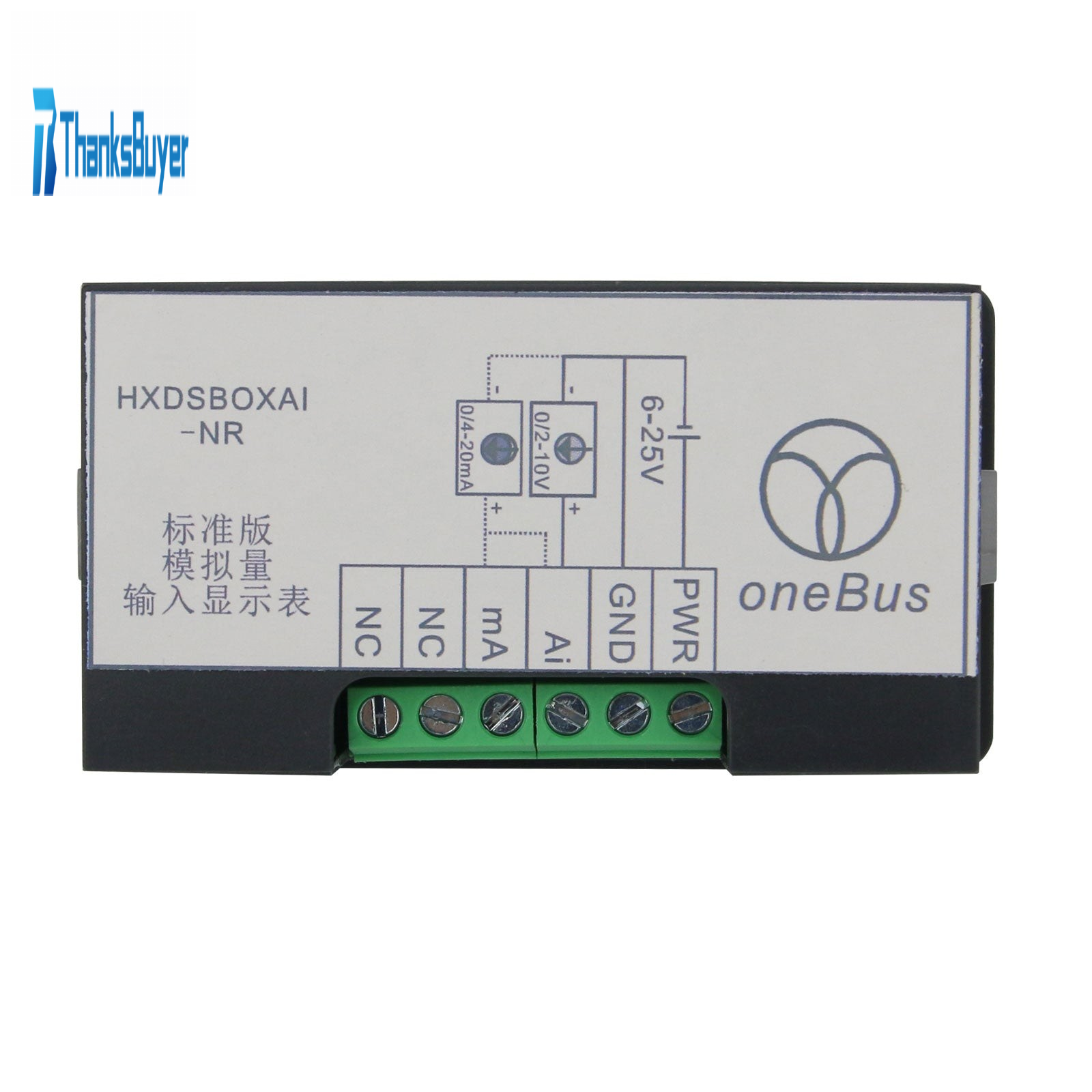

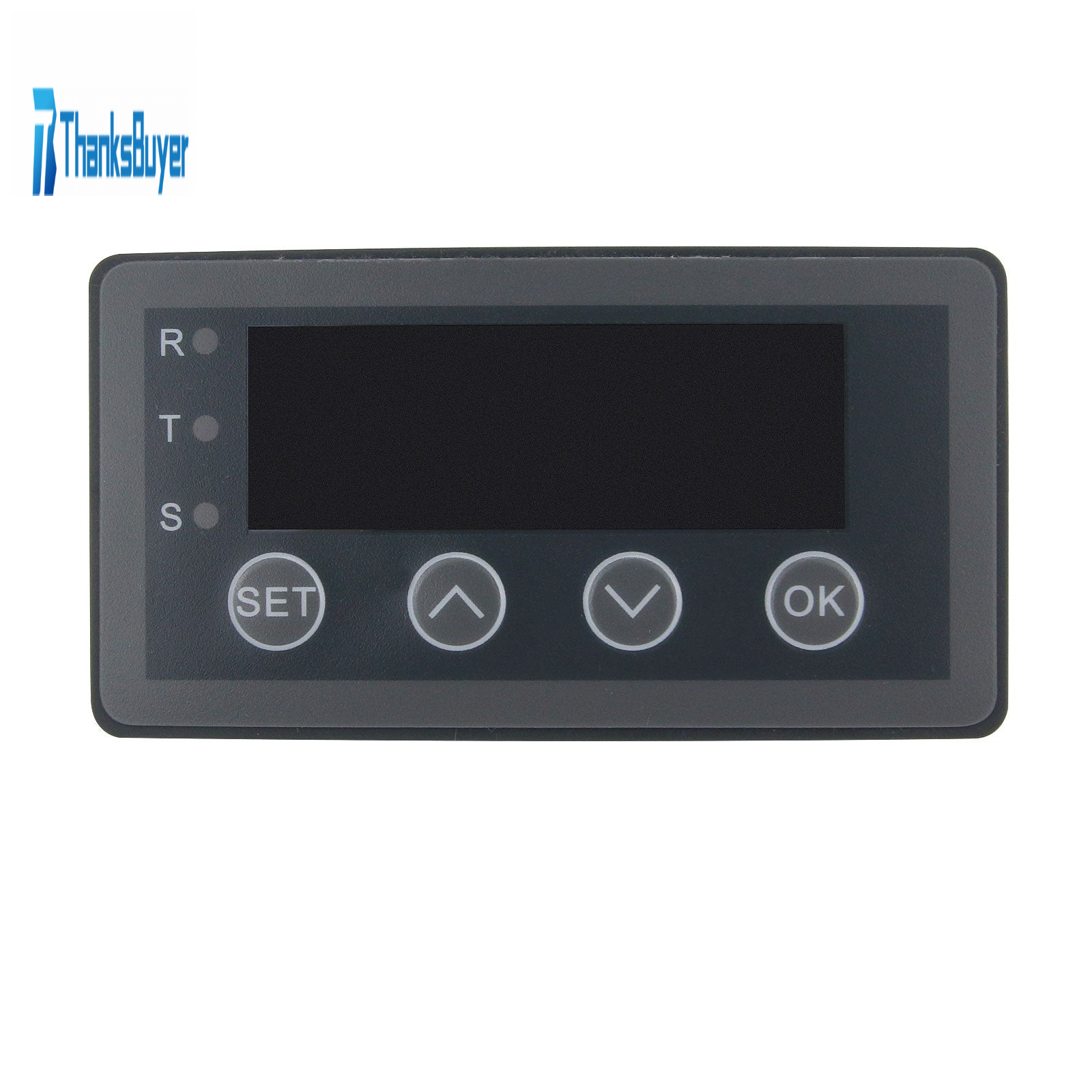

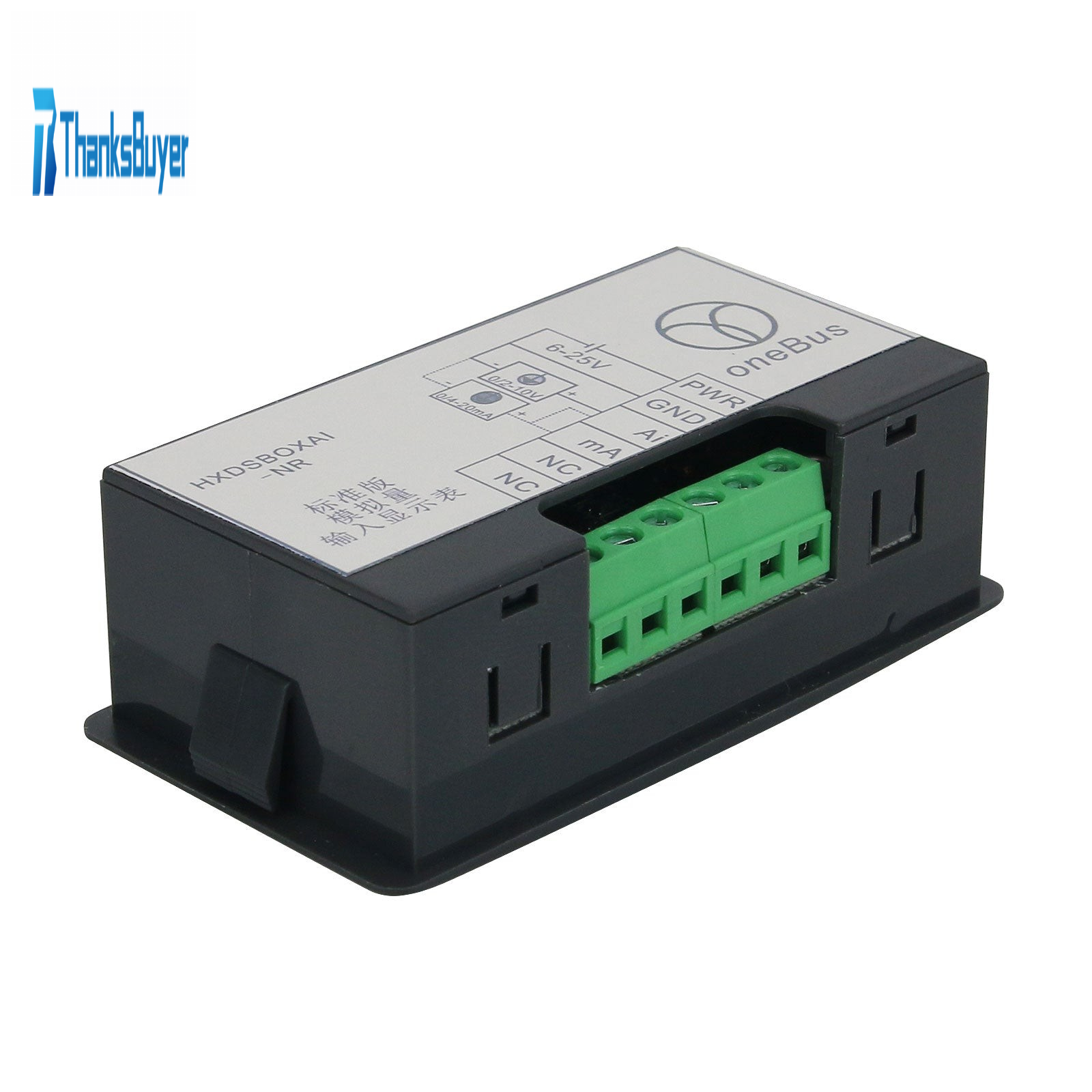

Digital Display Meter 0-10V 0-20mA 2-10V 4-20mA Analog Input Display Meter Standard Version
Specification:
Mechanical size: 79 x 43 x 25mm
Installation opening: 76.5 x 39.5mm
Features:
1. The meter can be called a universal analog input display meter. It can be matched with various sensors with analog output to display the actual physical quantity. Such as temperature transmitter, frequency converter, motor speed, pressure, liquid level, concentration, etc.
2. The instrument supports current input or voltage input.
3. Default adaptation: 0-10V, 2-10V, 0-20mA, 4-20mA. By setting the bias parameter and gain parameter, it can adapt to other inputs in the range of 0-10V, or 0-20mA.

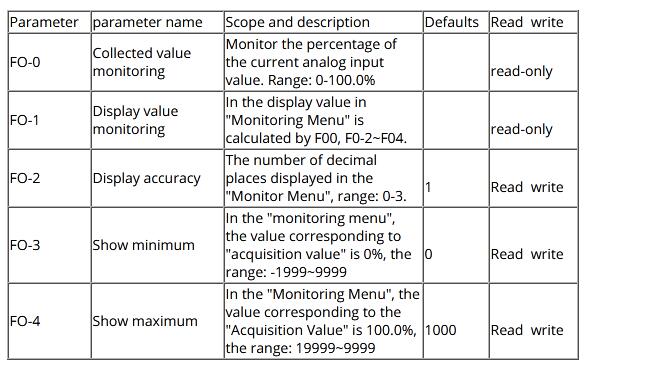

4. It is displayed as a percentage by default. You can also set your own display range through F0-2 ~ F0-4.
Package List:
1 x Digital Display Meter

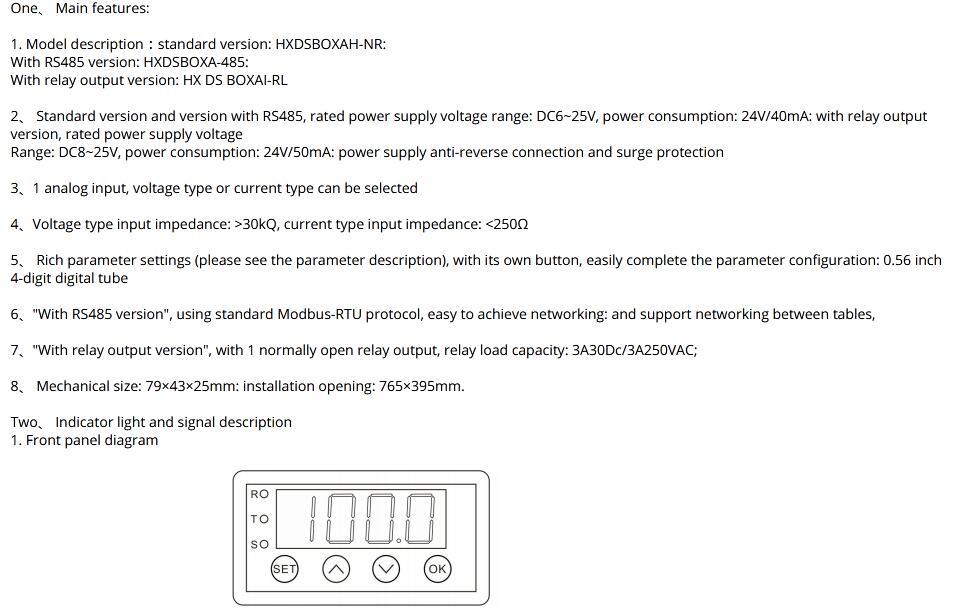

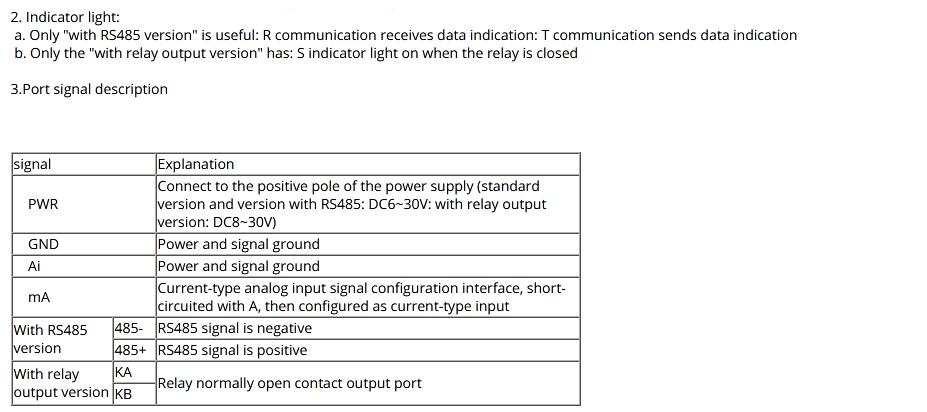

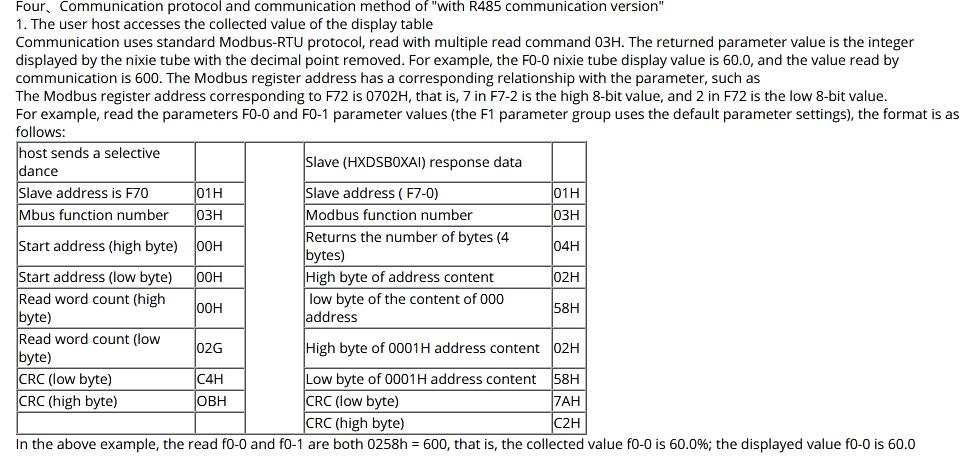

Instructions:
