DM500 3-axis CNC Handle Motion System with Suspension Controller Support USB Flash Drive
Features:
- Maximum number of control axes: 4-axis, 2-4 axis linear interpolation, arbitrary 2-axis arc interpolation.
- Multi point controller mode, basically 8 inputs and 7 outputs, each input and output can be customized with M code.
- Open collector output, the maximum output current is 500mA, which can directly drive the relay.
- Differential output is adopted for pulse direction, and the maximum interpolation pulse output frequency is 500KHZ.
- Spindle control mode Multi segment speed (3 segments, 8 speeds, 1 way spindle start stop).
- Compatible with standard G code. Support mainstream CAD/CAM software, such as ArtCam, Master Cam, ProE, etc.
- Users can interact with external files through USB flash disk and work offline completely.
- Multi stage pre-processing, adaptive speed forward-looking control of machining path, fast machining speed, high precision and good machining continuity.
- Small line segments are processed continuously at high speed, and the algorithm with the highest efficiency is automatically selected among various small line segment control algorithms.
- Acceleration and deceleration mode S-curve acceleration and deceleration.
- Support file processing with large capacity.
- Manual and automatic processing functions.
- Skip the segment execution function to process according to the specified processing line number.
- It has breakpoint memory, power failure automatic protection function, and nearby processing function.
- Support time lock function.
- Four operation permissions (visitor, operator, administrator, super administrator) are supported.
- Input/output diagnosis function.
- Automatic tool setting function.
- It has the functions of automatically returning to the origin, returning to the reference point, and saving and loading the workpiece origin.

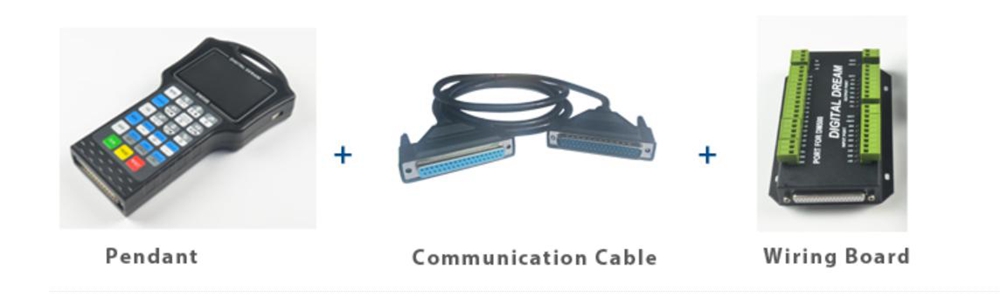

Package Included:
- 1 x Pendant
- 1 x Communication Cable
- 1 x Wiring Board
