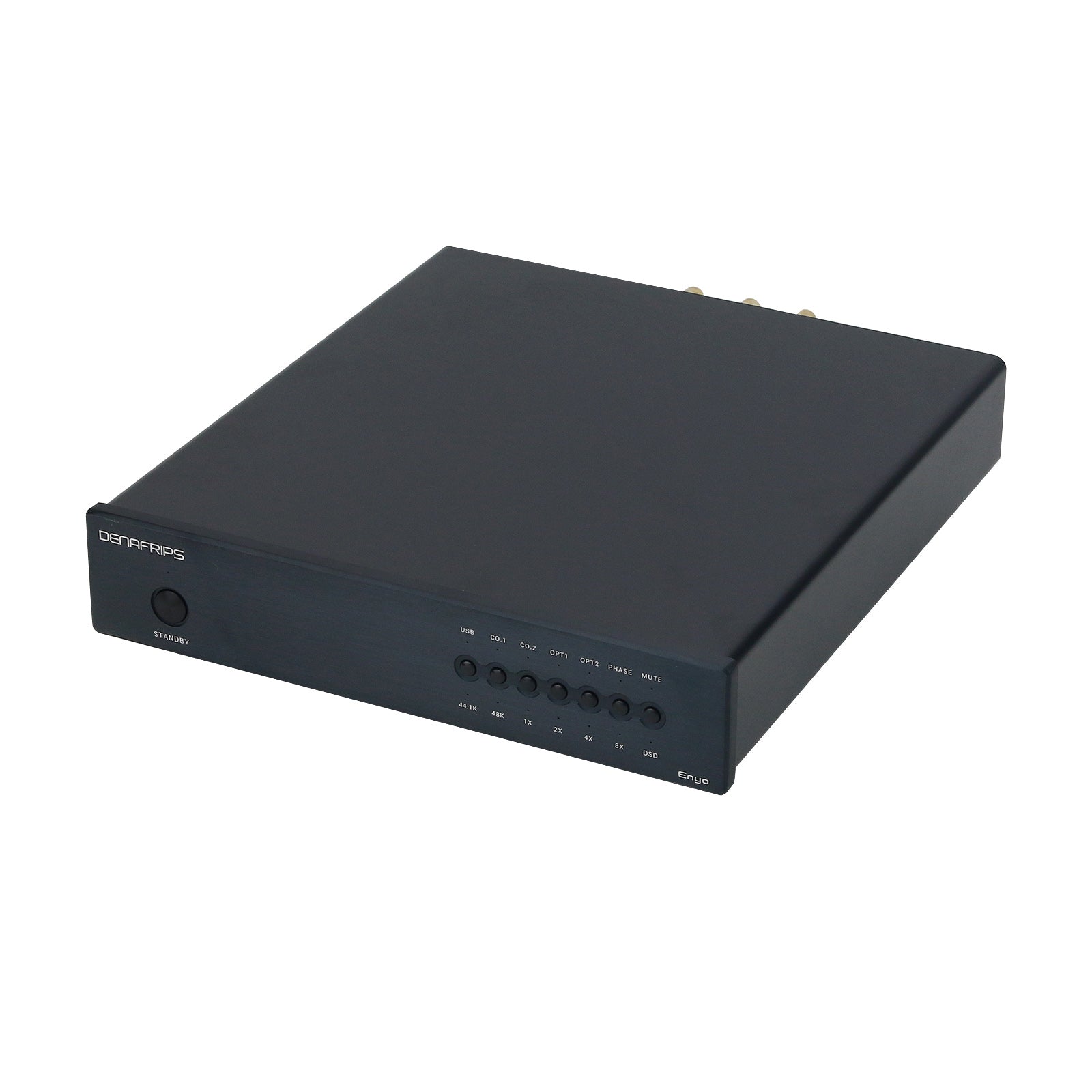

Enyo USB Optical Fiber Coaxial AES HIFI Digital Audio DAC R2R Decoder DSD for DENAFRIPS

Enyo USB Optical Fiber Coaxial AES HIFI Digital Audio DAC R2R Decoder DSD for DENAFRIPS

Features:
- R2R+DSD architecture
- A 0.01% resistor that balances the low thermal effect of true 24-bit R2R+6-bit DSD(32-stage FIR filter) and is hand-matched with high accuracy.
- Nanocrystals are 45.1548 MHz and 49.152 MHz.
- Low noise power supply
- First-in first-out buffer
- Digital signal processing by FPGA
- DSD1024 and PCM1536 support USB input
- STM32F446 proprietary USB audio solution through AMR-based advanced MCU is a licensed Thesycon USB driver for Windows platform.
- Driver less on Mac & Linux

Parameter:
- Sampling mode: oversampled operating system/non-oversampled NOS

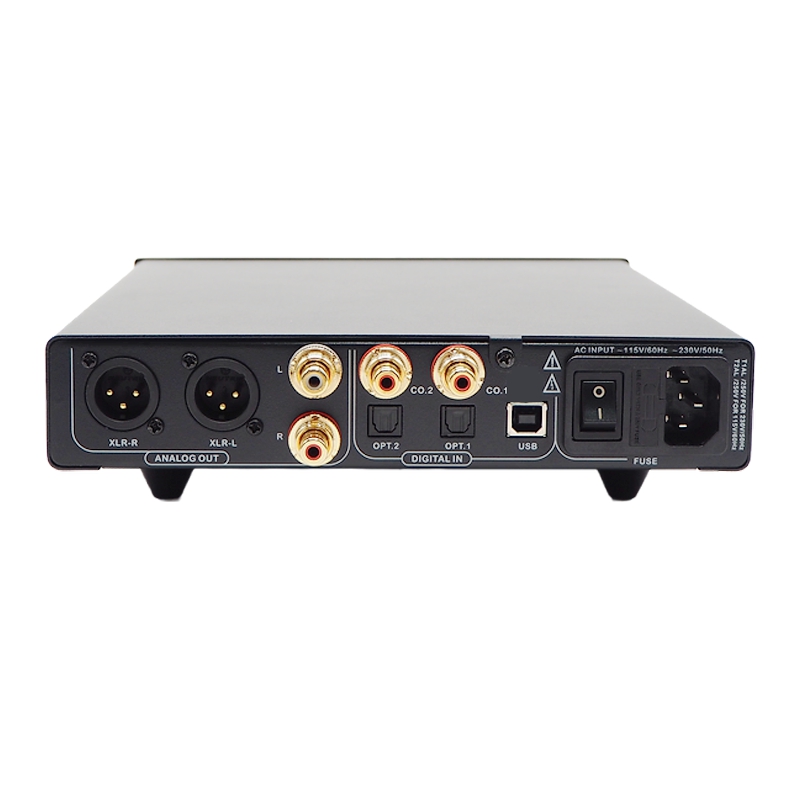

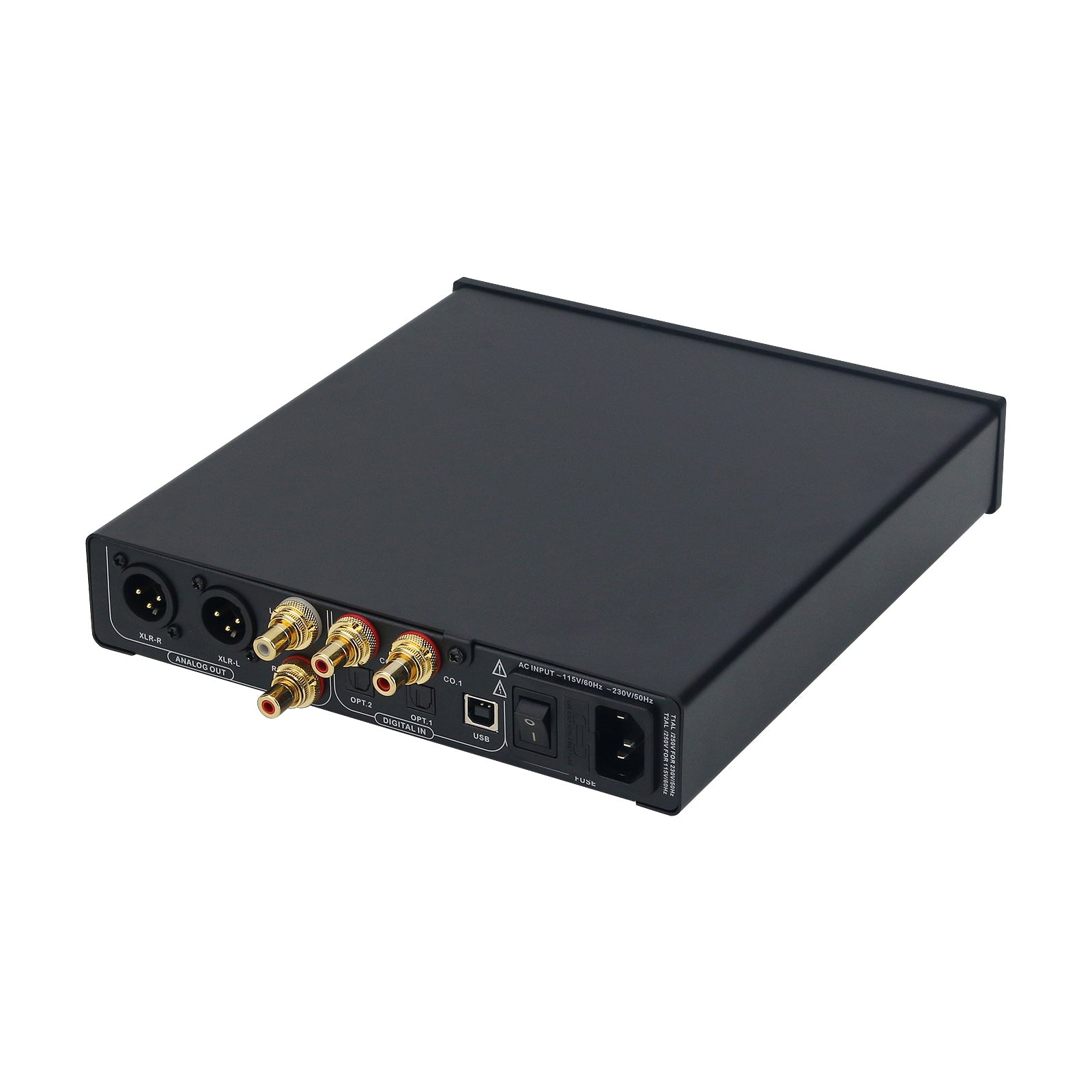

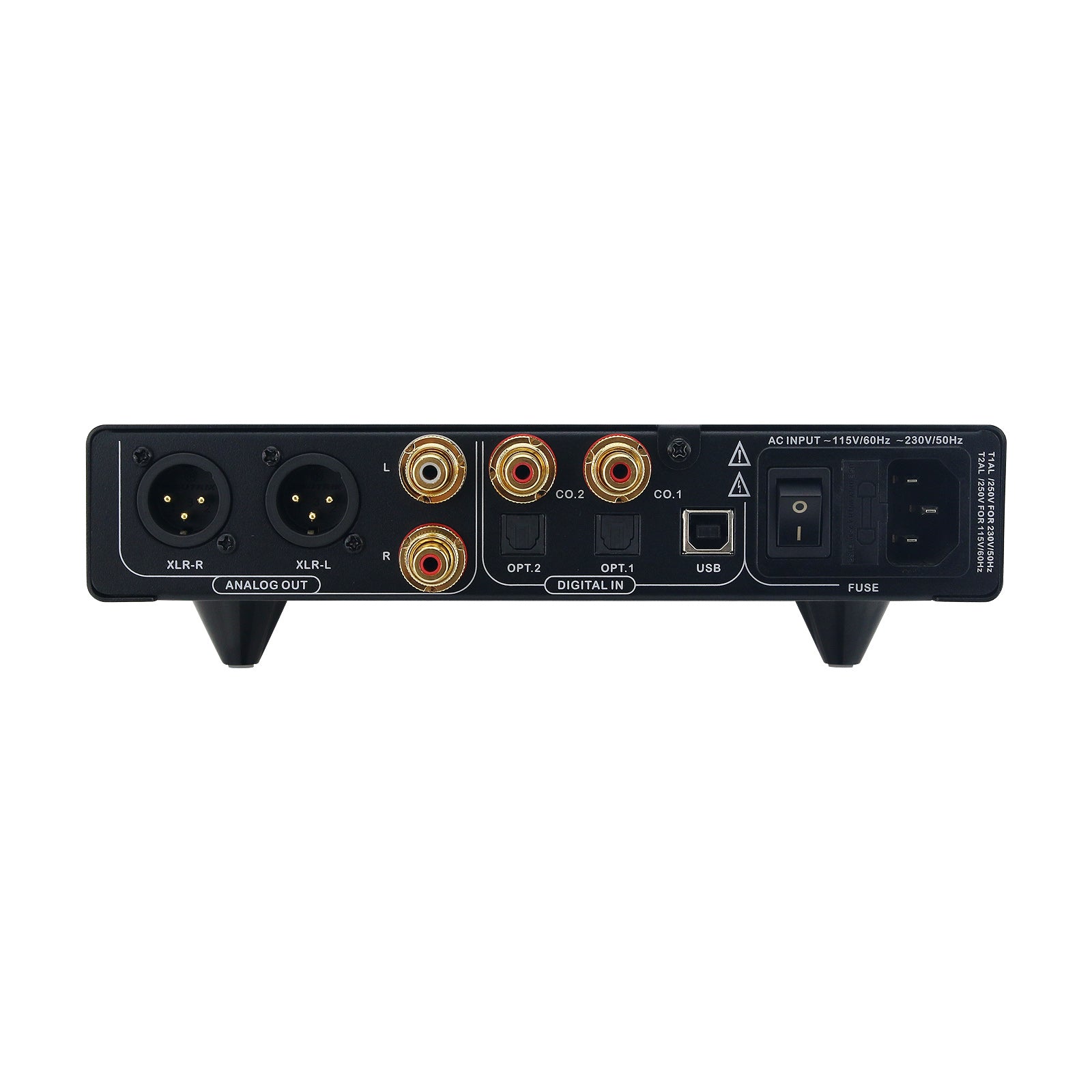

- Digital input: Coaxial cable x 2; toslink x2; USB2.0 B type
- Analog output: RCA is 2.0Vrms,625Ω; XLR is 4.0Vrms, 1250Ω
- Response: 20-70 kHz -3 dB
- THERT +N: 0.004%
- Signal to noise ratio: 115dB
- Dynamic range: >119dB
- Stereo crosstalk: -124dB
- AC power requirements: 100-240VAC, 50/60Hz (global voltage, manual selector)
- Fuse: T2A/ 250VAC; 5 x 20mm 2A slow blowing
- Power consumption: ≤20W
- Dimensions: 375 x 330 x 115 mm
- Weight: 3.5 kg

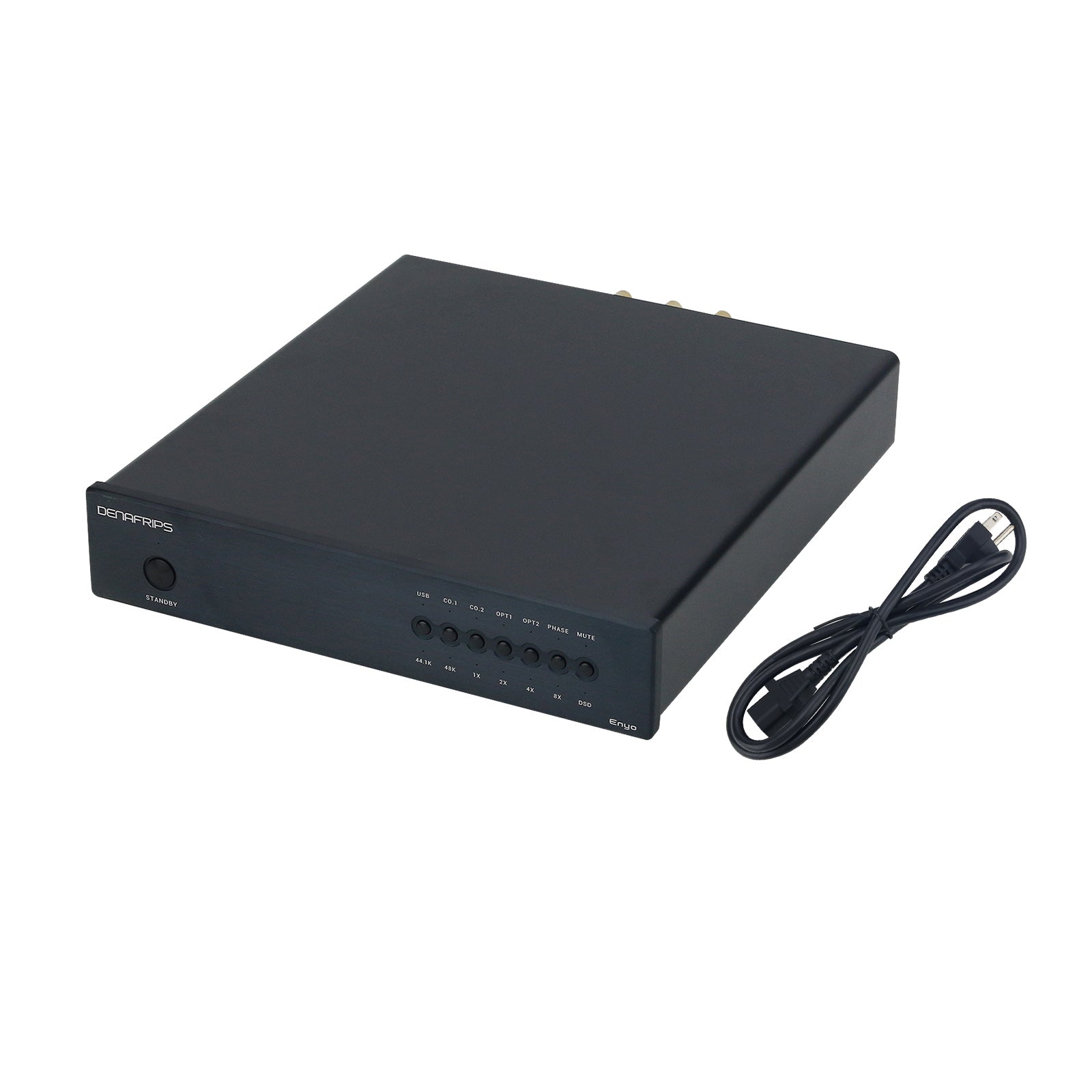

Package Included:
- 1 x DAC
- Power cable
