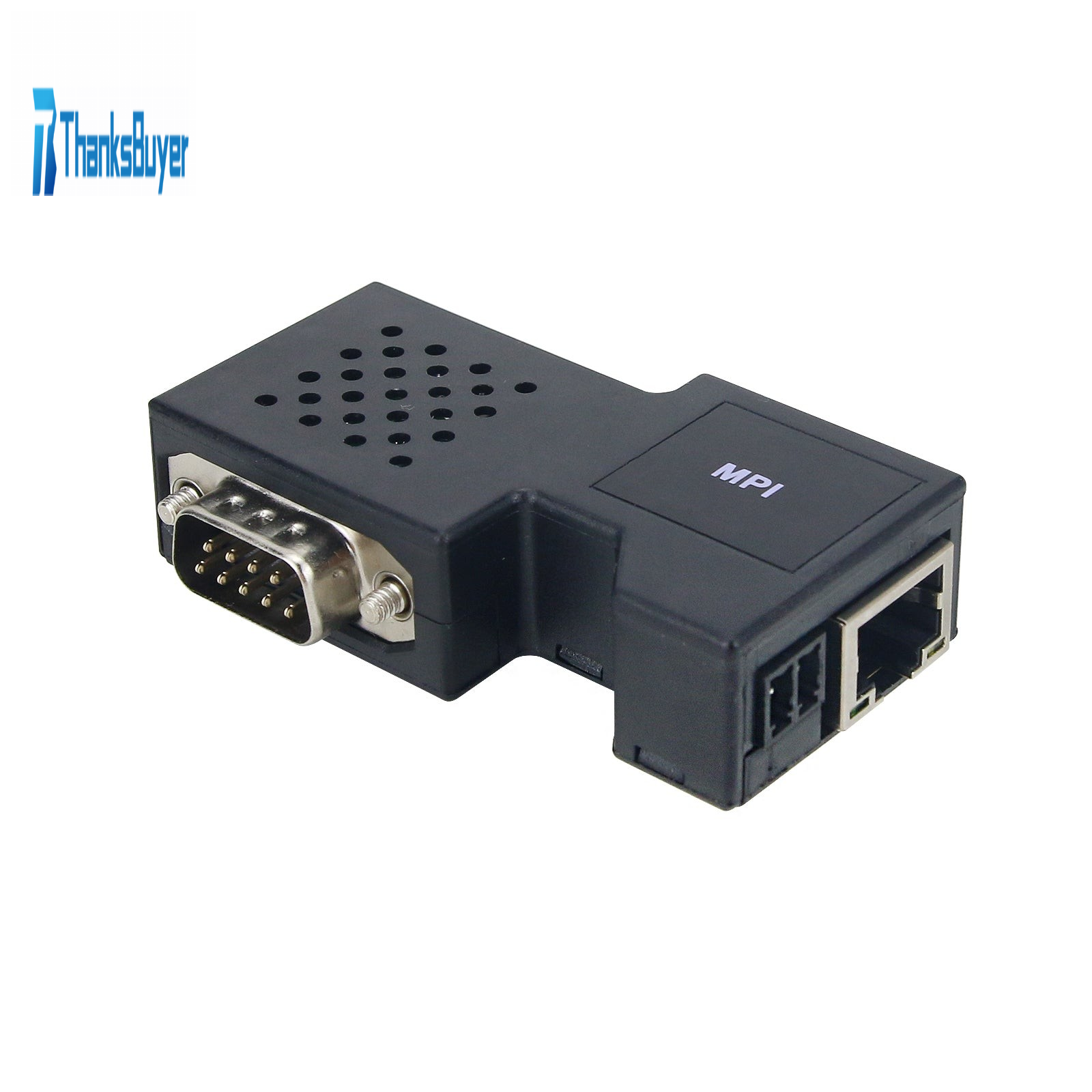

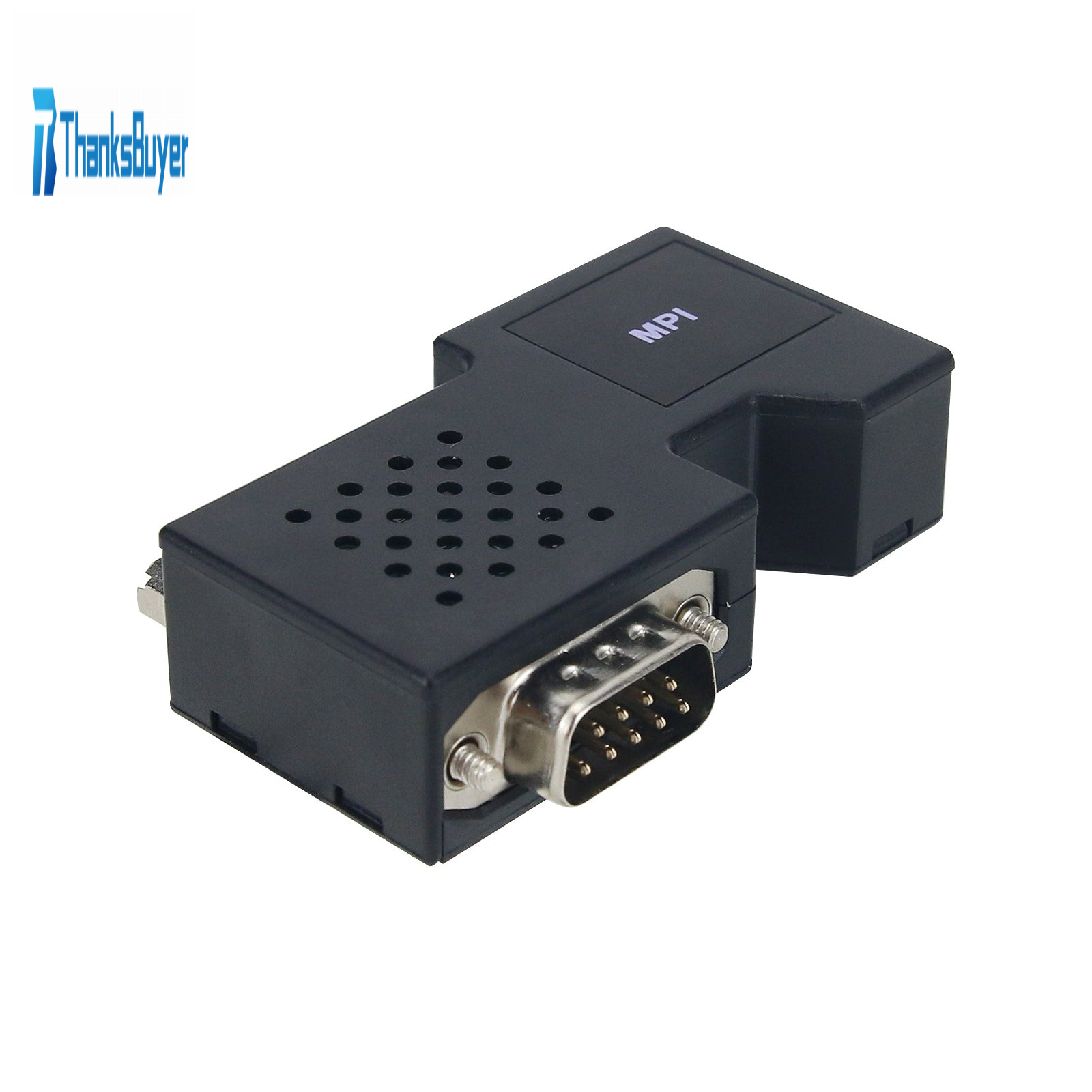

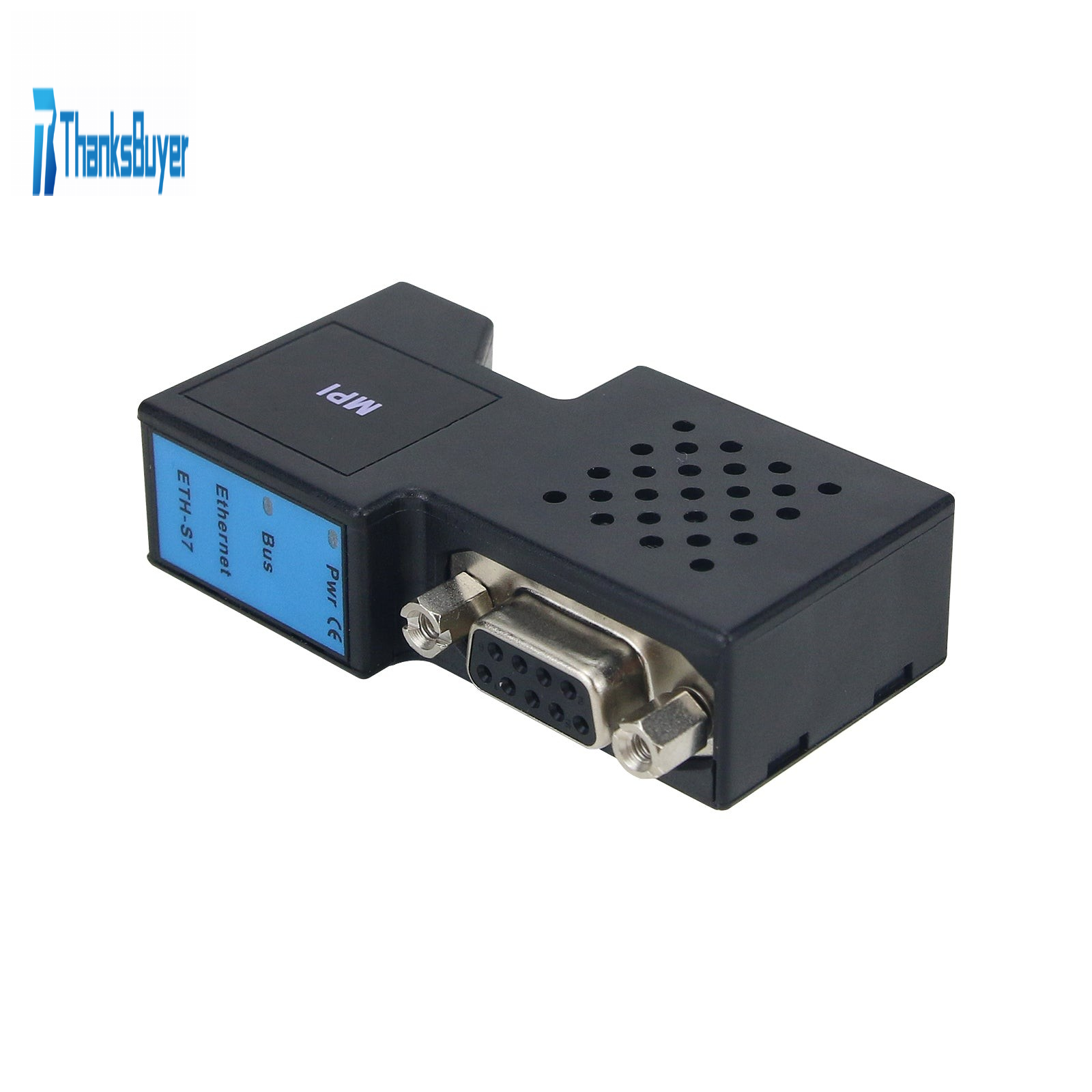

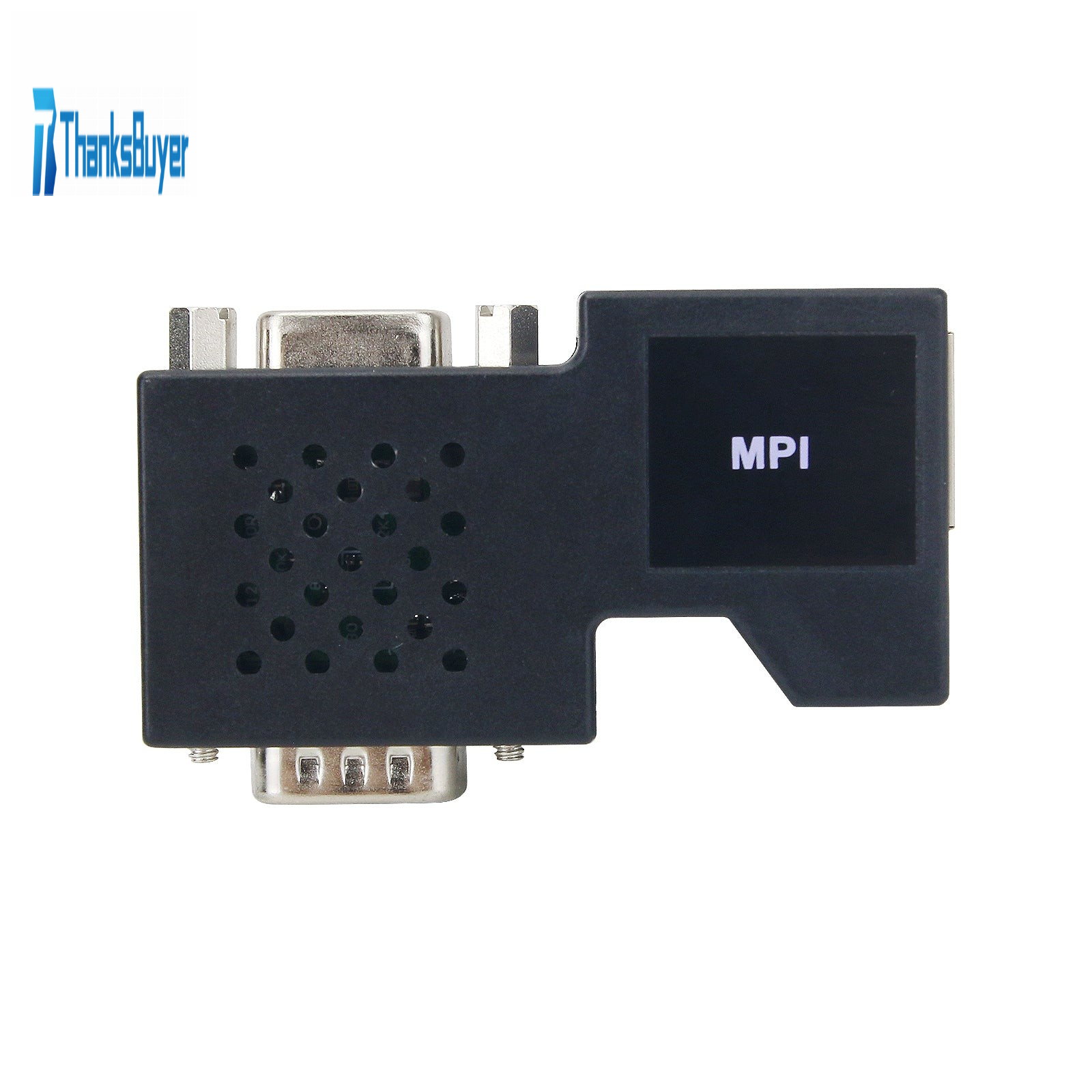

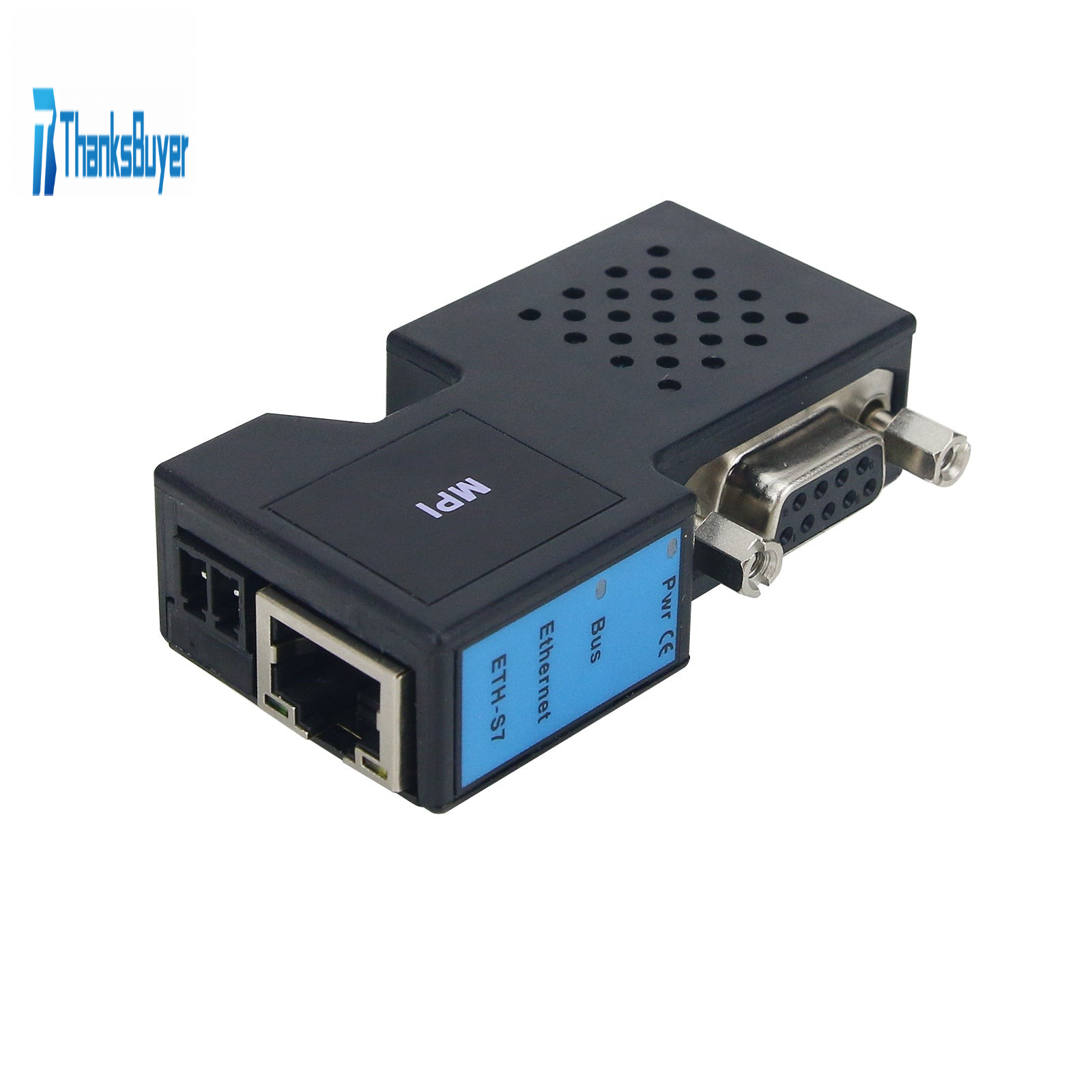

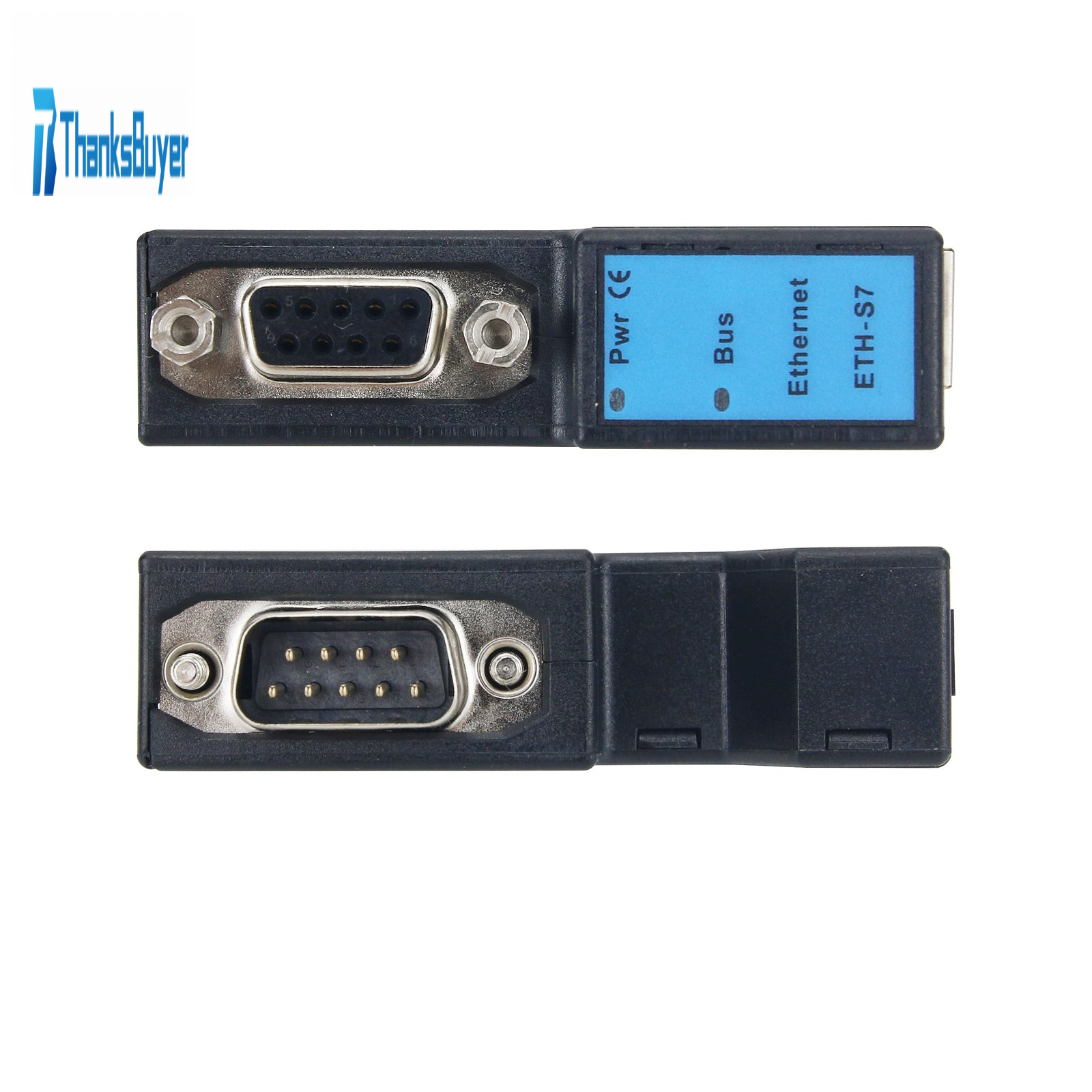

ETH-MPI/DP Ethernet to MPI/DP Connector Module for Siemens S7-300 PLC replace USB-MPI USB-PPI SIEMENS CP5611 CP5613

ETH-MPI/DP Ethernet to MPI/DP Connector Module for Siemens S7-300 PLC replace USB-MPI USB-PPI SIEMENS CP5611 CP5613

Description:
- ETH-MPI/DP is Ethernet converter for S7-300 series, easy to use, is completely transparent to the user, without adding any program in the host computer and PLC, can use immediately after installed.
- It convert MPI / DP protocol to TCP / IP protocol, so that it can realize long distance, high speed (up to a maximum of 1.5 m) communication and support various well-known host software (such as WinCC and Kingview, force control InTouch, kepserver Ex),
and can be simultaneously connected with STEP7 programming with Siemens S7-300.
- Features similar to the SIEMENS Ethernet communication processor CP343-1, can replace the SIEMENS CP5611, CP5613, CP5512 communication card and SIEMENS Adapter PC programming adapter.

Specifications:
- Support STEP7, WinCC in WinXP, Win7 32/64-bits
- Up to 2 TCP connection.
- Support TIA portal platform.
- Don't support Modbus TCP

Package list:
- ETH-MPI/DP Ethernet to MPI/DP Connector Module
