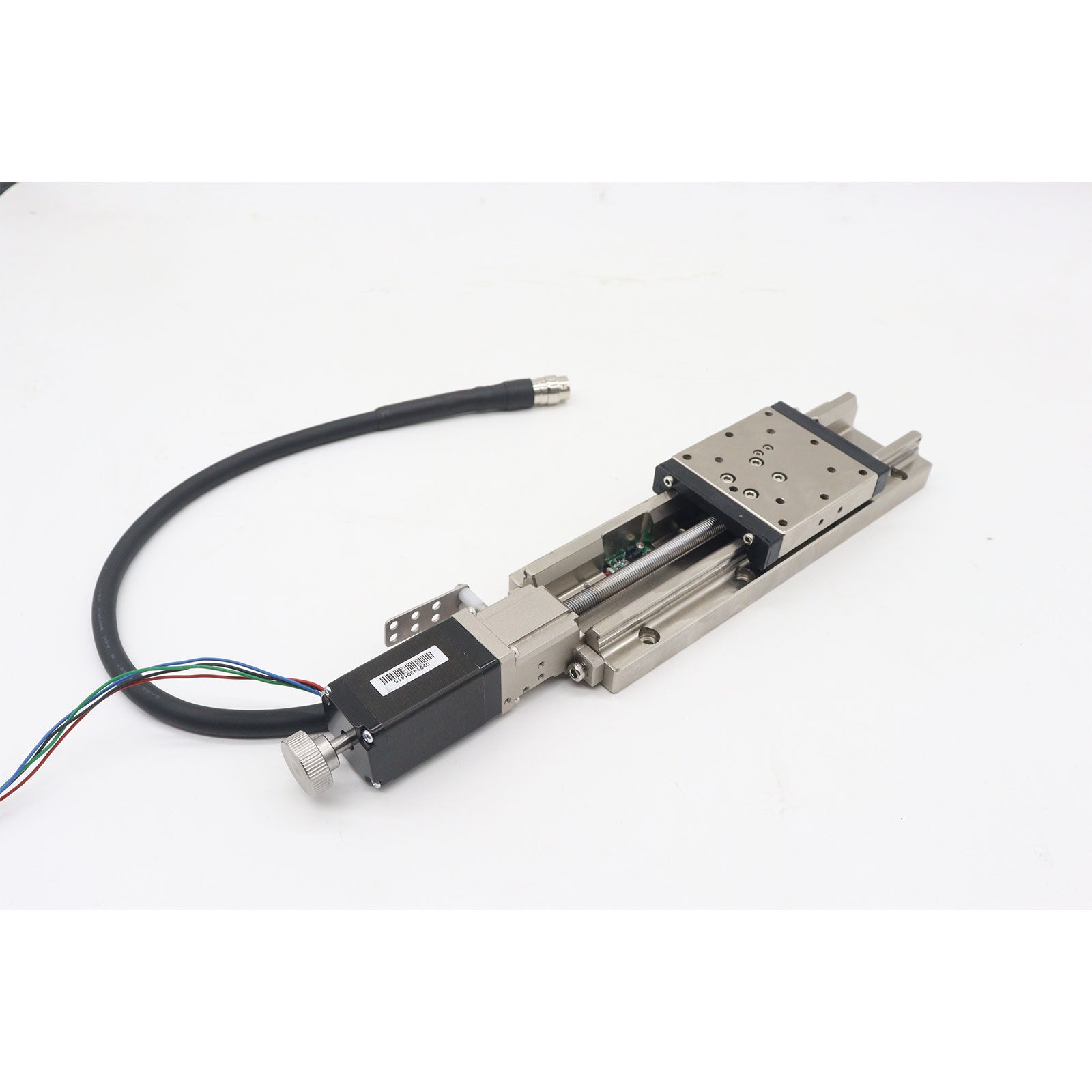

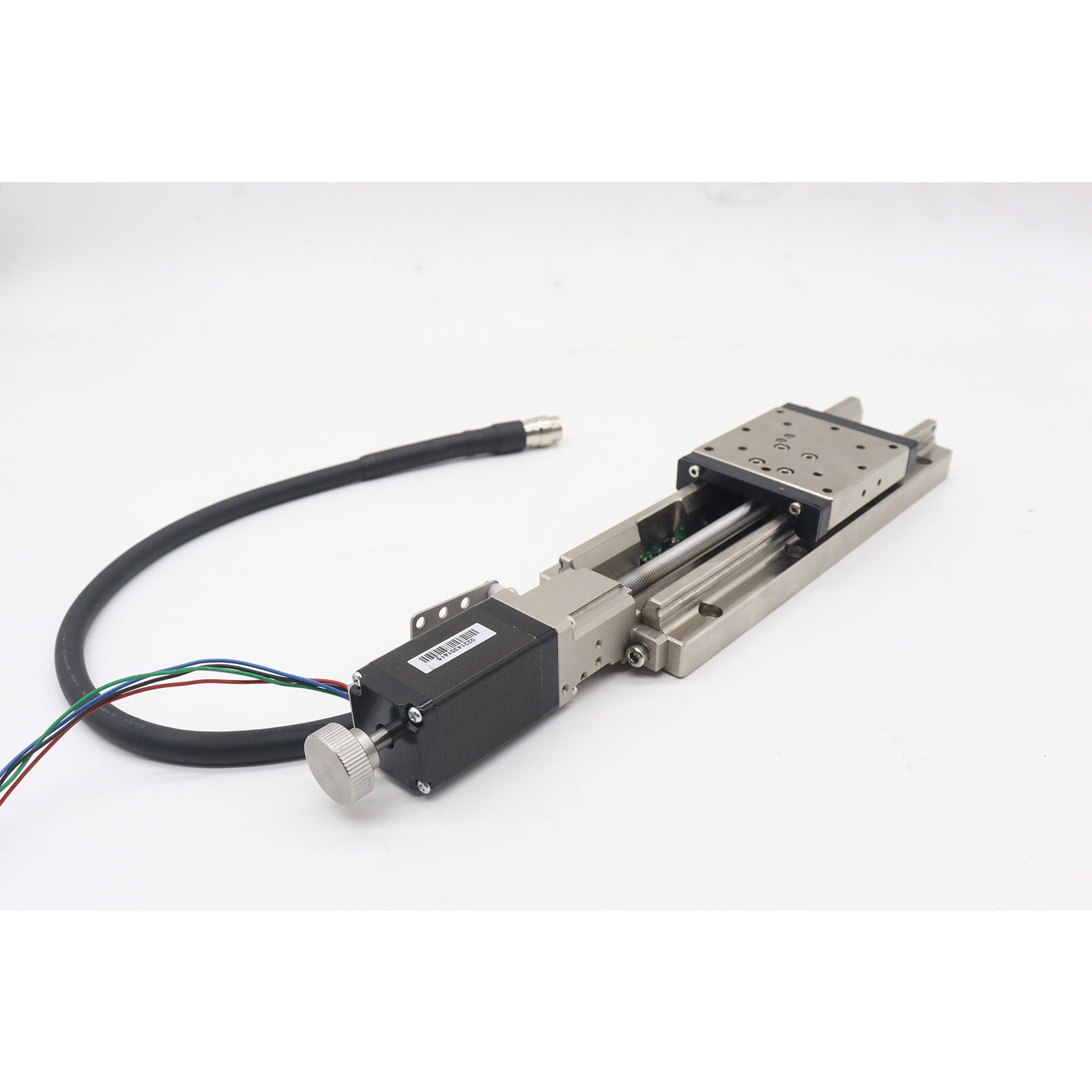

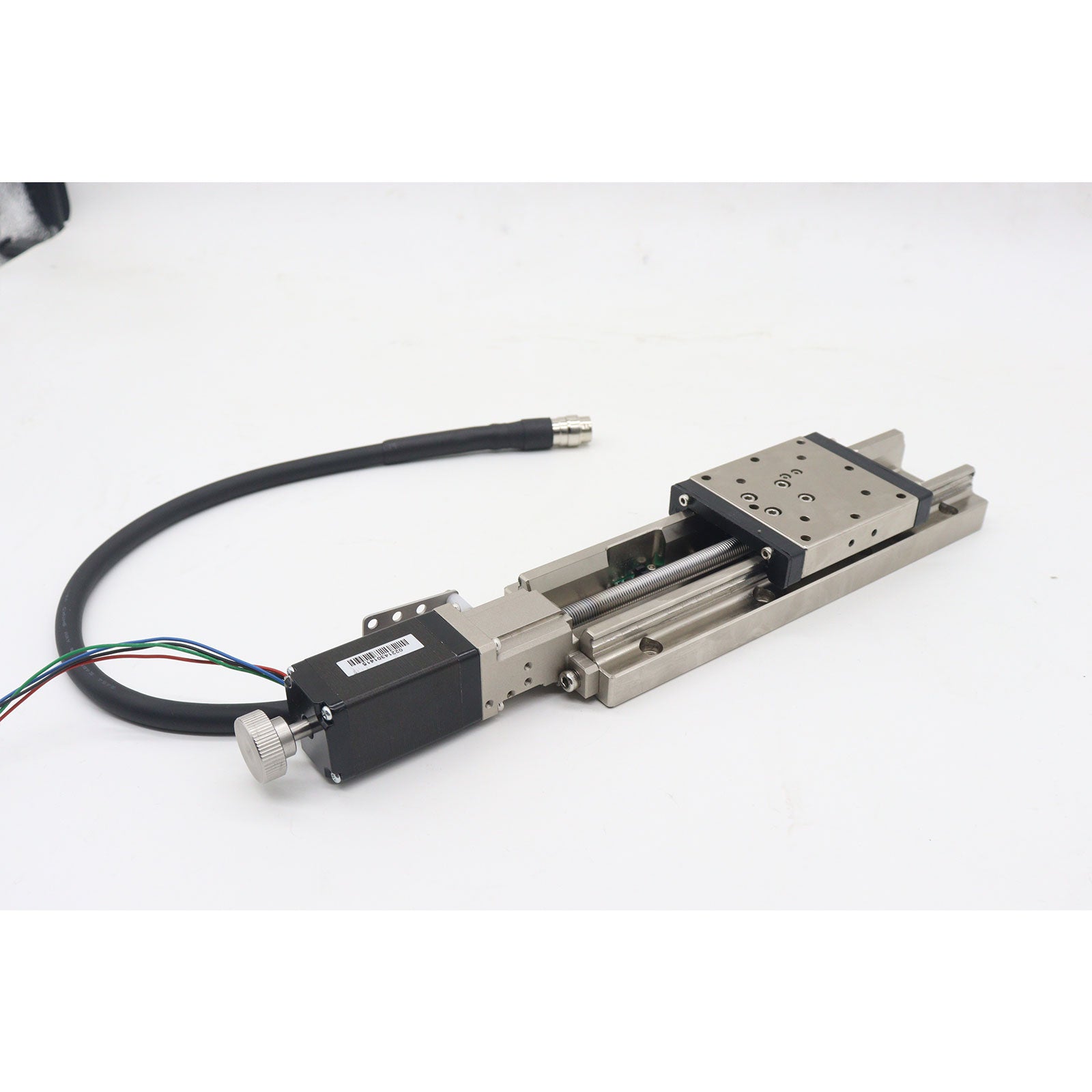

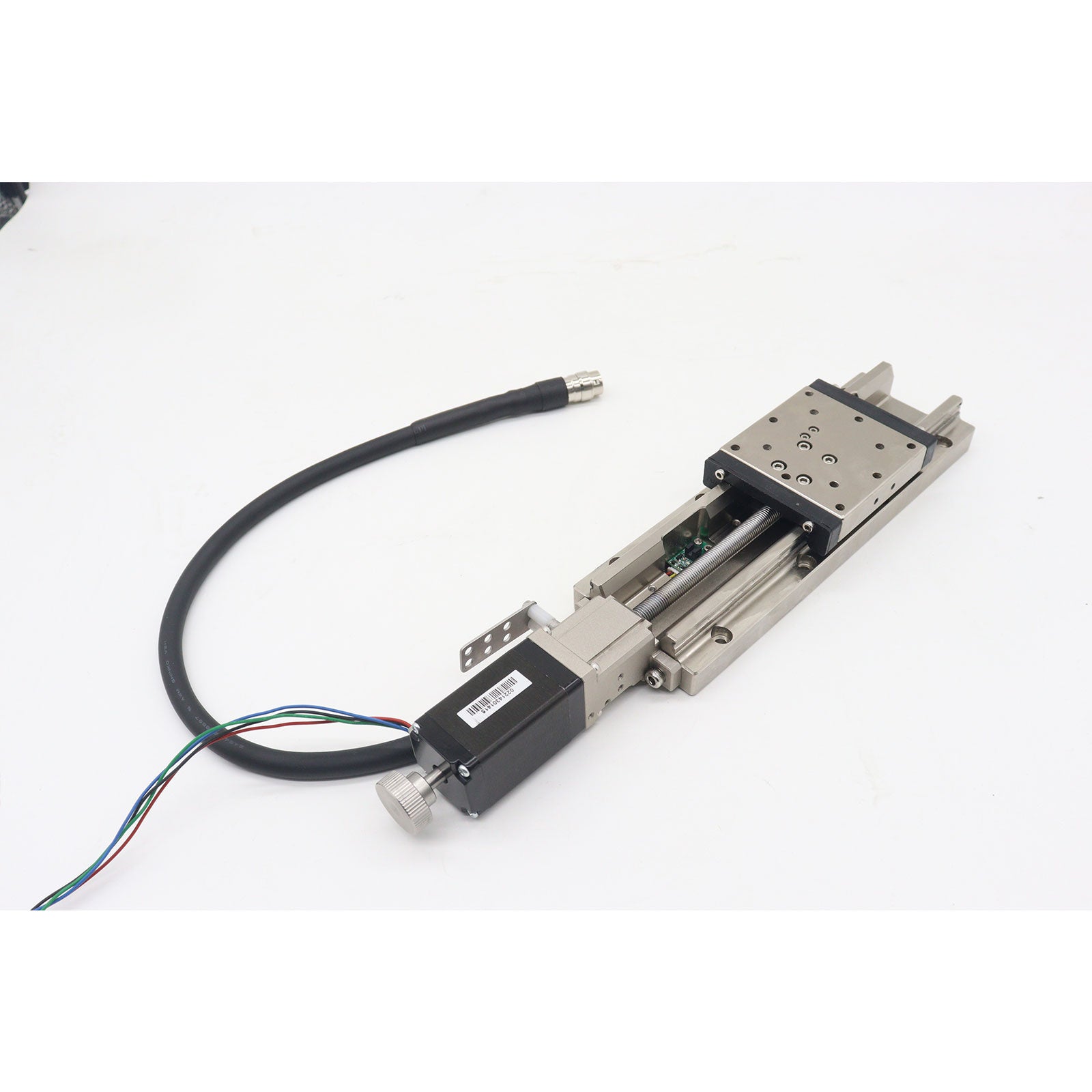

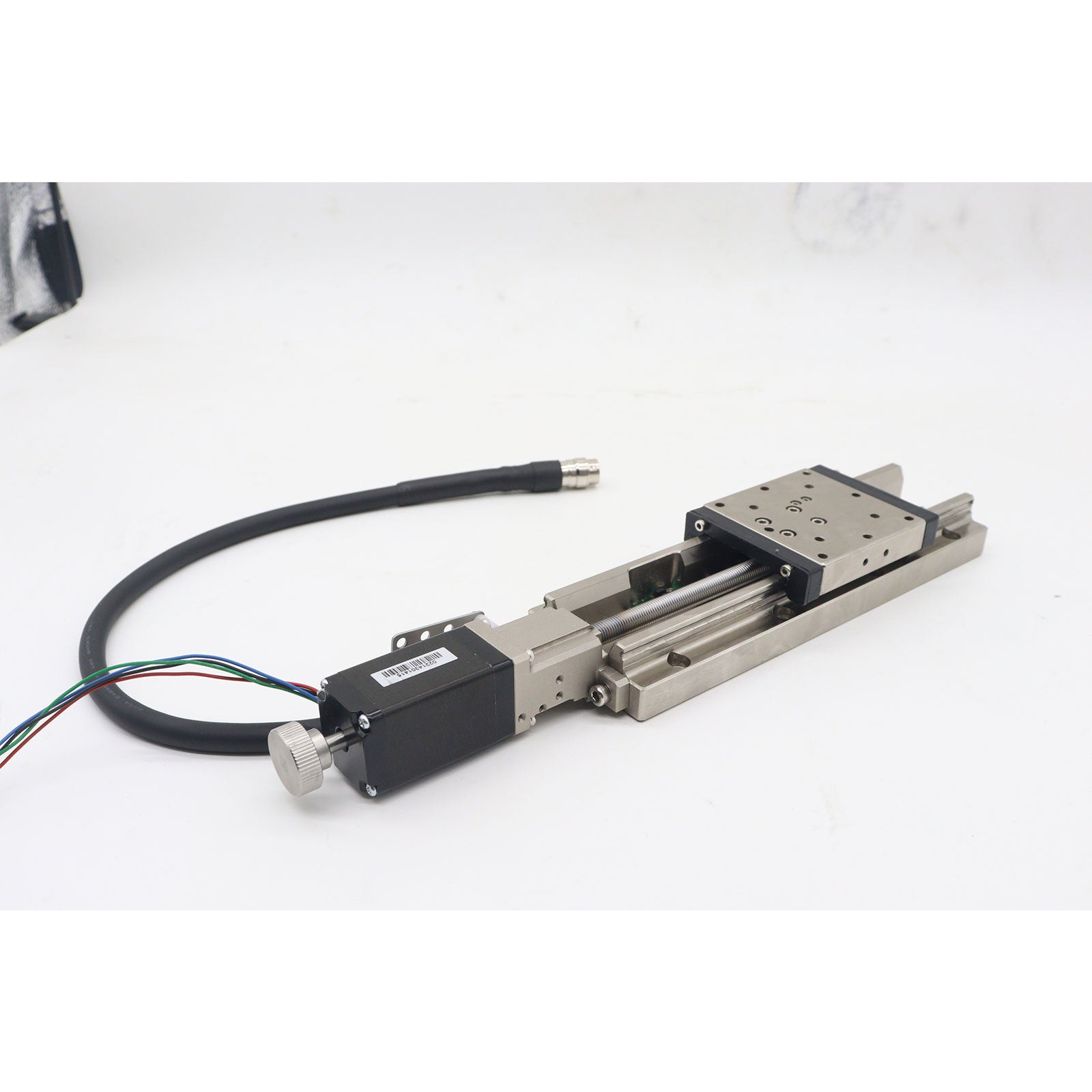

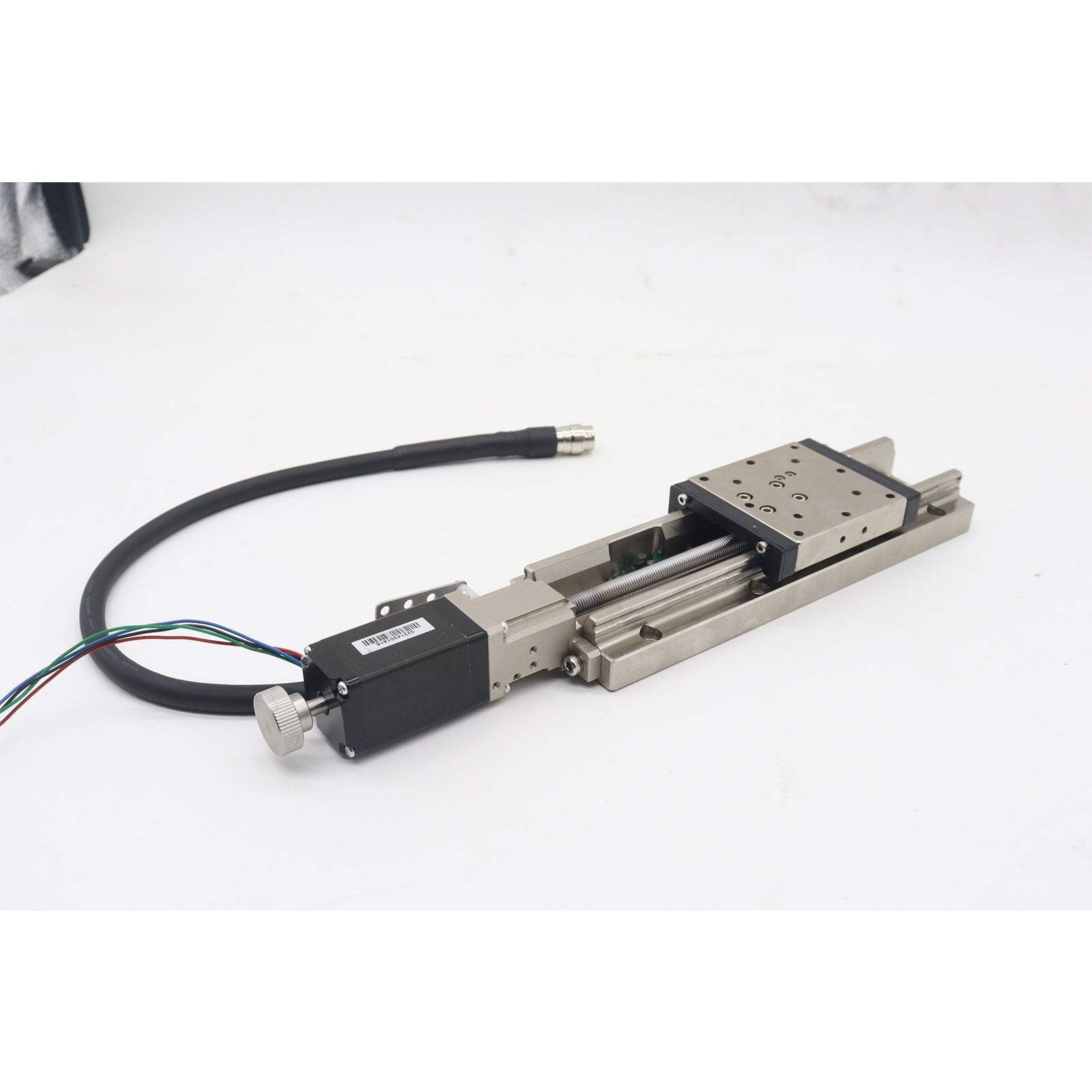

FARAY FXN5050-SBNN-ND 2x2" X Axis Sliding Table Stainless Steel Motorized Sliding Stage 2" Travel

FARAY FXN5050-SBNN-ND 2x2" X Axis Sliding Table Stainless Steel Motorized Sliding Stage 2" Travel

Features:
- Motorized sliding table with cross roller rail
- Desk top size: 50x50mm/2x2"
- 50mm/2" travel
- Made of stainless steel
- Ball screw is used
- 2-phase stepper motor is adopted
- Designed with a D-SUB connector

Specifications:
Mechanical Specifications:
- Table top size: 50x50mm/2x2"
- Travel: 50mm/2"
- Drive mode: Ball screw 8mm/0.3" in diameter and 1mm/0.04" lead
- Rail: Linear ball re-circular
- Material/surface treatment: Stainless steel / nickel-plated
- Body weight: N: 1.1Kg/2.4Lb
- Coupling: FAMCS11.6-5*5
- Accuracy class: N: standard type
- Cable socket: N: normal

Accuracy Specifications:
- Resolution (pulse) Full/Half: 5μm/2.5μm
- Maximum speed (full step): 20mm/sec
- One-way positioning accuracy: 15μm
- Repeated positioning accuracy: ±1μm
- Load: 10Kgf
- Idling: 3μm
- Parallelism: 15μm
- Motion straightness: 3μm
- Motion parallelism: 10μm

Electrical Specifications:
- Motor: 2-phase stepper motor/ 28 dual output shaft
- Driver: purchased separately
- Connector: 15pin D-SUB male connector for sliding table side. 15pin D-SUB female connector (purchased separately) for controller side
- Sensor:
* Travel origin sensor & travel limit sensor: Photoelectric sensor EE-SX4134
* Proximity to the origin sensor: N/A
* Supply voltage: 24V±10%
* Control output: NPN open collector output 24V below 8mA
* Output control: Detection (when inductive): Output transistor OFF (non-conductive)

Package Included:
- 1 x Sliding Table

Note:
- It is designed with a D-SUB connector.
- The normal cable socket is not divided into a left or a right one.

Troubleshooting Methods:
- If the motor or mechanism is hit by an external force, please check whether the smoothness of the screw will affect the work of the sliding table.
- Do not arbitrarily adjust the left and right limit position and origin position to avoid collision and affect its use.
- The cables and sockets of the limit switch should be firmly paid attention to to prevent loosening.
- Do not loosen the coupling and transmission structure at will, so as not to affect the accuracy and its use.
- If there is any abnormal noise or abnormal vibration during operation, please power off and then check.
