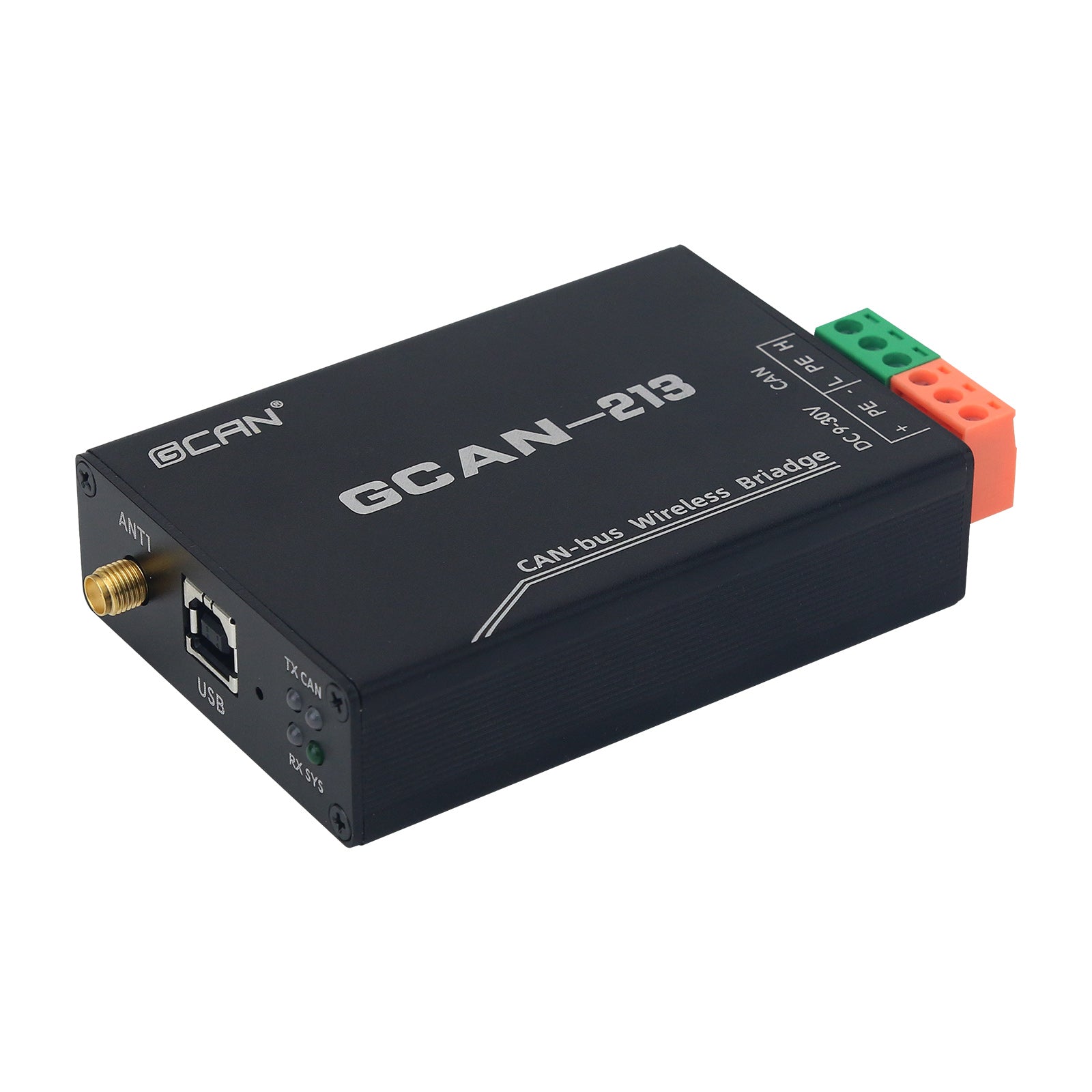

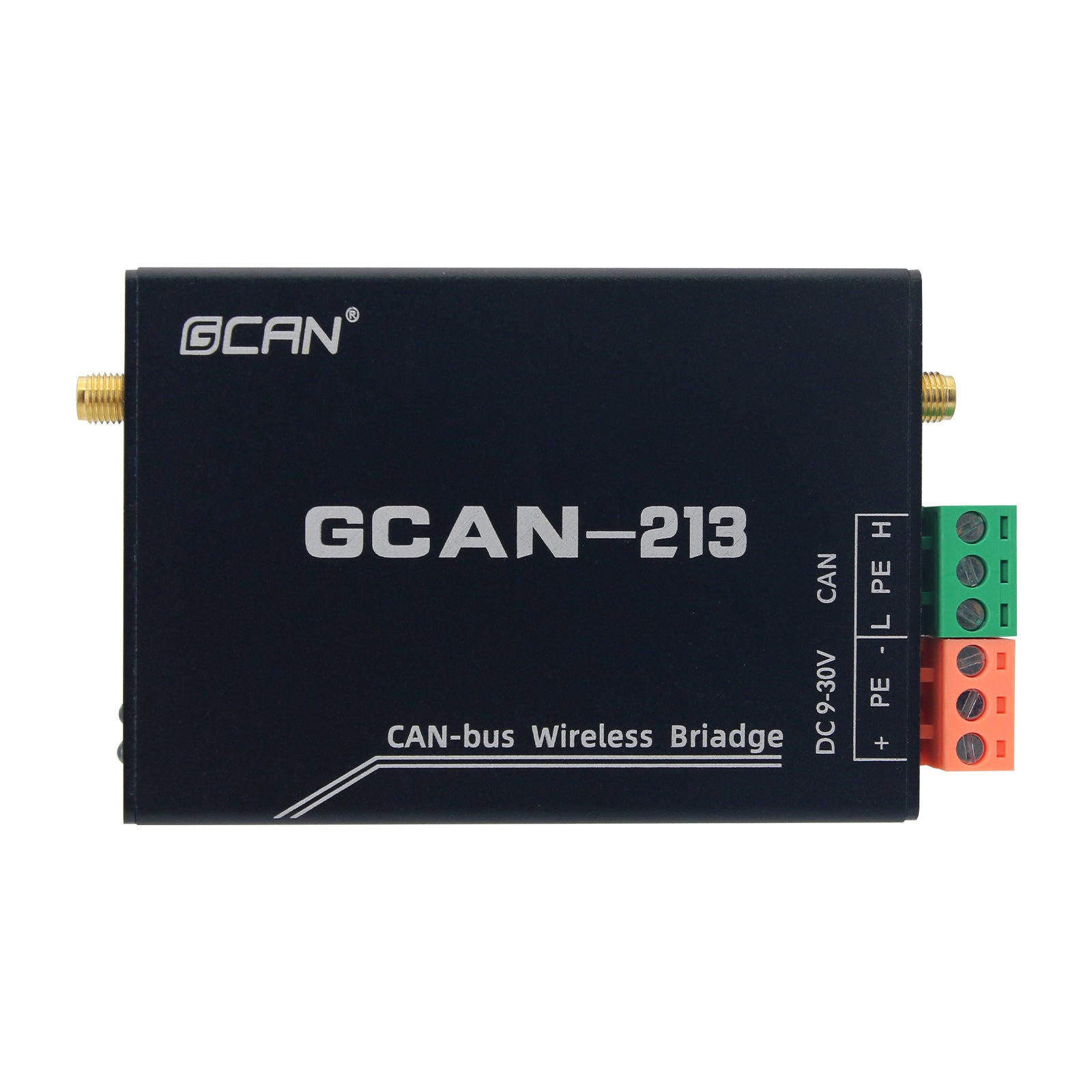

GCAN-213 Industrial-Grade CAN-Bus Wireless Bridge USB CAN Analyzer CAN Air Bridge

GCAN-213 Industrial-Grade CAN-Bus Wireless Bridge USB CAN Analyzer CAN Air Bridge

Description:
GCAN-213 is a CAN-bus wireless bridge that can be used to wirelessly transmit information between two CAN systems. By using GCAN-213, users can easily realize the connectivity of two CAN-bus networks, further expanding the range of CAN-bus networks.

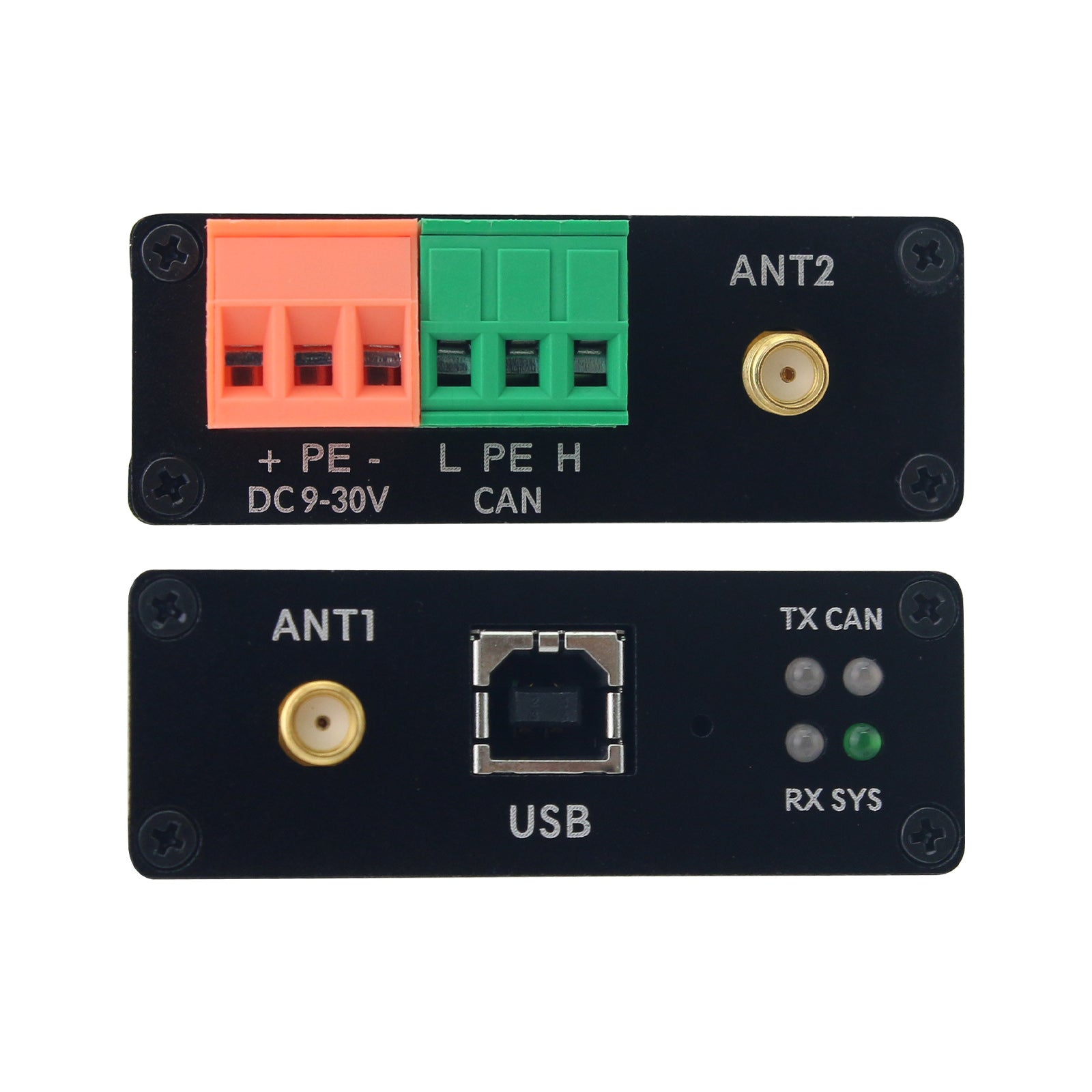

Each module integrates one CAN, two antenna interface (one for sending and one for receiving), and one standard USB interface (for configuration).

2.4GHz proprietary protocol. The GCAN-213 consists of a pair of radio transceivers operating in 2.4GHz ISM band. It provides the maximum permissible transmit power, ensures reliable connectivity, and maximizes communication distance. Furthermore, omnidirectional antennas support transmitting and receiving in any direction.

Features:
- CAN-bus wireless bridge of industrial grade can replace the pricey imported ones
- Can function as a CAN analyzer
- Widely used and excellent performance:applied to CAN-bus network diagnostics and testing, industrial Internet of Things, CAN-bus commissioning for moving vehicles and wireless remote control and drone
- Your cost-effective and ideal choice

Specifications:
- 2.4GHz proprietary protocol, built-in antenna, and 27dBm maximum antenna output power
- USB interface: USB2.0 full-speed interface compatible with USB1.1 and USB3.0
- CAN interface: follows ISO 11898 and supports CAN2.0A/B
- CAN baud rate: 5Kbit/s~1Mbit/s
- Galvanic isolation: 3000V, DC-DC
- Supply voltage: 9 to 30VDC (±5%)
- Supply Current: 200mA (24VDC)
- Operating temperature: -40°C to +85°C
- Working humidity: 15%~90%RH (no condensation)
- EMC tests: EN 55024: 2011-09 and EN 55022: 2011-12
- Protection class: IP 20

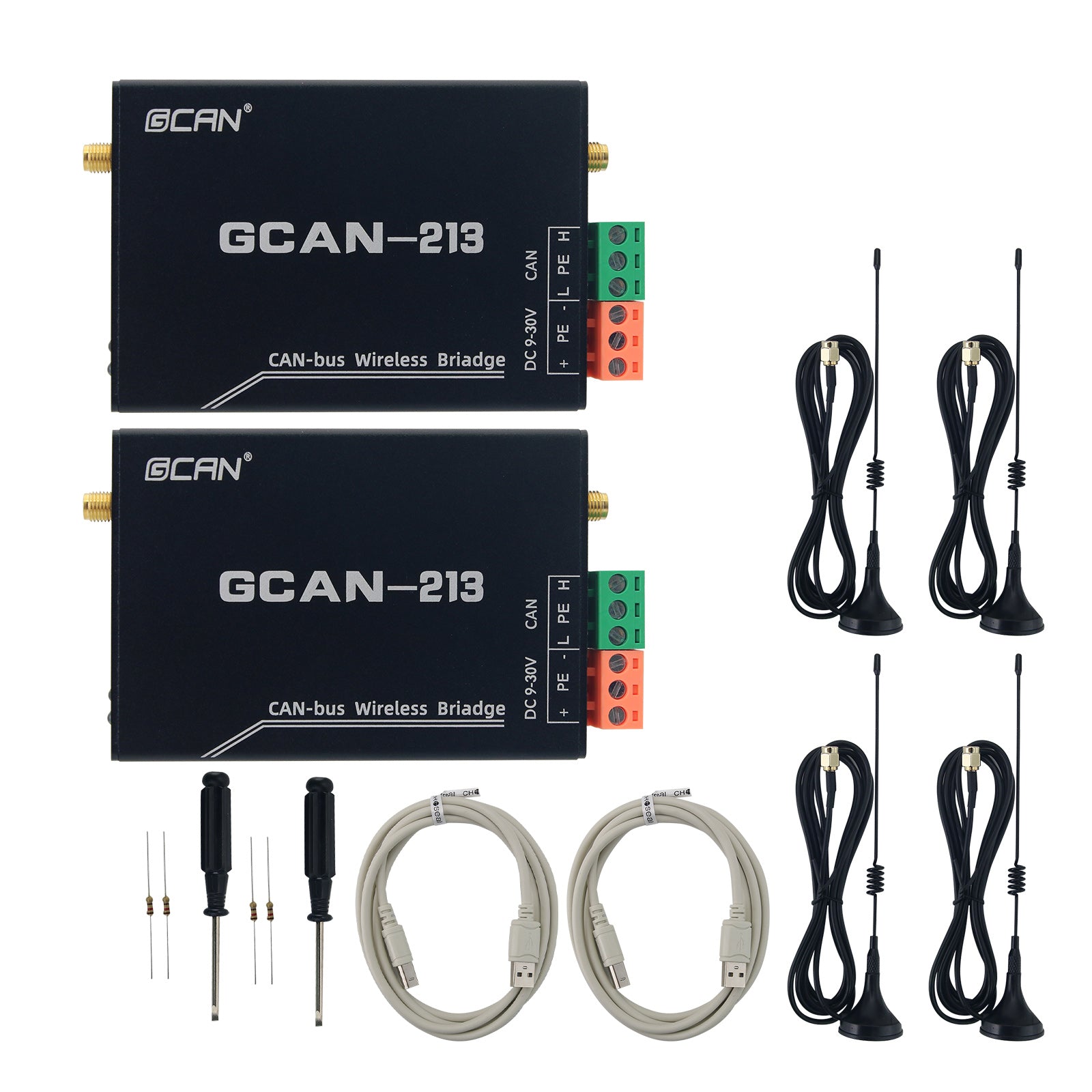

Package Included:
- 2 x CAN-Bus Wireless Bridges
- 4 x External Antennas

Note:

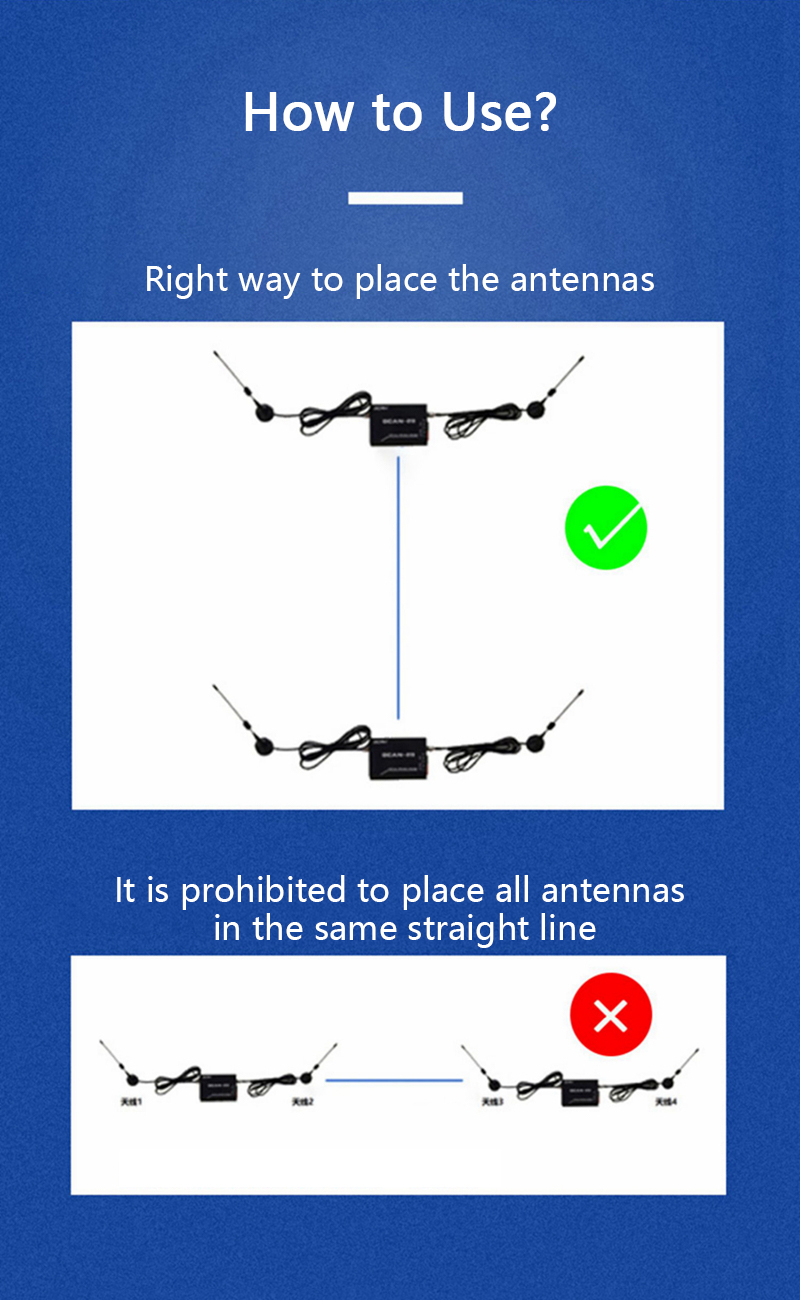

- Two wireless bridges should be used at the same time.
