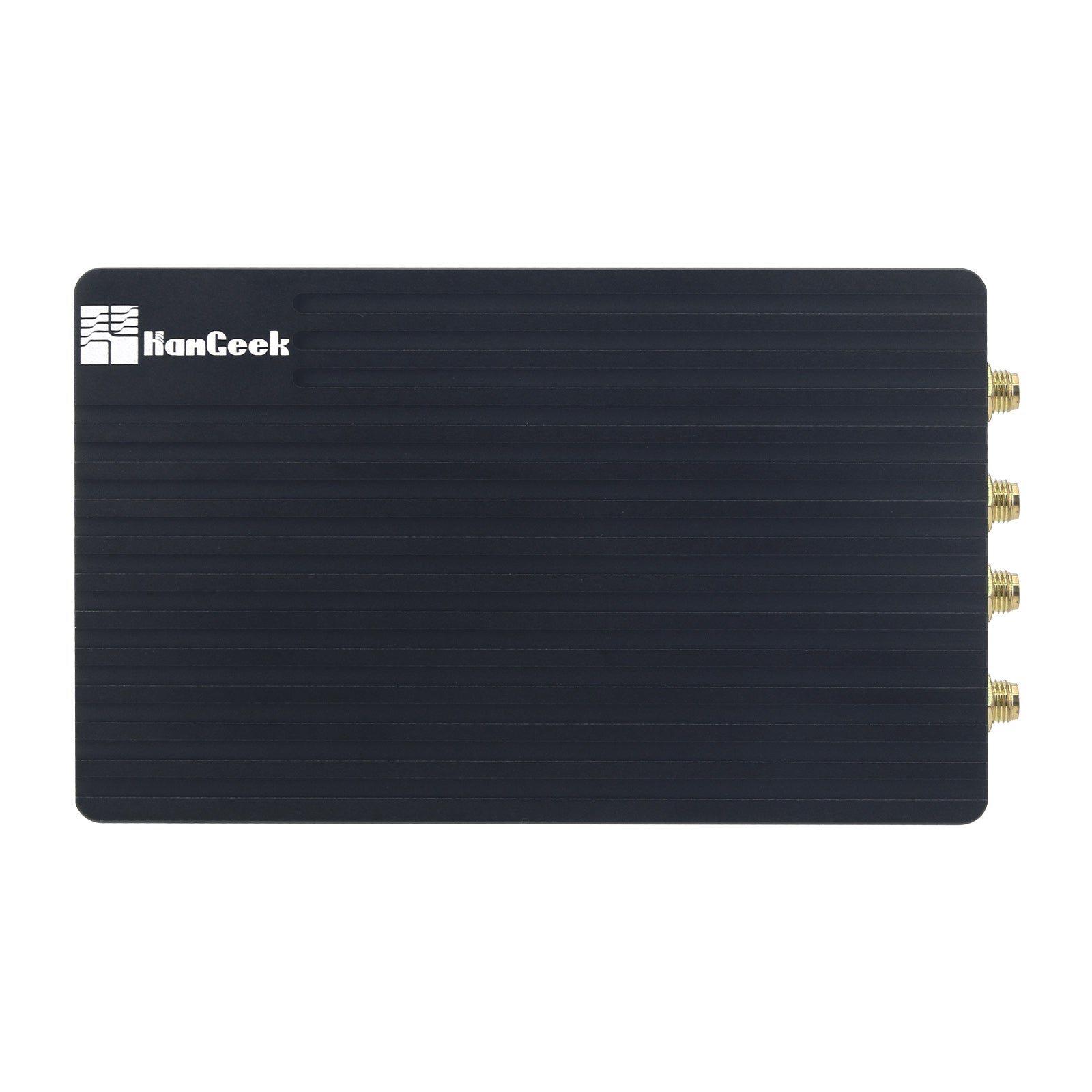

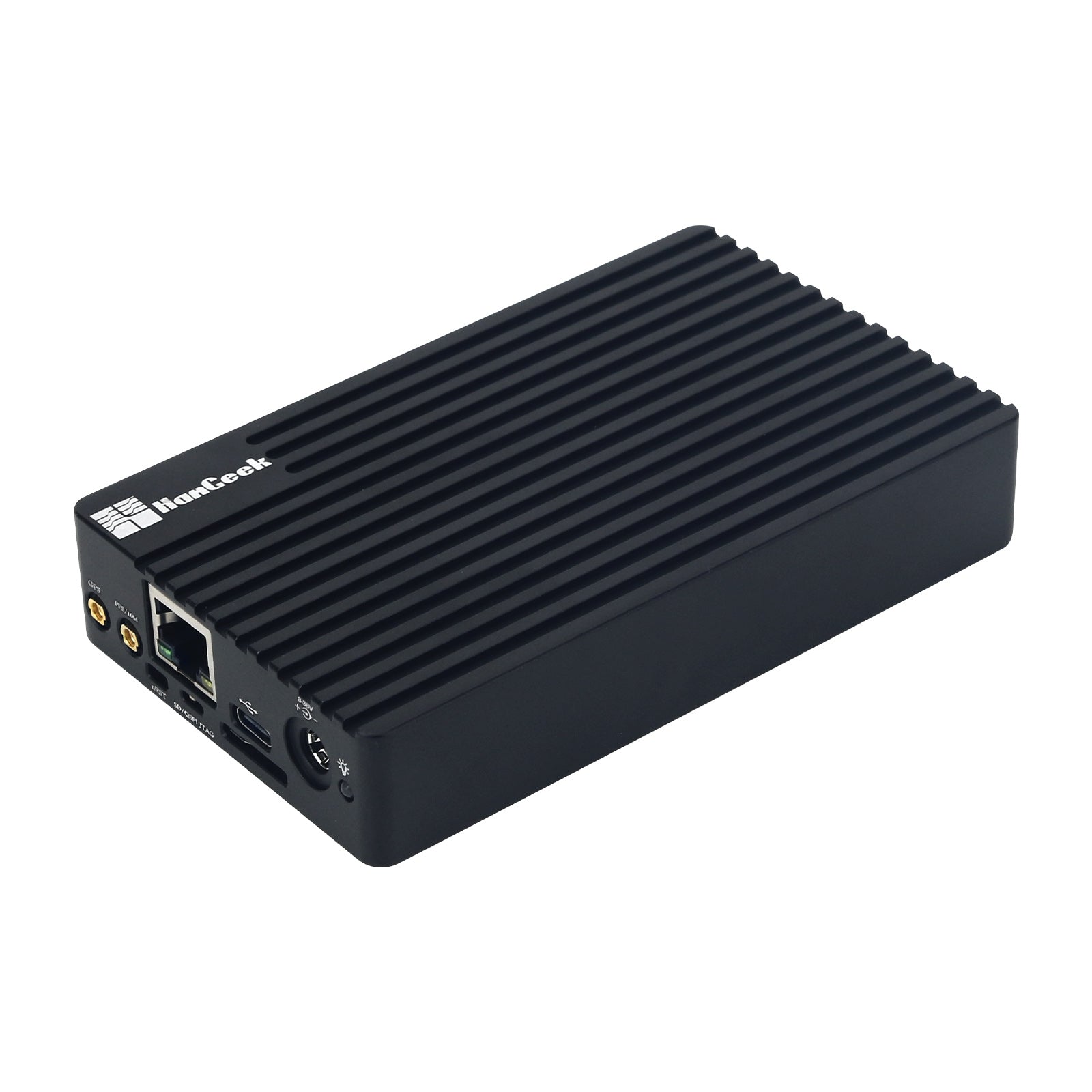

HamGeek HG63 Pro AD9363 SDR Zynq-7020 FPGA Software Defined Radio 2TX 2RX 2x2 MIMO 325MHz-3.8GHz

* AD9363 Wideband RF Transceiver

* Zynq-7020 Processor for ARM + FPGA

* OpenWiFi & SDR Development Support

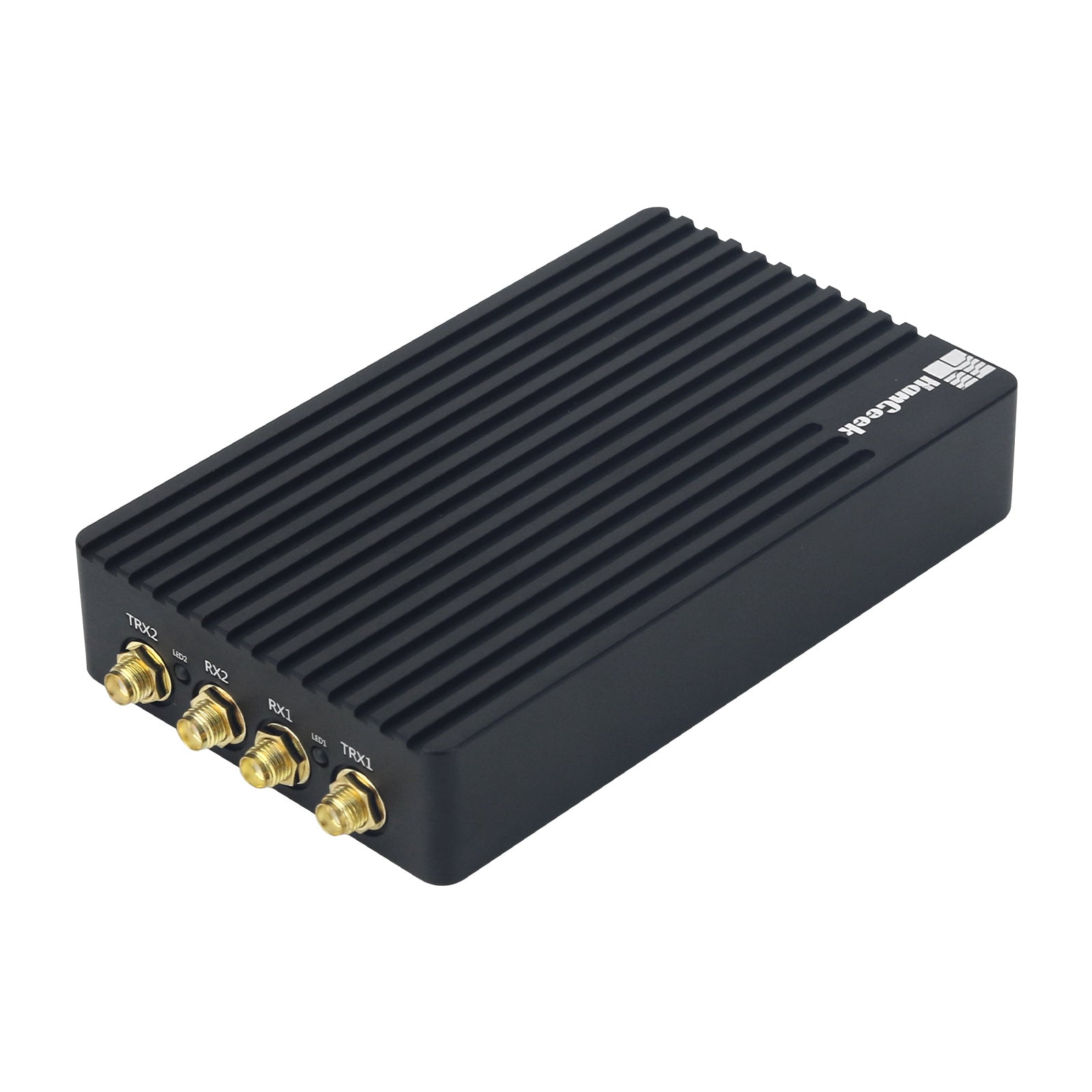

* 4 Independent RF Interfaces: 2TX + 2RX

* 8-36V Industrial Power Input, Wide Temperature Operation

* Supports Various Open-Source Software

* Excellent Performance & High Isolation

* Safe & Reliable Electrostatic Protection

* Model: HamGeek HG63 Pro

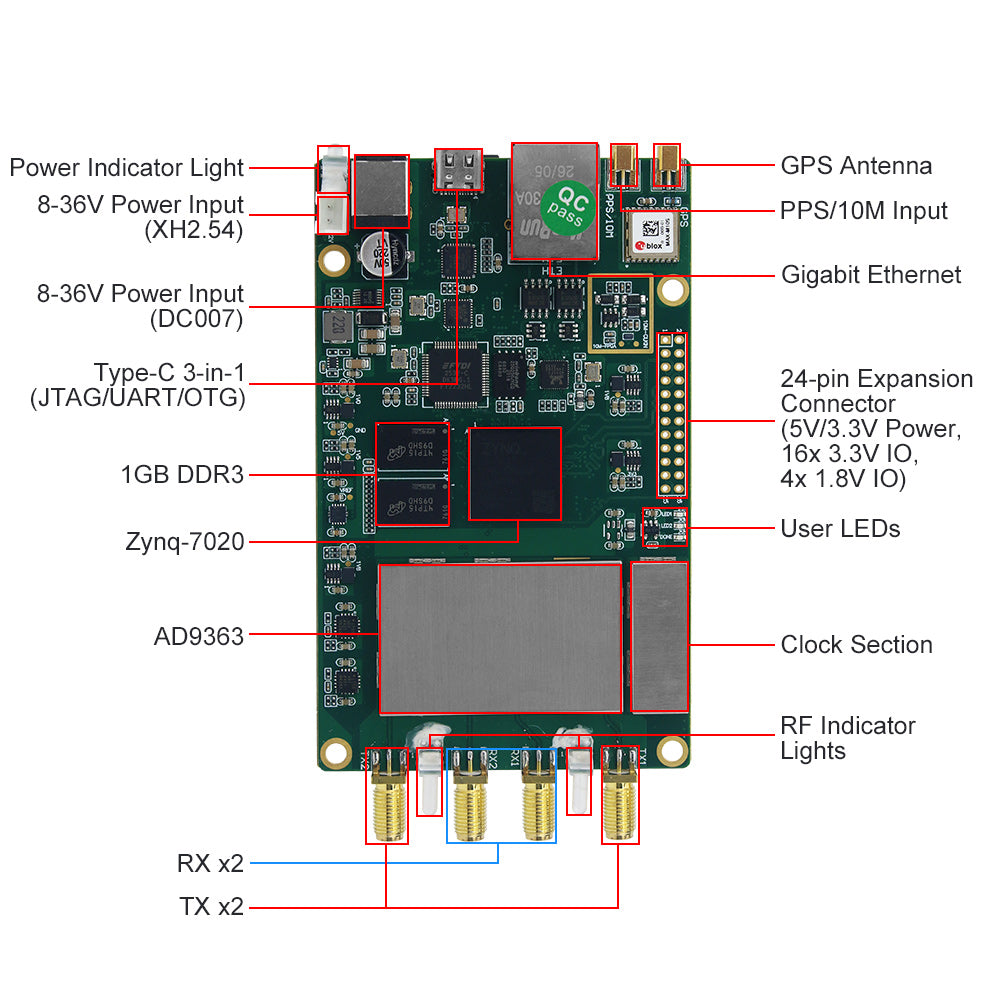

* RF Chip: AD9363

* Frequency Range: 325MHz-3.8GHz

* Signal Bandwidth: 200kHz-20MHz

* Power Amplification: 2-Channel TX

* Processor: XC7Z020-2CLG400I

* Core Frequency: Dual-core Cortex-A9, 766MHz

* Logic Cells: 85K

* DDR3: 1GB

* QSPI FLASH: 256Mb

* E2PROM: 256Kb

* RF Clock: 3 options selectable: 40M VCTCXO (0.5PPM)/IPEX Input/External Input (Default: 40M VCTCXO)

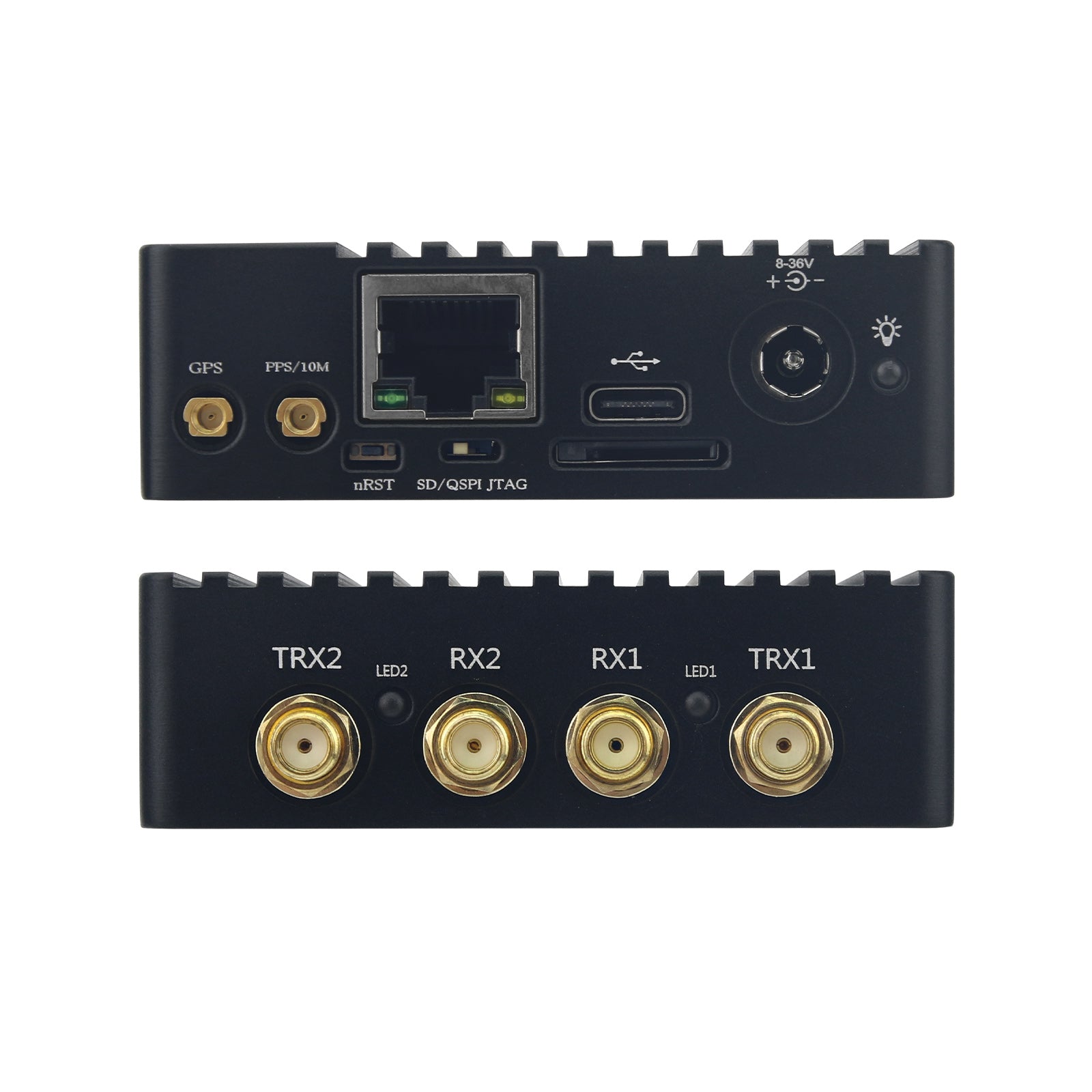

* Gigabit Ethernet: 1 Channel

* USB OTG: 1 Channel

* UART: 1 Channel

* JTAG: 1 Channel

* SD Card: 1 Channel

* GPS: 1 Channel

* PPS/10M Input: 1 Channel

* Expansion IO: 16x 3.3V IO, 4x 1.8V IO

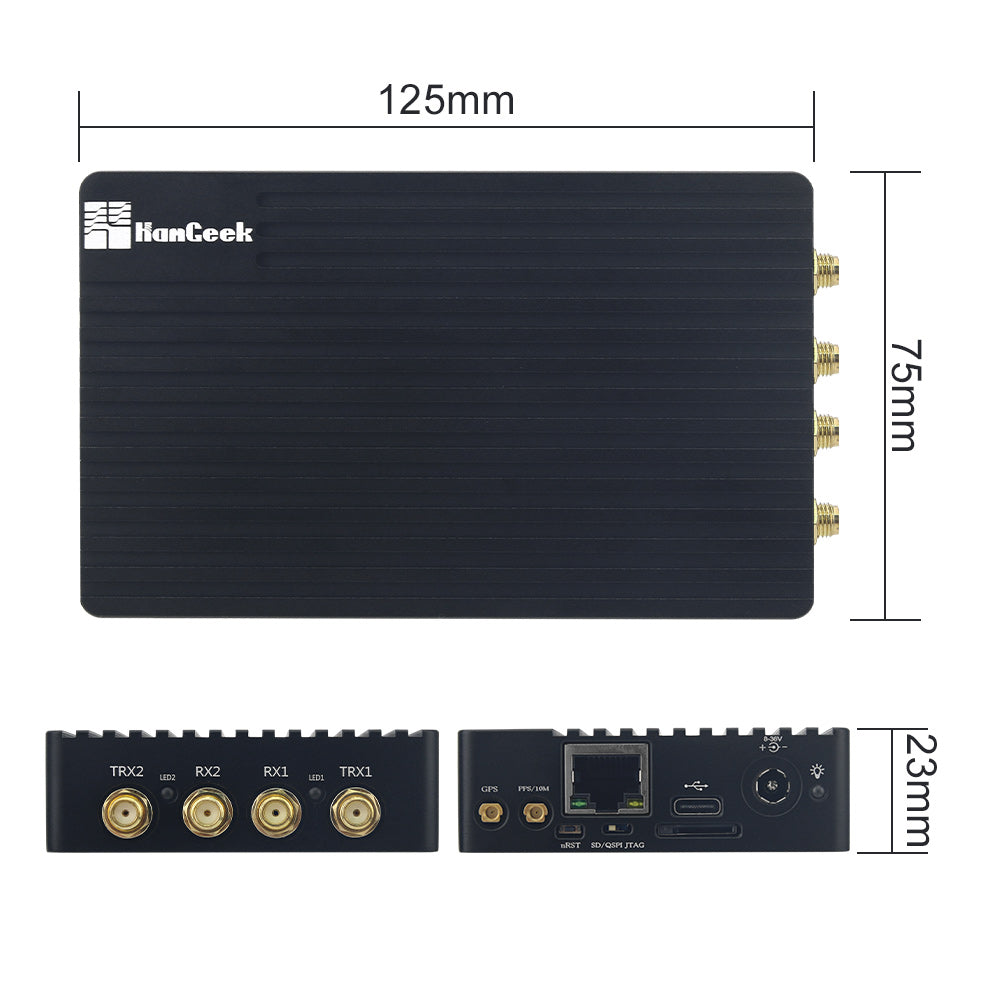

* Dimensions: Board only: 115mm x 70mm; Enclosure case: 125mm x 75mm x 23mm

* Protection Level: Static electricity protection on all external interfaces; shield protection on clock and RF

* Power Supply: 8-36V Ultra-wide voltage supply (Limit: 50V)

* Operating Temperature: -40°C to 85°C

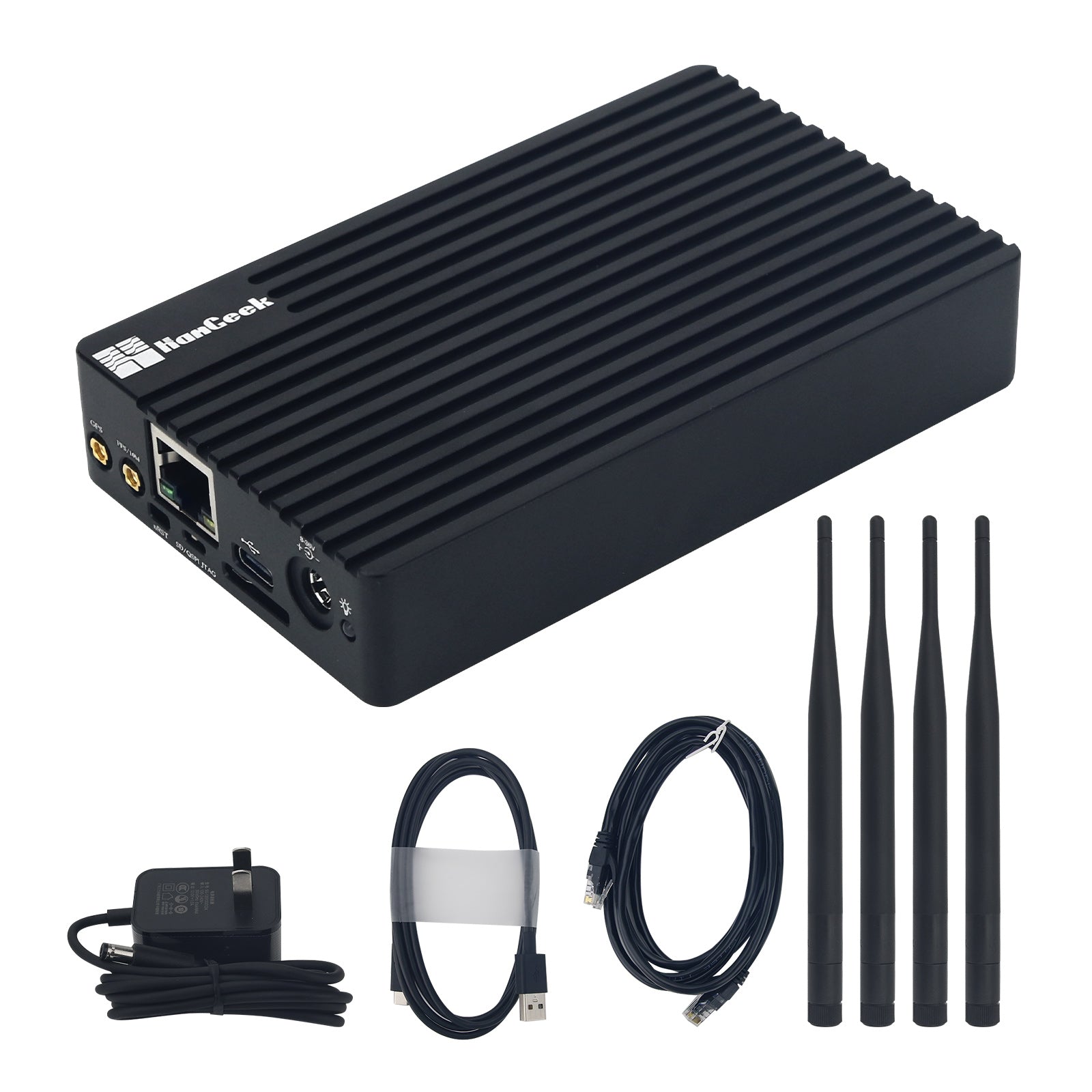

* 1 x HamGeek HG63 Pro SDR

* 1 x Power Adapter

* 1 x USB Cable

* 1 x Gigabit Network Cable

* 4 x Antennas

* Package weight: 0.6kg
