HFPA5W High Flatness 0.5-55M Shortwave 5W RF Power Amplifier HF Power Driver with SMA Female Connector
Precio habitual
$66.90
Precio habitual
Precio de oferta
$66.90
Precio unitario
por
Impuesto incluido.
Los gastos de envío se calculan en la pantalla de pago.
No se pudo cargar la disponibilidad de retiro
Precio habitual
$66.90
Precio habitual
Precio de oferta
$66.90

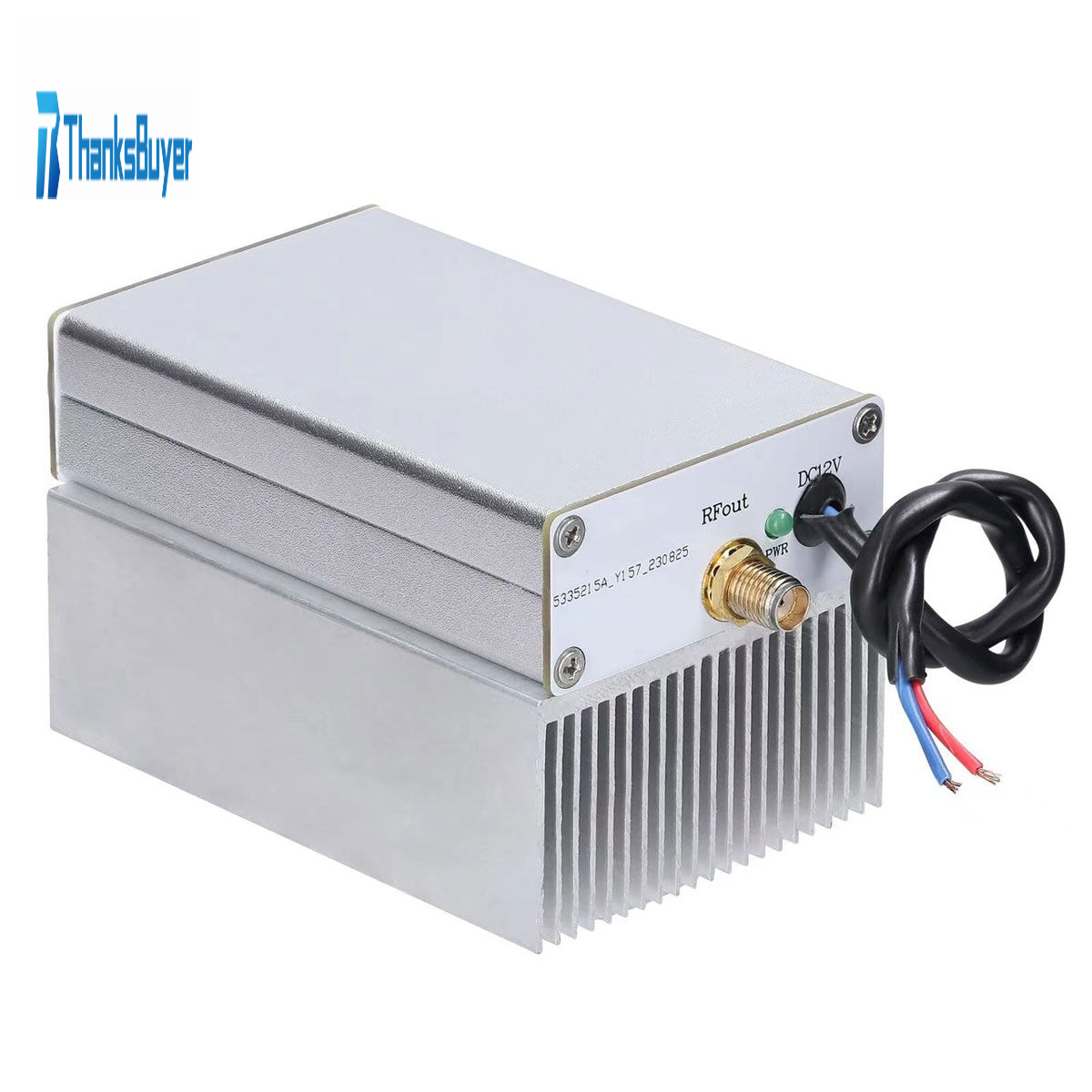

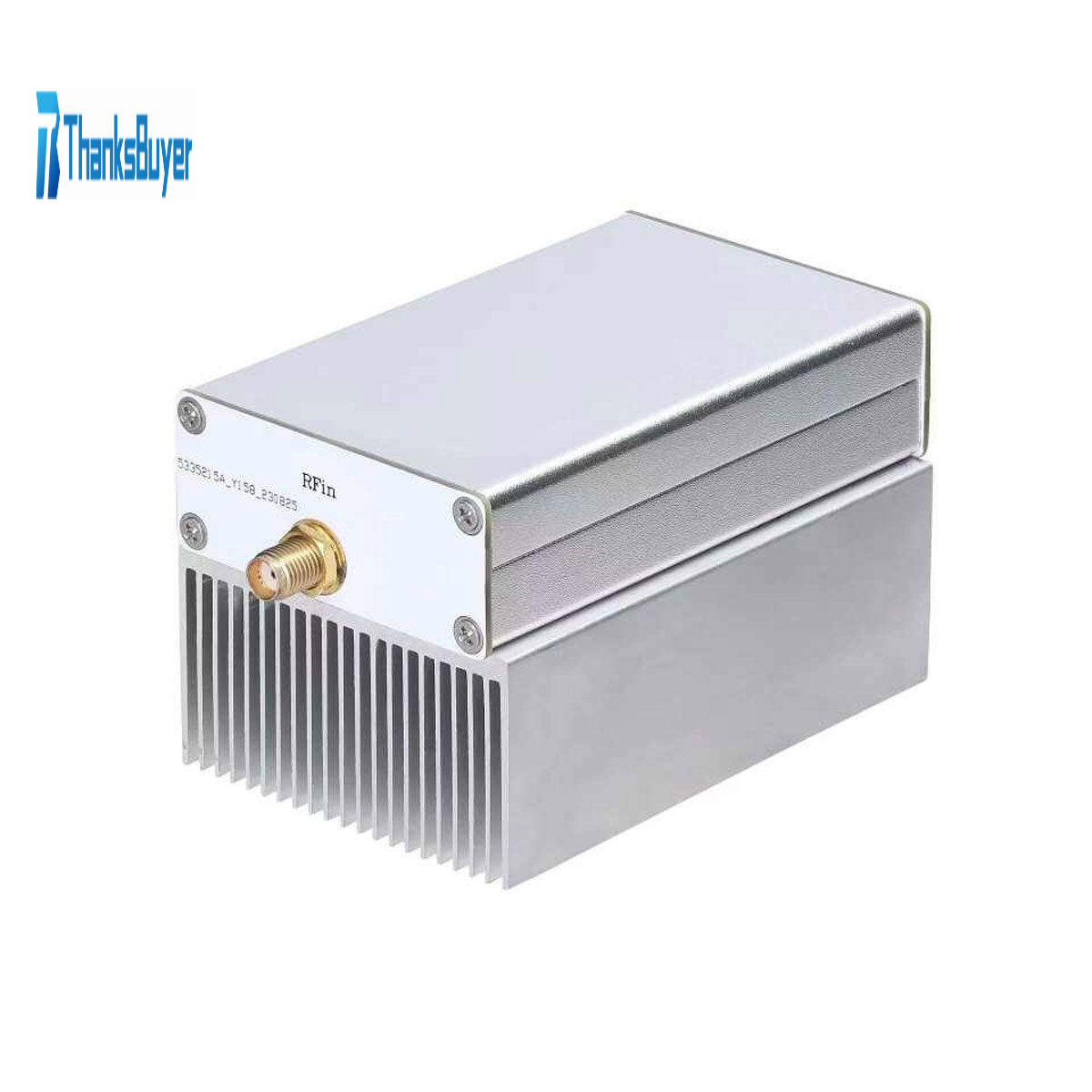

HFPA5W High Flatness 0.5-55M Shortwave 5W RF Power Amplifier HF Power Driver with SMA Female Connector
Specification:
- Power gain (PG): 37dB typ.
- Input power (Pin): 0dBm (1mW) typ.
- Output power (Po): 37dBm typ.
- Power supply voltage (Vin): 12V typ.
- Working current: 1.1A typ.
- Input and output impedance: 50ohms (SMA female connector)
Package Included:
- 1 x Power Amplifier
