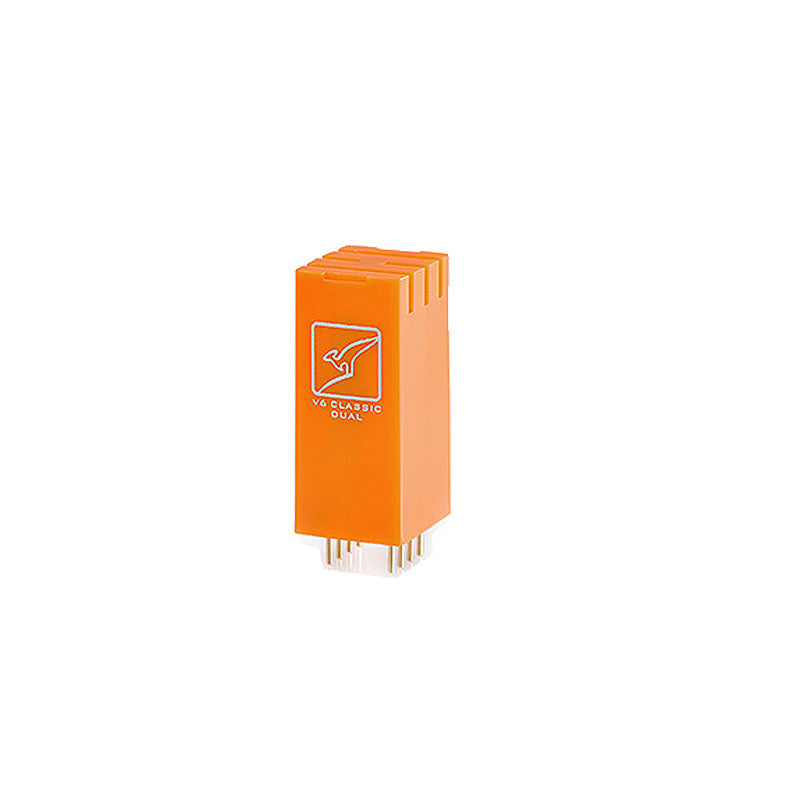

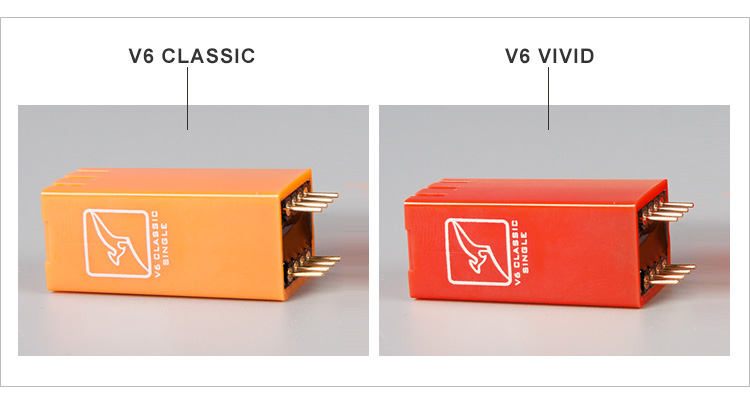

HIFI Burson V6 Vivid Classic HiEnd Pure Discrete Single and Dual Op Amp IC Chip (Classic Dual x 1)

HIFI Burson V6 Vivid Classic HiEnd Pure Discrete Single and Dual Op Amp IC Chip (Classic Dual x 1)

Description:
- Models often replaced by single op amps: NE5534, LT1122, TL071, OPA134, OPA627, AD811, AD829, AD844, OPA604, AD8610, AD711, AD797, LME49990, LME49710
- Dual op amps often replaced models: AD823, AD823AN, AD8066, AD8620, AD712, AD827, C4570, JRC4556AD, JRC4580, JRC5532, JRC5532D, JRC5534, LF353, LM4562, LME49860, LM833N, MUSES8920, NE5532, NEC4520, NEC4570 NJM2114, NJM2214D, NJM4558, NJM4558D, NJM4560, NJM5532, NJM4558P, OP275, OPA1612, OPA2277PA, OPA2132, OPA2134, OPA2604, JRC4558, RC455807D, RC455801, RC455807D, RC455801, MUSES052, MUSES 883

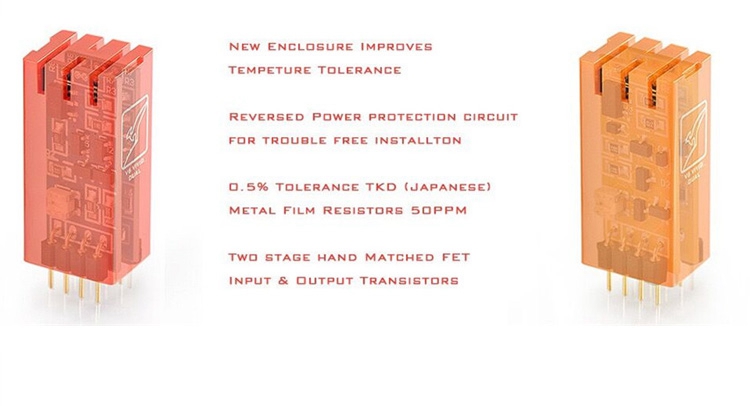

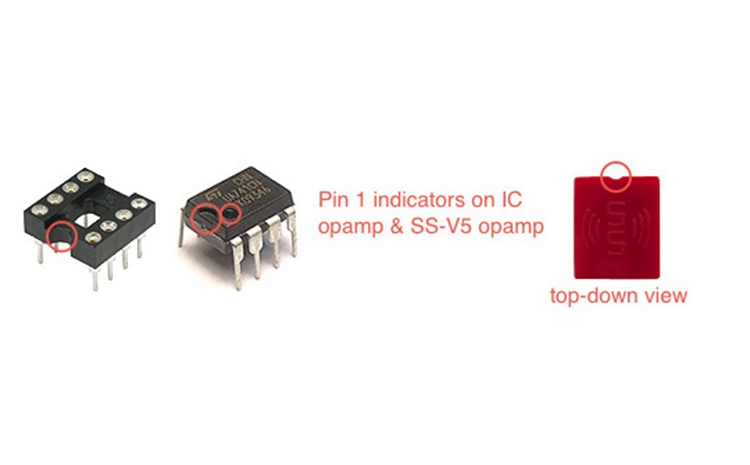

- The reverse voltage protection of this product reduces the possibility that the op amp will burn out due to reverse installation.

Parameter:
- Minimum Supply Voltage: ±3.5V / 7VDC
- Maximum Supply Voltage: ±16.5V / 33VDC
- Current Consumption: 14mA
- Unity Gain (I/V) Stable: yes
- Reverse Voltage Protection: yes

Package Included:
- 1 x Classic Dual

Note:
- The operational amplifier module needs 100 hours of burn-in to achieve the designed effects.
- Burn-in method: Constant burn-in and Acceleration use are both acceptable.
